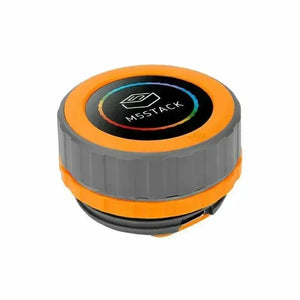

M5Dial is an innovative smart knob module that combines a rotary encoder and an integrated display for a wide range of interactive applications. M5Dial provides a convenient programming interface that supports a wide range of development environments to help developers realise creative projects.

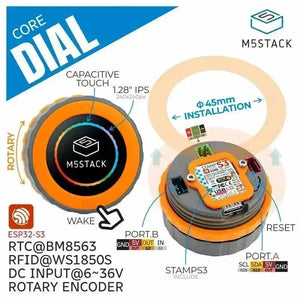

Features
- Rotary Encoder: Accurately records knob position and direction, enhancing interaction for adjusting volume, brightness, and controlling home applications like lights and air conditioning.
- Main Controller (M5StampS3): Based on ESP32-S3 chip, supports Wi-Fi, SPI, I2C, UART, ADC, and includes 8MB Flash storage.
- Built-in Display Screen: Shows various interaction colors and effects.
- RFID Detection: Recognizes RFID cards and tags at 13.56MHz for access control, identity verification, and payments.
- Additional Features: Onboard buzzer and physical button for sound prompts and wake-up operations.
- Expansion Interfaces: Two PORTA and PORTB interfaces for I2C and GPIO device connections.
Includes
-
1x M5Dial
Applications
-
Smart home control
-
Internet of Things Project
-
Access control system
-
industrial control
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3@Xtensa LX7 ,8M-FLASH,WIFI,OTG/CDC Function |
| Voltage input range | 6-36V |
| Screen driver | GC9A01 1.28 Inch 240x240px |
| Touch driver | FT3267 |
| RFID | WS1850S |
| Standby current (battery-powered standby current) | DC4.2V/1.9uA |
| Working current | DC6V power supply : DC6V/140.6mA DC12V power supply: DC12V/82.5mA DC36V power supply: DC36V/28.1mA |
| Product Size | 45*45*32.3mm |
| Package Size | 163*120*59mm |
| Product Weight | 46.6g |
| Package Weight | 83.83g |
Have Fun with M5Stack Dial
First of all, we need download a M5Burner
M5Burner for Windows: Download
M5Burner for MacOS: Download
M5Burner for Linux: Download
The M5Dial is a versatile embedded development board designed for various smart home control applications. It is equipped with a 1.28-inch round TFT touch screen, a rotary encoder, an RFID detection module, an RTC circuit, a buzzer and under-screen buttons, making it easy for users to create a wide range of innovative projects.
At the heart of the M5Dial is the M5StampS3, a micro-module based on the ESP32-S3 chip, known for its high performance and low power consumption. It supports Wi-Fi and various peripheral interfaces such as SPI, I2C, UART and ADC. The M5StampS3 also includes 8MB of on-chip flash, providing users with ample storage space.
One of the standout features of the M5Dial is its rotary encoder, which accurately tracks the position and direction of the dial, enhancing the interactive experience. Users can use the dial to adjust settings such as volume, brightness and menu options, or control home applications such as lights, air conditioning and curtains. The integrated screen allows for different interaction colors and effects.
With its compact and lightweight design, the M5Dial is suitable for various embedded applications. Whether it’s controlling home devices in the smart home domain or monitoring and controlling systems in industrial automation, the M5Dial can be easily integrated to provide intelligent control and interaction capabilities.
The M5Dial also includes RFID detection, allowing for the recognition of RFID cards and tags operating at 13.56MHz. This function can be used for applications such as access control, identity verification, and payments. Additionally, the M5Dial is equipped with an RTC circuit to maintain accurate time and date, an onboard buzzer for sound prompts, and a physical button for wake-up operations.
The M5Dial offers versatile power supply options to meet various needs. It accepts a wide range of input voltages, from 6-36V DC, and features a battery port with a built-in charging circuit for seamless connection to external Lithium batteries. Users can power the M5Dial via USB-C, the DC interface, or an external battery for on-the-go convenience. The M5Dial also includes two PORTA and PORTB interfaces, supporting the expansion of I2C and GPIO devices. Users can connect various sensors, actuators, displays, and other peripherals through these interfaces, adding more functionality and possibilities.
