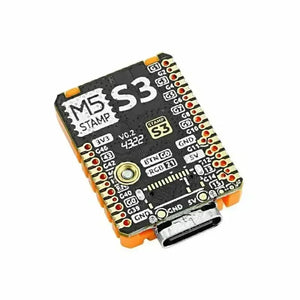

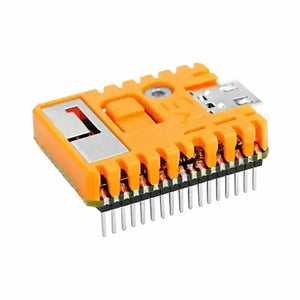

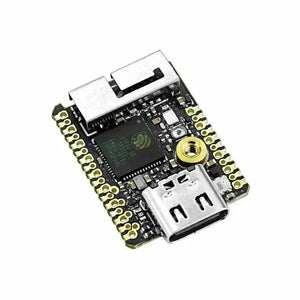

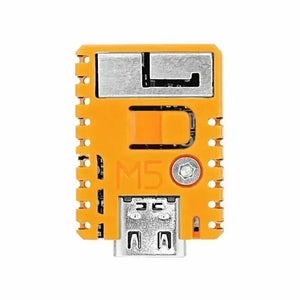

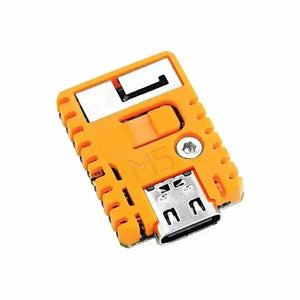

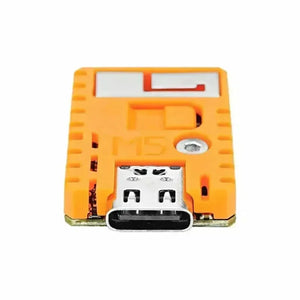

The M5StampS3 series is a highly integrated embedded controller powered by the ESP32-S3FN8 chip. Both variants, M5StampS3 PIN1.27 and M5StampS3 PIN2.54, are equipped with 8MB SPI flash memory for ample storage capacity and a high-performance Xtensa 32-bit LX7 dual-core processor, capable of running at up to 240MHz, delivering exceptional processing power for demanding applications.
The M5StampS3 PIN1.27/2.54 is an excellent main control module that effectively combines compactness and performance. Its small form factor allows for easy integration while offering a wide range of expansion I/O options for customization and scalability. Designed with low power consumption in mind, it ensures efficient energy use for prolonged operation. Whether you are developing Internet of Things (IoT) applications or other embedded projects, the M5StampS3 PIN1.27/2.54 provides powerful performance, rich I/O capabilities, and energy efficiency, making it an ideal choice for your needs.
Key Features
-
Compact Design with Two PIN Spacing Options: PIN1.27: Features a 1.27mm spacing needle; PIN2.54: Features a 2.54mm spacing needle. Both options lead out 23 GPIOs from the ESP32-S3 chip, ensuring seamless connection and expansion possibilities with other devices while catering to different integration preferences.
-
Rich IO Expansion:
Both modules provide extensive IO capabilities, offering users the flexibility to integrate additional components and scale their projects as needed.
-
Efficient and Energy-Saving:
Designed for low power consumption, these modules are perfect for applications requiring extended operation with efficient energy usage.
-
Robust Performance:
Compact yet powerful, the M5StampS3 series ensures a balance of size and performance, making it an ideal choice for IoT applications, embedded projects, and other scenarios requiring a powerful yet flexible main control module.
Features
-
ESP32-S3FN8(2.4GHz Wi-Fi)
-
Integrated programmable RGB LED and button
-
1.27mm pin header
-
Support UIFlow graphical programming
Includes
-
1 * M5StampS3 PIN1.27
-
1 * Silk screen stickers
Applications
-
Smart home
-
Wearables
-
Medical equipment
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| DCDC | Highly integrated MUN3CAD01-SC |
| Flash | 8MB |
| Input voltage | 5V |
| Interactive | Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1 |
| Antenna type | 2.4G 3D antenna |
| Module resource interface | Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter |
| IO interface x23 | G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46 |
| Pin header spacing | 1.27mm |
| lcd interface spacing | 0.5mm@12pin or 8pin |
| Operating temperature | 0°C to 40°C |
| Product Size | 26mm × 18mm × 4.6mm |
| Package Size | 136mm × 92mm × 13mm |
| Product Weight | 3.1g |
| Package Weight | 5.6g |
