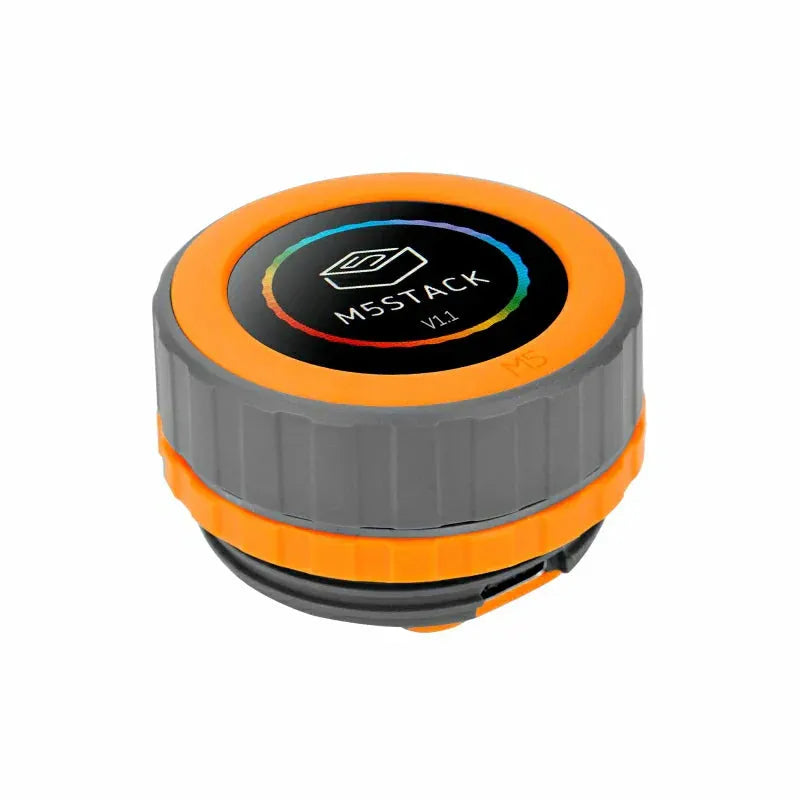

M5Stack Dial v1.1 - ESP32-S3 Smart Rotary Knob with 1.28inch Round Touch Screen

39,55 €

M5Stack Dial v1.1 is a compact ESP32-S3 smart rotary knob controller with a 1.28-inch round touch screen, rotary encoder, RFID reader, and wide power input support. Based on official M5Stack documentation, the Dial v1.1 is designed for smart home control, IoT interfaces, access systems, and industrial control. For this product, the strongest optimization direction is Home Assistant control panels and smart home rotary interfaces, because the combination of touch, encoder input, screen UI, Wi-Fi, and compact wall-or-desktop form makes it especially suitable for local dashboards and scene control.

Official M5Stack materials also show a dedicated Smart Home GUI demo, wide DC 6-36V input support, battery interface, and expandable PORT.A / PORT.B connectivity. That makes the M5-K130-V11 a strong fit not only for Home Assistant dashboards, but also for room control panels, rotary media controllers, access control terminals, and custom HMI projects built with UiFlow2, Arduino, ESP-IDF, or PlatformIO.

Features

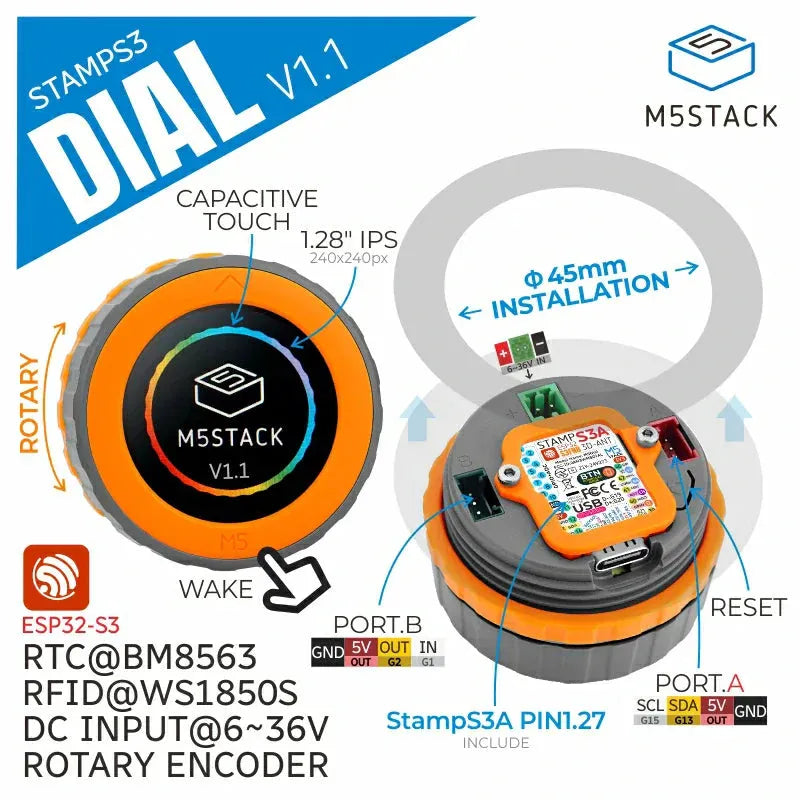

  • ESP32-S3 based smart rotary controller using the upgraded StampS3A core module

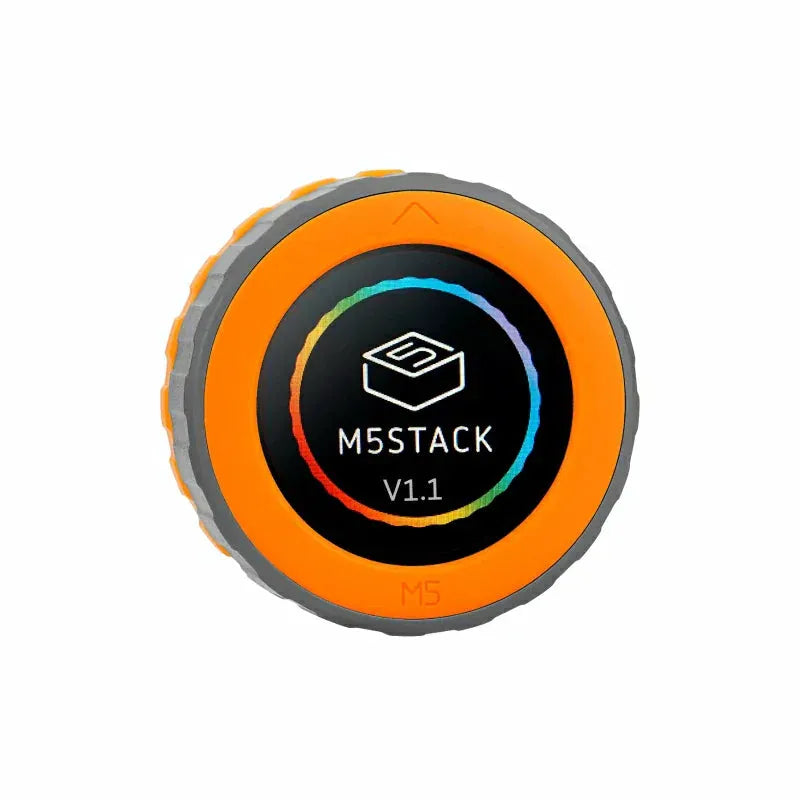

  • 1.28-inch 240 x 240 round touch display for compact HMI and dashboard interfaces
  • Rotary encoder + touch interaction for volume control, scene switching, menu navigation, and parameter adjustment
  • Built-in RFID reader based on WS1850S with 13.56MHz and ISO/IEC 14443 Type A / Type B support
  • Wide DC 6-36V input plus battery connector for embedded control and smart home deployments

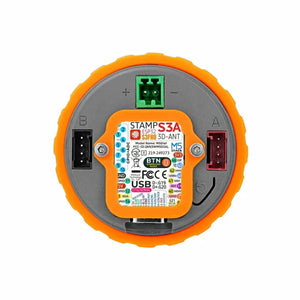

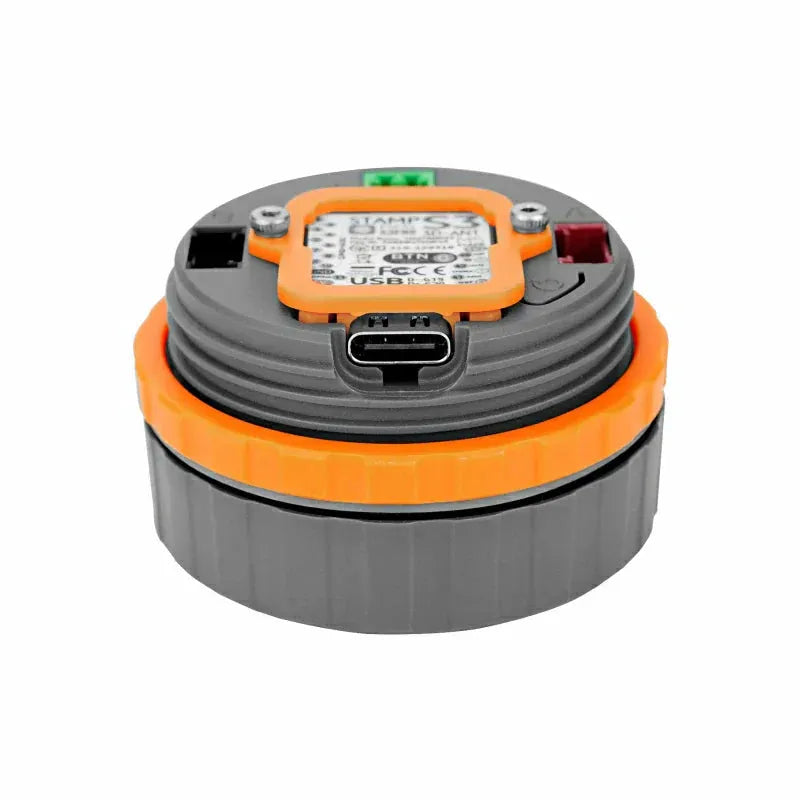

  • PORT.A and PORT.B expansion for I2C and GPIO peripheral integration
  • Strong Home Assistant potential as a rotary smart home panel, room controller, and dashboard terminal
  • Multiple development paths through UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO

Specifications

Parameter Details
Brand M5Stack
Model Dial v1.1
SoC ESP32-S3 (Xtensa LX7), 8MB Flash, Wi-Fi, OTG, CDC
Flash 8MB
Display GC9A01, 1.28 inch, 240 x 240px
Touch Driver FT3267
RFID WS1850S, 13.56 MHz, ISO/IEC 14443 Type A / Type B
Encoder 16 positions, 64 pulses per revolution
Buzzer 80dB
Wide Voltage Input DC 6-36V
Battery Socket 1.25mm-2P
Sleep Current USB power: DC 5V@6.84mA, battery only: DC 4V@6uA
Working Current USB power: DC 5V@88.19mA, battery only: DC 4V@100mA
Working Temperature 0-40C
Product Size 51.0 x 51.0 x 32.3mm
Product Weight 46.2g

M5Stack Dial v1.1 comparison image

Applications

  • Home Assistant wall panel or desktop control dial for scenes, lights, climate, and room status display
  • Smart home control interfaces using touch plus rotary input for intuitive local interaction
  • Access control and RFID interaction for card-based triggering, identification, or check-in systems
  • IoT control terminals with Wi-Fi connectivity and external sensor or actuator expansion
  • Industrial HMI and rotary UI projects where compact display and physical interaction are both required
  • Media, audio, and parameter controllers for volume, mode, brightness, or custom device control

Packing List

  • Dial v1.1 x1
  • L-shaped 1.5mm hex key x1
  • 2.54-2P terminal x1

Other Content

The biggest practical advantage of the M5Stack Dial v1.1 is that it combines several interface methods in one very small device: touch display, rotary encoder, RFID, buzzer, and wireless connectivity. This makes it more useful than a simple screen module or plain encoder board when building local smart home controls, especially for Home Assistant style dashboards and scene selectors.

M5Stack also provides official software paths that make the device easier to deploy. The official UiFlow2 environment is suitable for rapid prototyping, while the Arduino library, ESP-IDF board support, and Smart Home GUI demo are better suited for deeper customization. This means the Dial v1.1 works both as a ready-to-demo smart home controller and as a serious embedded HMI development platform.

M5Stack Dial v1.1 schematic preview 1

M5Stack Dial v1.1 dimension image

Resources

FAQ

Is the M5Stack Dial v1.1 suitable for Home Assistant projects?

Yes. Based on its official hardware design and M5Stack's smart home positioning, the Dial v1.1 is well suited to Home Assistant control panels, rotary dashboards, and local smart home interfaces.

What makes this version different from the earlier Dial?

Official M5Stack documentation highlights the upgraded StampS3A core, optimized antenna design, improved key feel, and lower power optimization in Dial v1.1.

Can the device read RFID cards?

Yes. The board includes a WS1850S RFID module supporting 13.56MHz and ISO/IEC 14443 Type A / Type B protocols.

What is included in the package?

The official package includes Dial v1.1, an L-shaped 1.5mm hex key, and a 2.54-2P terminal.

1. General Shipping Information

  • We provide premium shipping methods with a tracking number for each order.
  • Shipping addresses must be entered in English without special symbols to help the courier company recognize your address in the system. We will ship strictly according to the shipping address you provided. Please notify us of any address change before your order is marked "Shipped" to avoid parcel loss.
  • Please contact our customer service staff immediately if you need to cancel or change an order. Once your order has reached "Shipped" status, it can no longer be canceled or changed in any way. To avoid complications, please recheck your shopping cart before checkout.
  • We can ship all in-stock orders within 1 business day after your order has been confirmed.
  • All items are inspected before dispatch and are carefully hand-packed.
  • With standard courier practice, you need to check the contents of the parcel before signing for your goods. Otherwise, we will not be held responsible for any damage that may have occurred in transit.

🚀 Need Faster Shipping?

If you require expedited shipping (Express), please contact our customer support team at info@openelab.io for a customized quote tailored to your location.

2. Shipping Rates & Options

Our shipping rates are calculated based on the order value and destination. Please refer to the tables below for details.

2.1 Germany (Domestic)

Shipping Method Order Value Cost Est. Delivery
Deutsche Post €0 - €50.00 €4.95 2-4 Business Days
Deutsche Post Over €50.00 Free 2-4 Business Days
DHL Paket
(Faster Delivery)		 €0 - €50.00 €6.95 1-3 Business Days
DHL Paket
