PRODUCT DETAILS:

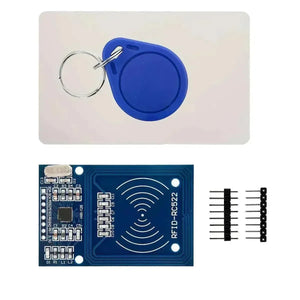

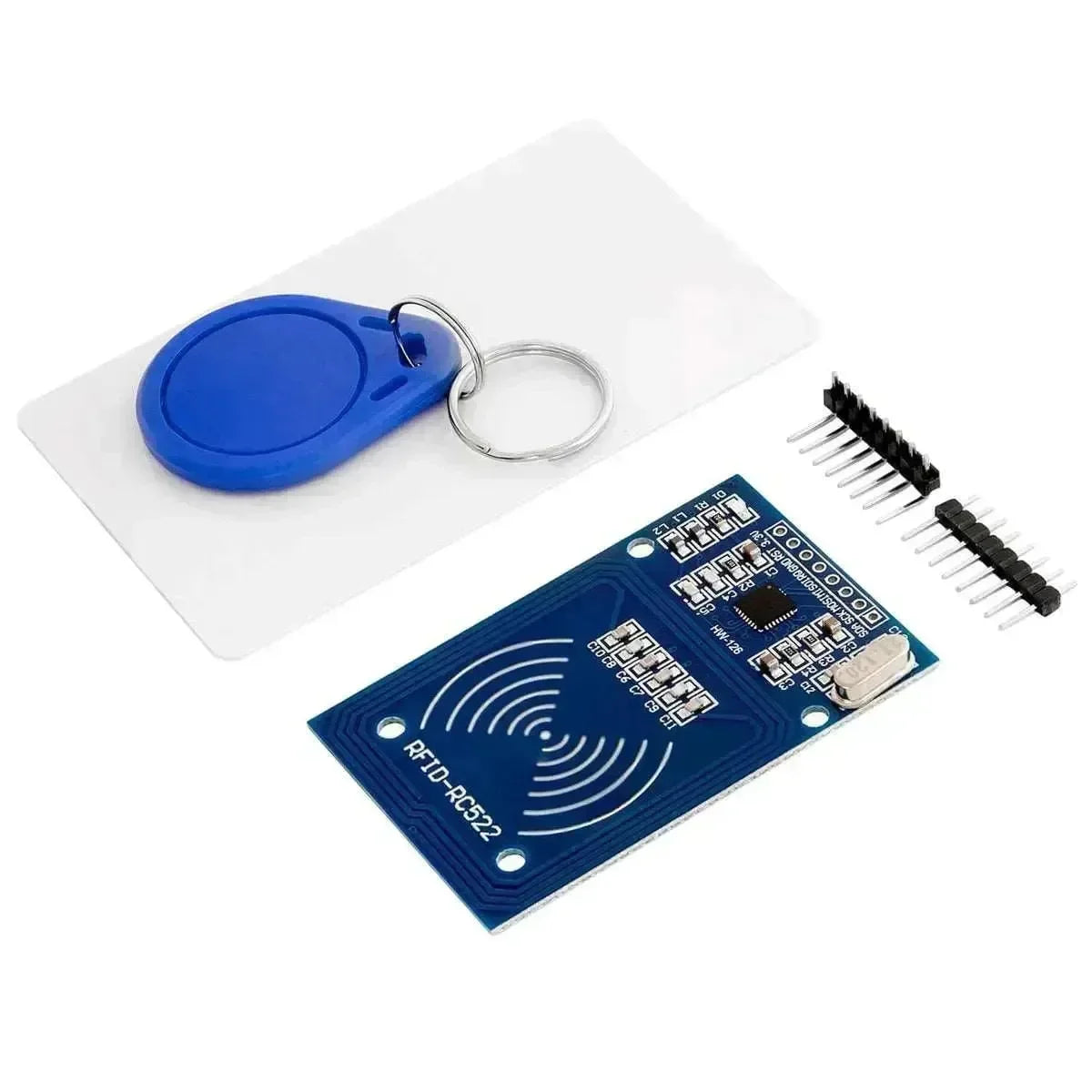

RFID kit RC522 with MIFARE transponder and RFID card including e-book for download, which simplifies the beginning very much especially for beginners. The RFID RC522 module is based on the Philips MF522-AN board and is delivered together with a S50 card (13.56MHz), a S50 transponder / key fob and two matching pin headers.
Particularities
- Thanks to the contactless reader and writer card chip and the unique combination of functions and applications in the new technologies: Automation and Artificial Intelligence.
- No batteries needed: are activated By the reader's power source.
- This means that tags can be very small - so small that they can be embedded in miniature devices.
Technical specifications
| Chip | Mfrc522 |
| Dimensions | 40 x 60mm |
| Operating frequency | 13.56MHz |
| Reading and writing spacing | <10 cm |
| Communication | SPI interface |
| Maximum data transfer rate | 10Mbit/s |
| Operating current | 13-26MA / 3.3V |
| Dormitory | 10-13MA / DC 3.3V |
| Operating temperature range | -20-80 degrees Celsius |
| Storage temperature range | -40-85 degrees Celsius |
