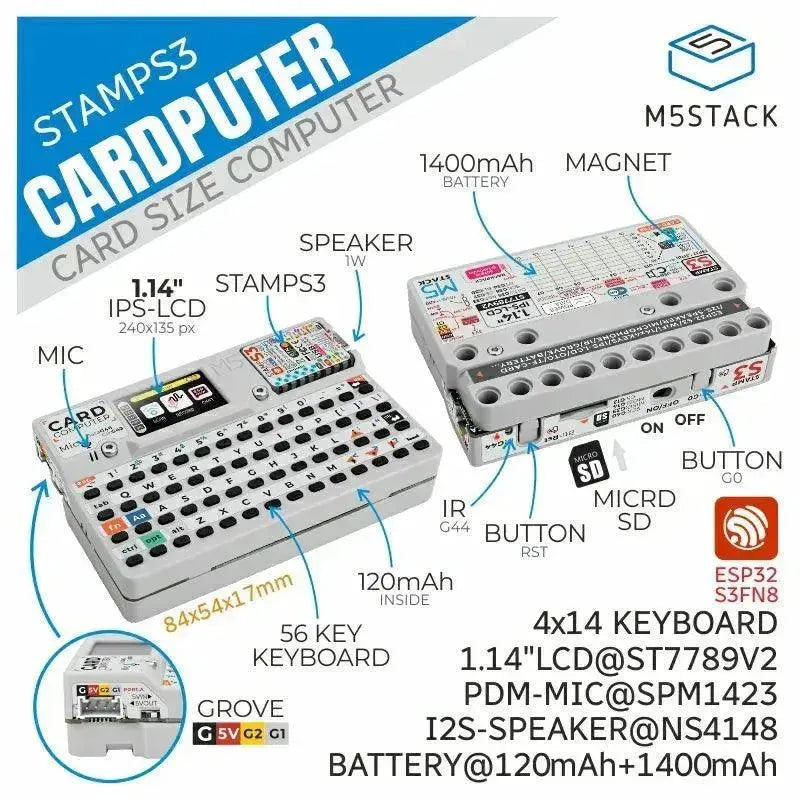

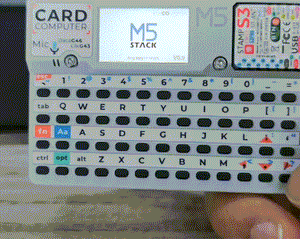

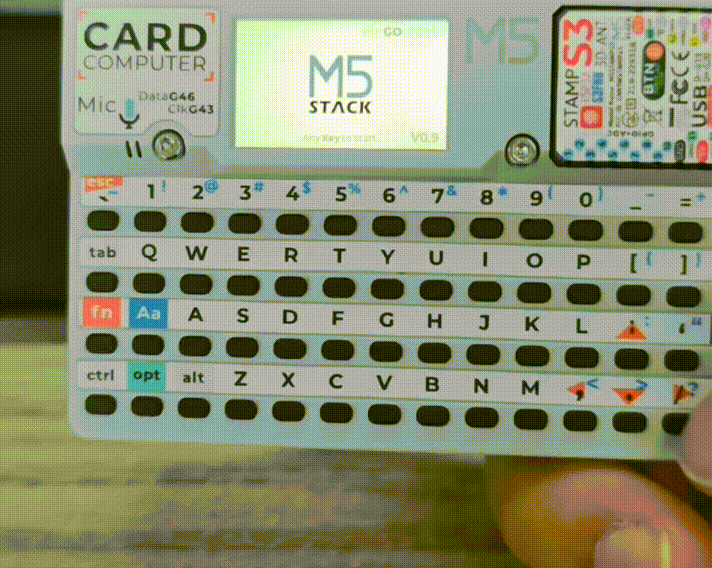

The M5Stack Cardputer is a compact, card-sized portable computer designed for engineers and developers. At its core lies the M5StampS3, a mini development board based on the ESP32-S3 chip. Here are some key features of the Cardputer.
- Powerful Dual-Core Processor: The M5StampS3 features a dual-core processor, providing ample processing power.
- Wi-Fi Connectivity: It supports Wi-Fi functionality, allowing for wireless communication.
- BLE Connectivity: It supports Bluetooth Low Energy (BLE), aims to provide considerably reduced power consumption compared to Classic Bluetooth while maintaining a similar communication range.
- Integrated Peripherals and Sensors: The Cardputer integrates various peripherals and sensors, making it ideal for rapid functional verification, industrial control, and home automation systems.

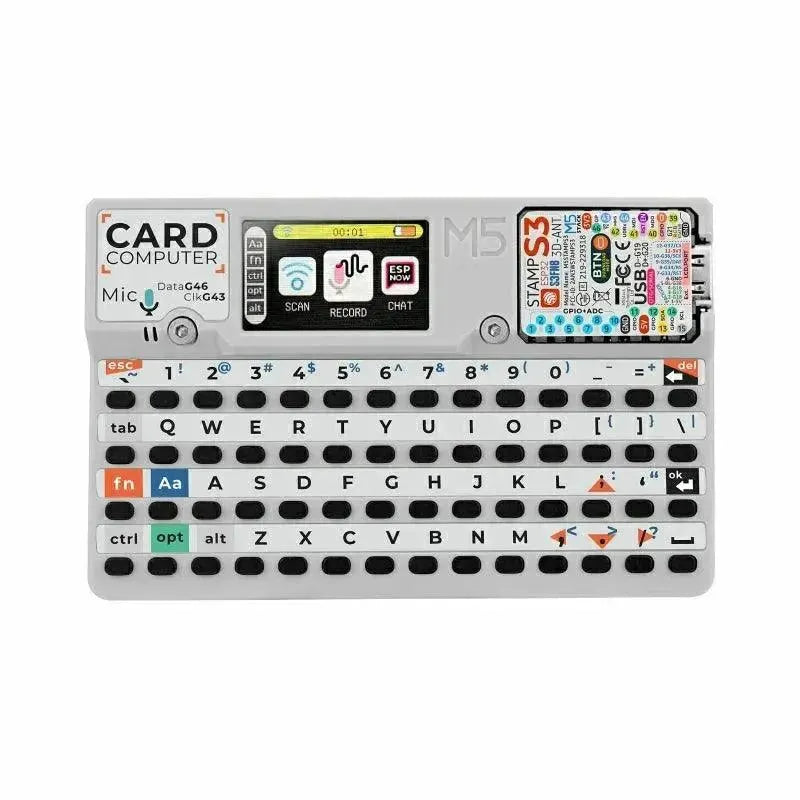

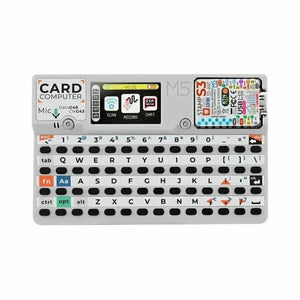

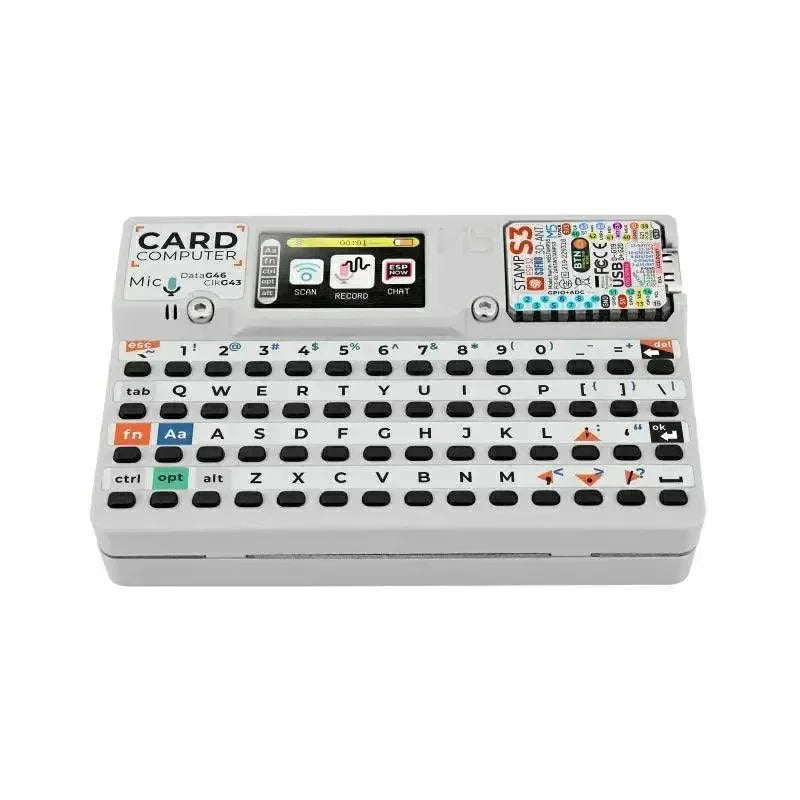

- User-Friendly Interface: It includes a 56-key keyboard and a 1.14-inch TFT screen for easy data entry and viewing.
- Voice Operations: With an on-board SPM1423 digital MEMS microphone and built-in speaker, voice operations like recording and audio playback are possible.
- Infrared Control Interaction: An infrared emitter enables interaction with external devices such as TVs or air conditioners.

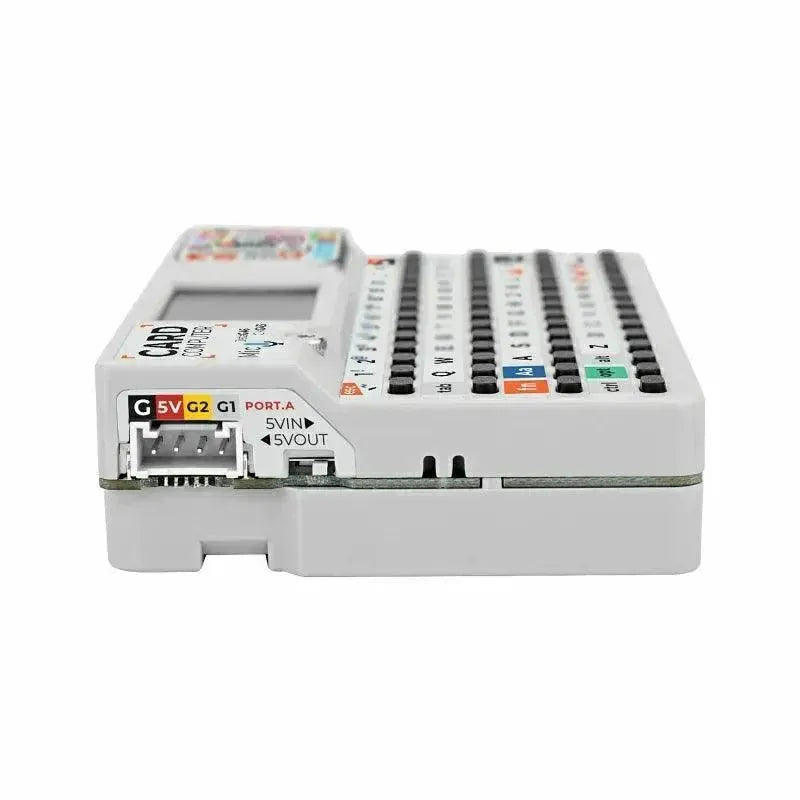

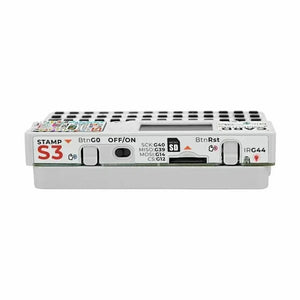

- Expandability: The HY2.0-4P interface allows for connecting and expanding I2C sensors (e.g., temperature, humidity, light, and pressure sensors).

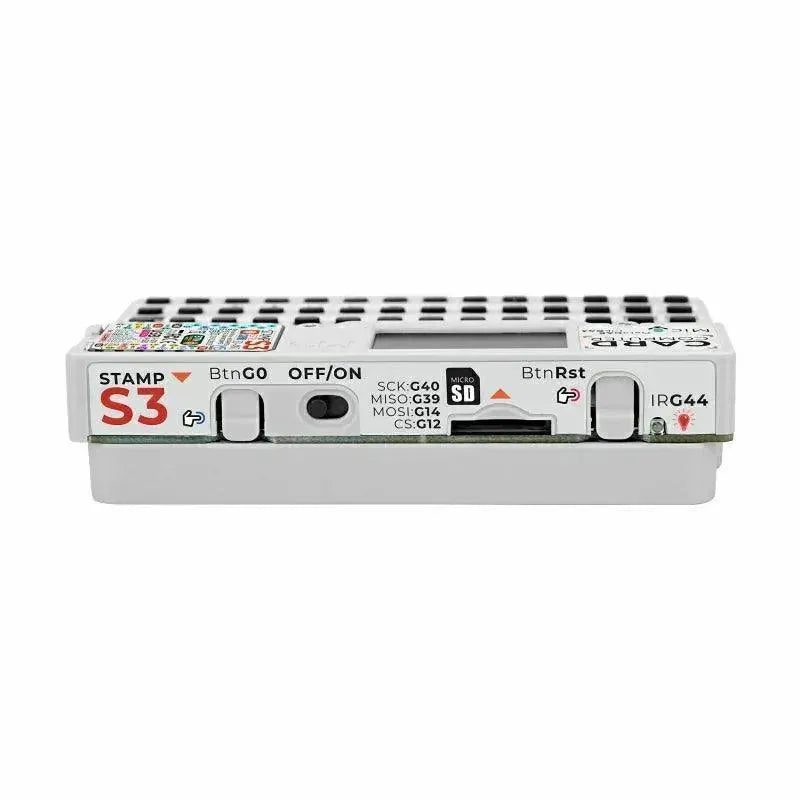

- Micro SD Card Slot: Users can expand storage space using the Micro SD card slot.
- Battery Life: Powered by an internal 120mAh+1400mAh lithium battery (in the base), the Cardputer eliminates battery life concerns.
- Magnetic Base: The base incorporates a magnet, allowing attachment to metal surfaces like fridges or whiteboards.
- Lego-Compatible Structure: Users can get creative by adding Lego bricks to the Cardputer’s structure.
Applications include fast functional verification, prototyping, industrial control, home automation, data acquisition, and embedded system development.
Includes
- 1x Cardputer
- 1x StampS3 Controller
- 1x Hex Key
- 1x 1400mAh Battery
Applications
-
Fast functional verification and prototyping
-
Industrial control and automation
-
Home Control System
-
Data acquisition and sensor monitoring
-
Embedded system development and learning
-
Wireless communication and Internet of Things (IoT) projects
Specification
|
Resources |
Parameters |
|---|---|
|
StampS3 |
ESP32-S3@Xtensa LX7 ,8M-FLASHWIFI,OTG/CDC Function |
|
Battery Capacity |
120mAh+1400mAh |
|
Screen |
ST7789V2@1.14 Inch、240*135px |
|
Infrared emission distance |
Infrared emission distance (linear distance) of ∠180° : 410cm Infrared emission distance of < 90° : 66cm Infrared emission distance of < 45° : 170cm |
|
Standby current |
DC4.2V/0.26uA |
|
Operating current |
IR emission mode :DC4.2V/ 255.6mA Key mode :DC4.2V/165.7mA |
|
Speaker |
8Ω@1W |
|
Product Size |
84*54*17mm |
|
Package Size |
149*94*18mm |
|
Product Weight |
92.8g |
|
Package Weight |
114g |
