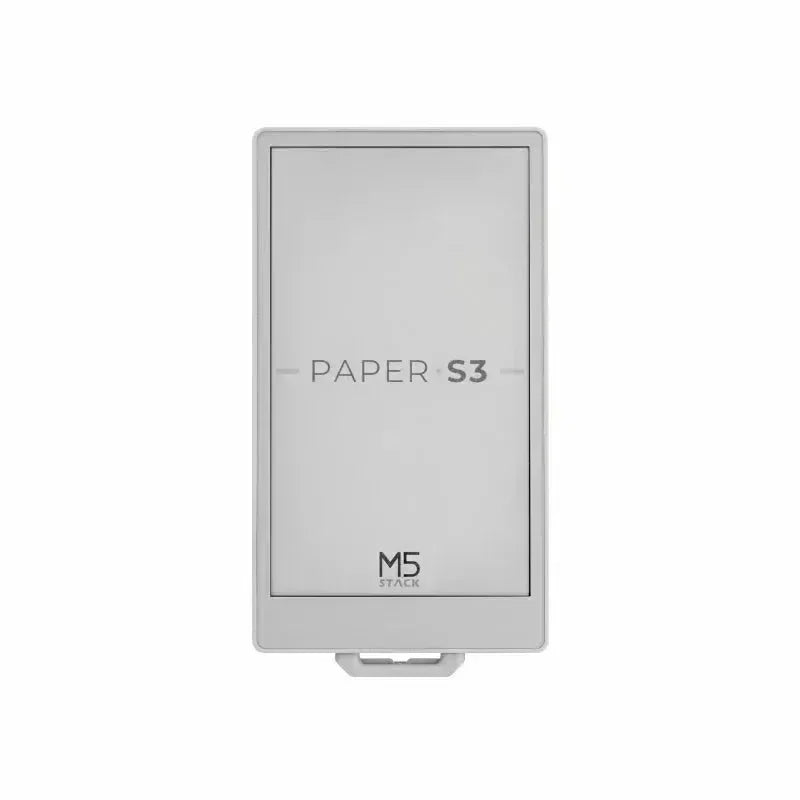

M5PaperS3 ESP32S3 Development Kit 960x540 4.7 inch E‑Ink Display 235 ppi [EOL]
Need a larger quantity?
Need bulk pricing?
Get a formal quotation with lead time and volume pricing.
For universities, companies, distributors, and project orders.
Bring clarity & efficiency to your IoT projects with the M5PaperS3 ESP32‑S3 Development Kit!
Featuring a 4.7″ 960×540 capacitive touch E‑Ink / E-Paper display, dual-core processor, Wi‑Fi connectivity, and ultra-low power consumption, it’s perfect for:
-
Smart home control panels
-
Industrial monitoring dashboards
-
Digital signage
-
Portable data loggers
With 8MB PSRAM, 16MB flash, MicroSD expansion, built-in gyroscope, RTC, and a 1800mAh rechargeable battery, the M5PaperS3 offers developers a versatile platform for building:
Always-on, Sunlight-readable, Energy-efficient IoT interfaces.
M5Stack M5PaperS3: Smart E-Ink Display Controller
The M5PaperS3 by M5Stack is a sleek, low-power e-ink display controller powered by the ESP32-S3 microcontroller, designed for modern embedded and IoT applications.
Touch-Integrated E-Ink Display
-
4.7” display with 540×960 resolution
-
Supports 16-level grayscale for crisp text rendering
-
Equipped with a GT911 capacitive touchscreen with dual-point touch and gesture recognition
-
Full-screen design enhances visual experience over traditional LCDs
-
E-ink technology offers ultra-low power usage and image retention during power-off
Built-In Interaction Components
-
Integrated gyroscope sensor for lift-to-wake functionality
-
Onboard buzzer and physical buttons for tactile feedback
-
Internal RTC (BM8563) enables smart sleep/wake cycles
-
Battery status circuit monitors health in real time
High-Efficiency Storage
-
ESP32-S3R8 with 8MB PSRAM
-
External 16MB Flash memory for faster access and greater capacity
-
MicroSD slot for removable data storage
Power System
-
Built-in 1800mAh lithium battery with charging support
-
Optimized for long battery life and continuous use
Connectivity & Expansion
-
Supports OTG functionality for external USB peripherals
-
Open HC1.25-4P interface for sensor integration and expansion modules
-
Enhanced antenna design for stronger signal performance
-
Includes a hanging hook for portability and installation flexibility
Ideal Use Cases Perfect for diverse applications like:
-
IoT monitoring
-
Smart home control panels
-
Environmental and health data tracking
-
E-labels and digital signage
-
Field data logging
Features
M5PaperS3 Specifications at a Glance
Main Controller: ESP32-S3R8
Interaction Features: Gyroscope, Buzzer & Physical Button
Memory: 8MB PSRAM + 16MB External Flash
Display: 4.7" Touch-enabled E-Ink Screen (540×960 resolution)
Battery: 1800mAh Lithium Battery with Charging Support
RTC: BM8563 for Sleep/Wake Scheduling
Efficiency: Low Power Consumption Design
Supported Development Platforms:
Includes
- 1x M5PaperS3
Recommended Applications for M5PaperS3
IoT Monitoring Track environmental data, device status, or remote sensors with low power and high clarity.
Smart Home Control Panels Use PaperS3 as a touch-based interface for home automation and system management.
Electronic Labeling & Signage Display price tags, shelf info, or dynamic labels that remain visible even without power.
Educational & Learning Tools Create interactive teaching aids, coding platforms, or low-distraction e-ink study companions.
Arduino
Specifications
| Specification | Details |
|---|---|
| SoC | ESP32S3R8, Xtensa 32-bit LX7 Dual-Core Processor, 240MHz, 2.4GHz Wi-Fi |
| PSRAM | 8MB PSRAM |
| Flash | 16MB External Flash |
| Storage | Supports MicroSD Card Expansion |
| Display Screen | 4.7inch Touch E-Ink Screen (EPD_ED047TC1) Resolution: 960x540 Pixels 16-level Grayscale Display |
| Touch Function | Supports Two-Point Touch and Various Gestures (GT911 Capacitive Touch Panel) |
| Sensors | Built-in Gyroscope Sensor BMI270 @ Communication Address: 0x68 |
| USB Function | OTG/CDC/MSC/Firmware Flashing |
| Power Input | 5V@500mA |
| Peripheral Interface | HY1.25-4P (3v3+GND+2xGPIO) for Extending Sensors and Devices |
| Battery | 3.7V@1800mAh @ Charging Chip: LGS4056H |
| Battery Connector | SMT-HDR 1.25-2P |
| Charging Current | 5V@176mA |
| Power Management | PMS150G (Power On/Off and Program Download Control) Built-in BM8563 RTC Chip @ Communication Address: 0x51 |
| Buttons | 1x Physical Button (for Device Control, Power On/Off, Reset, Download Mode) |
| Buzzer | Onboard Passive Buzzer |
| Wi-Fi | Communication range of 111 meters (in open space, with the antenna positioned vertically at 90° to the ground) |
| Power Consumption | Low power mode: DC 4.2V / 9.28µA (main power off, gyroscope in low power mode) Standby mode: DC 4.2V / 949.58µA (main power off, gyroscope on) Operating mode: DC 4.2V / 154.02mA (main power on) |
| Operating temperature | 0-40°C |
| Product Dimensions | 121.5*67.7*7.7mm |
| Package Dimensions | 133*76*19mm |
| Product Weight | 89.3g |
| Package Weight | 112.9g |
Schematics

PinMap
EPD_ED047TC1
| EPD_ED047TC1 | ESP32S3R8 |
|---|---|
| DB0 | GPIO6 |
| DB1 | GPIO14 |
| DB2 | GPIO7 |
| DB3 | GPIO12 |
| DB4 | GPIO9 |
| DB5 | GPIO11 |
| DB6 | GPIO8 |
| DB7 | GPIO10 |
| XSTL | GPIO13 |
| XLE | GPIO15 |
| SPV | GPIO17 |
| CKV | GPIO18 |
| PWR | GPIO45 |
GT911 & BM8563 & BMI270 & BAT_ADC & BUZZER
| ESP32S3R8 | GPIO41 | GPIO42 | GPIO48 | PMS150GU06-PA6/CIN- | GPIO3 | GPIO21 |
|---|---|---|---|---|---|---|
| GT911 | SDA | SCL | INT | |||
| BM8563 | SDA | SCL | INT | |||
| Battery Detect | ADC_VBAT | |||||
| Buzzer | BUZ_PWM |
microSD
| microSD | CS | SCK | MOSI | MISO |
|---|---|---|---|---|
| ESP32S3R8 | GPIO47 | GPIO39 | GPIO38 | GPIO40 |
USB Power Supply Detection
| ESP32S3R8 | G5 |
|---|---|
| USB Power Supply Detection | USB_DET |
Model Size

Softwares
Arduino
- M5PaperS3 Arduino Quick Start
- M5PaperS3 Arduino M5Unified Driver Library
- M5PaperS3 Arduino M5GFX Driver Library
UiFlow2
ESP-IDF
Easyloader
| Easyloader | Download Link | Notes |
|---|---|---|
| M5PaperS3 Factory Firmware | Download | / |
