What is the WisdPi 5Gbps USB3.2 Wired Base-T Ethernet Adapter?
In an era where Gigabit and 2.5G ports are widely adopted, WisdPi has introduced a future-proof 5Gbps USB-C network interface card (NIC). This device, powered by the Realtek RTL8157 chip, supports high-speed data transmission rates of 10/100/2500/5000Mbps, designed to deliver an efficient and portable networking solution. Its lightweight construction makes it an ideal option for both business and travel applications. Furthermore, it is compatible with a diverse array of operating systems, facilitating the upgrade of network-attached storage (NAS) devices, smartphones, laptops, or desktop computers to achieve 5Gbps transmission speeds. The next step is to assess its performance in practical applications.
Key Features
-
High-Speed Connectivity
- 5Gbps Ethernet: Supports data transfer rates up to 5Gbps, significantly enhancing network performance for tasks like large file transfers, high-definition video streaming, and online gaming.
- USB 3.2 Interface: Equipped with USB 3.2 Gen 1 standard to ensure maximum data throughput and compatibility with a wide range of devices.
-
Advanced Chipset
-
Realtek RTL8157: Powered by the high-performance USB 3.2 to 5Gbps Ethernet controller, renowned for its stability and efficient network processing capabilities, ensuring reliable operation even under heavy workloads.
-
Plug-and-Play
- Easy Installation: Designed for plug-and-play functionality with no need for additional drivers, as most operating systems automatically recognize and configure the network connection.
- Driver Support: For Linux users requiring manual driver installation, WisdPi offers detailed installation guides to ensure seamless setup.
-
Durable and Portable Design
- Compact Size: Lightweight and portable, perfect for desktop use or on-the-go networking needs, whether at a café, airport, or meeting room.
- Rugged Build: Constructed from high-quality materials for durability, meeting the demands of frequent use.
-
Enhanced Network Management
- Advanced Features: Supports auto-negotiation, crossover detection, and multiple IEEE standards (802.3, 802.3u, 802.3ab) to ensure optimal performance across various network environments.
- Network Sharing: Offers network sharing capabilities, allowing users to efficiently distribute internet connections to multiple devices.
Unboxing Introduction
The WisdPi 5Gbps USB-C network adapter comes in a sleek, minimalist green-and-white packaging design, with the "WisdPi" logo prominently displayed on the front.
The back of the box features a detailed English description of the product's features and specifications, clearly highlighting its key performance attributes and advantages.

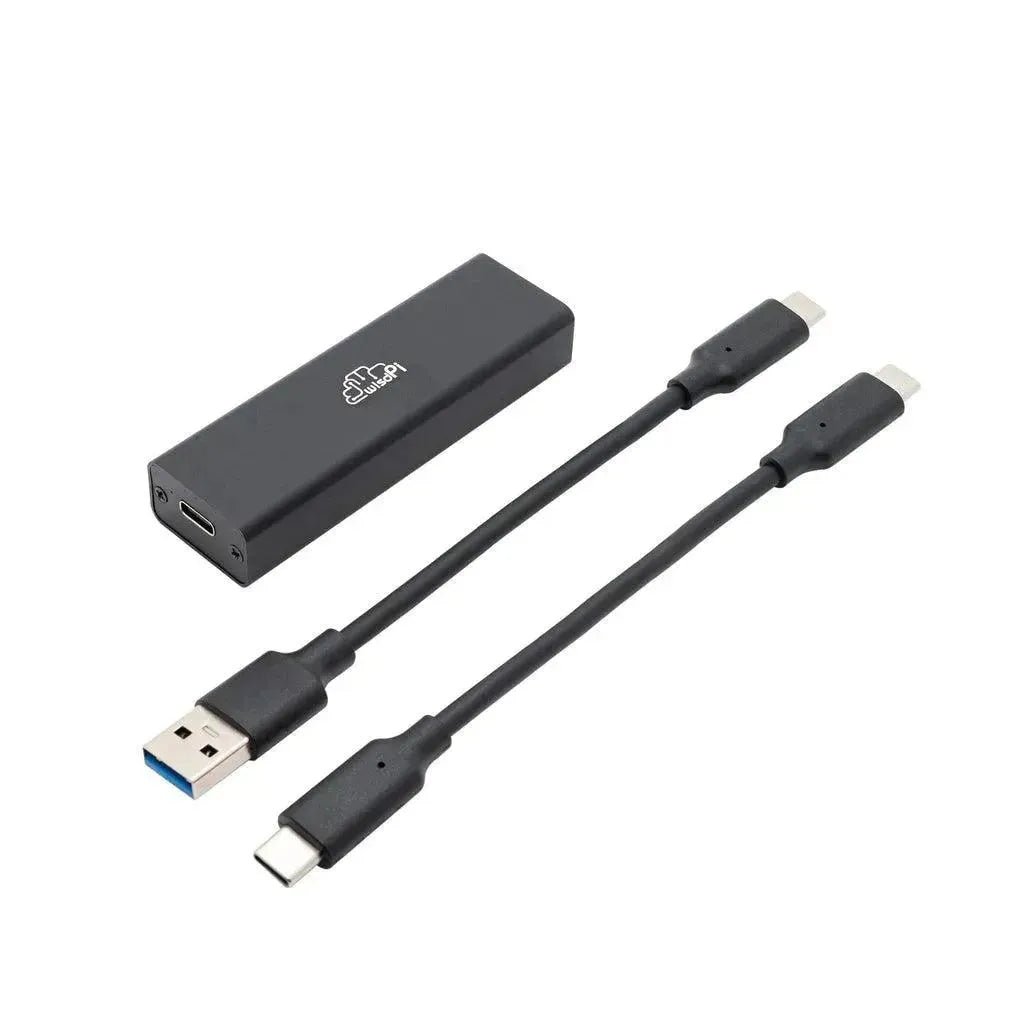

Inside the box, you'll find the WisdPi 5Gbps USB-C adapter itself, along with an A-to-C data cable, a C-to-C data cable, and a user manual, providing all the essentials for convenient use.
The WisdPi 5Gbps USB-C network adapter features a full aluminum alloy body with a matte finish, offering a refined texture and a comfortable grip that resists fingerprints. The front is adorned with the WisdPi brand and logo, presenting a minimalist and professional aesthetic.
The back is clearly labeled with the product name, model, and multiple authoritative certifications, including FCC, CE, and UKCA. Additionally, the manufacturer's details, Yuanzhou Intelligent (Shenzhen) Co., Ltd., are prominently displayed.
This network adapter is equipped with an adaptive 5GbE Ethernet port, supporting 10/100/1000/2500/5000 Mbps network connections. It caters to various high-speed networking needs, showcasing its exceptional compatibility and performance.
On the opposite side of the USB-C network adapter, there is a USB-C port for seamless connectivity. By unscrewing the screws on both sides of the WisdPi 5Gbps USB-C network adapter, the PCBA board can be easily removed. The most critical component, the network chip, is covered with a black heatsink for effective thermal management.
By measuring, the length of the C to C wire is about 16cm.
The length of the A to C cable is approximately 17cm.
The WisdPi 5Gbps USB-C NIC body length is approximately 82.16mm.
The body of the WisdPi 5Gbps USB-C NIC is approximately 27.29mm wide.
The thickness is approximately 15.26mm.
Weighing in at about 33.5g, the WisdPi 5Gbps USB-C network card is lightweight and portable, making it perfect for use on the go.
The WisdPi 5Gbps USB-C network adapter combines simplicity with elegance in its design. Crafted from full aluminum alloy with a matte finish, it offers a comfortable grip while effectively resisting fingerprints. Its compact and lightweight form factor makes it an excellent choice for mobile work and travel, ensuring easy portability.
In terms of performance, real-world tests show that the adapter supports network transfer speeds of up to 5Gbps while remaining backward compatible with various network standards. This ensures fast and stable data transmission across different devices, with reliability reinforced by multiple authoritative certifications.
Functionally, the WisdPi 5Gbps USB-C adapter provides an adaptive 5GbE Ethernet port, ideal for extending network capabilities. Its modular design ensures compatibility with a wide range of devices, allowing users to easily connect smartphones, tablets, or computers for an efficient networking experience. The adapter also supports bidirectional network sharing, making it a versatile solution for office work, gaming, and entertainment, catering to diverse scenarios with ease.
