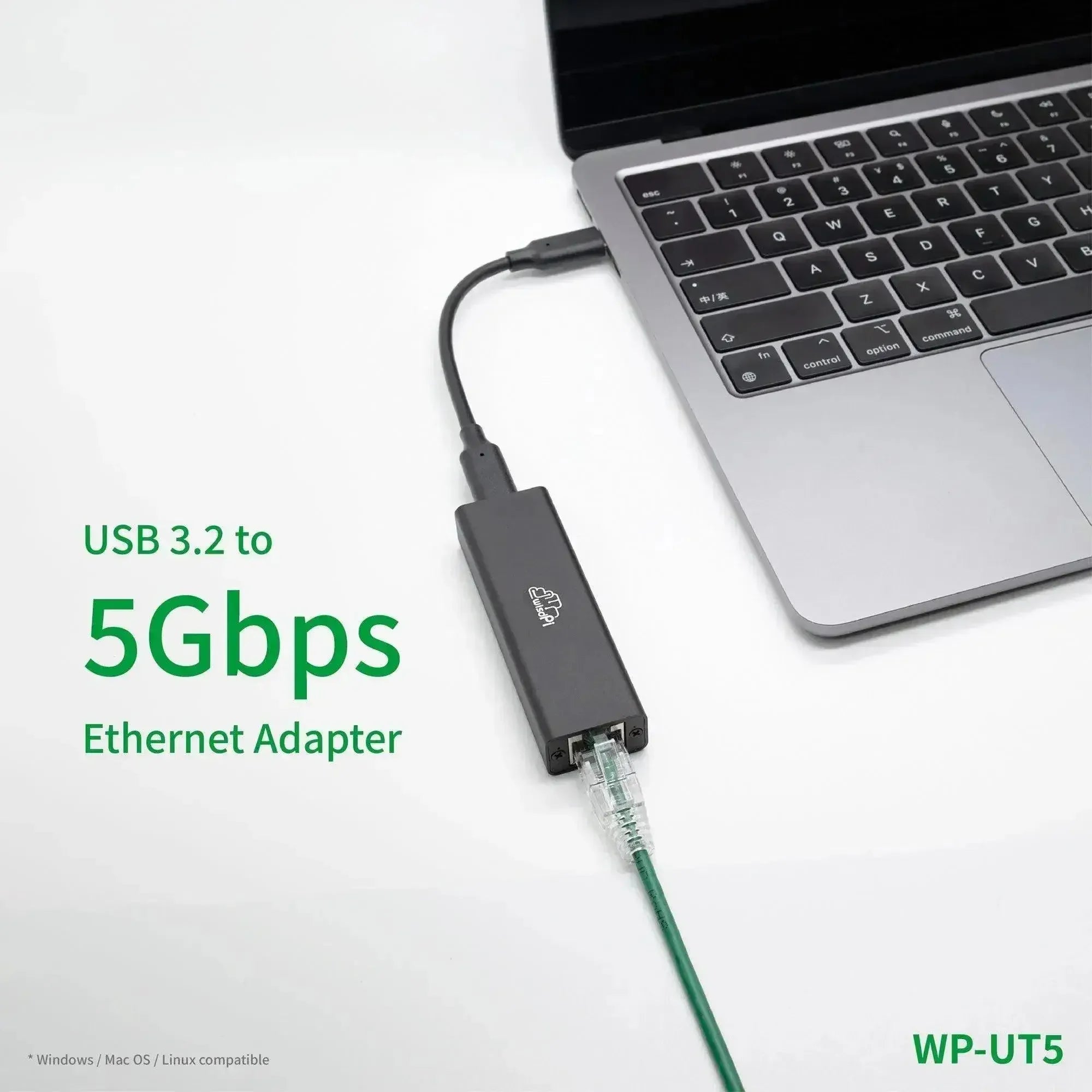

WisdPi 5Gbps USB3.2 Wired Base-T Ethernet Adapter Realtek RTL8157

The WisdPi 5Gbps USB3.2 Wired Base-T Ethernet Adapter featuring the Realtek RTL8157 chip is a high-performance network adapter designed to provide stable and fast internet connectivity. It supports speeds up to 5Gbps and is compatible with USB 3.2 Gen1/2 and USB 2.0. The adapter is energy-efficient, consuming under 1.5 watts, and supports various advanced features such as auto-negotiation, pair swap/polarity/skew correction, and hardware CRC. It is compatible with multiple operating systems, including Windows, Linux, and MacOS, and comes with a compact and durable design, making it ideal for upgrading NAS, laptops, or desktops. The package includes the adapter, USB cables, and a user manual.

Realtek Driver Download

https://www.realtek.com/Download/List?cate_id=585

Features

• Checksum Offload: Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP)

• Segmentation Task Offload: Large send v1 and Large send v2 support

• Jumbo Frame Support: Up to 16k bytes

• Protocol Offload: ARP & NS

• Modern Standby: Microsoft AOAC (Always On Always Connected)

• Wake-Up Features: 32-set 128-byte Wake-Up Frame pattern exact matching, link change wake up, Microsoft WPD (Wake Packet Detection)

• Power Management: Intel CPPM (Converged Platform Power Management), L1 with 3ms BESL (USB 2.0), Dynamic LTM messaging (USB 3.2 Gen1/2), U1/U2/U3 (USB 3.2 Gen1/2), selective suspend

Hardware

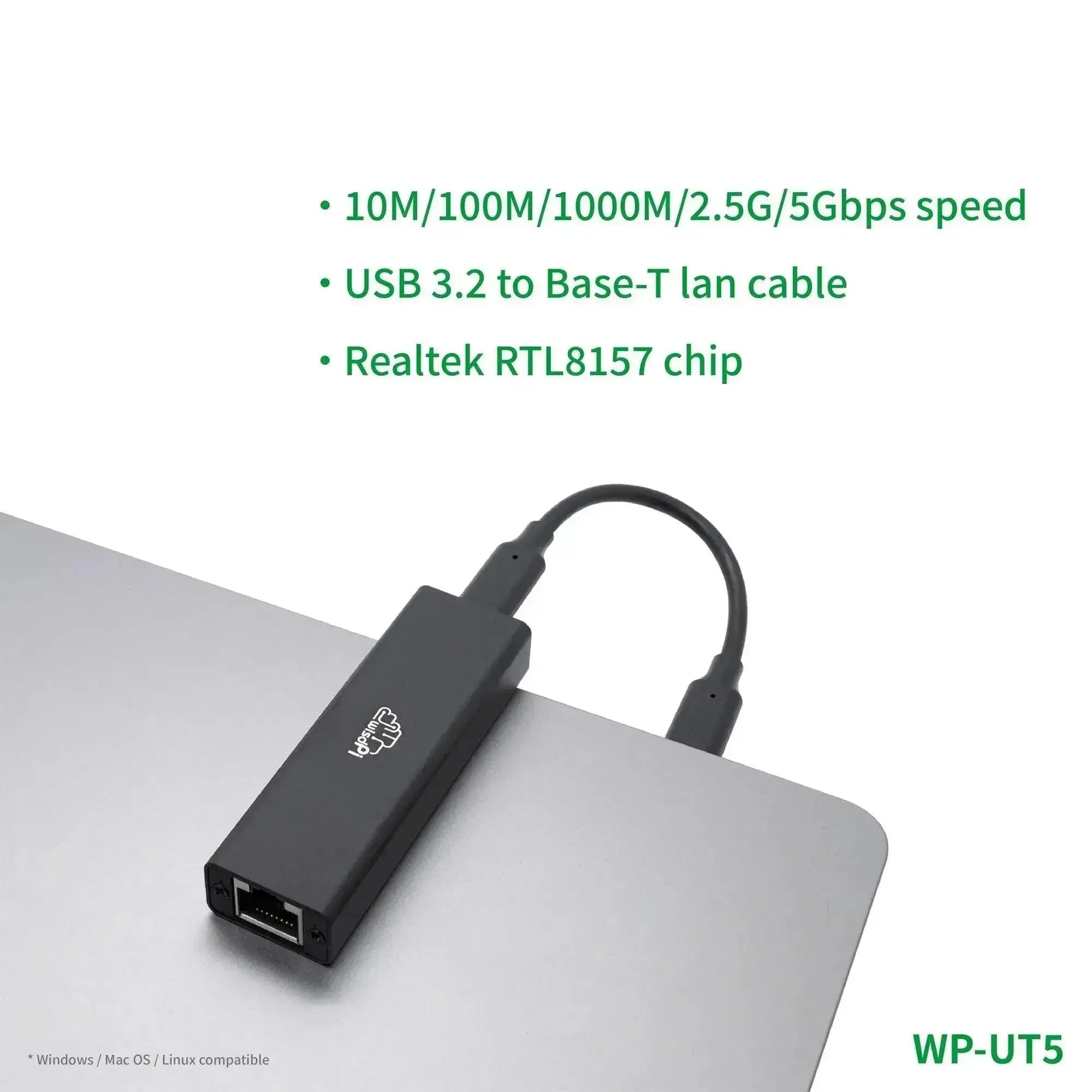

• Chipset: Realtek RTL8157

• Supported Speeds: 10/100/1000/2500/5000 Mbps

• Power Consumption: Under 1.5 watts

• USB Compatibility: Supports USB 3.2 Gen1/2 and USB 2.0

• Modes: 5G Lite (2.5G data rate), 2.5G Lite (1G data rate), and GlGA Lite (500M data rate)

• Auto-Negotiation: With Extended Next Page capability (XNP)

• NBASE-T Alliance PHY Specification: Compatible

• Correction Features: Pair swap/polarity/skew correction, crossover detection & auto-correction

• CRC Function: Supports hardware CRC (Cyclic Redundancy Check)

• Energy Efficiency: Supports IEEE 802.3az (Energy Efficient Ethernet)

• Full Duplex Flow Control: Supports IEEE 802.3x

IEEEE

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab

• Supports lEEE 802.1P Layer 2 Priority Encoding

• Supports IEEE 802.1Q VLAN tagging

• Supports lEEE 802.3az (Energy Efficient Ethernet)

• Supports IEEE 802.3bz (5G Base-T)

• Supports Full Duplex flow control (802.3x)

Software Offload:

• Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task

• offload (Large send v1 and Large send v2)support

• Supports jumbo frame to 16k bytes

• Supports Protocol Offload (ARP & NS)

• Microsoft AOAC (Always On Always Connected)/Modern Standby

• Supports 32-set 128-byte Wake-Up Frame pattern exact matching

• Supports link change wake up

Supports Microsoft WPD (Wake Packet Detection)

• Intel CPPM (Converged Platform Power Management)

• Supports L1 with 3ms BESL (USB 2.0)

• Dynamic LTM messaging (USB 3.2Gen1/2)

• Supports U1/U2/U3 (USB 3.2 Gen1/2)

• Supports selective suspendo

Temp

• Ambient Operating Temperature TA: 70°C

• Storage Temperature:-55~+125°C

System Requirements

• Windows

• Linux

• MacOS 10.7 or later

• Synology DSM / QNAP QTS*

• Proxmox VE (PVE)*

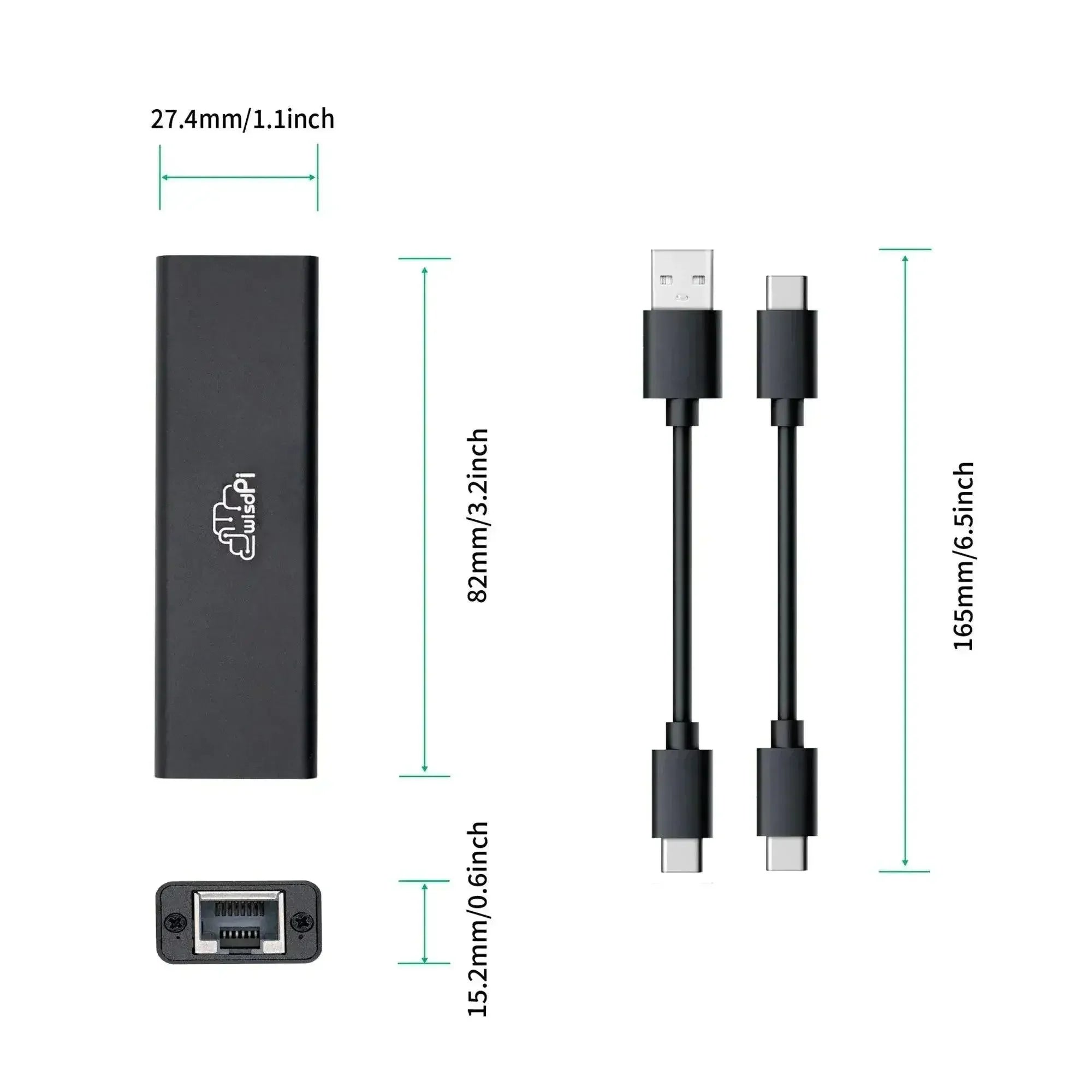

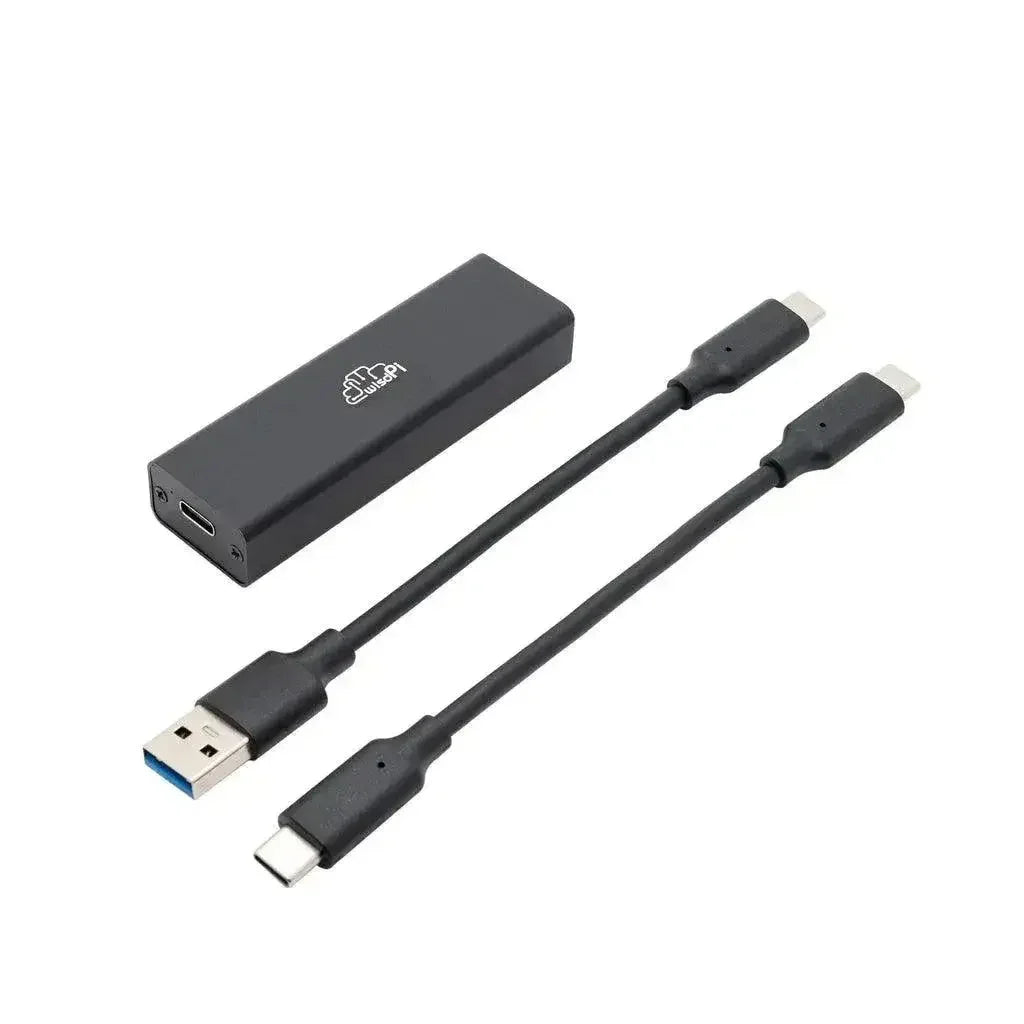

Package Contents

• 1 x USB 3.2 5G Base-T Ethernet Adapter

• 1 x 15cm USB 3.2 C-C

• 1 x 15cm USB 3.2 A-C

• 1 x User Manual
