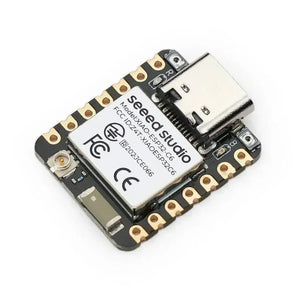

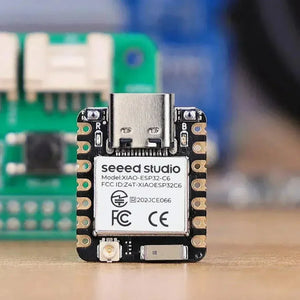

Seeed Studio XIAO ESP32-C6 RISC-V 2.4GHz WIFI 6 BLE 5 Dev Board 160MHz
Seeed Studio XIAO ESP32C6 is an affordable microcontroller unit (MCU) built on Espressif’s ESP32-C6. This compact device is ideal for Matter-compliant smart home applications, offering robust wireless connectivity options, including 2.4GHz Wi-Fi 6, BLE 5.0, Zigbee, and Thread. With its thumb-sized footprint and single-sided mount, it seamlessly fits into space-constrained projects. The XIAO ESP32C6 also features on-chip encryption, ensuring a high level of security while streamlining development and accelerating market entry. Additionally, it integrates effortlessly with major IoT cloud platforms, making deployment smoother and more efficient.
Feature
- Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.
- Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
- Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
- Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
- Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
- Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz
- Classic XIAODesigns: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.5mm, and single-sided mount, making it perfect for space-limited projects such as wearables
- Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud
Being the 8th member of the Seeed Studio XIAO family, XIAO ESP32C6 remains the classic XIAO design. All these features make it a perfect fit for either space-limited projects such as wearables, or a production-ready unit for your PCBA designs.
XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check Seeed Studio XIAO ESP32C6 Datasheet to see more info.
Specification
|
Product |
XIAO ESP32C6 |
||
|
Processor |
Espressif ESP32-C6 |
Espressif ESP32-C3 |
Espressif ESP32-S3R8 |
|
two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz |
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz |
Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
|
|
|
Wireless |
Complete 2.4GHz Wi-Fi 6 subsystem |
Complete 2.4GHz Wi-Fi subsystem |
Complete 2.4GHz Wi-Fi subsystem |
|
BLE: Bluetooth 5.0, Bluetooth mesh |
|||
|
Zigbee,Thread,IEEE 802.15.4 |
/ |
/ |
|
|
On-chip Memory |
512KB SRAM & 4MB Flash |
400KB SRAM & 4MB Flash |
8M PSRAM & 8MB Flash |
|
Interface |
1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO |
1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC |
1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |
|
1x Reset button, 1x Boot button |
|||
|
Dimensions |
21 x 17.8mm |
||
|
Power |
Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
||
|
Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA |
|||
|
Charging battery current: 100mA |
|||
|
Power Consumption Model (Supply Power: 3.8V) |
Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA |
Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA |
Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2 mA Deep Sleep Model: ~ 14 μA |
|
Working Temperature |
-40°C ~ 85°C |
-40°C ~ 85°C |
-40°C ~ 65°C |

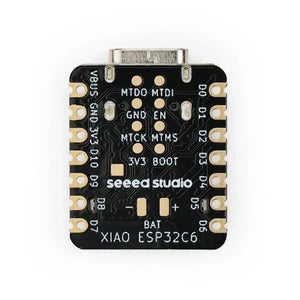

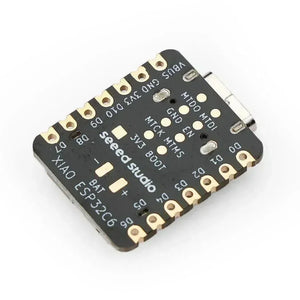

Hardware Overview
Onboard
PinOut
Application
Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more
Space-limited and Battery-Powered Wearables, thanks to their thumb-size and low-power consumption
Wireless IoT Scenarios, enabling rapid, reliable data transmission
Part List
|
Seeed Studio XIAO ESP32C6 |
x1 |
|
7 Pin Header |
x2 |
