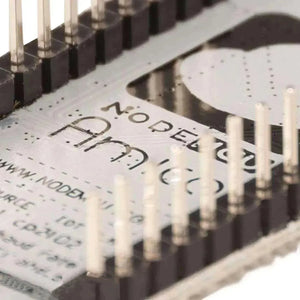

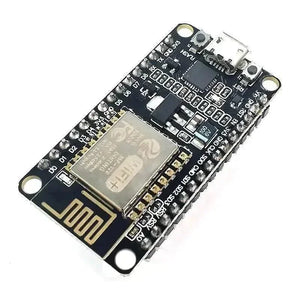

NodeMCU Lua Amica Module V2 ESP8266 ESP-12F WIFI
The NodeMCU Amica V2 is a quintessential ESP developer board. Designed to be breadboard-friendly and featuring the robust ESP8266-12F processor from Espressif with integrated WLAN, this controller provides an accessible entry point into IoT development.
-
Firmware Flexibility: Multiple firmware versions from the manufacturer can be easily flashed via the micro-USB port.
-
Enhanced Transfer Rates: The CP2102 chip set, an upgrade from the previous model, enables higher transfer rates.
-
Superior Performance: With ample memory and the powerful ESP processor, this board excels where other micro-controllers reach their limits.
Particularities
-
Core Processor: The ESP8266-12F integrates the Tensilica L106 32-bit micro-controller, which operates at clock speeds of 80 MHz or 160 MHz.
-
Memory: It includes 32 KiB of instruction RAM, 32 KiB of instruction cache RAM, 80 KiB of user-data RAM, and 16 KiB of ETS system-data RAM.
-
Wi-Fi Capabilities: The processor supports IEEE 802.11 b/g/n Wi-Fi standards and includes an integrated TR switch, balun, LNA, power amplifier, and matching network.
-
GPIO Pins: It features 17 GPIO pins, which can be used for various input/output operations.
-
Interfaces: The ESP8266-12F supports multiple interfaces, including SPI, I²C (software implementation), I²S with DMA, and UART.
-
Power: It operates at 3.3 V DC.
-
Additional Features: The processor supports WEP, WPA/WPA2 authentication, or open networks, and includes a 10-bit ADC.
Technical specifications
|
Supply voltage (USB) |
5V DC |
|
Input/output voltage |
3.3V DC |
|
Clock frequency |
80 MHz / 160MHz |
|
Instructions RAM |
32kb |
|
Data ram |
96kb |
|
External flash memory |
4MB |
|
GPIO digital pins |
17 (configurable as a PWM at 3.3V) |
|
ADC analog PIN |
1 (but voltage area is: 0 - 1v) |
|
Uart |
2 |
