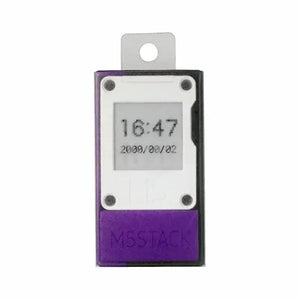

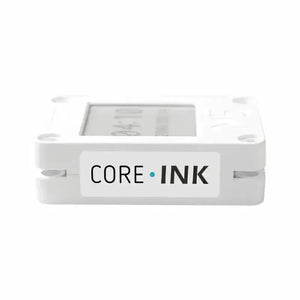

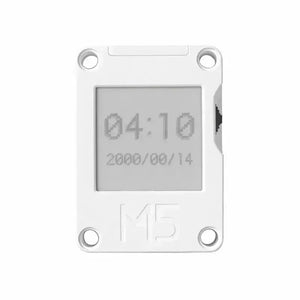

CoreInk is an exciting addition to the M5Stack cores lineup, offering a brand new E-ink display experience. Powered by the ESP32-PICO-D4, this innovative device boasts a 1.54" Black and White E-ink Display with a resolution of 200x200. Unlike traditional LCD screens, E-ink displays are known for being gentle on the eyes, making them a perfect choice for extended reading or viewing sessions. Additionally, they consume minimal power and can retain the displayed image even when power is disconnected.
Controlling the CoreInk is a breeze with its integrated multi-function button, physical button, status LED, and buzzer. These features provide intuitive control and feedback for a seamless user experience. The device is equipped with a 390mAh lithium polymer battery, ensuring sufficient power for extended usage. It also incorporates an RTC (BM8563) for precise timing control and supports deep sleep functionality to conserve energy.

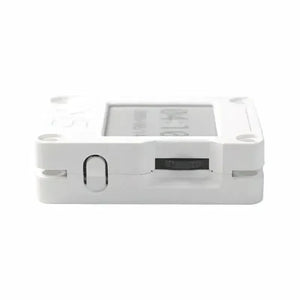

The CoreInk sets itself apart with its independent reset and power buttons, allowing for convenient operation. Moreover, it offers expansion ports (HY2.0-4P, M-BUS, HAT expansion) that enable the attachment of external sensors, opening up a world of possibilities for expanding its functionality. With the CoreInk, users can unleash their creativity and explore unlimited potential
Precautions: Please avoid long-time high-frequency refresh when using it. The recommended refresh interval is (15s/time). Do not expose to ultraviolet rays for a long time, otherwise it may cause irreversible damage to the ink screen. The low-power power management solution adopted by CoreInk is different from that of CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the reset button on the back.
Product Features
ESP32 Standard wireless functions Wi-Fi
Internal 4M Flash
Low Power Display
180 degree viewing angle
Expansion ports
Built-in Magnet
Internal Battery
Expandable

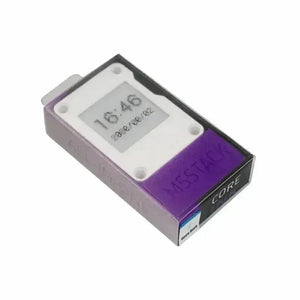

Includes
1x CoreInk
1x Type-C USB(20cm)
Application
IoT Terminal
E-Book
Industrial Control Panel
Electronic Tag
Specification
| Resources | Parameter |
|---|---|
| ESP32-PICO-D4 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 4MB Flash |
| Input Voltage | 5V @ 500mA |
| Ports | TypeC*1, HY2.0-4P*1 , M-BUS Female Connector,Pin Array/ Hat Expansion |
| Screen | GDEW0154M09 | SPI Port | 200*200@1.54" | Dpi:184 | 1-bit Black & White(Grayscale:2) \ Viewing Area(mm):27.6x27.6 | Dot pitch(mm) 0.138x0.138 | Refresh Time（s） 0.82 /Partial refresh（s） 0.24 |
| Physical Buttons | Programmable *1 , Reset *1, Power *1 |
| LED | Green LED x 1 |
| RTC | BM8563 |
| Buzzer | Passive Buzzer*1 |
| Wifi | 2.4G 3D Antenna |

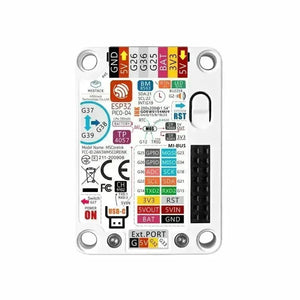

| PINS | G25, G26, G36, G23, G34, G18, G21, G22, G14, G13 |
| Battery | 390mAh@3.7V |
| Working Temp | 0°C to 60°C |
| Net Weight | 32g |
| Gross Weight | 55g |
| Dimensions | 56*40*16mm |
| Package Size | 82*46*20mm |
| Case Material | Plastic ( PC ) |
