This product does not include a camera. If you need a camera, please go to Raspberry Pi High Quality Camera M12 Replacement Cameras.
Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 Mount Lenses, Compatible With Raspberry Pi Series Boards
Specifications
|
SENSOR |
IMX477R |
|
12.3MP, 4056 (H) × 3040 (V) |
|
|
7.9mm CMOS diagonal size |
|
|
1.55µm (H) × 1.55µm (V) pixel size |
|
|
OUTPUT |
RAW12 / 10 / 8, COMP8 |
|
BACK FOCUS |
Adjustable |
|
LENS SUPPORT |
M12 |
|
IR CUT FILTER |
Integrated |
|
TRIPOD MOUNT |
1/4″-20 |
M12 Lens Selection
|
MODEL |
FIELD OF VIEW |
FOCAL LENGTH |
APERTURE |
DISTORTION |
LENS MATERIAL |
BACK FOCAL LENGTH |
RESOLUTION |
|
WS1842714 |
184.6° |
2.72mm |
2.5 |
<-21% |
8G+IR |
3.06mm |
14MP |
|
WS1132712 |
113° |
2.7mm |
2.8 |
<-1.5% |
5G2P+IR |
4.97mm |
12MP |
|
WS1053516 |
105° |
3.56mm |
2.5 |
<-16.5% |
4G3P+IR |
5.92mm |
16MP |
|
WS1603212 |
136° |
3.2mm |
2.0 |
<-64% |
8G+IR |
6.08mm |
12MP |
|
WS0698012 |
69° |
8mm |
1.8 |
<-15.68% |
8G+IR |
6.8mm |
12MP |
Working With Raspberry Pi

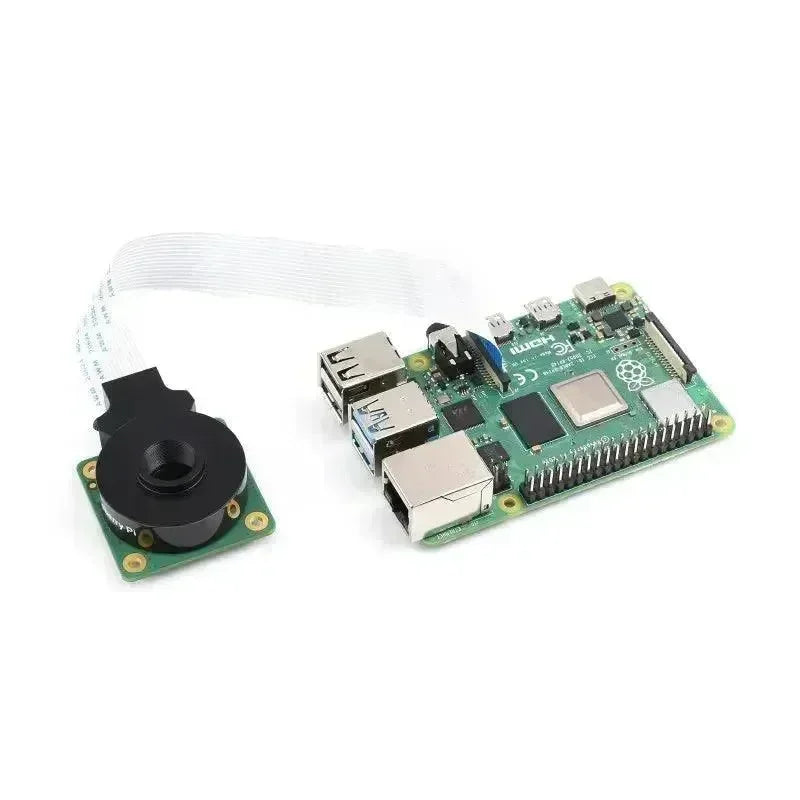

Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5

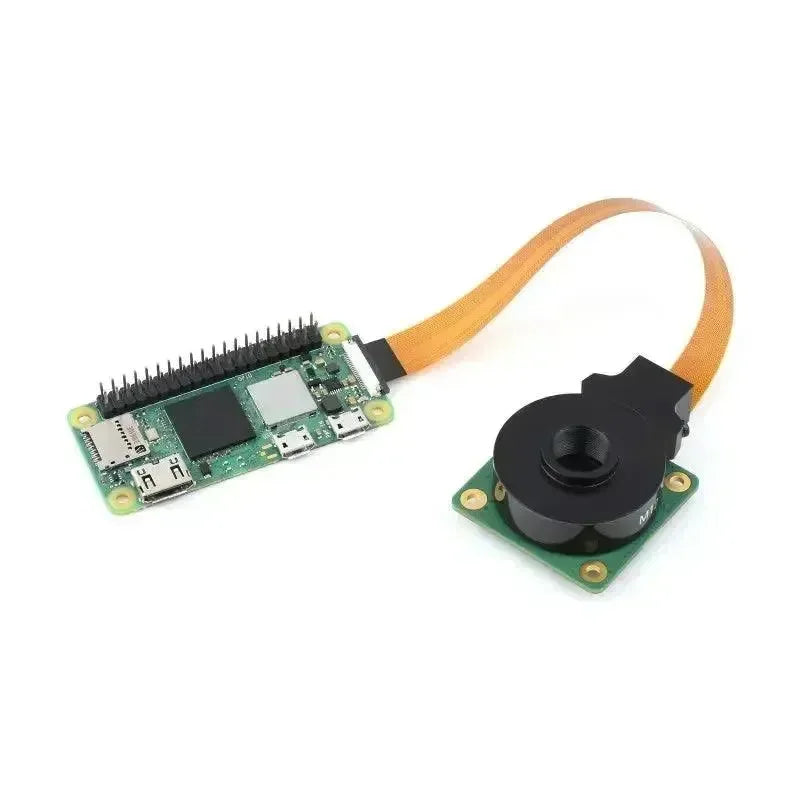

Connecting with Raspberry Zero 2 W
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero 2 W, M12 Lens, black FPC and yellow FPC are NOT included.

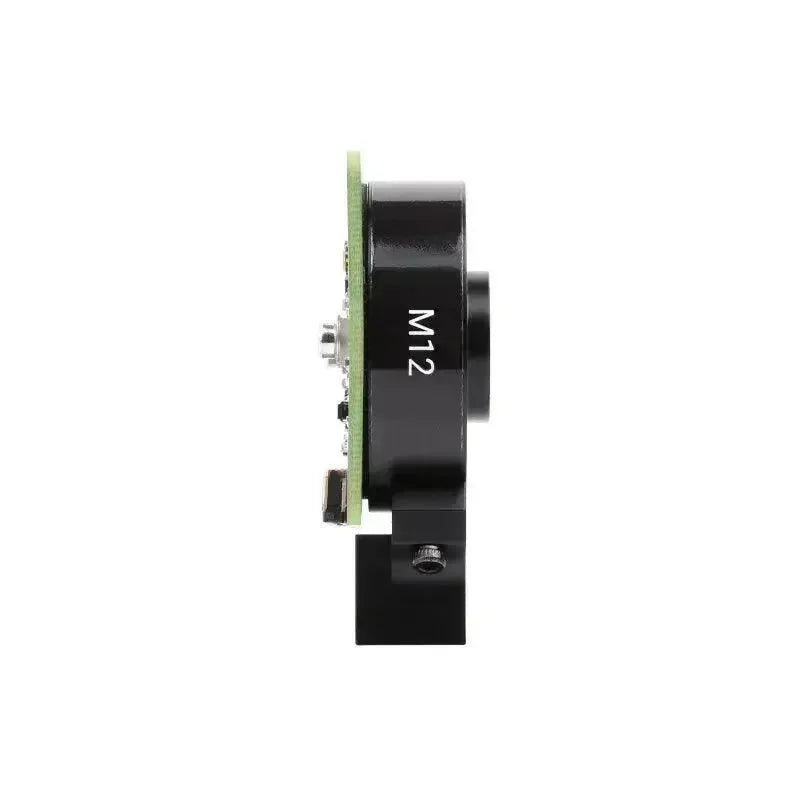

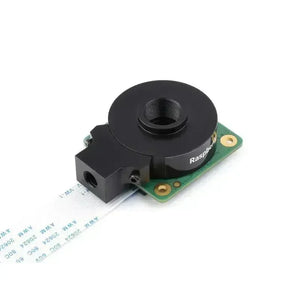

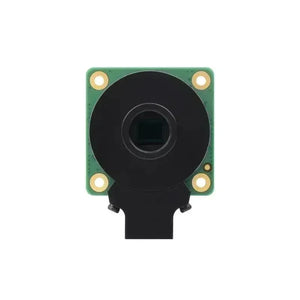

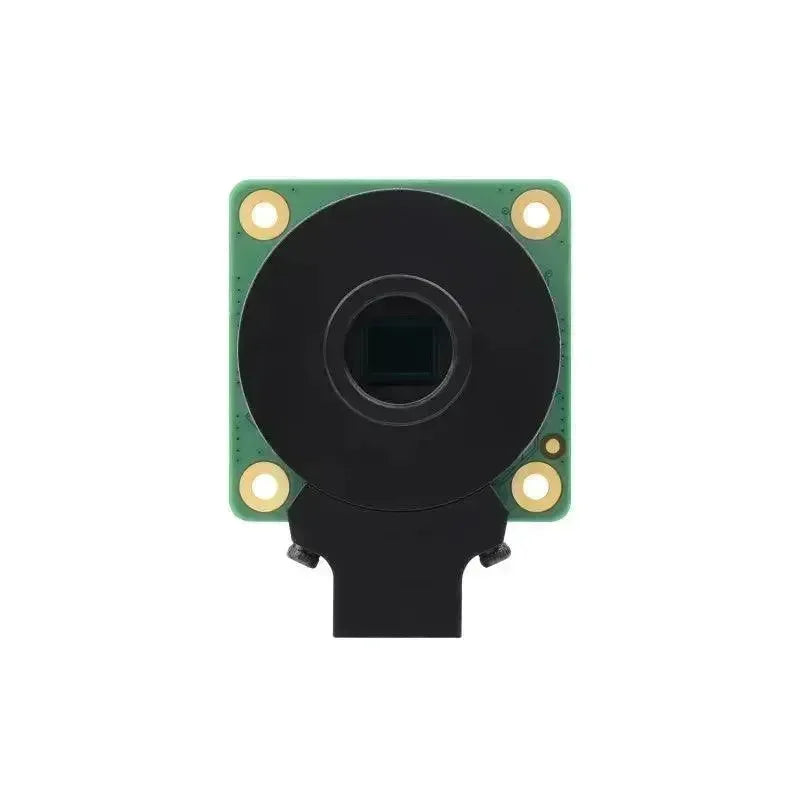

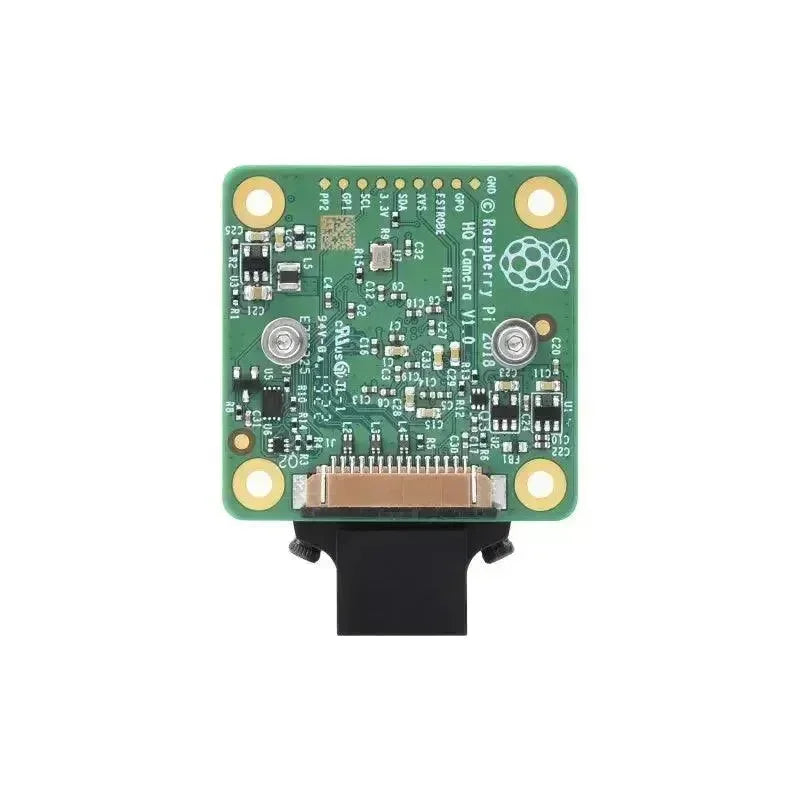

Product Show
Outline Dimensions
Selection Guide
|
PART NUMBER |
PIXELS |
SENSOR |
CMOS SIZE |
IR-CUT FILTER |
LENS SUPPORT |
FOV (°) |
APER-TURE (F) |
FOCAL LENGTH (MM) |
DIMEN-SIONS (MM) |
FOR USE WITH |
|
12.3MP |
IMX477 |
7.9mm |
integrated |
C/CS |
- |
- |
- |
38*38 |
Raspberry Pi, CM3/3+/4 |
|
|
- |
- |
- |
38*38 |
Raspberry Pi, CM3/3+/4, Jetson series boards |
||||||
|
M12 |
- |
- |
- |
38*38 |
Raspberry Pi, CM3/3+/4 |
|||||
|
160 |
2.2 |
2.75 |
25*24 |
Raspberry Pi, CM3/3+/4, Jetson series boards |
||||||
|
1.6MP |
IMX296 |
6.3mm |
integrated |
C/CS |
- |
- |
- |
38*38 |
Raspberry Pi, CM3/3+/4 |
PACKAGE CONTENT
Weight: 0.49 kg
- Raspberry Pi HQ Camera M12 x1
- Dust cap x1
- M12 mount connector (3PCS) x1
- 15-pin FFC (opposite sides contact) x1
