This camera can be used with Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor.

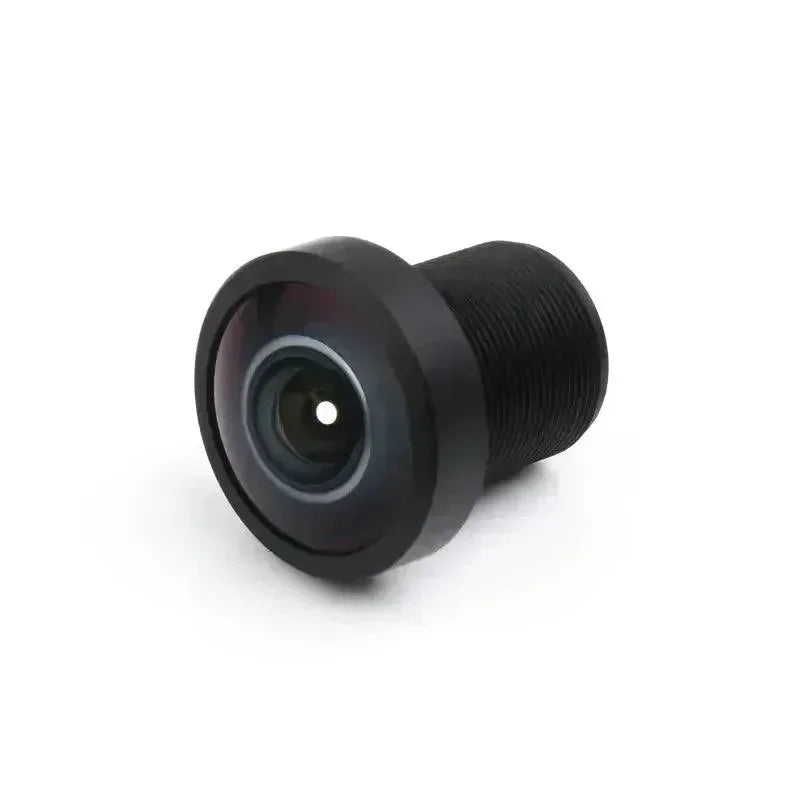

M12 High Resolution Lens, 14MP, 184.6° Ultra Wide Angle, 2.72mm Focal Length, Compatible With Raspberry Pi High Quality Camera M12
WS1842714
M12 High Resolution Lens
M12 High Resolution Lens
14MP | 184.6° FOV | Ultra wide angle
WS1842714 Is An M12 Lens With 14MP High Resolution And 184.6° Ultra Wide Angle
Suitable For M12 Mount Camera Module Such As Raspberry Pi HQ Camera M12
Note: the M12 mount camera module is NOT included, please purchase it separately.
M12 Lens Selection
|
MODEL |
|
|
|
|
|
|
||||||||||
|
RESOLUTION |
14M |
16M |
12M |
5M |
||||||||||||
|
FOCAL LENGTH |
2.72mm |
3.56mm |
2.7mm |
3.2mm |
8mm |
25mm |
||||||||||
|
APERTURE (F/NO) |
2.5 |
2.5 |
2.8 |
2.0 |
1.8 |
1.7 |
||||||||||
|
BACK FOCUS |
3.06mm |
5.92mm |
4.97mm |
6.14mm |
10.02mm |
5.20mm |
||||||||||
|
DISTORTION |
<-21% |
<-17.6% |
<-1.5% |
<-64% |
<-15.68% |
<0.30% |
||||||||||
|
MOUNT |
M12*P0.5 |
|||||||||||||||
|
OPERATING |
-30 ~ +75°C |
-30 ~ +70°C |
-40 ~ +105°C |
-20 ~ +60°C |
-20 ~ +80°C |
|||||||||||
|
CONSTRUCTION |
8G+IR |
4G3P+IR |
5G2P+IR |
8G+IR |
6G+IR |
|||||||||||
|
WEIGHT |
9g |
7g |
6g |
28g |
12g |
9g |
||||||||||
|
FIELD OF VIEW |
IMAGE FORMAT |
1/2.3" |
1/2.3" |
1/2.5" |
1/2.3" |
1/2.5" |
1/2.8" |
1/1.7" |
1/1.8" |
1/2.8" |
1/1.8" |
1/2.5" |
1/3.0" |
2/3.0" |
1/1.8" |
1/2.0" |
|
DIAGONAL |
184.6° |
105.0° |
98.2° |
113.0° |
108.0° |
101.0° |
160.0° |
153.6° |
136.0° |
69.5° |
50.7° |
43.0° |
20.2° |
16.5° |
14.5° |
|
|
HORIZONTAL |
140.0° |
88.0° |
87.7° |
100.0° |
97.0° |
92.8° |
131.0° |
129.0° |
113.5° |
55.6° |
44.4° |
34.7° |
15.1° |
12.4° |
10.5° |
|
|
VERTICAL |
102.6° |
70.0° |
53.3° |
82.7° |
67.0° |
60.3° |
99.0° |
88.0° |
83.0° |
40.3° |
32.6° |
26.4° |
- |
- |
- |
|
Mounting To The M12 Camera Module
Suitable For Raspberry Pi High Quality Camera M12
Working With Raspberry Pi
- Raspberry Pi boards, FFC cable and Raspberry Pi HQ Camera M12 in the photos are NOT included
- To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable
Product Show
Outline Dimensions
Weight: 0.009 kg
WS1842714 ×1
