LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840
LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

€108,00 EUR
€108,00 EUR
€108,00 EUR
Save €0,00
Type: 433MHz
Color: White
Subtotal: €108,00

Free Shipping from 50€ in EU / 80€ Worldwide

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

€108,00
LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840
LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

LILYGO T-ECHO BME280 Meshtastic LoRa SX1262 Wireless Module 433/868/915MHz NRF52840

€108,00
Type: 433MHz
Color: White
Description

LILYGO TTGO T-Echo is a version evolved from LILYGO T-BEAM. At the beginning of the design, more consideration was needed to adapt to Meshtastic. So Bluetooth and low-power consumption were considered when designing, and NRF52840 Advanced  Bluetooth 5 was the selected thread and Zigbee multiprotocol SoC.

The LORA function continues T-BEAM's LILYGO SX1262 version functional module.

T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, working in the 868/915MHz ISM frequency band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, receiving sensitivity -139dBm. Automatic transceiver Switching, internal transmission, and reception channel isolation, advanced LORA spread spectrum communication technology, strong anti-interference, and privacy can realize long-distance wireless data



Specification

MCU NRF52840
FLASH 2MB
RAM 2MB
Bus Interfaces UART, SPI, TWI, PDM, 12S, QSPI
Wireless Connectivity Bluetooth 5, Thread,
Bluetooth Mesh, ANT, 802.15.4, Zigbee
With/Without BME280 temperature pressure sensor
SX1262 LoRa Transceiver  Long Range, Low Power
Global frequency coverage 433, 868, 915Mhz
Enclosure material  ABS
Version Normal version / BME280 version
Battery Capacity 850mAh



1.54-inch SPI E-Paper Display

Grey level 2
Resolution 200x200
 Full refresh time 2S



L76K Multi-System Positioning GNSS module

Support System GPS, GLONASS, BeiDou, QZSS
Support Function

 LNA, SAW Filter, AGNSS, 1PPS
Improved receiving and anti-interference attributes



Technology Support [Github]

If you need technical support please check the link to find more details.

Basic Example:

https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo


Meshtastic:



Application scenarios

  • DIY creation
  • LoRa networking
  • GPS positioning
  • IOT terminal control
  • Stem education product



Features of the module

Multi-satellite positioning system L76K  supports multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning, and single system independent positioning, support AGNSS function, built-in low noise amplifier, and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.

Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.

It supports the AGNSS function, which can greatly Reduce the time for the first positioning, The built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning, and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

The display uses a 1.54-inch electronic paper display with front light, 200x200 resolution 1.54 front LED E-paper, and it can be used in a dark environment.



Product Display

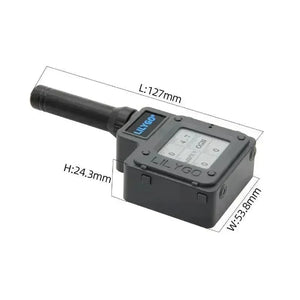

Size

 Pin Diagram


Appearance Details
