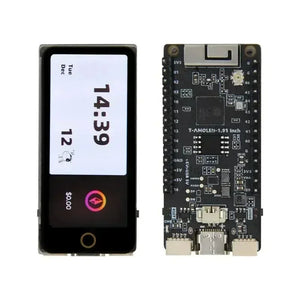

T-Display-S3 AMOLED is a display screen module with a 1.91 inch diagonal screen, based on our previous S3 module, we have upgraded the screen, resolution and antenna from LCD to AMOLED and the antenna to 3D antenna.
Using SPI interface, it is compatible with any microcontroller with SPI capability. The module is equipped with a built-in battery management system, making it a convenient solution for portable applications. The compact size and low power consumption make it ideal for wearable and IoT projects.
We have received many shares from engineers who have made the S3 module into a classic game console, monitor, timer, etc. The S3 module can carry many of your ideas. Use it to bring your ideas to life.
Specifications of the T-Display-S3 AMOLED
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformIO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat Voltage Detection | IO04 |
| Onboard functions | Boot (IO00) + Reset + IO21 Button |
Featured Articles

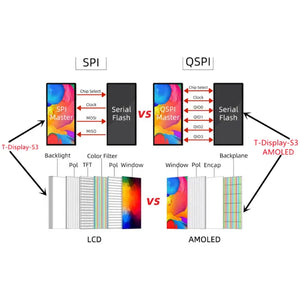

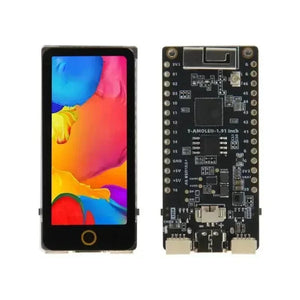

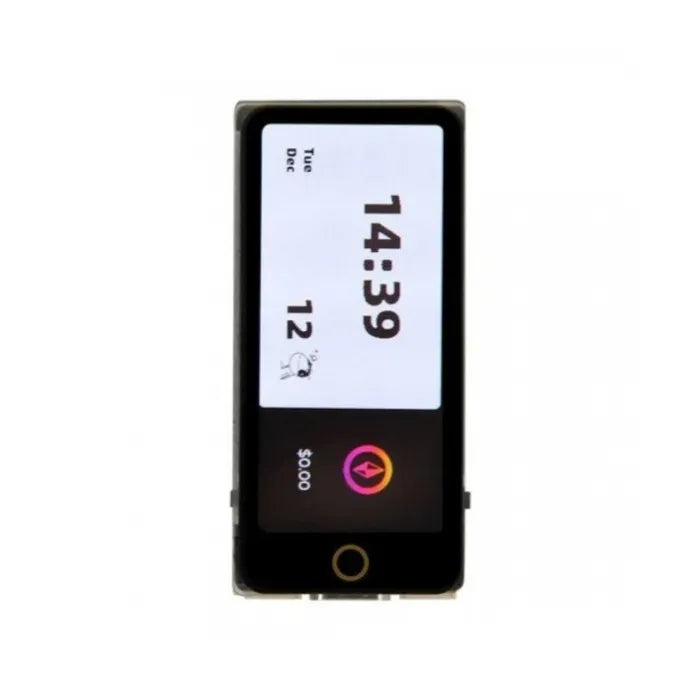

1.91 inch RM67162 IPS AMOLED:
| Resolution | 240 X RGB X 536(H) |
| Interface | QSPI |
| Active Area | 19.8*44.22mm |
| Driver IC | RM67162 |
| Viewing Angle | IPS Full View Angle |
Version Upgrade

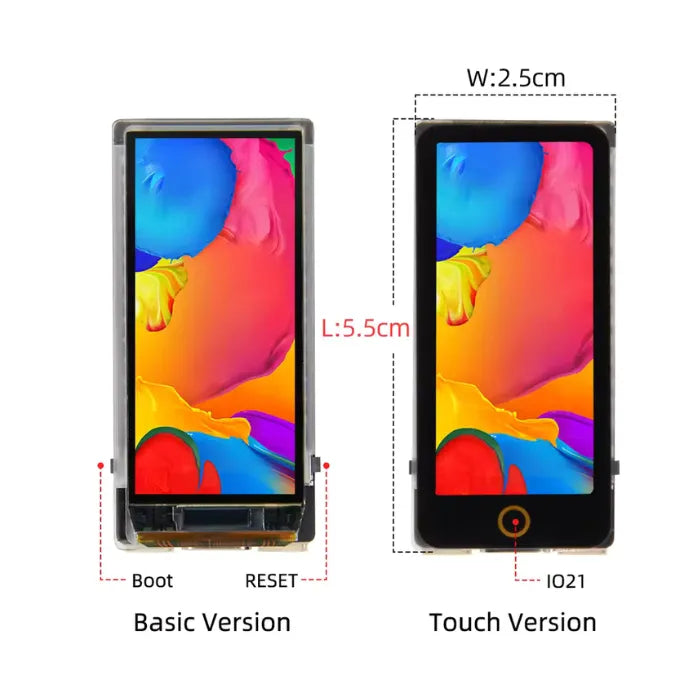

We've upgraded the base version (no touch functionality), check out the comparison!
Some of the buttons have changed positions, choose the right version according to your preference.
V1.0 Version
V2.0 Version
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Display-S3 AMOLED

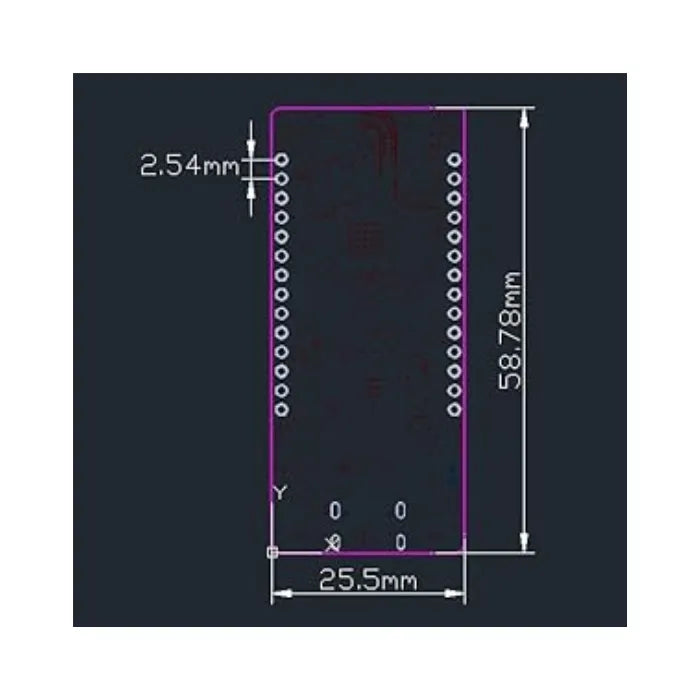

Size

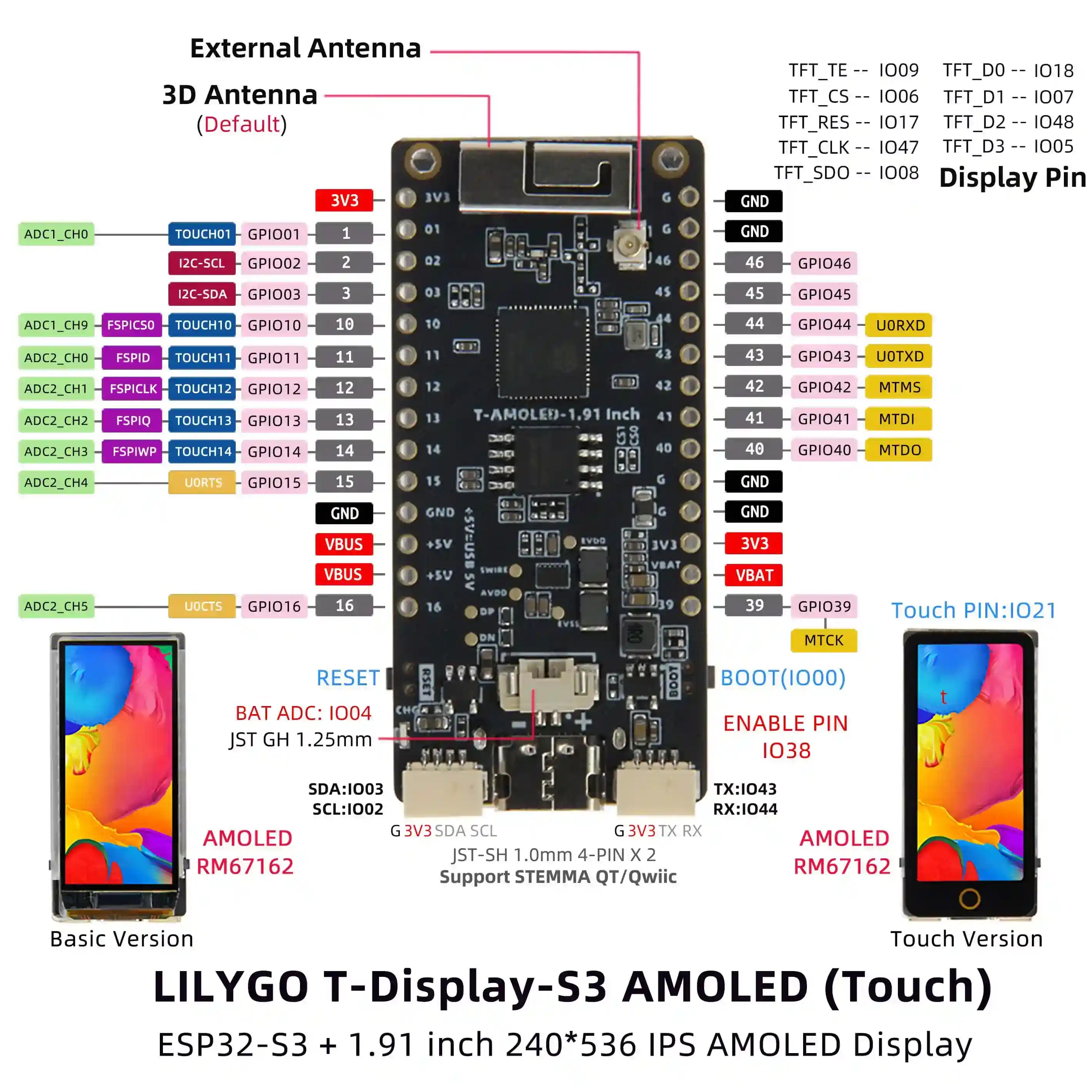

Pin Diagram
Basic Version
Touch Version
- Choosing a selection results in a full page refresh.
