🏭 Product Inventory Location: Germany
🔢 In Stock:
- Reflex RS Combo : 20 Units
- Reflex RS Combo with Pulsing Release Module : 19 Units
🚚 We will ship your order within 24 hours after the order is taken.
Test Model Results
Full-Field Precision Screen
LCD Screen Light Intensity Visualization
To achieve printing high accuracy and reliability, we partition the screen into 60 zones and calibrate it with a full-screen tool, ensuring light intensity variation remains within ±3%* for a printing tolerance of ≤0.05 mm.
Printed Results Assembly Comparison
The RS automatically calibrates the screen using NFC data, keeping light intensity differences within 5% and reducing variations in light intensity to ensure printing precision after screen replacement. (Data sourced from HeyGears Lab)
Adaptive Z-axis Compensation
Adaptive Process Packages
The adaptive process packages allows the RS printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types.
Z-axis Compensation Comparison
This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.

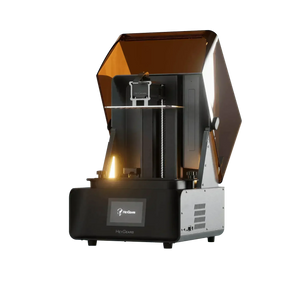

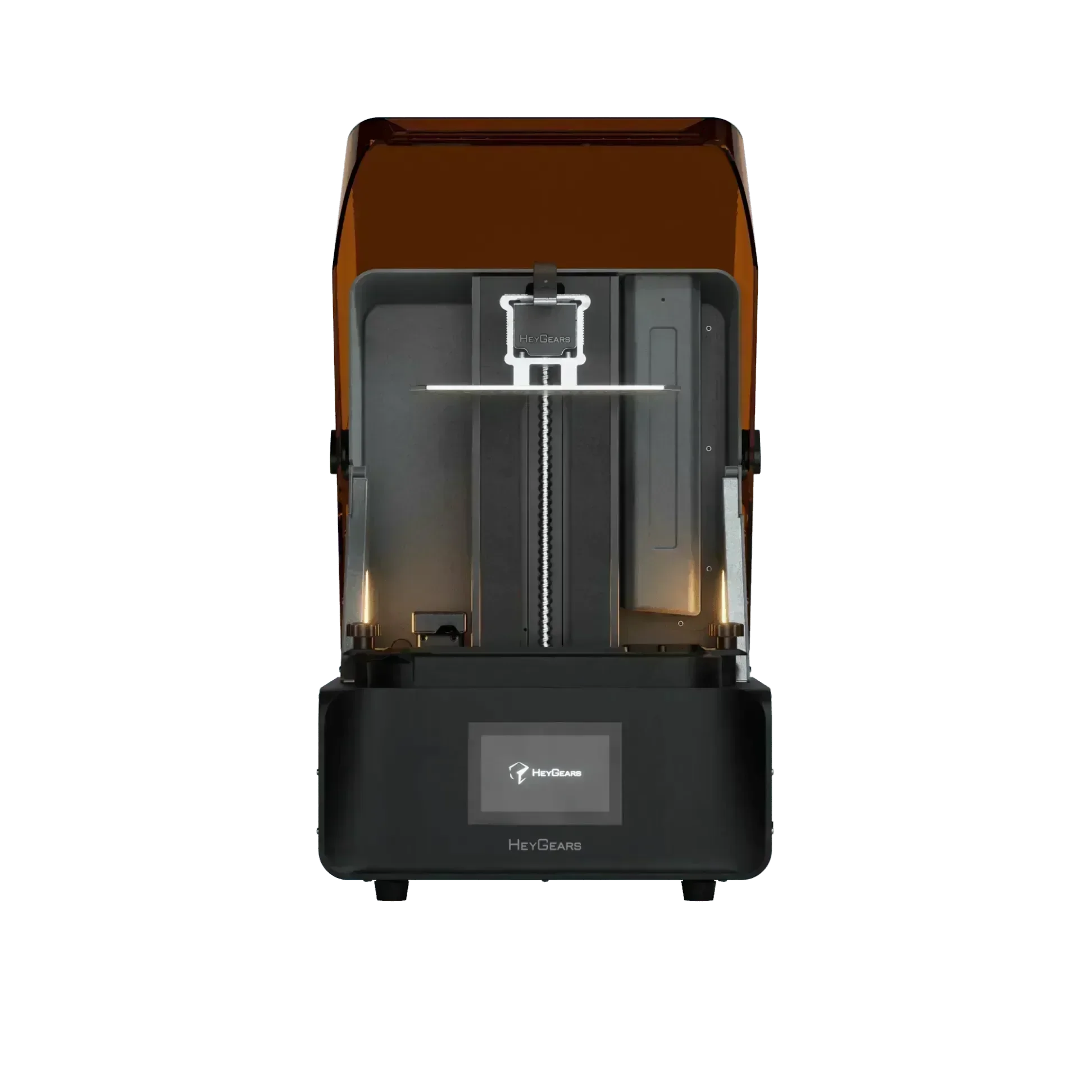

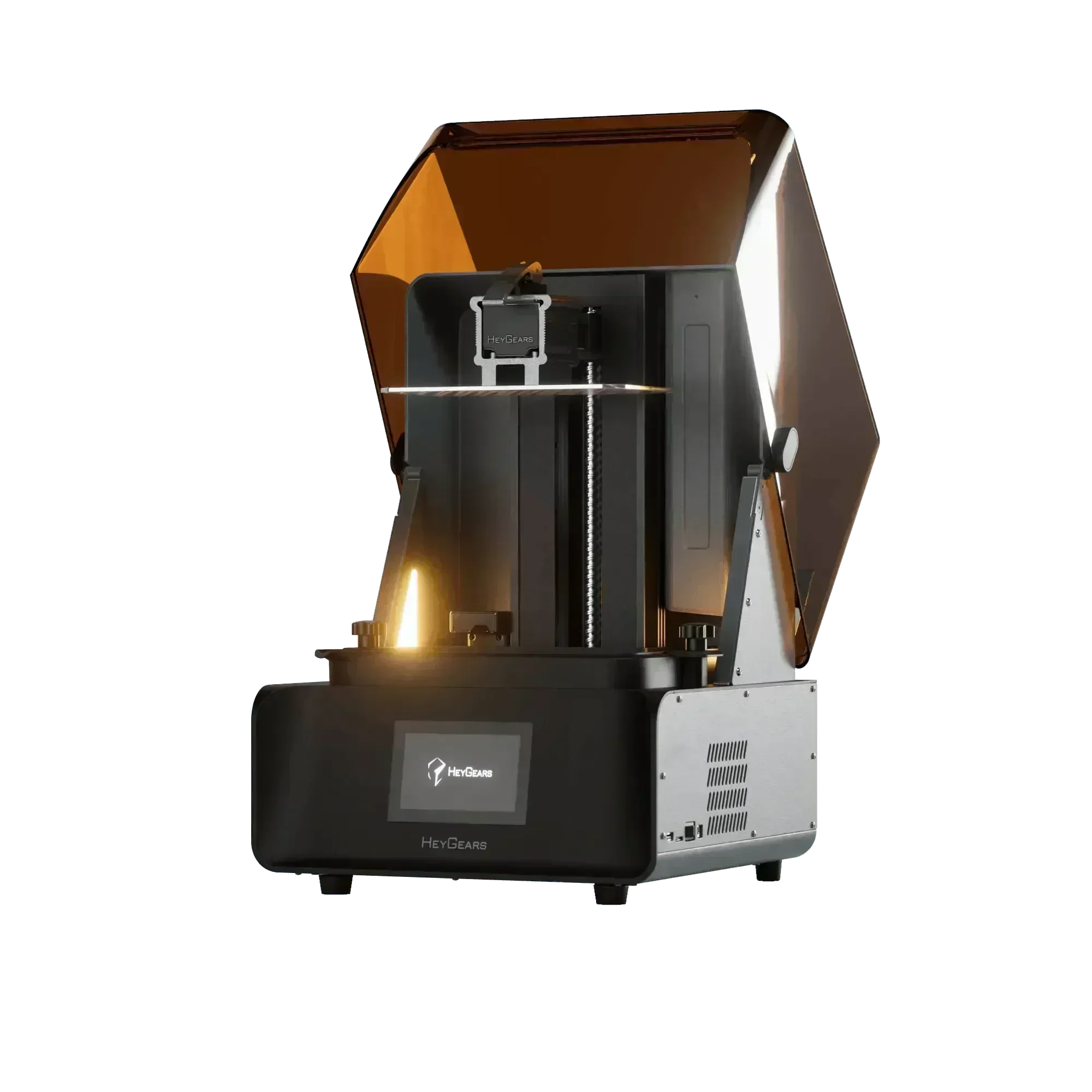

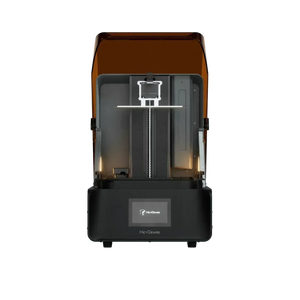

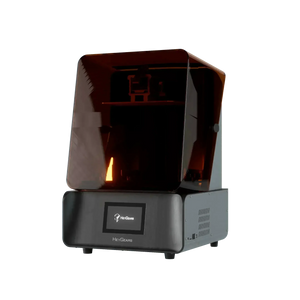

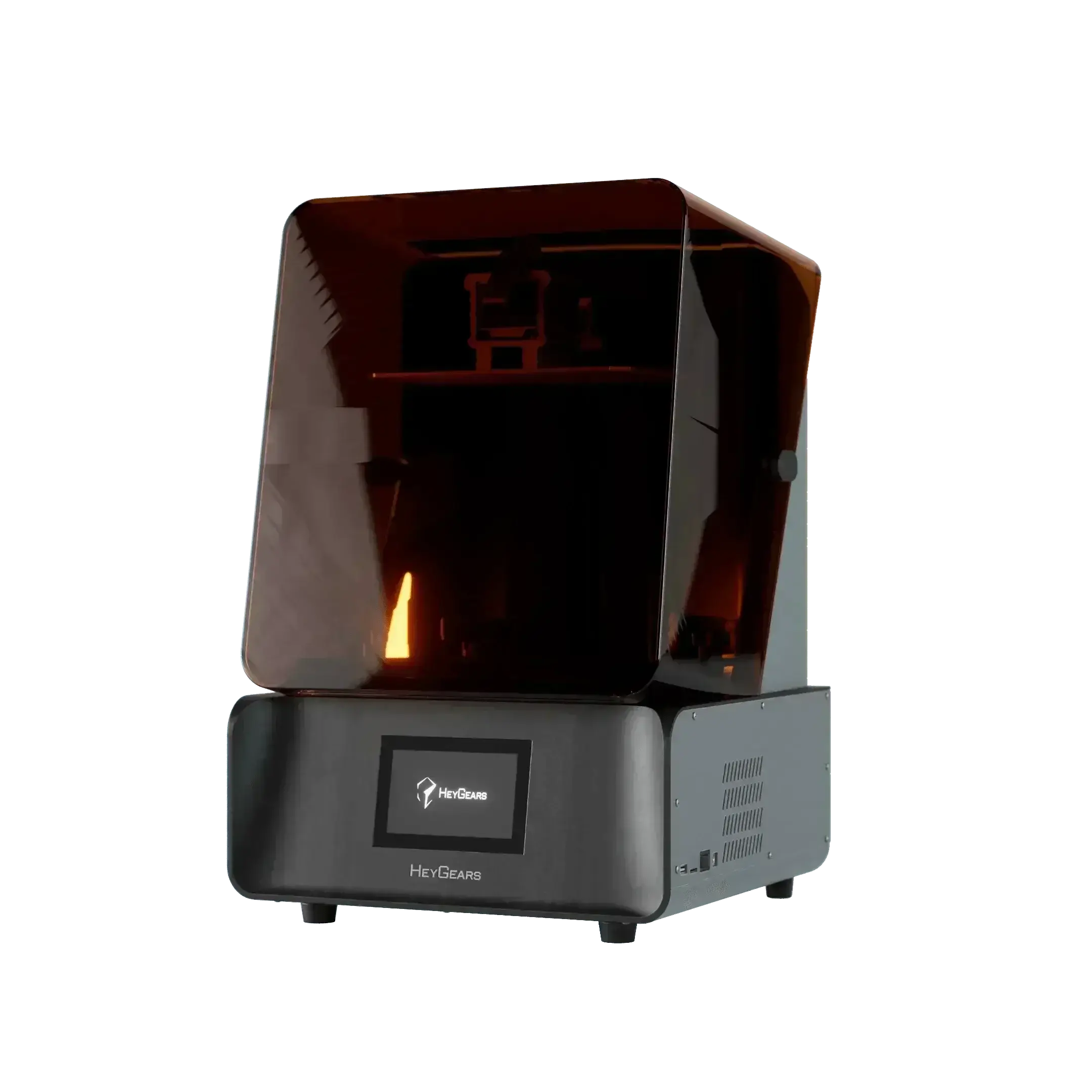

The UltraCraft Reflex RS 3D printer is available in our store again!
Experience fully integrated workflows—from printing to washing to curing—without the need for additional parameter adjustments.
Product Highlights
- Injection-molded Precision with 2 Hour Speed* (15 μm Precision).
- Dynamic Motion Algorithm 3.0, 33% Increase in Print Speed.
- Auto Resin Level Detection.

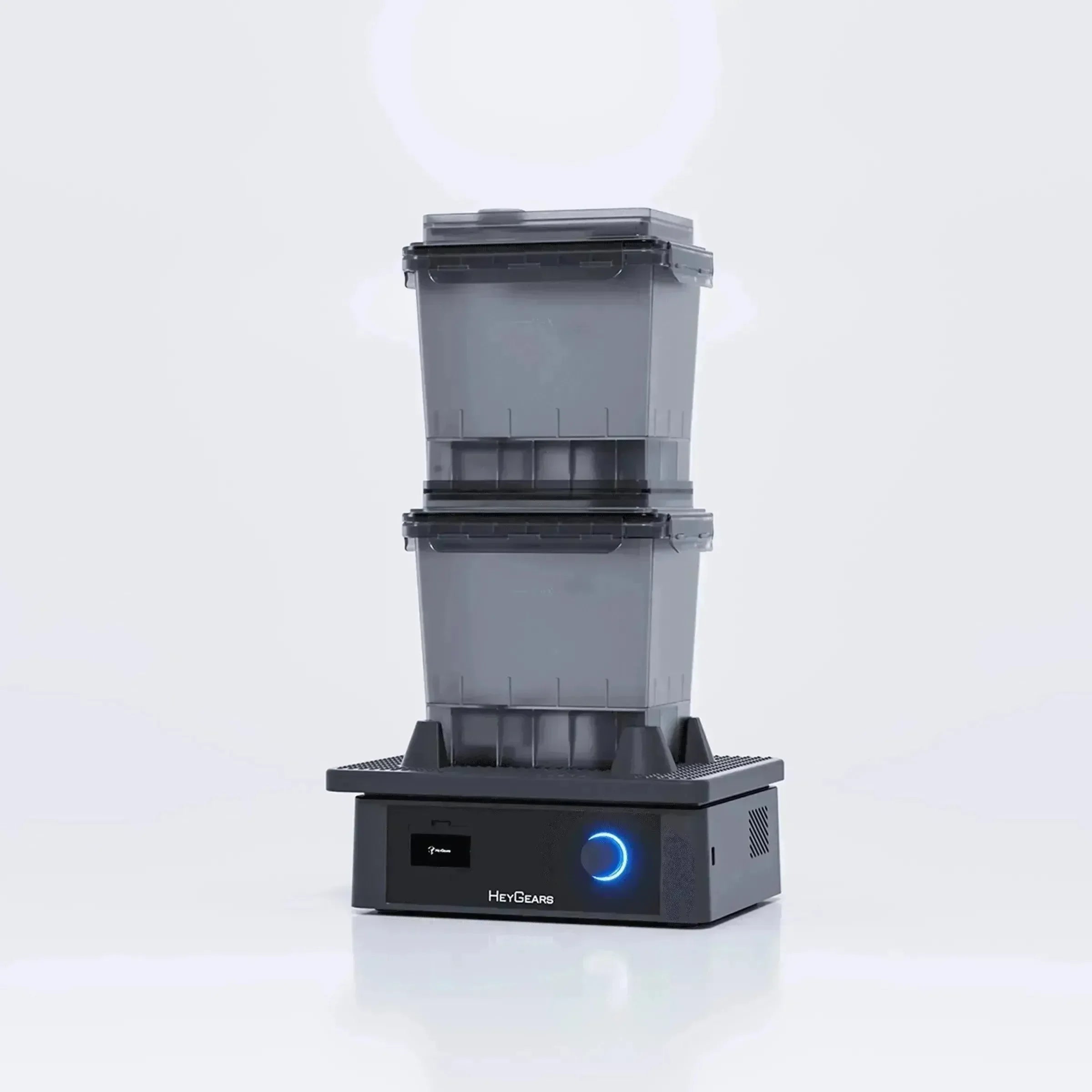

- UltraCraft Wash: Minimal Contact with Resin.

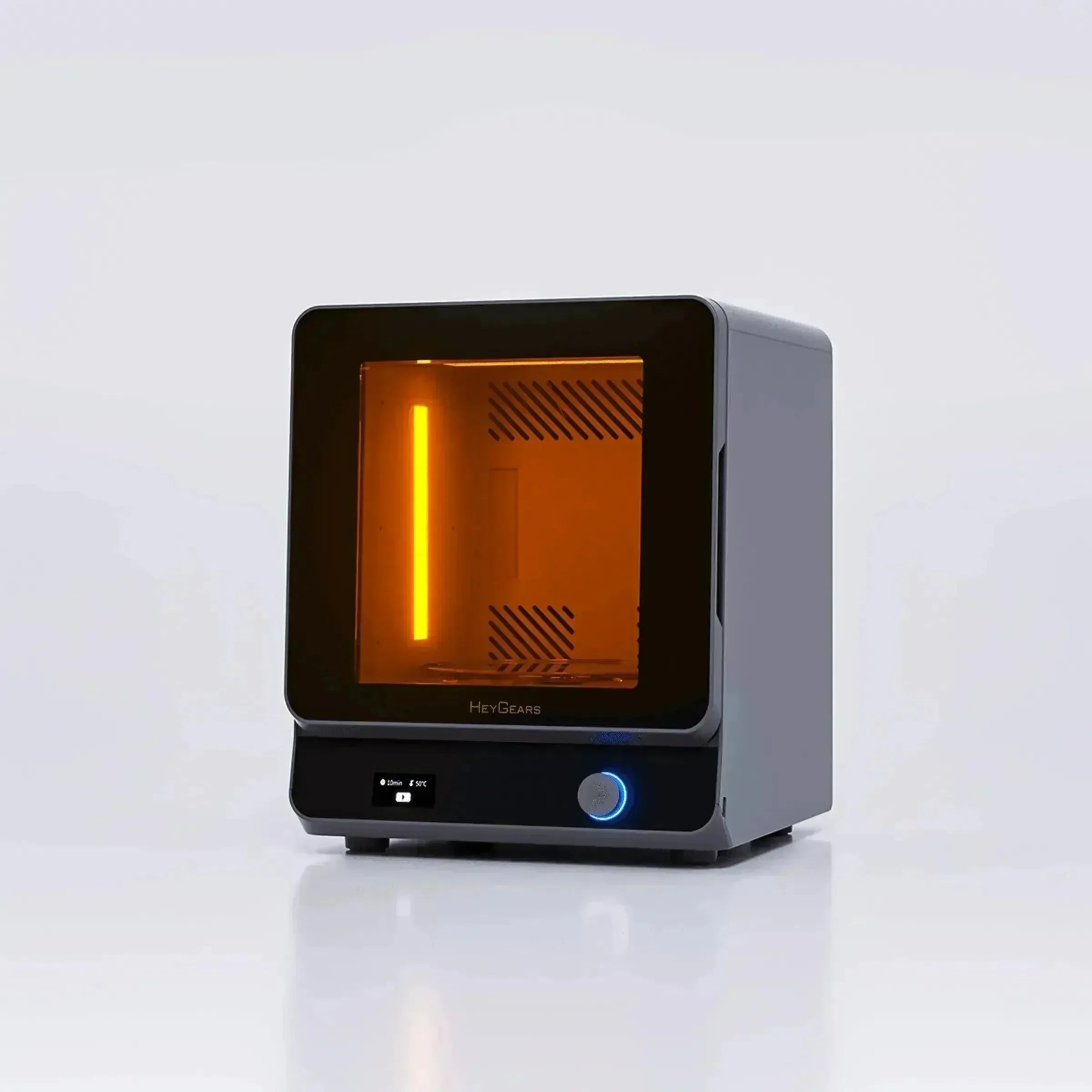

- UltraCraft Cure: Dual UV Wavelength Curing for Greater Material Performance. Extra Heating Function.
- Fully Interconnected Print Strategies. No Parameter Adjustments Throughout the Whole Process.
Specifications
-
3D Printing Technology: LCD (MSLA)
-
Build Volume: 222*122*230 mm
-
XY Native Pixel: 29.7 μm
-
Accuracy: ±15 μm
-
Layer Thickness: 30-100 μm
-
Optical Wavelength: 405 nm
-
Size: 380*360*584 mm
-
Weight: 20 kg
-
Rated Power: 180 W
-
Voltage: 100-240 V~50/60 Hz
-
Size: 380*360*584 mm
-
Connectivity: USB/WIFI/LAN
-
Language: English, Simplified Chinese
Auto Assisted Printing
- Floating Screen Auto Leveling
- Automatic Resin Refill
- Automatic Resin Heating
Data from HeyGears Lab, using a layer thickness of 50 μm and model height under 7 cm; printing results may vary per model.
With RS Heated & Pulsing Release Resin Tank or Pulsing Release Module (purchased seperately)
Package Includes

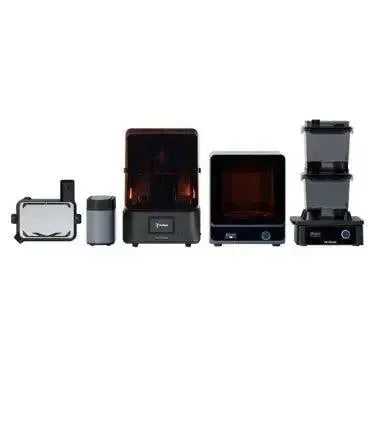

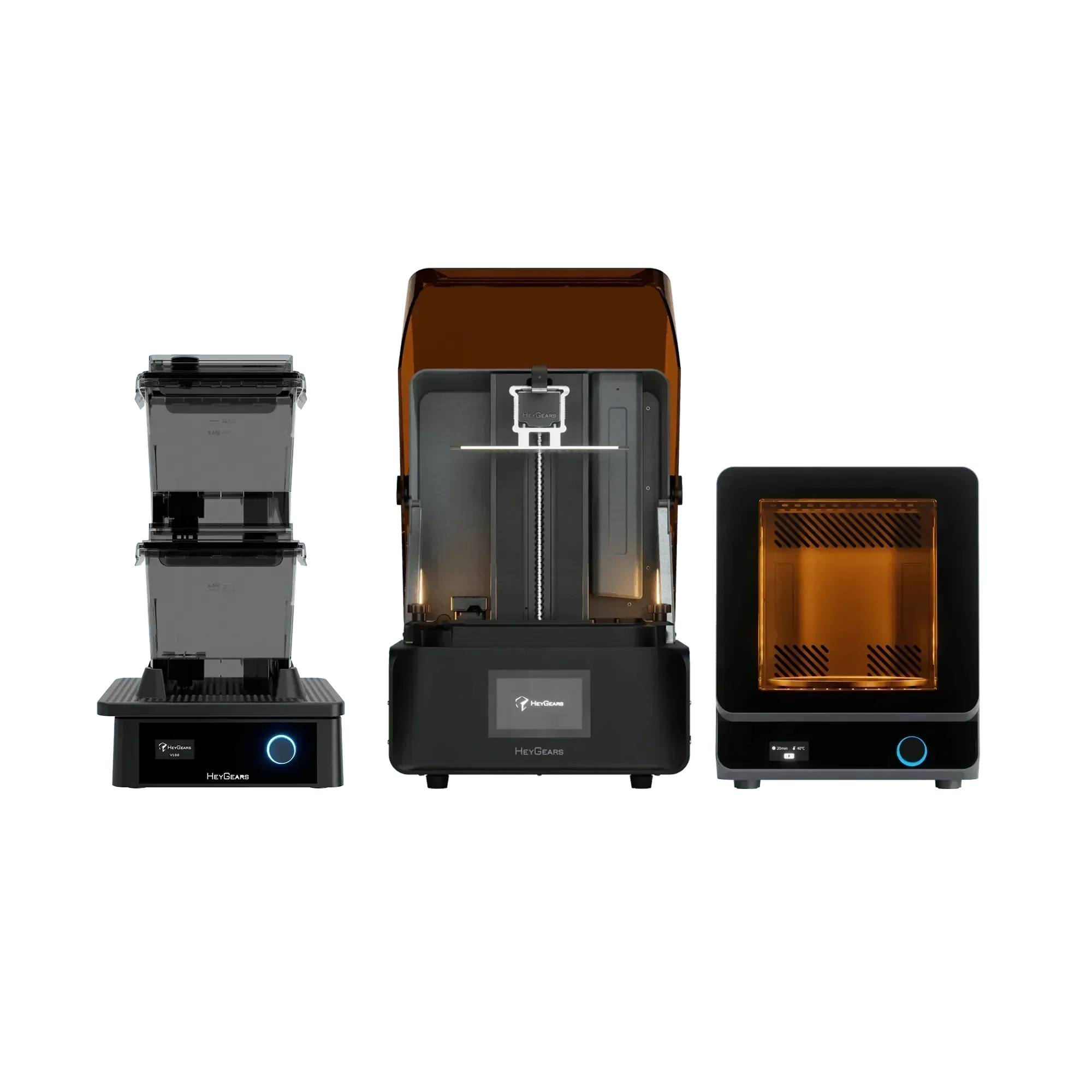

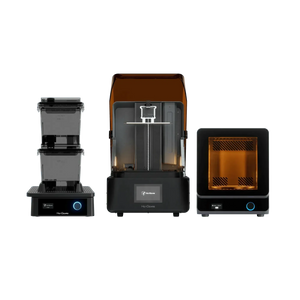

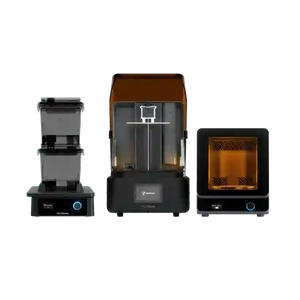

Reflex RS Combo (Full Price 2,550 Euro, including VAT and shipping within EU & UK):
Reflex RS Combo with Pulsing Release Module (Full Price 3,400 Euro, including VAT and shipping within EU & UK):
- UltraCraft Pulsing Release Module x1
Built for High Speed 4.5 s/layer, Average Printing Speed
Data sourced from HeyGears Lab. With high-speed water-washable resin PAWW10, the average printing speed for lattice models reaches 4.5s/layer. The printer frame flex within ±2 μm. Cools screen temperature by up to 10℃ during printing.
Dynamic Motion Algorithm 3.0, 33% Increase in Print Speed
Data sourced from HeyGears Lab, utilizing PAWW10 water-washable resin, comparedto conventional motion control 3D printing. The exact speed increase may vary based on model.
Single-Layer Dynamic Motion Control
Utilizing aseven-segment motion control logic per layer, the RS reads real-time force sensor data at 80 times per second, allowing it to adjust motion parameters efficiently, reducing redundant time and preventing printing failures.
Comprehensive Dynamic Motion Control
This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.
Printing Results Comparison
Complete Pre-processing in Just One Minute
One-click slicing without manual adjustment.
Automatic Repair Prevents Failures
Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.
Automatic Pre-processing
Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.
Residue Detection
Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.
Printing Analysis
A report is produced after each print to accurately identify issues.
Floating Screen Auto Leveling
A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm* for automatic leveling.
Automatic Resin Heating
The optional RS heated resin tank uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*, auto heating maintains this temperature throughout the printing process for optimal results.
*Requires a separate purchase of the RS Heated & Pulsing Release Resin Tank*Data sourced from HeyGears Lab
Automatic Resin Refill
Automatic resin refill before and during printing.
