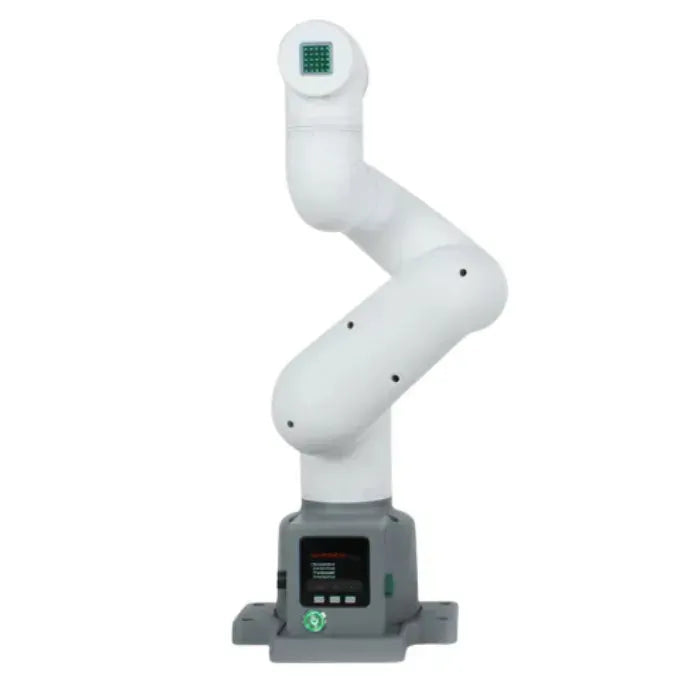

Elephant 6 DOF Robotics Arm 1kg Payload MyCobot 320 Raspberry Pi
The myCobot 320 Raspberry Pi is a powerful and user-friendly 6-axis collaborative robotic arm, co-developed by Elephant Robotics and Raspberry Pi. Designed for robotics education, industrial prototyping, and personal robot applications, it features a built-in Raspberry Pi 4B controller with native Ubuntu 20.04, supporting Python, ROS, and myBlockly development environments. With a 1kg payload, 350mm working radius, and high-precision control, this cobot is ideal for both beginners and advanced developers.
Key Features
-
6 Degrees of Freedom with smooth, accurate movement
-
1kg payload and 350mm working radius
-
±0.5mm positioning accuracy for reliable operation
-
Built-in Raspberry Pi 4B with Ubuntu 20.04
-
Supports Python, ROS1, myBlockly, and visual programming
-
Fully open-source interfaces for secondary development
-
Includes 12 industrial-grade 24V I/O ports for hardware expansion
-
Compatible with Windows, Linux, and macOS
Ideal For
-
STEM education and robotics teaching
-
AI and machine vision research
-
Automation and PLC programming training
-
DIY personal robotic assistant projects
-
Prototyping industrial applications
Built-In Development System
No external PC is required. The myCobot 320 Pi includes pre-installed development tools and OS:
-
Raspberry Pi 4B (64-bit, 1.5GHz Quad-Core, 2GB RAM)
-
Ubuntu 20.04 OS
-
Python, ROS1, myBlockly supported out-of-the-box
-
Display via HDMI, USB 3.0/2.0, Gigabit Ethernet, Type-C
Simply connect a monitor and start developing directly on the robot.
Advanced Connectivity
-
Dual-band Wi-Fi (802.11AC) and Bluetooth 5.0
-
USB 3.0/2.0, HDMI, Type-C, Ethernet, and 3.5mm audio
-
12 I/O interfaces: 6 input, 6 output for industrial-level interaction
-
Supports MODBUS, TCP/IP, and Serial communication protocols
Software & Compatibility
-
Development Software: myBlockly, myStudio
-
Programming Languages: Python
-
Compatible OS: Windows, Linux, macOS
-
ROS Integration: Fully supports ROS1 simulation and real-time control
-
Supports object/facial/image recognition via open-source APIs
Technical Specifications
-
Payload: 1000g
-
Working Radius: 350mm
-
Positioning Accuracy: ±0.5mm
-
Joint Max Speed: 160°/s
-
Weight: 3360g
-
Working Temp: -5°C to 45°C
-
Lifespan: 2000h
-
Power Input: DC 24V / 120W
Why Choose myCobot 320 Pi
-
Used in over 60 countries, with 5,000+ units shipped
-
Designed for both personal and professional use
-
Powerful built-in system for plug-and-play development
-
Supports a wide range of robotic development tools
-
Ideal for those seeking to explore AI, automation, and robotics in one flexible platform
