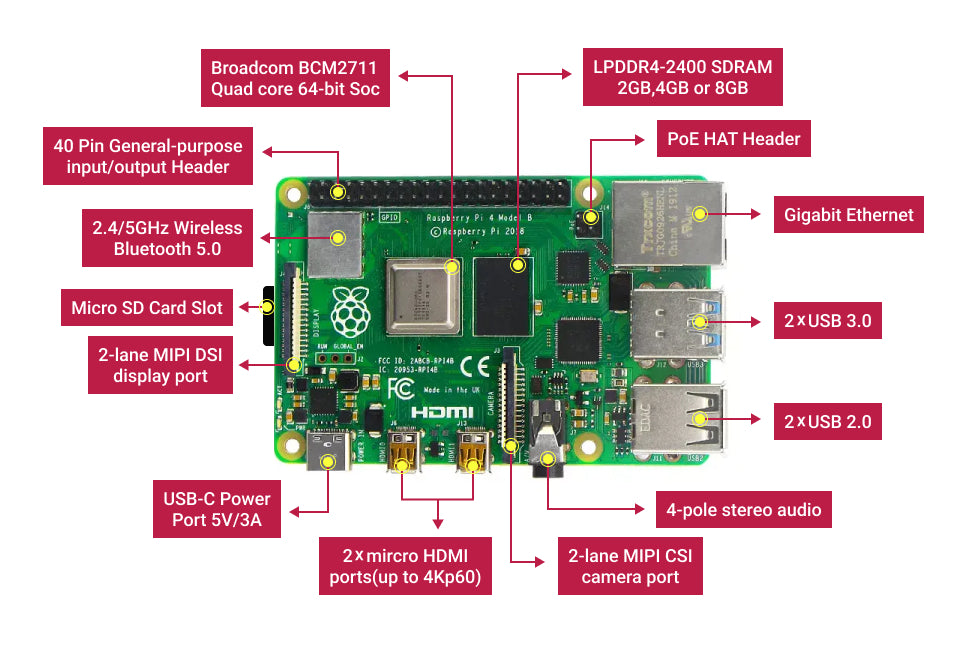

Specification
|
Processor:
|
Broad-com BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
|
|
Memory:
|
1GB, 2GB, 4GB or 8GB LPDDR4 (depending on model) with on-die ECC
|
|
Connectivity:
|

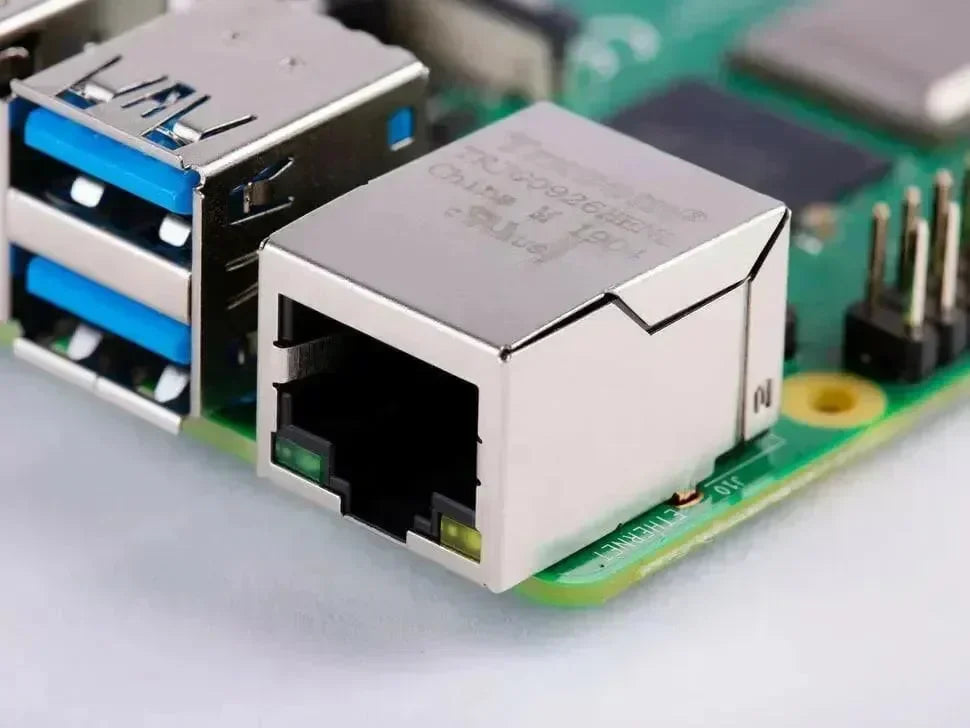

2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet

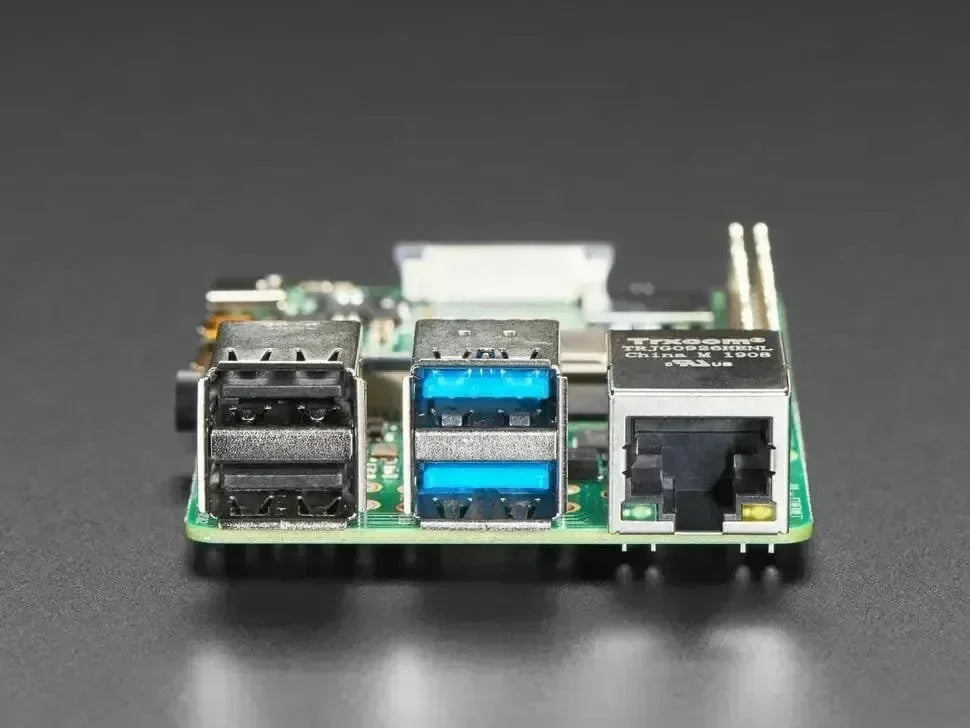

2 × USB 3.0 ports
2 × USB 2.0 ports.
|
|
GPIO:
|

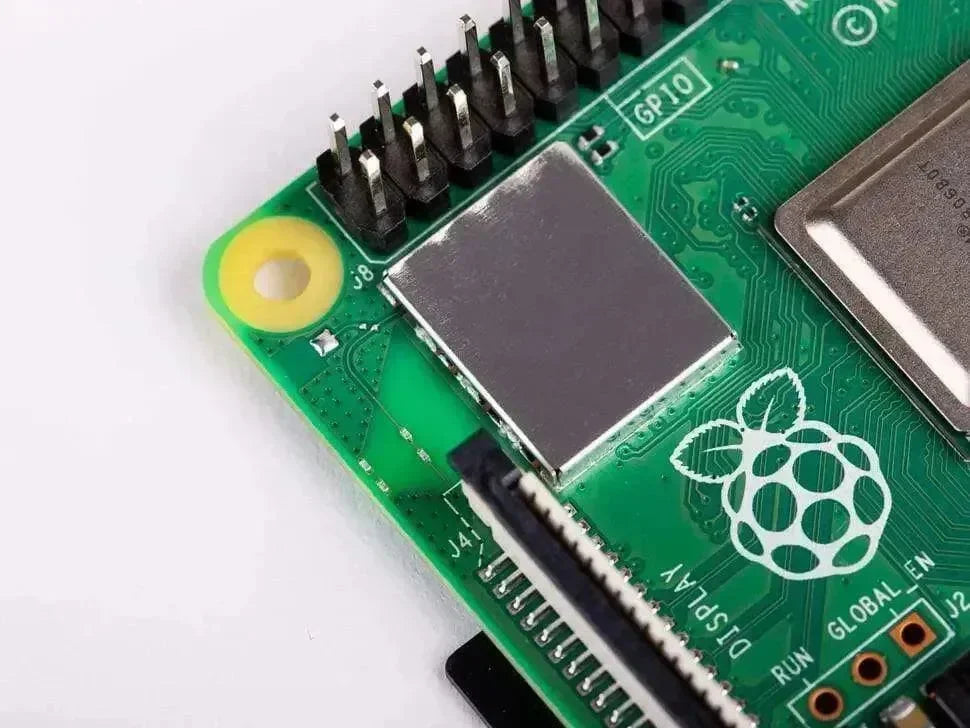

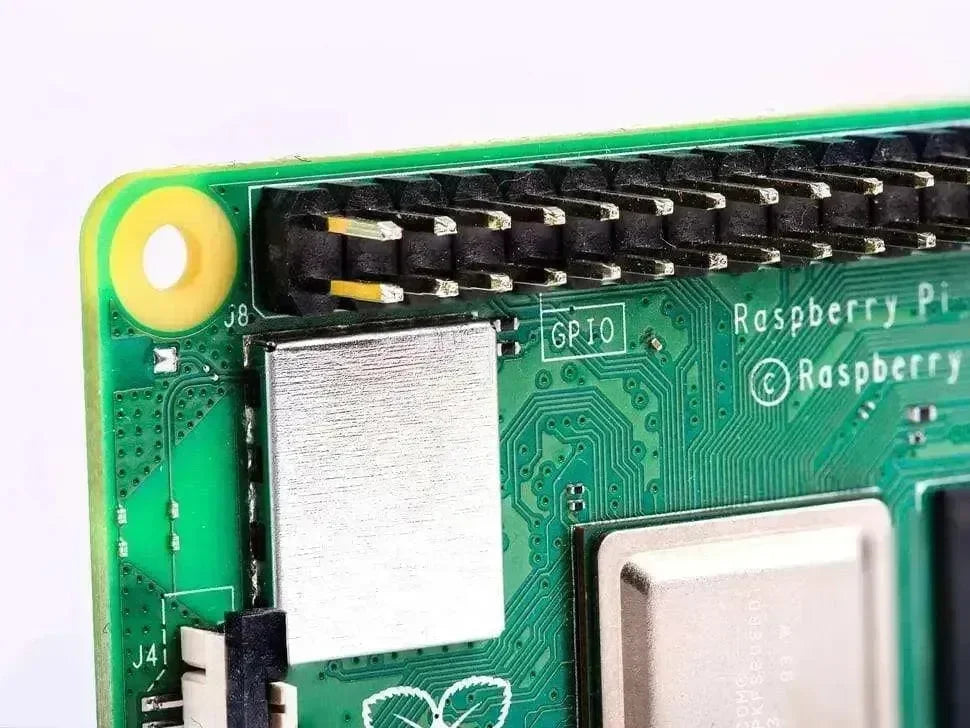

Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
|
|
Video & sound:
|

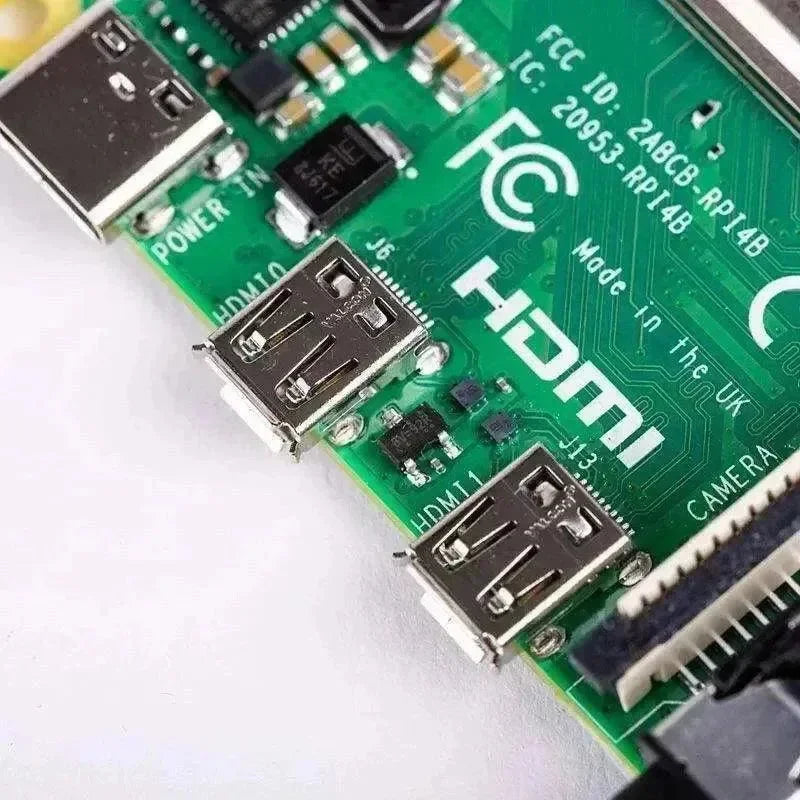

2 × micro HD MI ports (up to 4Kp60 supported)

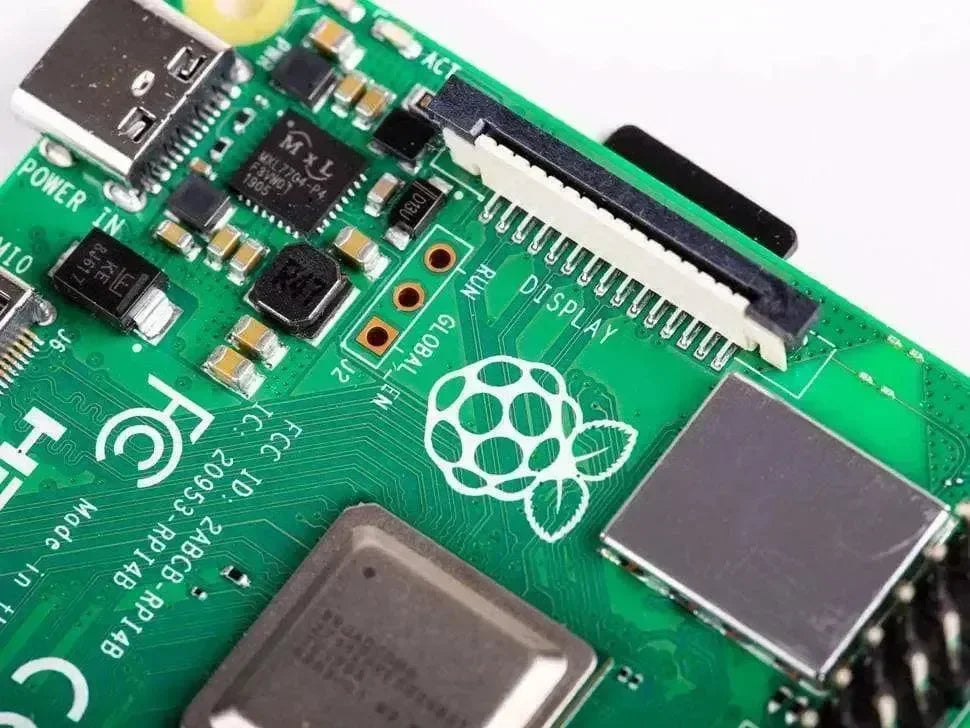

2-lane MIPI DSI display port

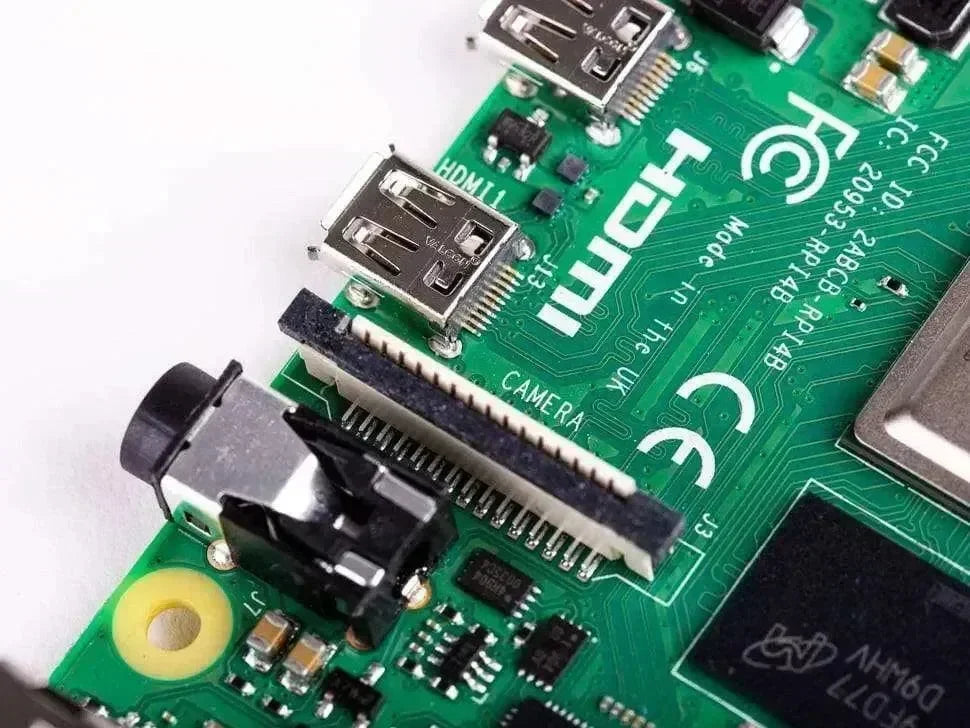

2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
|
|
Multimedia:
|
H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES 3.0 graphics
|
|
SD card support:
|

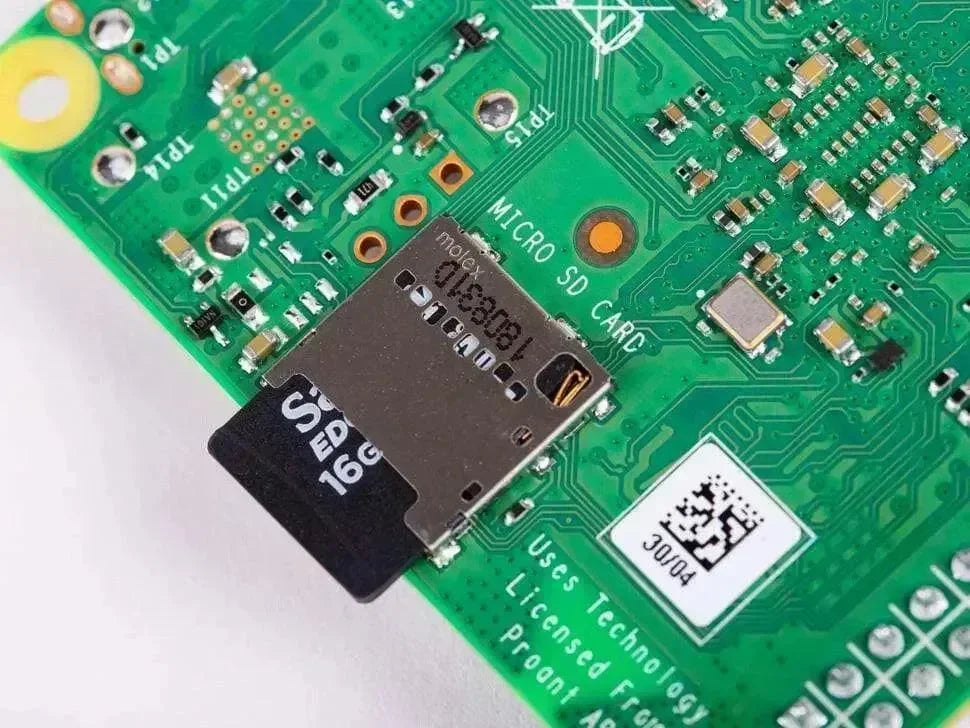

Micro SD card slot for loading operating system and data storage
|
|
Input power:
|
5V DC via USB-C connector (minimum 3A1 )
5V DC via GPIO header (minimum 3A1 )
Power over Ethernet (PoE)–enabled
(requires separate PoE HAT)
|
|
Operating temperature:
|
0°C to +50°C
|
|
Production lifetime:
|
The Raspberry Pi 4 Model B will remain in production until at least January 2026.
|
Raspberry Pi 5 dedicated PD power supply
The Raspberry Pi 5 has undergone a comprehensive upgrade in hardware and performance, requiring greater power consumption when configuring multiple hardware developments and running under high loads. The Raspberry Pi 5 is equipped with a dedicated PD power supply, featuring the Raspberry Pi Pi5 power protocol and supporting 5.1V5A output, making it a high-performance Raspberry Pi 5 power solution that can fully unleash the performance and potential of the Raspberry Pi 5
It is not recommended to use the 5V3A and other non-standard power supplies of Raspberry Pi 4B
