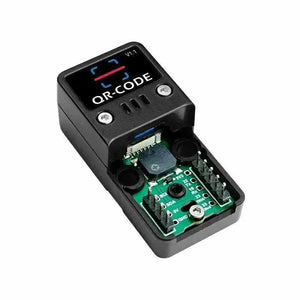

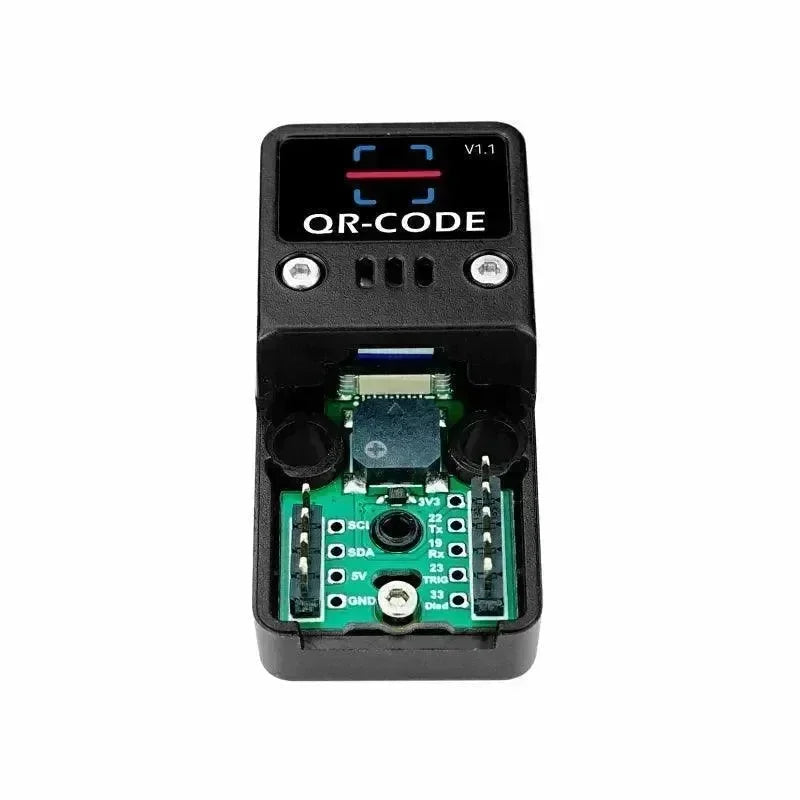

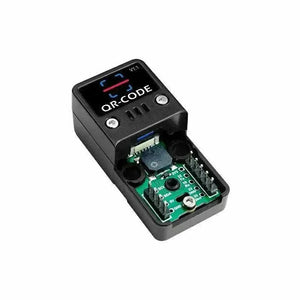

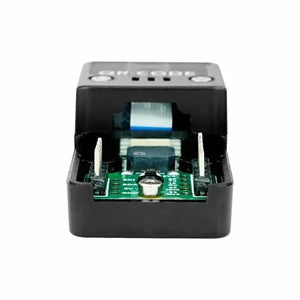

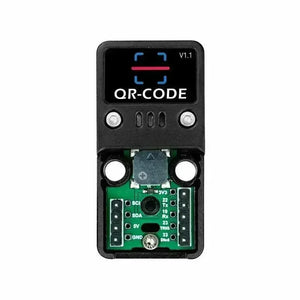

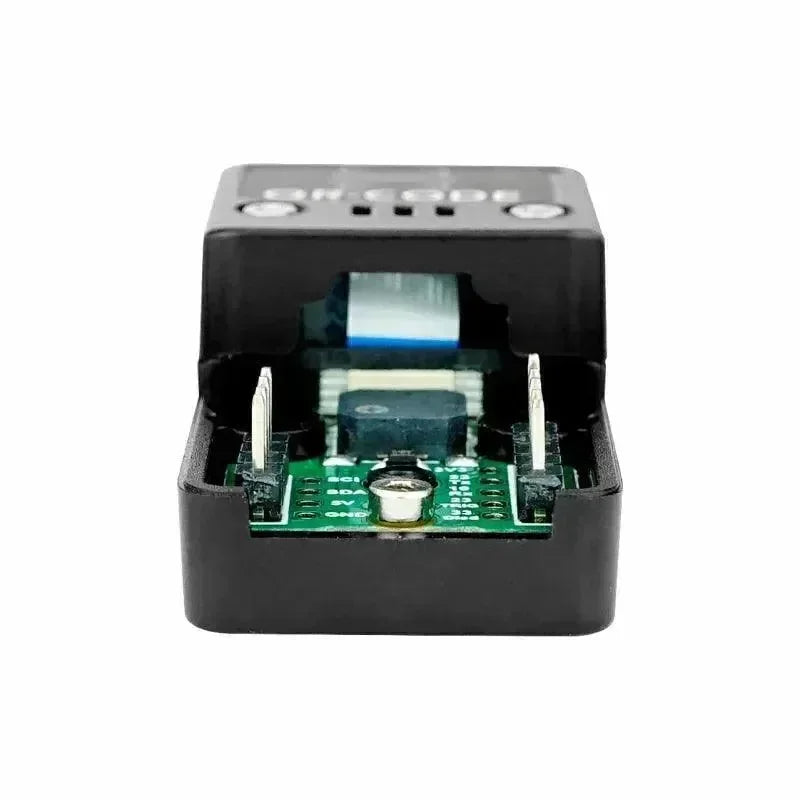

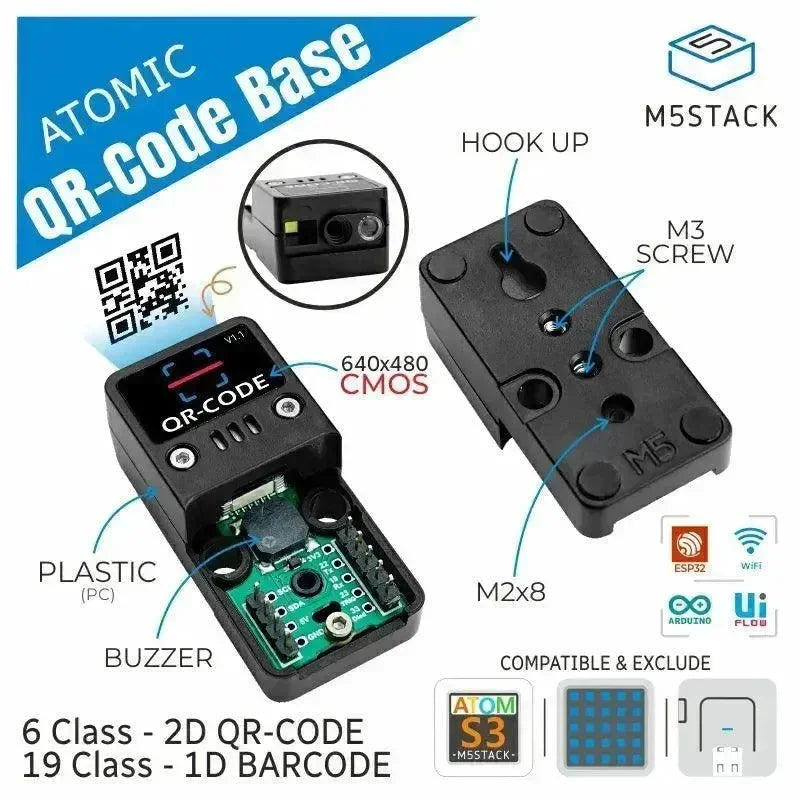

Introducing the ATOM QR-CODE_v1.1, a powerful M5Atom Base designed specifically for reading Barcode/QR-codes. With its advanced features and versatile functionality, it is the perfect tool for various applications.

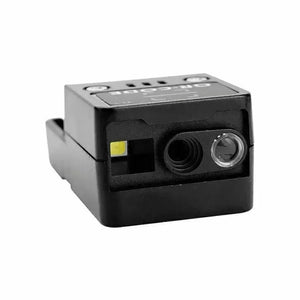

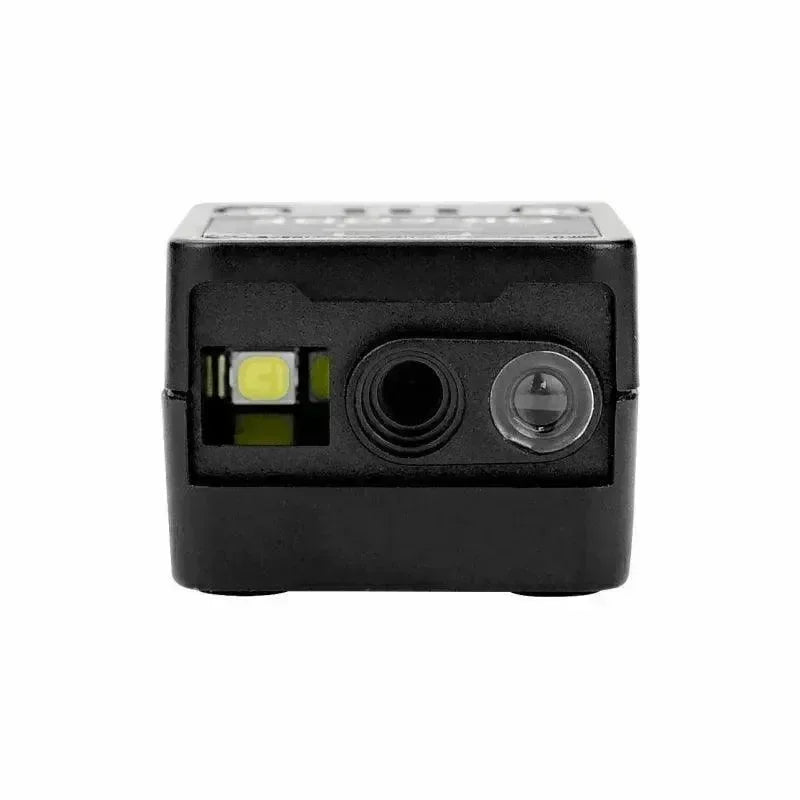

This module supports an impressive range of codes, including 6 types of 2D codes and 19 types of 1D codes. No matter the format, ATOM QR-CODE_v1.1 can accurately decode them with its high-resolution CMOS imaging technology, boasting an impressive recognition accuracy of up to 5mil. Even in low-light environments, the built-in lighting LED ensures clear and easy code identification. The green LED aids in precise focusing and aiming, making scanning effortless.

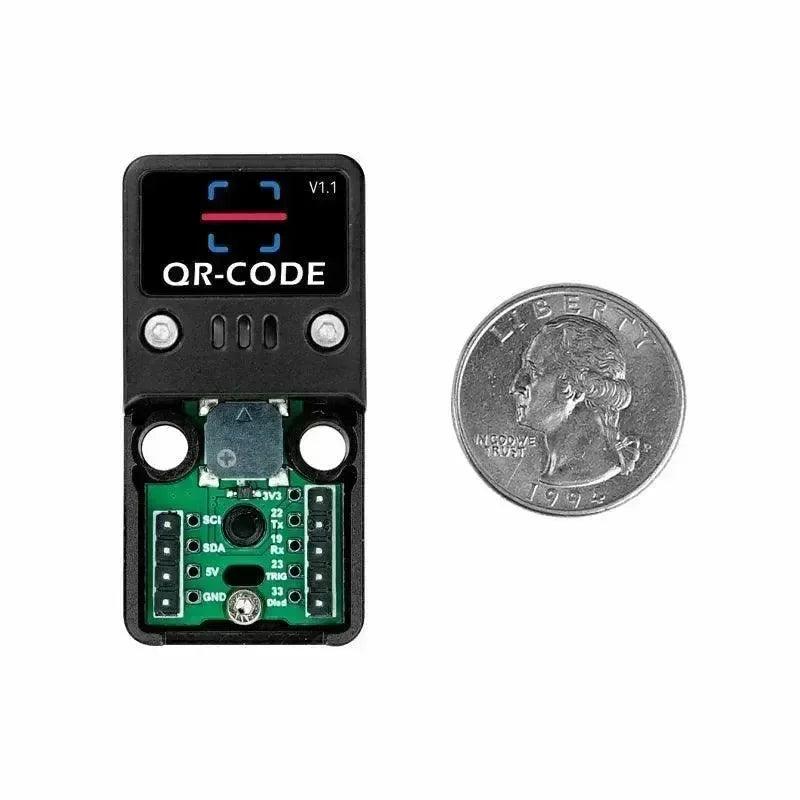

Versatility is a key feature of this module. It offers multiple reading modes, allowing you to choose between automatic continuous triggering or manual triggering based on your specific requirements. The module is equipped with a buzzer that provides different sound effects to indicate various states, providing audible feedback for seamless operation.
Customization is made easy with ATOM QR-CODE_v1.1. You can add custom prefixes or suffixes to the scanned data, define a multi-national keyboard, and perform data editing. The module utilizes TTL communication, enabling straightforward data transmission through a serial port. Whether you prefer Arduino or UIFlow programming, integrating this module into your project is a breeze.
To process the scanned data, you can effortlessly send it to the receiver via wired or wireless connections using the M5Atom Controller. This allows for seamless integration into your existing setup.
The ATOM QR-CODE_v1.1 is a reliable and versatile solution for all your barcode and QR-code scanning needs. Its robust features, precise decoding, and easy integration make it an ideal choice for a wide range of applications.
Resources | Parameters |
---|---|
Read QR code type | QR Code,Micro QR, Data Matrix, PDF417,Micro PDF417,Aztec |
Read Barcode type | EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey, GS1 Databar,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 |
Recognition reading accuracy | ≥5mil |
Reading range | EAN-13: 50-200mm(13mil), Code39: 40-90mm(5mil 10bytes), QR Code: 25-240mm(20mil 16bytes), Data Matrix: 50-90mm(10mil 20bytes), PDF 417: 30-130mm(6.67mil 7bytes) |
Contrast ratio | ≥25% |
Scanning angle | Rotate 360°, Pitch ±55°, Yaw ±55° |
FOV | Horizontal 34°,Vertical 28° |
Communication interface | UART/TTL |
Voltage and Current | DC 3.3V/170mA,Standby 10mA |
Case material | Plastic ( PC ) |
Product Size | 48mm × 24mm × 18mm |

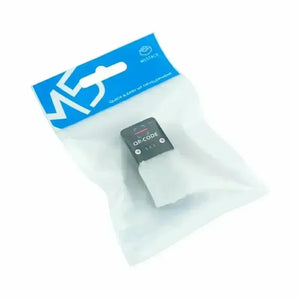

Package Size | 136mm × 92mm × 13mm |
Product Weight | 12g |
Package Weight | 25g |
