Description

Note: All products are tax-inclusive.

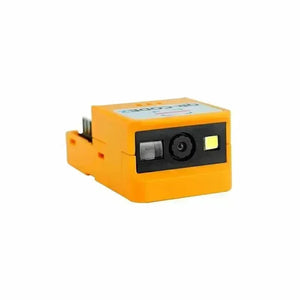

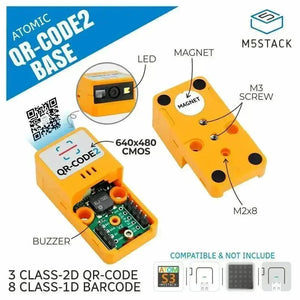

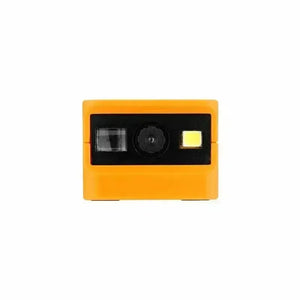

Atomic QRCode2 Base is specifically designed for the ATOM series hosts. It is an integrated 1D/2D barcode scanning base that supports 3 major types of 2D barcodes and 8 types of 1D barcodes. The base features a built-in buzzer and supplementary LED light, providing sound effects in different states, and a green LED for focus and aiming assistance. You can transmit the scanned data to the receiving end via wired or wireless means using the ESP32 built into the M5Atom host. The back of the base is equipped with magnets, M3 screw holes, and LEGO-compatible holes, offering multiple mounting options. It is suitable for logistics, retail, manufacturing, and other fields.

Features

  • Supports 3 types of two-dimensional code and 8 types of one-dimensional code
  • Built-in buzzer sound prompts
  • Built-in lighting LED
  • High resolution imaging
  • Focusing and aiming functions

Includes

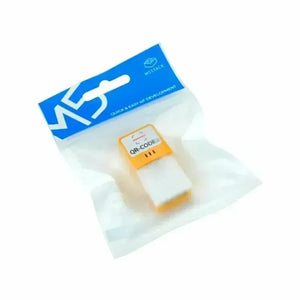

  • 1x Atomic QRCode2 Base

Applications

  • Material Flow
  • Retail
  • Manufacture

Specification

Resources Parameters
Sensor 640x480 CMOS
Illumination White LED
Focus Indicator Green LED
Recognized 2D Barcode Types PDF417, QR Code, Data Matrix
Recognized 1D Barcode Types Code39, Code93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5
Recognition Precision ≥5mil
Print Contrast ≥20%
Scan Angle Rotation 360°, Tilt ±55°, Skew ±55°
Field of View Horizontal 34°, Vertical 28°
Communication Interface UART
Power Consumption Standby current (without ATOM Lite): DC5V/116.57mA
Standby current (with ATOM Lite): DC5V/174.18mA
Casing Material Plastic (PC)
Operating Temperature 0-40°C
Product Size 48*24*17.5mm
Package Size 136* 92* 18mm
Product Weight 12g
Package Weight 14.2g
