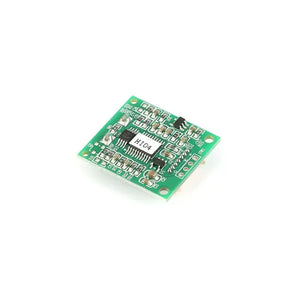

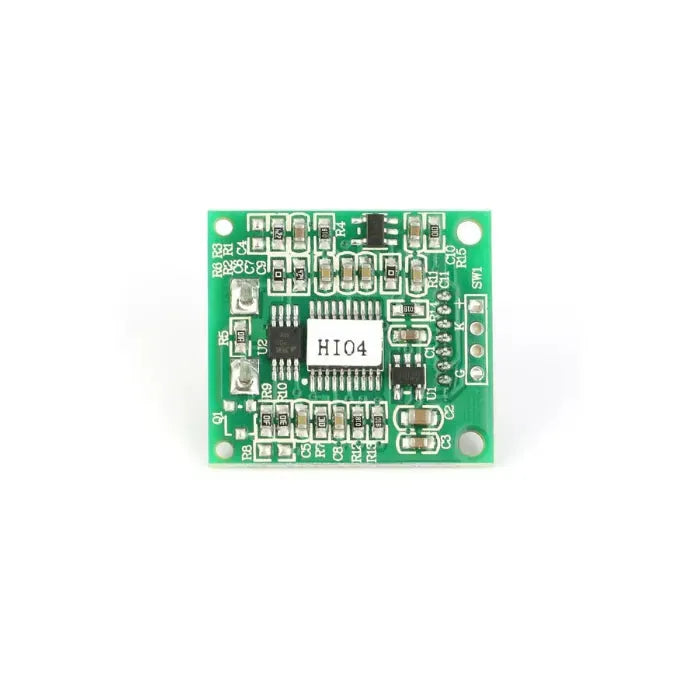

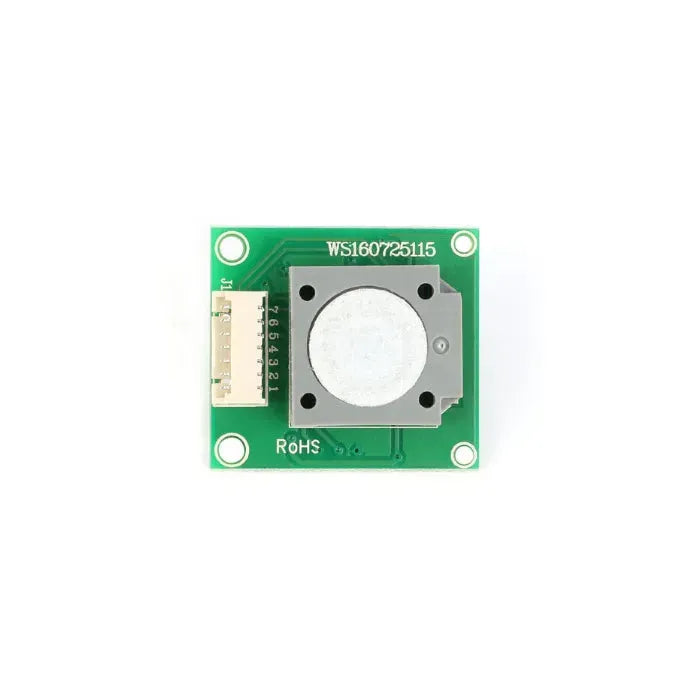

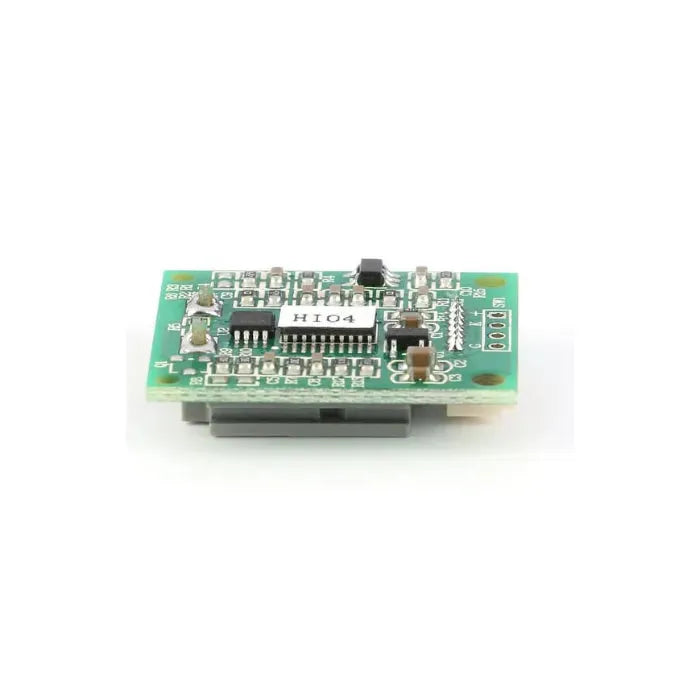

The ZE08-CH2O is a versatile and compact electrochemical formaldehyde detection module. It employs the electrochemical principle to detect formaldehyde (CH2O) in the air, endowing the module with high selectivity and stability. A temperature sensor is integrated to perform temperature compensation. It features both digital output and analog voltage output simultaneously. It represents a blend of a well - established electrochemical detection principle and a refined circuit design.
| Model No. | ZE08 - CH2O |
|---|---|
| Target Gas | CH2O |
| Interference Gas | Alcohol, CO, etc. |
| Output Data | DAC(0.4 - 2V standard voltage output) UART output(3V Electrical Level) |
| Working Voltage | 3.7 - 9V(With voltage reverse connect protection) |
| Warm - up time | ≤3 minutes |
| Response time | ≤60s |
| Resume time | ≤60s |
| Detection Range | 0 - 5ppm |
| Resolution | ≤0.01ppm |
| Operating Temp. | 0 - 50°C |
| Operating Hum. | 15% - 90%RH(No condensation) |
| Storage Temp. | 0 - 50°C |
| Working life | 2 years (in air) |
