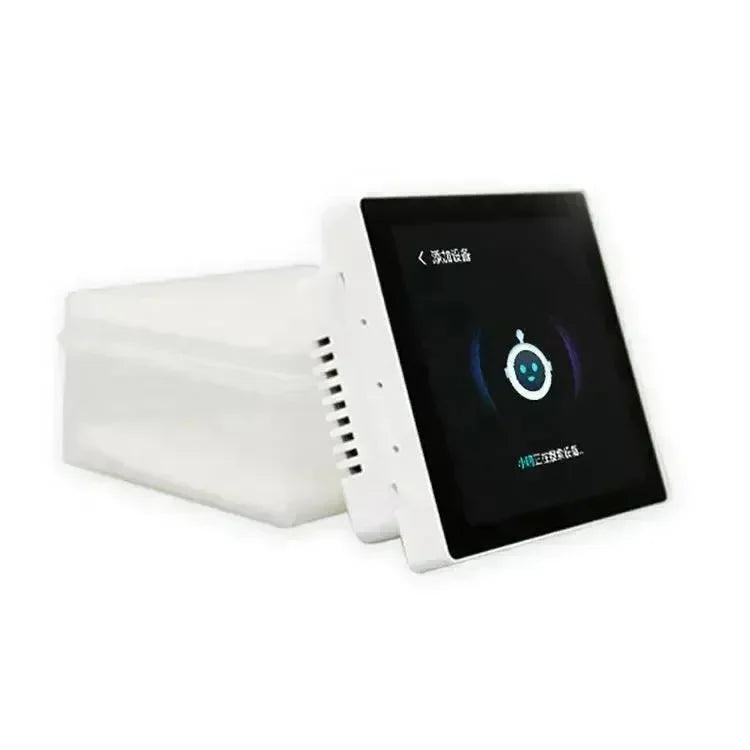

WT32S3-86S touch display screen with temp and humidity sensor
WT32S3-86S Based on Wireless-Tag’s WT32-S3-WROVER-N16R8 (16MB Flash/8Line 8M die inside), which is directly driven by 480*480 high-resolution RGB display with capacitive touch, Everest Semiconductor’s ES8388 audio CODEC, temperature and humidity sensor, so it is called the economical 86 box; It comes with WiFi, touch control. It support online rapid prototyping on the 8MS development platform.
Features
Display: 3.95-inch 480*480 high-resolution RGB display with capacities touch.
Temperature and Humidity Sensors: Accurately measure environmental conditions.
I2C Communication: Easy integration with micro-controllers and other devices.
Compact Design: Suitable for a wide range of applications, from home automation to industrial monitoring.
Applications
Home Automation: Monitor and control indoor climate.
Industrial Monitoring: Track environmental conditions in manufacturing or storage facilities.
Educational Projects: Ideal for teaching electronics and sensor integration.
Specification
|
LCD Display
|
IPS
|
|
display size
|
3.95inch
|
|
Resolution
|
480X480
|
|
Flash memory
|
128Mbit
|
|
Interface Type
|
RGB
|
|
Touch screen
|
Capacitive touch screen
|
|
Certification
|
FCC/CE-RED/SRRC
|
|
Mainboard power supply
|
5V DC
|
|
Color
|
White
|
|
MCU
|
ESP32-S3-WROVER
|
|

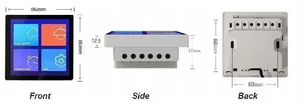

Dimension
|
86 x 86 x 37mm
|
|
Wi-Fi
|
802.11 b/g/n
|
|
UI customization
|
Please contact us.
|
|
Service
|
Sample available; Technical support; Customize Serivice; Original factoty; OEM & ODM
|
