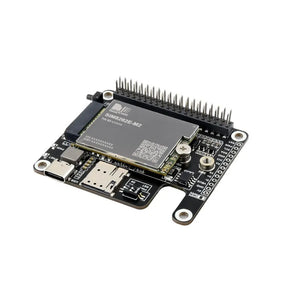

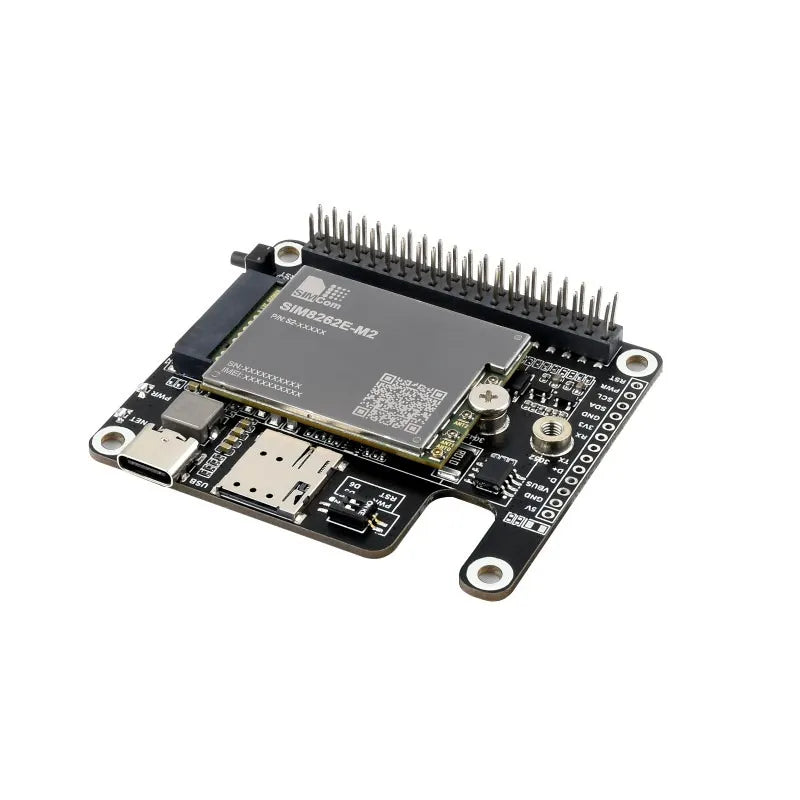

Waveshare PCIe to SIMCom/Quectel 5G/4G/3G HAT for Raspberry Pi 5 SIM8262E-M2
This PCIe to 5G/4G/3G HAT is specifically designed for the Raspberry Pi 5, enabling high-speed networking capabilities. It is compatible with 3042/3052 package SIMCom/Quectel 5G modules and supports multiple operating systems.
Important Notice: We are prohibited by module manufacturers SIMCOM/QUECTEL from shipping this product or providing technical support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syria.
Carrier Certification: The RM530N-GL is currently certified only by T-Mobile. It has not yet obtained certification from carriers such as Verizon or AT&T. If these certifications are required, please choose the RM520N-GL.
Note: Raspberry Pi 5 is not included and is for reference only.
Key Features
-

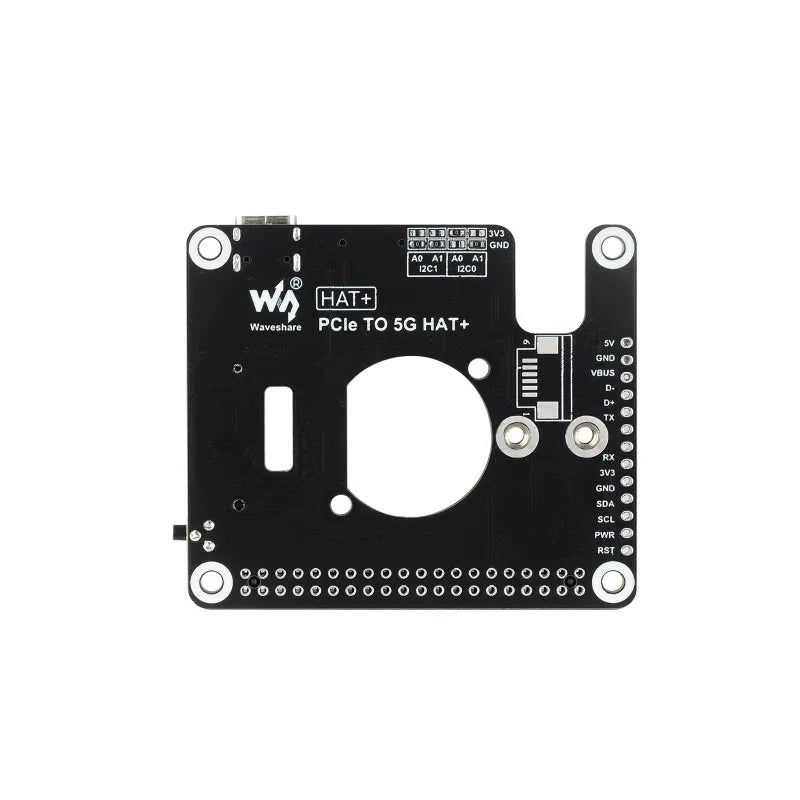

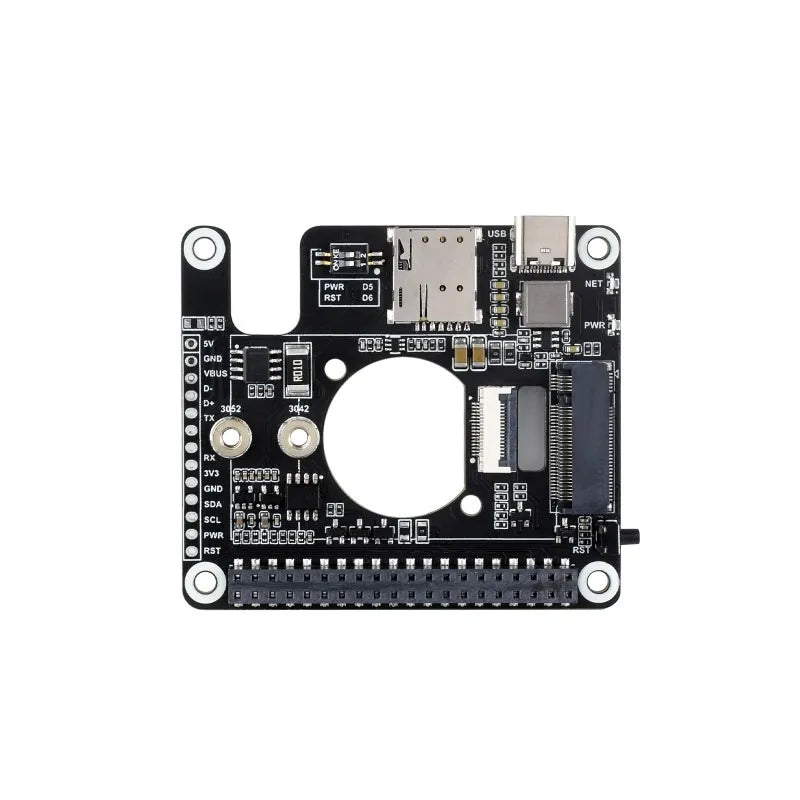

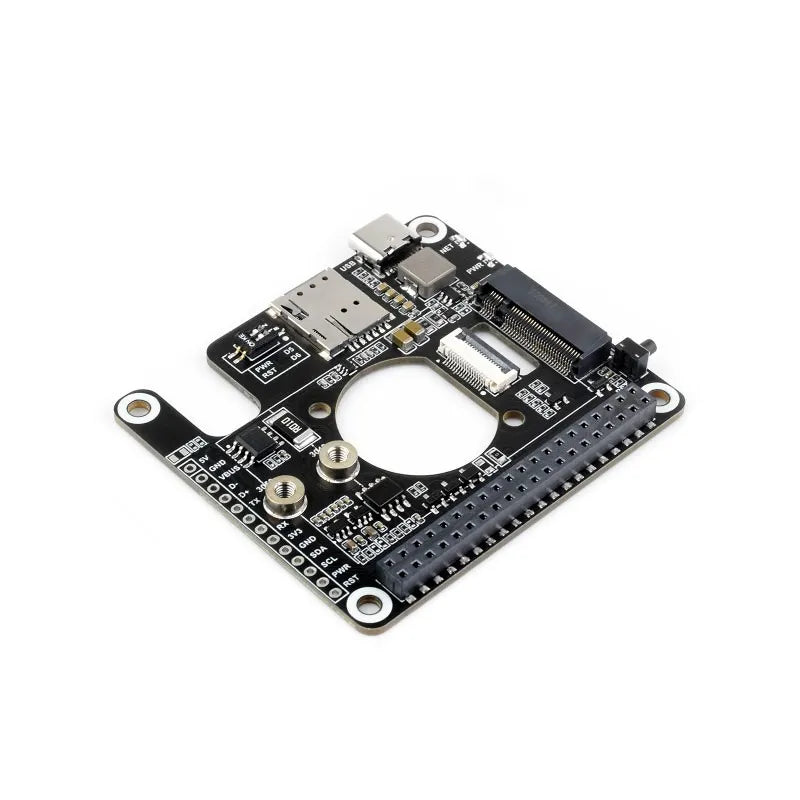

PCIe to 5G HAT+
- Onboard M.2 (NGFF) Key B slot supports SIM82XX and RM5XX series 5G modules, compatible with 3042/3052 packages.
- Onboard PCIe connector for direct connection to Raspberry Pi 5's PCIe interface for 5G networking, supporting Raspberry Pi OS and OpenWRT.
- Onboard Type-C port enables 5G networking for Raspberry Pi or PC via USB cable, firmware updates, or external power input.
- HAT+ standard design with onboard I2C EEPROM supports Raspberry Pi 40PIN GPIO stackable expansion.
- Integrated power monitoring chip for real-time voltage, current, and power measurement.
- Onboard SIM card slot for NANO SIM cards.
- Onboard Reset button, power, and network indicators for easy debugging and status monitoring.
-
5G Module Options
Refer to the module specifications and applicable regions below to choose your 5G HAT kit before ordering.
-
Customized 5G-4IN1-PCB Antenna
Included for neat wiring management, supporting top or bottom installation.
5G Module Options: SIMCom/Quectel Compatibility
Tested to support multiple SIMCom/Quectel Qualcomm 5G modules, compatible with 3042 / 3052 size 5G M.2 modules.
| Model | RM502Q-AE 5G HAT+ | RM520N-GL 5G HAT+ | RM530N-GL 5G HAT+ | SIM8262E-M2 5G HAT+ | SIM8262A-M2 5G HAT+ | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|||||
| 5G Module |
 RM502Q-AE |
 RM520N-GL |
 RM530N-GL |
 SIM8262E-M2 |
 SIM8262A-M2 |
||||
| 5G Standard | 3GPP R15 | 3GPP R16 | |||||||
| 5G | Sub-6 GHz | Sub-6G & mmWave | Sub-6 GHz | ||||||
| Applicable Region | Global (except China) | Global | except Americas | Americas | |||||
| Dimensions | 30.0 × 52.0 × 2.3 (mm) | 30.0 × 42.0 × 2.3 (mm) | |||||||
| Frequency Band | |||||||||
| 5G | 5G NR | - | n257, n258, n260, n261 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | ||||
| 5G NR NSA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||||
| 5G NR SA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||||
| LTE | LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | |||||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | ||||||
| LAA | B46 | - | |||||||
| UMTS | WCDMA | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B2, B4, B5 | ||||
| GNSS | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) | GPS / GLONASS / BeiDou / Galileo / QZSS | |||||||
| Data Rate | |||||||||
| 5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
- | ||||||
| 5G SA Sub-6 | downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
downlink 2.4 Gbps; uplink 500 Mbps |
||||||
| 5G NSA Sub-6 | downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
|||||||
| LTE | downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
||||||
| UMTS | downlink 42 Mbps; uplink 5.76 Mbps |
||||||||
| Note: The above are the supported 5G modules after testing. If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility. | |||||||||
Versatile 5G/4G/3G Networking Support
This HAT supports both 5G NSA (4G and 5G co-networking) and SA (5G separate networking), alongside comprehensive 4G/3G internet capabilities.
Note: The frequency band diagram above is for reference only. Please confirm supported bands with your local service provider.

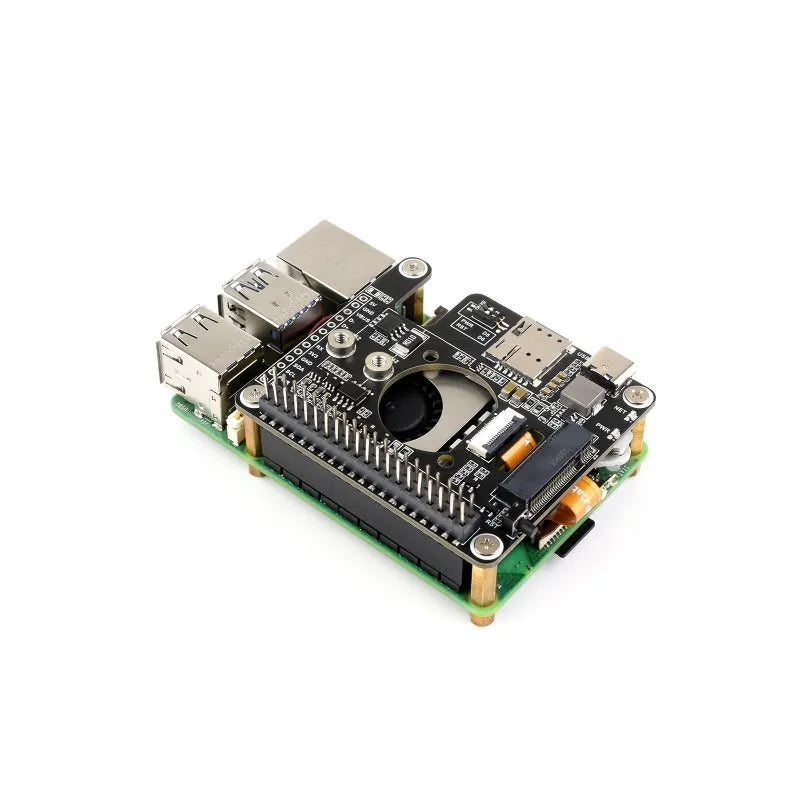

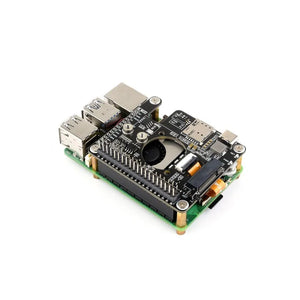

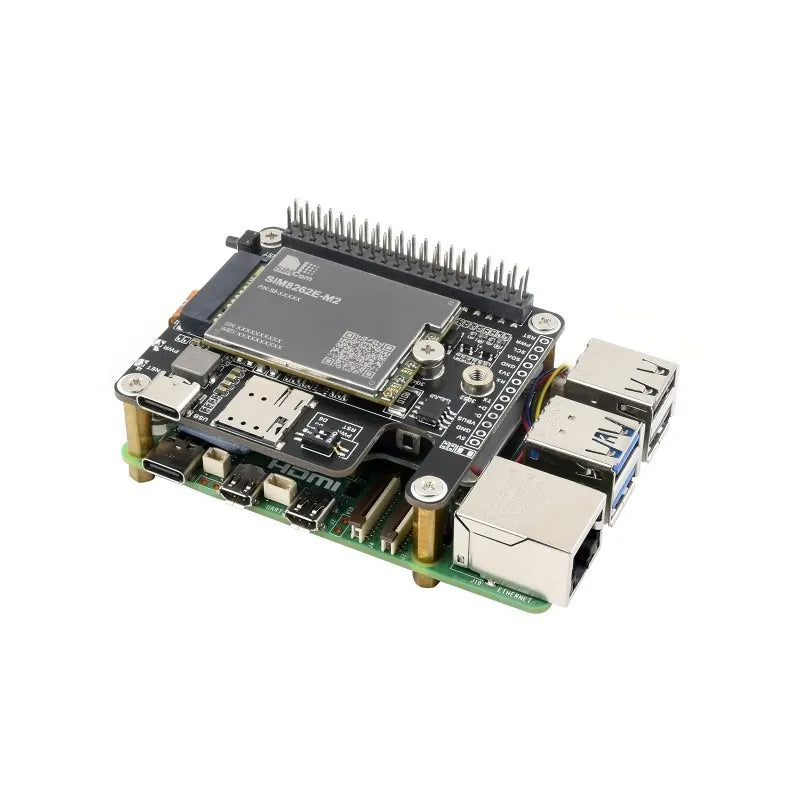

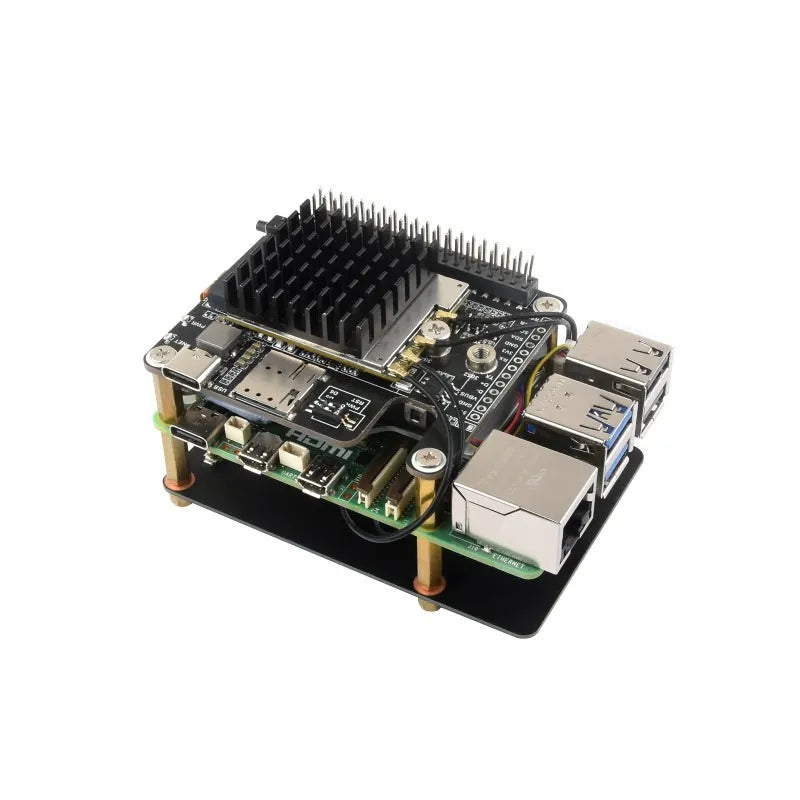

Seamless Connection to Raspberry Pi 5 via PCIe
Utilize the onboard PCIe connector to directly link to your Raspberry Pi 5's PCIe interface for robust 5G networking via the included 16PIN cable.
Note: Image for reference only. Please refer to the Package Content for a detailed part list.
PCIe MHI Driver Porting for Broad OS Compatibility
The Raspberry Pi 5 can load the module via PCIe MHI driver, ensuring compatibility with the latest Raspberry Pi OS and OpenWRT systems.
Raspberry Pi OS
OpenWRT
Networking other devices via network cable
Individually powered and sharing WIFI
USB Connectivity for Windows/Linux Hosts
The onboard Type-C port allows connection to Windows/Linux hosts via a USB cable for 5G networking, firmware updates, or debugging purposes.
Connecting to the Raspberry Pi 4B
Connecting to the PC
Supports Windows/Linux systems via USB port.

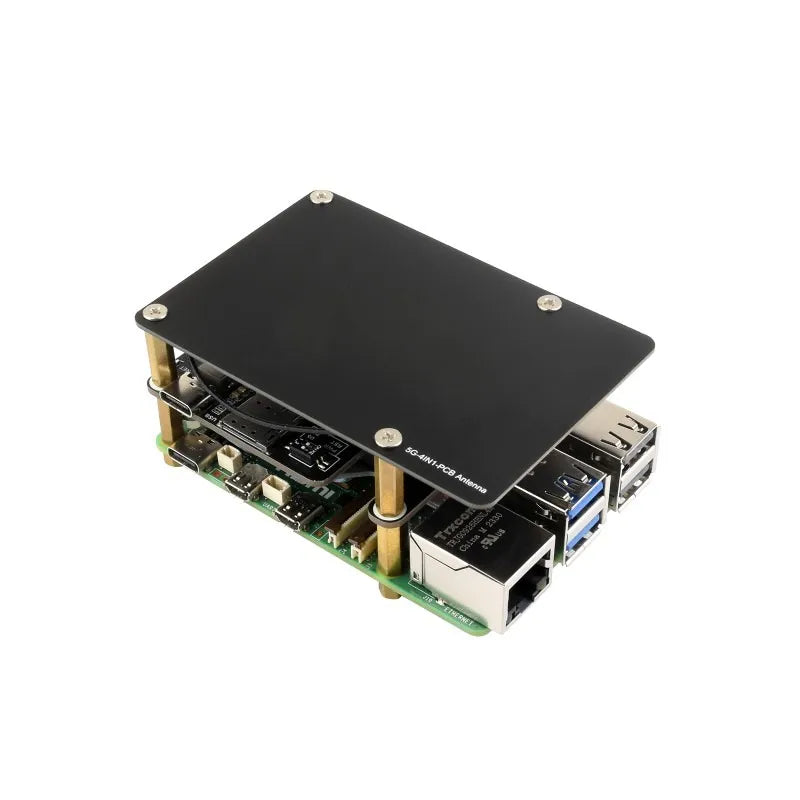

Included 5G-4IN1-PCB Antenna
The antenna supports both top and bottom mounting for easy installation and excellent communication performance.
Install on the Bottom
Install on the Top
Integrated Power Monitoring Chip and EEPROM
Real-time monitoring of module voltage, current, and power via I2C. Supports saving HAT+ ID and product information, complying with the HAT+ standard.
Installation Guide
Pinout Definition
Diverse Application Scenarios
Ideal for Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, Digital Signage, and more.
Outline Dimensions
