Waveshare ALTERA CoreEP4CE6 Core Board FPGA development tool

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

🔧 CoreEP4CE6 by Waveshare is a compact, high-performance FPGA development board designed to accelerate prototyping and education for Altera/Intel Cyclone IV-based projects. Whether you're a student, hobbyist, or professional, this board makes digital design more accessible than ever! 💡

✨ Key Features:

🖥️ Onboard USB interface for seamless programming
🔌 Reusable GPIO headers for quick hardware interfacing
⚡ Robust power management circuit ideal for low- to mid-density designs
📚 Accessible documentation and plug-and-play integration
🔄 Compatible with common FPGA development workflows

💻 Dive into embedded systems, experiment with rapid prototyping, or teach digital logic—all with a reliable, budget-friendly platform that’s ready to go out of the box. 🚀

🔧 Features

- 💾 Onboard Serial Configuration Device: EPCS16SI8N
- ⏱️ Integrated FPGA basic circuit, including a clock circuit
- 🔘 Onboard control buttons: nCONFIG, RESET, and 4 x LEDs
- 📤 Accessible I/O ports via pin headers
- 🛠️ JTAG interface for debugging/programming
- 📏 2.54mm header pitch design

Specifications

Parameter	Value
FPGA Chip	EP4CE6E22C8N (Cyclone IV)
Logic Elements	6K
RAM	270KB
I/Os	80
PLLs	2
Voltage Range	1.15V – 3.465V
Clock Speed	50MHz
Programming	JTAG (10-pin header)
Package	QFP144
Dimensions	60mm x 45mm (approx.)

🧩 Overview

CoreEP4CE6 is a versatile FPGA core board featuring the EP4CE6E22C8N device onboard, designed to support further expansion for a wide range of applications. 🚀

What's On Board

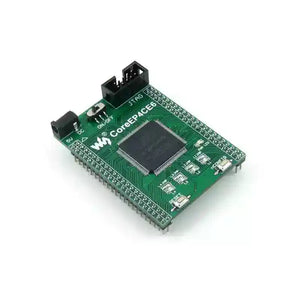

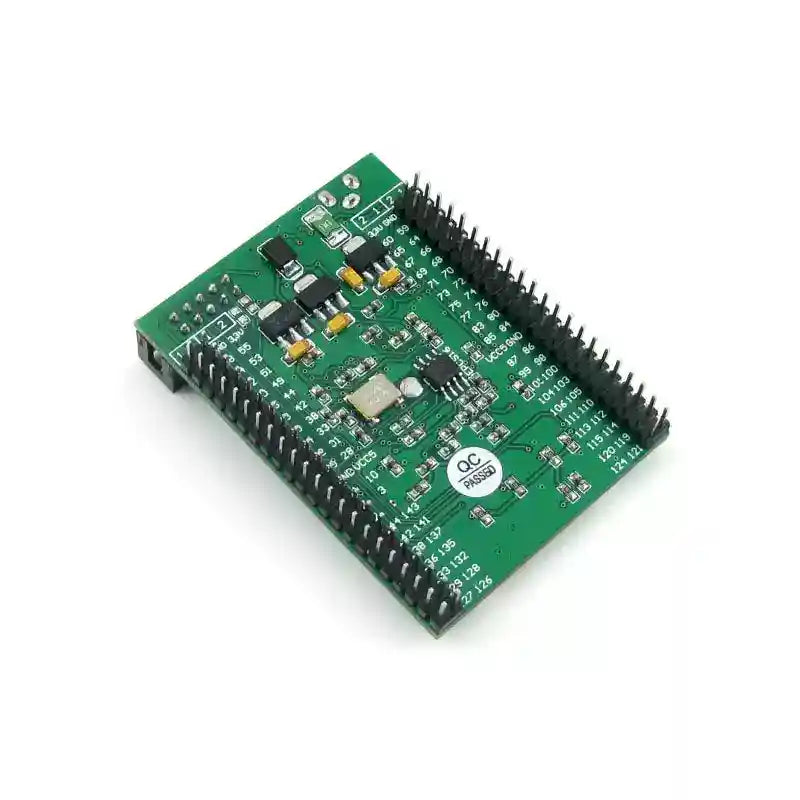

EP4CE6E22C8N core board on board resource

🔧 FPGA Board Specifications & Features

1️⃣ EP4CE6E22C8N — ALTERA Cyclone IV FPGA

📶 Operating Frequency: 50MHz
🔋 Operating Voltage: 1.15V~3.465V
📦 Package: QFP144
🔌 I/O Ports: 180
🧠 Logic Elements (LEs): 6K
🗄️ RAM: 270kb
🔁 PLLs: 2

2️⃣ 🛠️ Onboard JTAG support

3️⃣ ⚡ AMS1117-3.3: 3.3V voltage regulator

4️⃣ ⚡ AMS1117-2.5: 2.5V voltage regulator

5️⃣ ⚡ AMS1117-1.2: 1.2V voltage regulator

6️⃣ 💾 EPCS16: Onboard configuration chip for storing program code

7️⃣ 🔋 Power indicator LED

8️⃣ 🔄 Reset button

9️⃣ 🔃 nCONFIG button: Reconfigures the FPGA chip (acts like a power reset)

🔟 🔘 User buttons: 4 total

1️⃣1️⃣ ✨ User LEDs: 8 total

1️⃣2️⃣ 🧩 JTAG interface for debugging and programming

1️⃣3️⃣ 📌 JTAG pin labels: VCC, GND, and all I/O ports are clearly marked on the PCB for easy expansion

1️⃣4️⃣ 💡 LED running light feature

1️⃣5️⃣ 🎇 LED dancing light feature

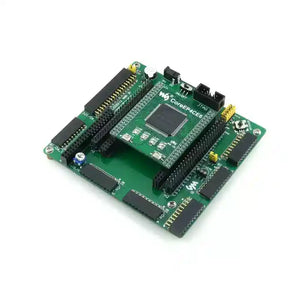

Photos

⚠️ Note: The CoreEP4CE6 provides a JTAG debugging interface, but does NOT include any built-in debugging functionality — an external debugger is required.

🖼️ Important: The motherboard and programmer/debugger shown in product photos are for demonstration purposes only and are NOT included in the price.

JTAG Interface

The figure below shows the header pinout of JTAG

Figure 1. JTAG Header Pinout

📚 Development Resources

- 💻 Related software: Quartus II, NIOS II, and more
- 🧪 Demo code: Verilog, VHDL, NIOS II C examples
- 📄 Schematic: Available in PDF format
- 📘 FPGA development documentation for all levels

🚀 Applications

🎓 FPGA education and training
🧠 Hardware logic prototyping
📡 Signal processing applications
🤖 Embedded system control
🏭 Industrial automation projects
🔬 STEM development and research

🛠️ Software & Development Support

✅ Compatible with Quartus II IDE
🧾 Supports Verilog, VHDL, and NIOS II
🧩 Reference code and schematics available
📖 Detailed documentation for beginners

Refference

CoreEP4CE6
