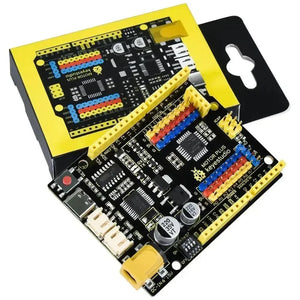

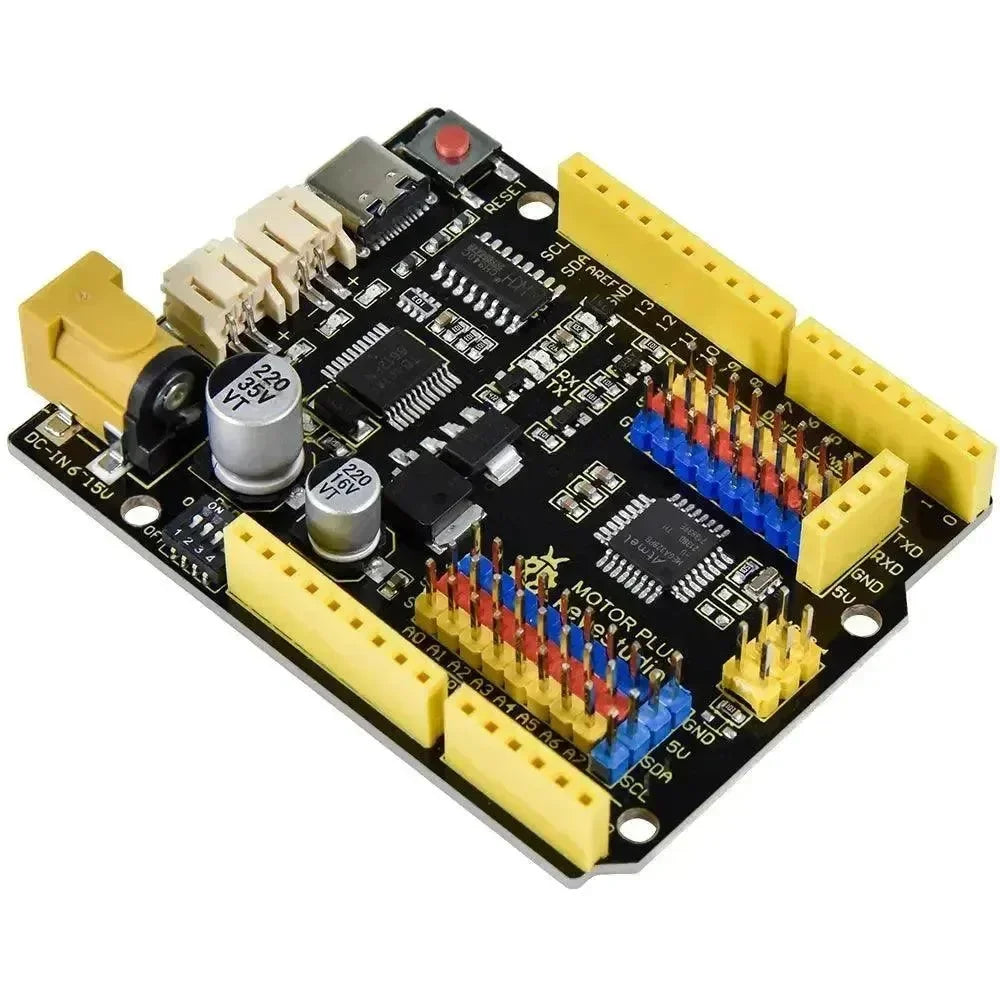

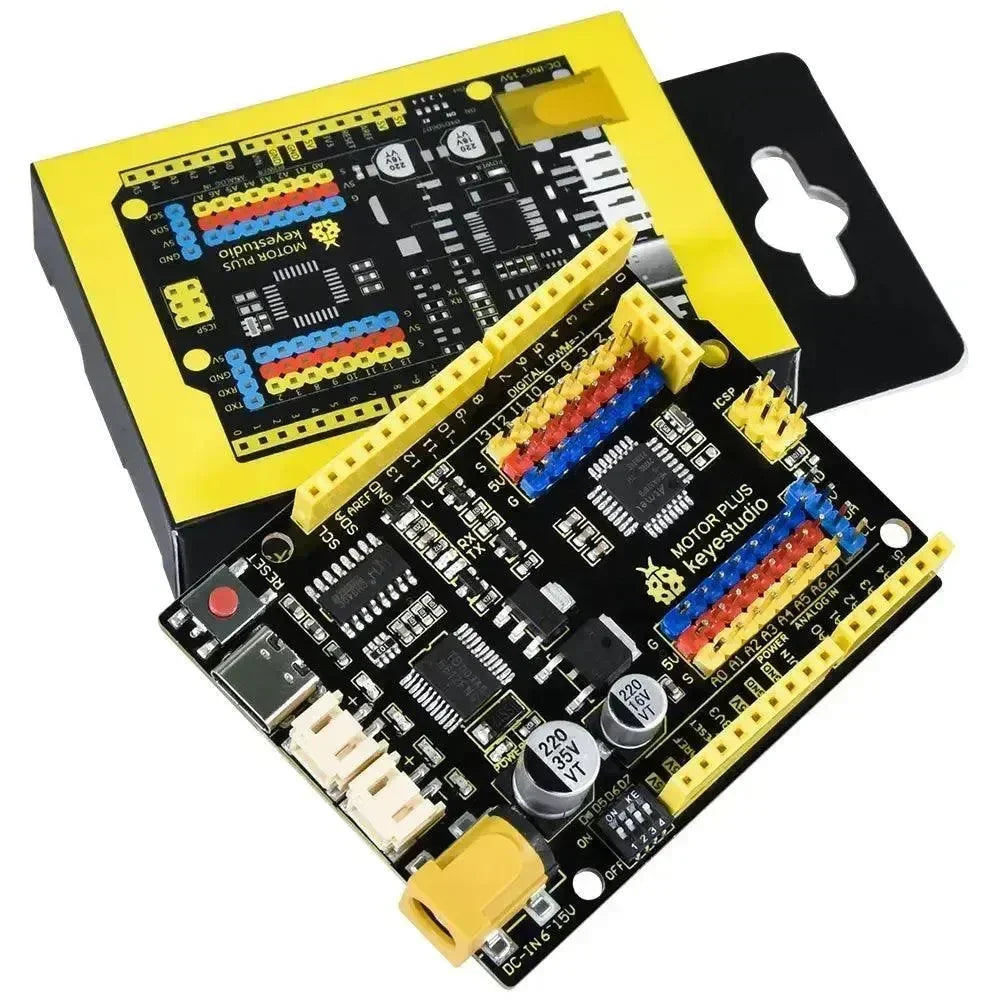

Motor PLUS development board is a control board fully compatible with the Arduino IDE development environment.
It is as same as the UNO R3 board. In addition, we also made some improvements.

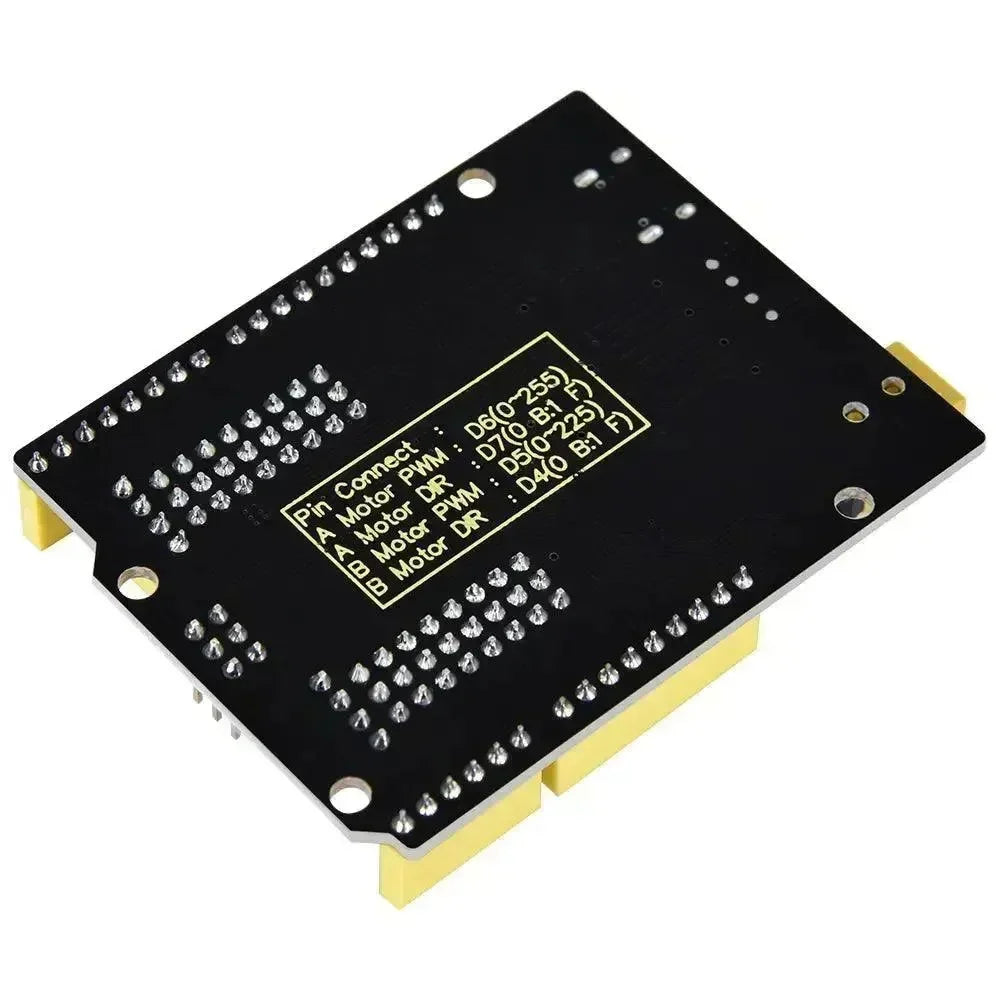

Two DC motor drive modules on the board can control one or two DC motors through the toggle switch. It is suitable for platforms and systems that need to control two DC motors, as well as related applications that require IO ports to output large currents. make it more powerful. The specific improvement is shown in the figure below. In order to facilitate wiring, we also equipped a USB cable with a type-c interface with a length of 1 meter.
