T-RGB is the first circular touch display screen of LilyGo. The screen uses a 2.1/2.8inch ST7701S TFT LCD full-color display.
The main control chip adopts ESP32-S3R8 Tensilica Xtensa Dual-Core LX7 Microprocessor, this chip supports Wi-Fi 802.11 b/g/n and Bluetooth 5.
For half circle and full circle version (2.1 inches) :
"Both the half circle and full circle models have a 2.1" display size, the main difference is the touch chips and glass covers different
The half circle touch chip is the FT3267 and the full circle touch chip is the CST820.
To meet the needs of different customers, we use different glass covers, while the display screen is the same for both models".
|
2.1 inches Half Circle |
2.1 inches Full Circle |
2.8 Inches Full Circle |
 |
 |
 |
| Touch Chip: FT3267 | Touch Chip: CST820 | Touch Chip: GT911 |
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide, VS Code |
| Onboard functions: |
| PSRAM | 16MB |
| Flash | 8MB |
| Button | Boot; Reset |
| Bat voltage detection | IO04 |
| TF-Card Slot |
| 2.1 inch ST7701S IPS TFT LCD: |
| Resolution | 480(H) X 480(V) RGB Full Color |
| Interface | 3-wire SPI + 18bit RGB interface |
| Drive IC | ST7701S |
| Display Type | 2.1-inch TFT LCD |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.

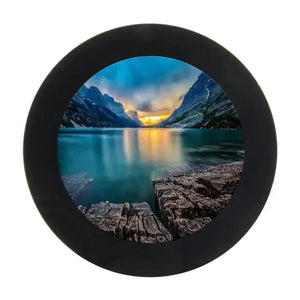

Product Display

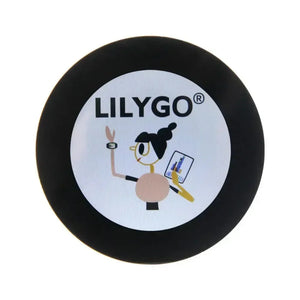

2.1 inches version

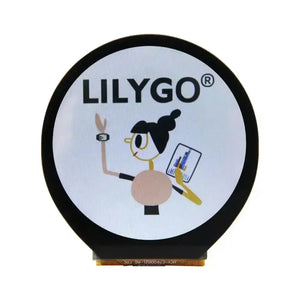

2.8 inches version

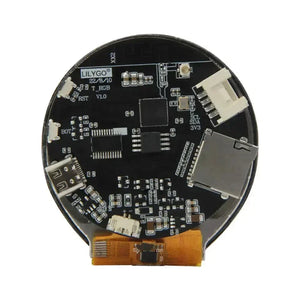

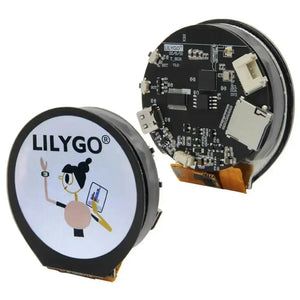

Appearance
Shipping List
2.1 inches Half Circle Version
Note: Batteries do not include
2.1 inches Full Circle Version
Note: Batteries do not include
2.8 inches Full Circle
Note: Batteries do not include
