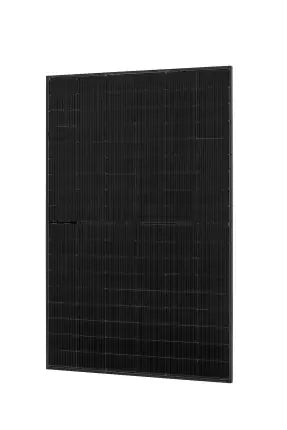

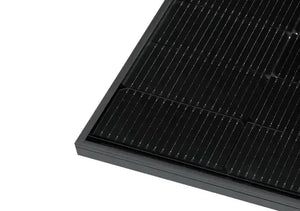

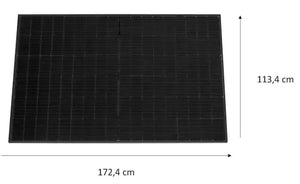

SunLit Austa Solar Module 430 Watt Black Frame AU430-27V-MH

BK215 Power Storage System Includes:

• 1x SunLit Solar Main Storage Unit (2150 Wh)
• 1x Base Station for Main Storage Unit
• 1x Height-Adjustable Stand
• 1x User Manual
• 2x Input Cables
• 6x Output Cables

B215 Expansion Storage Includes:

• 1x B215 Expansion Storage Unit
• 1x User Manual
• 1x Input Cable

Currently, the SunLit Solar Balcony Power Plant Storage is compatible with inverters from the following manufacturers:

• Deye
• APsystems
• More manufacturers are being integrated progressively.

To meet user needs in low-temperature environments, this product is equipped with a safe and reliable storage heating function.

When the storage temperature drops below 5°C and there is solar input, the charging mode is deactivated, and the heating function is automatically activated as follows:

• If the charging temperature is between -20°C and -5°C, the charging function starts.
• When the storage temperature exceeds 8°C, charging begins.
• When the storage temperature exceeds 15°C, the heating function stops.

Yes, the storage system is equipped with a bypass function that operates under the following conditions:

1. Full Bypass State (Charging Only):
   When the input power is greater than or equal to twice the output power, the storage is charged but not discharged. All grid power is supplied through the input, and the storage system remains in a full bypass state.
2. Full Bypass State (Discharging Only):
   When the output power is greater than or equal to twice the input power, the storage is discharged but not charged. All input power is fed to the grid, and the storage system remains in a full bypass state.
3. Partial Bypass State:
   If neither condition 1 nor 2 is met, but both input and output power are greater than 0W, the storage system operates in a partial bypass state.

With the SunLit Solar App, you can monitor your balcony power plant and storage system anytime, anywhere. The app also allows you to adjust the power supply mode of your balcony power storage.

The storage system offers various feed-in modes.

A scheduling feature, allowing you to specify when and how much power to feed into the grid, is currently being developed by the engineers.

Additionally, a solution to adjust the feed-in power based on your actual consumption is coming soon.

If you have any questions about the product, our experts are happy to assist you. Additionally, the manufacturer, SunLit Solar, offers excellent customer support, which is available Monday to Friday from 9:00 AM to 6:00 PM via phone. For technical inquiries, you can request a callback from a technician.

SunLit Solar Customer Support Contact Information:

• Email: [email protected]
• Phone: +49 89 244 146 000
