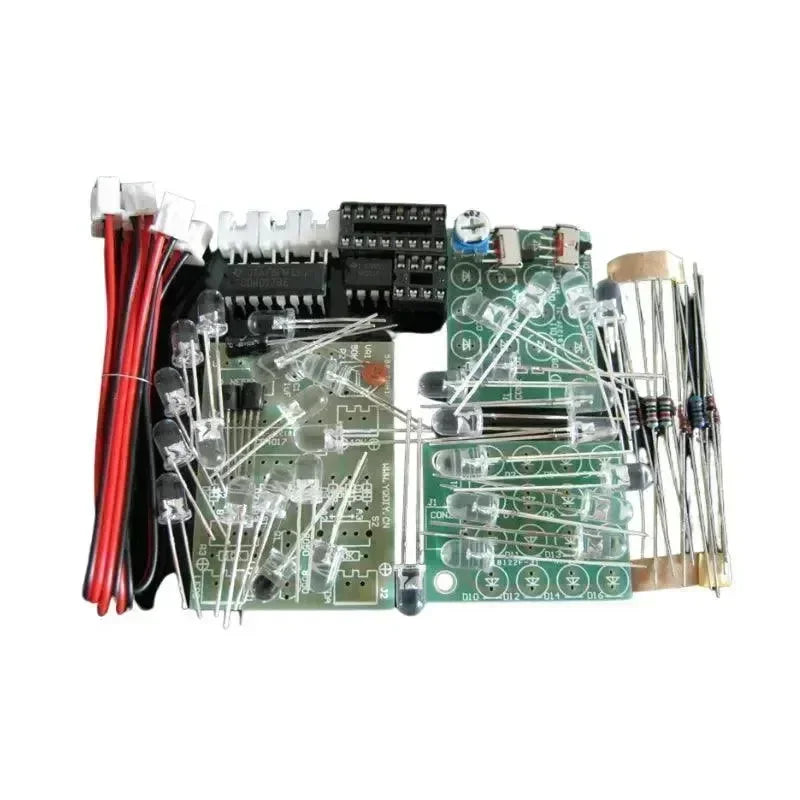

Strobe Light DIY Soldering Kit

The BSD-32 Strobe Light DIY Soldering Kit is a great project for electronics enthusiasts, makers, and hobbyists. This kit allows you to build a fully functional strobe light with customizable flashing modes and adjustable frequency, perfect for automotive projects, decorative lighting, or DIY experiments.

Parameters

Kit Name: Strobe Light Kit

Model: BSD-32

Operating Voltage: 12V

Control Board Size: 49mm x 35mm

Light Board Size: 28mm x 36mm

The BSD-32 Strobe Light Kit features 4 adjustable flashing modes with customizable flash frequency, making it ideal for DIY projects, automotive applications, or decorative lighting.

• Adjustable Flash Frequency: Use VR1 to modify the flash speed.
• Mode Switching: Switch between modes with S1 and S2 buttons.

Flashing Modes:

1. The left side flashes three times, followed by the right side flashing three times (repeats in a loop).
2. The left side flashes three times, followed by the right side flashing two times (repeats in a loop).
3. The left side flashes two times, followed by the right side flashing three times (repeats in a loop).
4. The left side flashes two times, followed by the right side flashing two times (repeats in a loop).

Both the control circuit board and light board are crafted from military-grade A materials, ensuring durability and reliable performance.
