Waveshare 3.7 inch SPI E-Ink Display 480x280 E-Paper

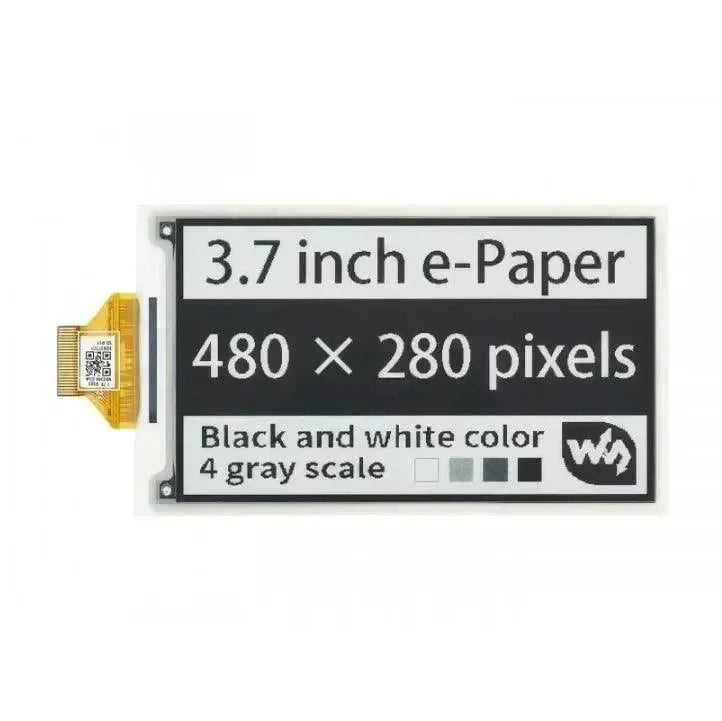

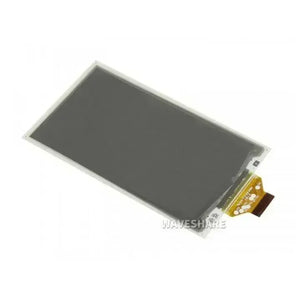

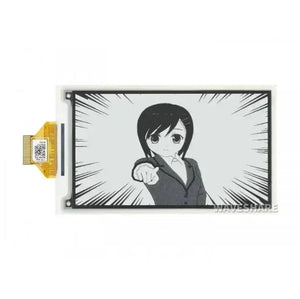

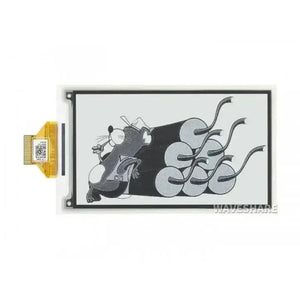

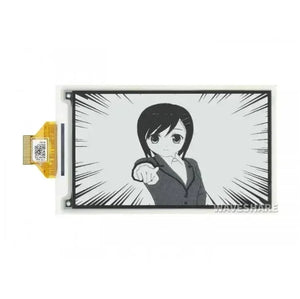

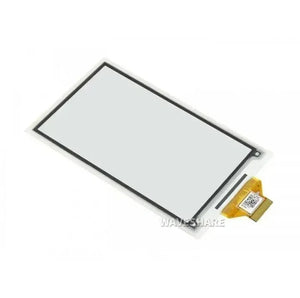

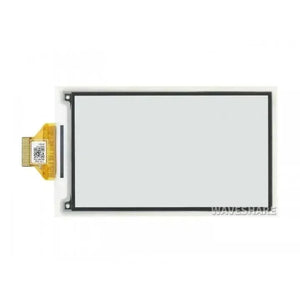

3.7inch E-Paper E-Ink Raw Display, 480×280 Pixels, Black / White, 4 Grey Scales, SPI Interface, Without PCB
Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
-
No backlight keeps displaying the latest content for a long time even when powered down
-
Ultra-low power consumption, basically power is only required for refreshing
-
Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
|
OPERATING VOLTAGE |
3.3V |
GREYSCALE |
4 |
|
INTERFACE |
3-wire SPI, 4-wire SPI |
PARTIAL REFRESH TIME |
0.3s |
|
OUTLINE DIMENSIONS |
54.9 × 93.3 × 0.78mm |
FULL REFRESH TIME |
3s |
|
DISPLAY SIZE |
47.32 × 81.12mm |
REFRESH POWER |
50mW (typ.) |
|
DOT PITCH |
0.169 × 0.169mm |
STANDBY CURRENT |
<0.01uA (almost none) |
|
RESOLUTION |
480 × 280 pixels |
VIEWING ANGLE |
>170° |
|
DISPLAY COLOR |
black, white |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
PACKAGE CONTENT
Weight: 0.009 kg
- 3.7inch e-Paper x1
