M5Stack Single-phase DC SSR Unit

Sale price €22,00

📦 Location of the warehouse: China

Add to Wishlist Add to Compare
 More payment options

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4.4/5.0

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
M5Stack Single-phase DC SSR Unit (CDG1. 1DD-10A) - OpenELAB

M5Stack Single-phase DC SSR Unit

€22,00

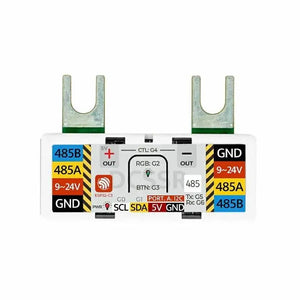

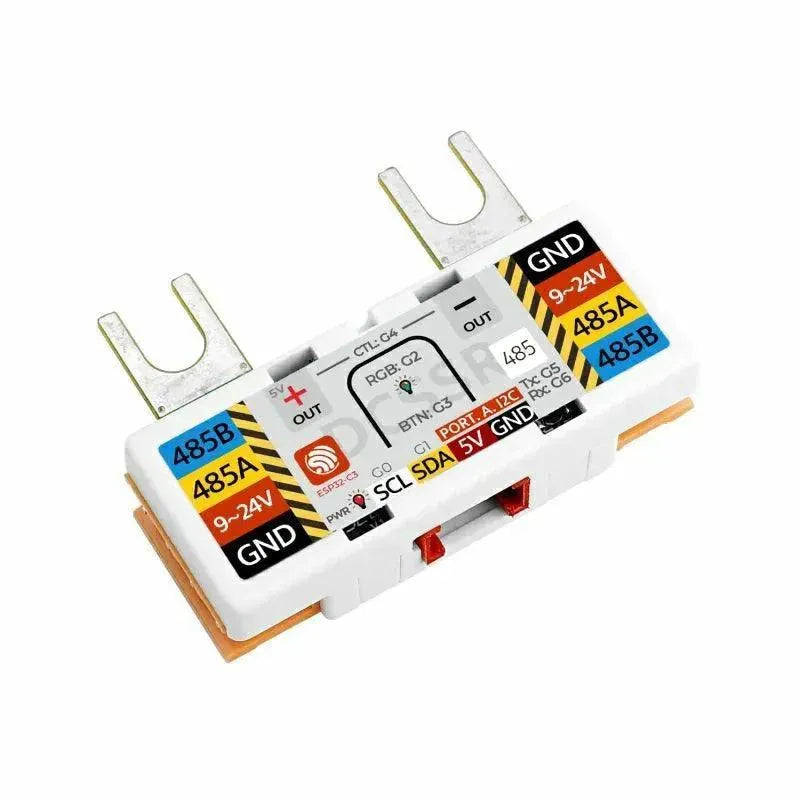

ACSSR Unit is an all-inclusive DC to DC single-phase solid-state relay controller kit that offers exceptional performance and versatility. It consists of a single-phase solid-state relay and an ESP32C3 controller board, providing a comprehensive solution for various applications.

With support for key control, I2C slave, and Modbus networking modes, this kit offers flexible operation options to suit different requirements. The integrated programmable full-color RGB LED serves as a visual indicator, providing clear state indication for easy monitoring and operation. By utilizing semiconductor switching elements, the Unit ACSSR ensures high-speed switching, extended lifespan, and low switching noise, and eliminates issues such as switching sparks. It offers superior reliability compared to traditional mechanical relays.

Unit ACSSR finds wide application in digital program control devices, motor control devices, temperature control systems, data processing systems, and computer peripheral interface devices. It is specifically designed to withstand harsh environments with corrosion, humidity, or explosion-proof requirements, making it suitable for challenging industrial settings.

Features

  • Single-phase solid-state relay
  • Three operating modes. - Push button control - I2C slave (support device I2C address configuration) - Modbus networking (supports device ID configuration)
  • Programmable full-color RGB LED
  • RS485PWR interface (support input 9-24V to power the device)



Includes

  • 1x Single Phase Solid State Relay
  • 1x UNIT ACSSR
  • 1x HY2.0-4P Cable (20cm)
  • 1x Communication protocol manual

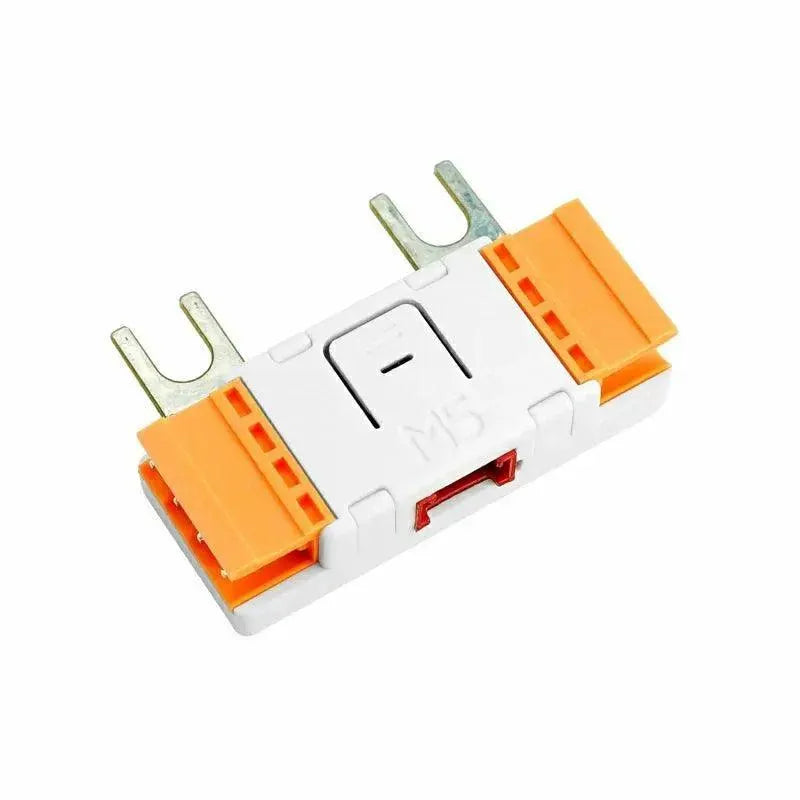

  • 2x 3.96-4P Terminal Block



Applications

  • AC line interrupting
  • Motor equipment control
  • Temperature control devices



Specification

Resources Parameters
Main Controller ESP32C3
Programmable RGB LED SK6812
Load Current 10A
Input Control Voltage 3-32VDC
Load Voltage 24~220VDC
Input Control Current 5mA~20mA
Breakdown Leakage Current ≤5mA
On-state Buck ≤1.6V
Operating current safety series resistive load: 50% Inductive load: 50%
Electrical lifetime ≥1 million times
Indicator Light Red (Lighted: Closed / Off: Disconnected)
Product Size 80 * 45 * 31mm
Package Size 147 * 90 * 40mm
Product Weight 112.6g
Package Weight 137.8g

Effective Date: March 27, 2025
