Seeed Studio reComputer R1125-10 Raspberry Pi IoT Gateway & Controller
The reComputer R1125-10 is an industrial-grade, fanless IoT gateway and controller powered by the Raspberry Pi Compute Module 4 (CM4). Designed for demanding edge computing and IIoT (Industrial IoT) environments, it offers rich connectivity including 4G LTE, LoRa®, Zigbee, Wi-Fi/BLE, dual isolated RS485 and RS232 ports, dual Ethernet, and M.2 NVMe SSD expansion.
With features like TPM 2.0 encryption, SuperCAP UPS (optional), PoE support, and a rugged fanless design, the R1125-10 provides a secure, reliable platform for edge AI, smart city deployments, industrial automation, and fleet management solutions.
Key Features
-
Powered by Raspberry Pi CM4
Quad-core Cortex-A72 @ 1.5GHz CPU, with options for up to 8GB RAM and 32GB eMMC storage. -
Industrial-Grade Rich Interfaces
-
2× Isolated RS485
-
2× Isolated RS232
-
2× Isolated DI Ports (5-24V DC input)
-
2× Isolated DO Ports (<60V DC output)
-
Dual Ethernet ports (one supports PoE)
-
HDMI 2.0, SIM card slot, MicroSD slot, M.2 NVMe slot
-
-
Flexible Wireless Connectivity
Supports Wi-Fi 2.4G/5G, BLE 5.0, 4G LTE, LoRa®, and Zigbee (optional modules). -
Rugged Fanless Design
-
Operating Temperature: -30°C to 70°C
-
IP40 protection
-
No moving parts, ideal for harsh industrial environments.
-
-
Advanced Security & Reliability
-
TPM 2.0 hardware encryption chip
-
Optional SuperCAP UPS for power backup
-
High-accuracy RTC
-
Hardware watchdog timer for automatic recovery
-
-
Software Ecosystem Ready
Supports Raspbian, Debian, Yocto, Buildroot OS, and compatible with Node-RED, AWS IoT, Home Assistant, Balena, and more.
Technical Specifications
| Specification | Details |
| CPU | Raspberry Pi CM4, Quad-core Cortex-A72 @ 1.5GHz |
| RAM | Options from 1GB to 8GB |
| eMMC Storage | Options from 8GB to 32GB |
| Wireless Connectivity | Wi-Fi, BLE, 4G LTE, LoRa®, Zigbee (optional) |
| Wired Connectivity | 2× Ethernet (1× PoE), 2× RS485, 2× RS232, DI/DO |
| Expansion | 1× M.2 Slot (NVMe SSD supported) |
| Display Output | 1× HDMI 2.0 |
| Power Input | 9V–36V DC via 2-pin Terminal Block |
| PoE Support | IEEE 802.3af (12.95W) |
| Operating Temperature | -30°C to 70°C |
| Ingress Protection | IP40 |
| Certifications | CE, FCC, TELEC, RoHS |
| Warranty | 2 Years |
| Production Lifetime | Until at least December 2030 |
Application Fields
-
Industrial Edge Computing and Automation
-
AIoT Edge Gateways for Smart Cities
-
Fleet Management and Remote Monitoring
-
Intelligent Building Management Systems
-
Secure IoT Connectivity and Data Management

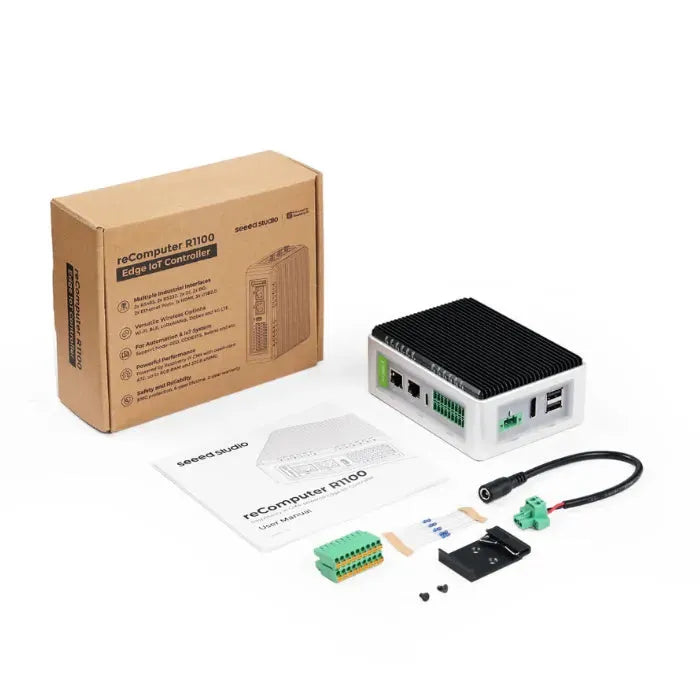

Package Contents
-
1× reComputer R1125-10 Unit
-
1× DIN-rail Clip
-
1× Screw Pack
-
1× DC Power Female Jack to Screw Terminal Adapter
-
1× 9×2-pin Terminal Block Connector (Male)
-
5× 120Ω Resistors
-
1× User Manual
