Seeed Studio reComputer R1025-10 RPi IoT Gateway & Controller CM4
Shipping within 72 hours
*Excluding pre-order items
- • EU & US Delivery: 10 working days
- • Other Countries: 15 working days
Need it faster? Contact us via phone or email for expedited delivery.
Seeed Studio reComputer R1025-10 RPi IoT Gateway & Controller CM4
Seeed Studio reComputer R1025-10 is a rugged, fanless, and highly expandable IoT gateway powered by the Raspberry Pi Compute Module 4 (CM4). Designed for industrial edge applications, it offers versatile connectivity options including 4G LTE, LoRa®, Wi-Fi/BLE, Zigbee, along with dual Ethernet ports, isolated RS485 interfaces, M.2 NVMe expansion, and PoE support.
With built-in TPM 2.0 encryption, optional SuperCAP UPS, and fanless passive cooling, the R1025-10 delivers reliable and secure performance even in harsh environments, making it ideal for industrial automation, fleet management, smart cities, and AIoT applications.
Note: Seeed Studio reComputer R1000 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essential functional modules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
Features
-
AI-Ready: Compatible with AI NPU accelerators, enabling advanced machine learning and computer vision tasks at the edge.
-
Rich Connectivity: Equipped with dual Gigabit Ethernet ports, 3× RS485 interfaces, and support for BACnet and Modbus protocols, making it suitable for industrial automation and building management systems.
-
Industrial Reliability: Built with a rugged enclosure and designed for long-term deployment in demanding environments.
-
Flexible Applications: Perfect for BMS (Building Management Systems), BAS (Building Automation Systems), and iBMS (Intelligent Building Management Systems).
-
Pre-installed Storage: Comes with 32GB eMMC, ensuring fast boot and stable data storage.


Specifications
|
Parameter |
Description |
|
Hardware Spec |
|
|
Product Series |
R1000 |
|
CPU |
Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
|
Operating System |
Raspbian, Ubuntu, Debian |
|
RAM |
4GB |
|
eMMC |
32GB |
|
System Spec |
|
|
Input |
2-pin Terminal Block |
|
PoE |
IEEE 802.3af Standard 12.95W PoE* |
|
Supply Voltage(AC/DC) |
12~24V AC/9~36V DC |
|
Overvoltage Protection |
40V |
|
Power Consumption |
Idle:2.88W; Full Load:5.52W |
|
Power Switch |
No |
|
Reboot Switch |
Yes |
|
Interface |
|
|
Ethernet |
1 x 10/100/1000 Mbps (supports PoE*) |
|
1 x 10/100 Mbps IEEE802.3/802.3u |
|
|
USB |
2 x USB-A 2.0 Host |
|
1 x USB-C 2.0 (For flashing OS) |
|
|
RS485 |
3 x 3-pin Terminal Block (isolated) |
|
HDMI |
1 x HDMI 2.0 |
|
SIM Card Slot |
supports Standard SIM Card |
|
M.2 Slot |
supports M.2 NVMe SSD |
|
LED |
6 x LED indicators |
|
Buzzer |
1 |
|
Reset Button |
1 |
|
HDMI |
1 x HDMI 2.0 |
|
Wireless Communication |
|
|
LoRa® |
USB LoRa®*/SPI LoRa®* |
|
4G Cellular |
4G LTE* |
|
Zigbee |
USB Zigbee* |
|
Standards |
|
|
EMC |
ESD: EN61000-4-2, Level 3 |
|
EFT: EN61000-4-4, Level 2 |
|
|
Surge: EN61000-4-5, Level 2 |
|
|
Certification |
CE, FCC |
|
TELEC |
|
|
RoHS |
|
|
Ambient Conditions |
|
|
Ingress Protection |
IP40 |
|
Operating Temperature |
-30~70 °C |
|
Operating Humidity |
10~95% RH |
|
Storage Temperature |
-40~80 °C |
|
Others |
|
|
Supercapacitor UPS |
SuperCAP UPS LTC3350 Module* |
|
Hardware Watchdog |
1~255s |
|
RTC |
High Accuracy RTC |
|
Security |
Encryption Chip TPM 2.0* |
|
ATECC608A |
|
|
Heat Dissipation |
Fanless |
|
Warranty |
2 years |
|
Production Lifetime |
Until at leaset December 2034 |
|
Statement |
Options marked with * require additional purchase according to the accessories list. |

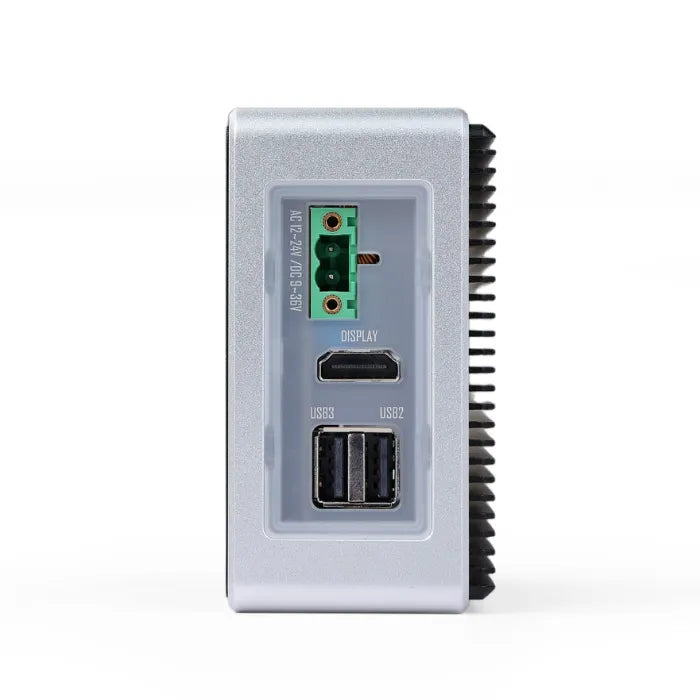

Hardware Overview
The reComputer R1000 is equipped with up to 8GB RAM, enabling efficient handling of large data sets. It integrates multiple isolated RS485 channels, flexible interfaces, and support for a wide range of wireless communication standards.


- Mini-PCIe1 Slot: Compatible with 4G LTE, USB LoRa®, and USB Zigbee modules.
- Mini-PCIe2 Slot: Works with SPI LoRa®, USB LoRa®, and USB Zigbee modules.
- 3× RS485 (isolated): Provides secure and isolated serial communication for improved reliability.
- 1× 10M/100M/1000M Ethernet: Includes Power over Ethernet (PoE) for simplified power and data delivery.
- 1× 10M/100M Ethernet: Standard Ethernet port for network access.
- 1× HDMI 2.0: High-definition video output interface.
- 2× Type-A USB 2.0: Standard USB ports for peripherals and external devices.
- 1× Type-C USB 2.0: Primarily used for OS updates and additional functions.
- 1× SIM Card Slot: Enables cellular connectivity via SIM card insertion.
- 1× M.2 Slot: Expansion slot for M.2 cards, supporting added functionality or SSD storage.
This configuration delivers a wide array of connectivity and expansion options, making it suitable for diverse applications in communication, networking, and peripheral integration.
Application
The reComputer R1000 can be applied across five major domains: First Look Guide, Industrial Edge, Fleet Management, Cloud Solutions, and Computer Vision. It seamlessly integrates with platforms such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision.
- Raspberry Pi CM4-Based Intelligent Supermarket Solution




Documents
Certification
| HSCODE | 8471419000 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |

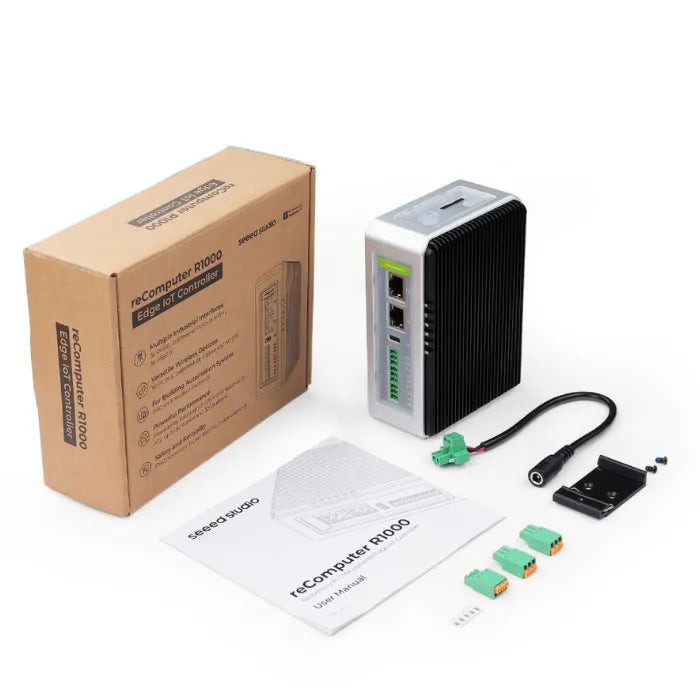

Part List
|
reComputer R1000 |
x 1 |
|
DIN-rail clip |
x 1 |
|
Screw Pack |
x 1 |
|
DC Power Female Jack to Screw Terminal Adapter |
x 1 |
|
3-pin Terminal Block Connector(Male) |
x 3 |
|
120Ω Resistor |
x 5 |
|
User Manual |
x 1 |
