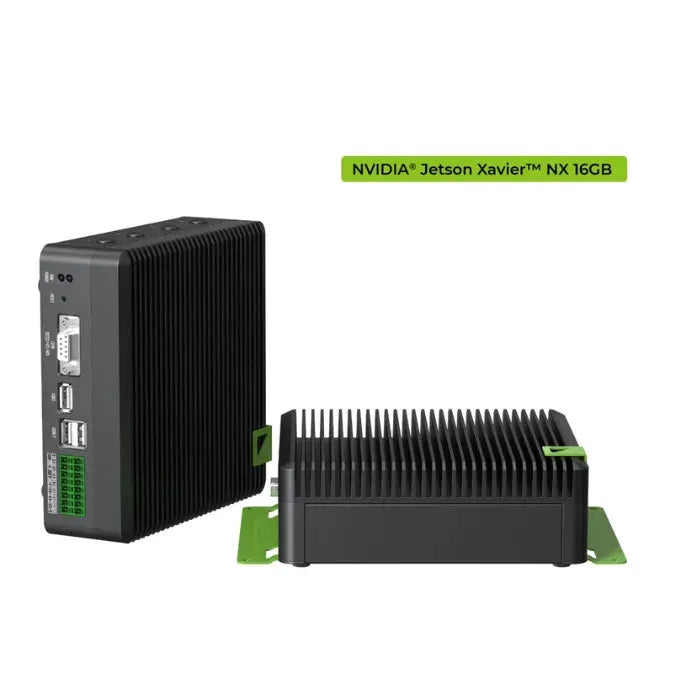

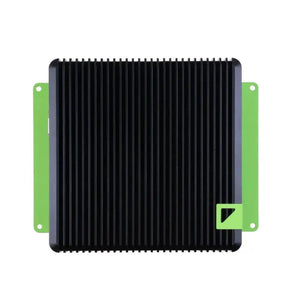

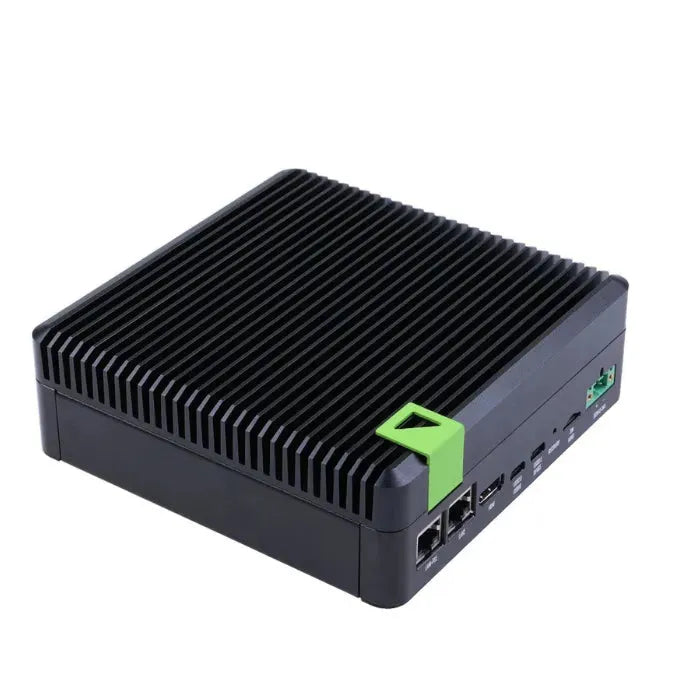

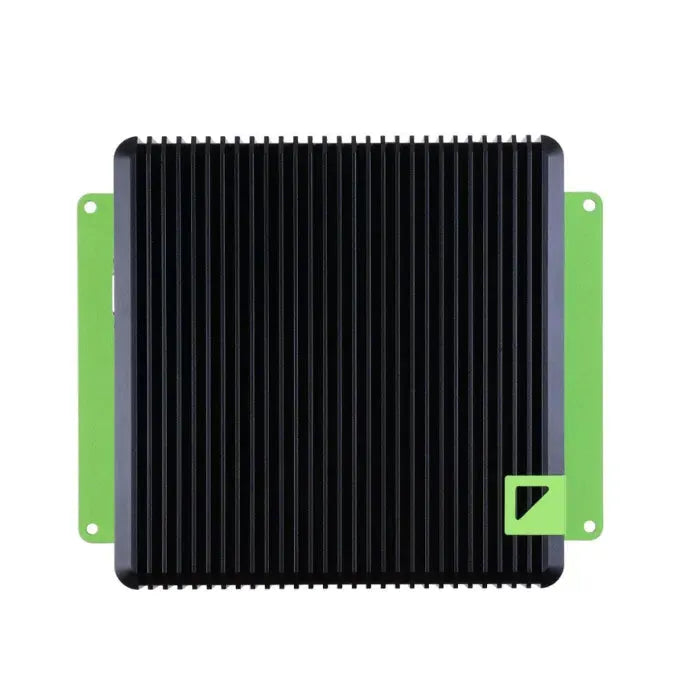

Seeed Studio reComputer Industrial J2012 AI Jetson™ Xavier NX 16GB
Shipping within 72 hours
*Excluding pre-order items
- • EU & US Delivery: 10 working days
- • Other Countries: 15 working days
Need it faster? Contact us via phone or email for expedited delivery.
Seeed Studio reComputer Industrial J2012 AI Jetson™ Xavier NX 16GB
Seeed Studio reComputer Industrial J2012 is a durable, fanless edge AI computer built on the NVIDIA Jetson Xavier NX 16GB module, delivering up to 21 TOPS of AI performance. Engineered for industrial-grade workloads, it supports advanced use cases including AI-driven video analytics, machine vision, autonomous mobile robots (AMRs), and generative AI at the edge.
Encased in a rugged metal chassis with passive cooling, wide operating temperature support, and extensive I/O, the J2012 provides a reliable foundation for scalable AI deployments in demanding environments.
Key Features
-
NVIDIA Jetson Xavier NX 16GB SoM
Powered by a 6-core NVIDIA Carmel ARM®v8.2 CPU and a 384-core Volta™ GPU with 48 Tensor Cores. -
21 TOPS AI Computing Power
Handles multiple AI models simultaneously, including vision-language models and real-time video analytics. -
Fanless Industrial Design
Silent operation with passive heatsink cooling, supporting ambient temperatures from -20°C to 60°C. -
Rich Industrial Connectivity
-
2× Gigabit Ethernet ports (including 1× PoE)
-
3× USB 3.2 Gen1, 2× USB 2.0 Type-C
-
1× HDMI 2.0 Type-A output
-
1× DB9 COM (RS232/RS422/RS485)
-
4× DI, 4× DO, CAN Bus, SIM card slot, dual CSI camera inputs
-
-
Expansion Flexibility
-
M.2 Key M with NVMe SSD pre-installed
-
M.2 Key E for Wi-Fi/Bluetooth modules
-
M.2 Key B for optional 4G/5G cellular connectivity
-
-
Enhanced Durability
Resistant to vibration (3 Grms), shock (50G), and humidity up to 95% at 40°C. -
Flexible Mounting
Supports desktop, DIN rail, wall, and VESA mounting for versatile installation. -
Pre-installed 128GB NVMe Storage
Provides fast-access storage optimized for AI model deployment and video processing tasks.

Specifications
|
Jetson Xavier NX System on Module |
|||
|
AI Performance |
reComputer Industrial J2012 - Xavier NX 16GB, 21 TOPS |
reComputer Industrial J2011- Xavier NX 8GB, 21 TOPS |
|
|
GPU |
384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
||
|
CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU, 6MB L2 + 4MB L3 |
||
|
Memory |
16GB 128-bit LPDDR4x59.7GB/s (Xavier NX 16GB) |
8GB 128-bit LPDDR4x59.7GB/s (Xavier NX 8GB) |
|
|
Video Decode |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) |
||
|
Video Encode |
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) |
||
|
Carrier Board |
|||
|
Storage |
M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included)8G included) |
||
|
Networking |
Ethernet |
1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15 W) 1x LAN2 RJ45 GbE (10/100/1000Mbps) |
|
|
Wi-Fi |
Support SMD Wi-Fi/Bluetooth (Customized production, please contact order@seeed.cc) |
||
|
M.2 Key B |
M.2 Key B support 4G/5G (Module optional) |
||
|
I/O |
USB |
3x USB3.2 Gen1, 1x USB2.0 Type C(Device mode), 1x USB2.0 Type C For Debug UART & RP2040 |
|
|
DI/DO |
4x DI, 4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO, 1x CAN |
||
|
COM |
1x DB9 (RS232/RS422/RS485) |
||
|
Display |
1x HDMI 2.0 Type A |
||
|
SIM |
1x Nano SIM card slot |
||
|
Wi-Fi |
Support SMD Wi-Fi/Bluetooth (Module optional) |
||
|
M.2 Key B |
M.2 Key B support 4G/5G (Module optional) |
||
|
Fan |
Fanless, passive heatsink1x Fan connectors(5V PWM) |
||
|
TPM |
1x TPM 2.0 connector (Module optional) |
||
|
RTC |
1x RTC socket, 1x RTC 2-pin |
||
|
Camera |
2x CSI (2-lane 15pin) |
||
|
Power |
Power Supply |
DC 12V-24V Terminal block 2 pin |
|
|
Power Adapter |
19V Power Adapter(without power cord) |
||
|
Mechanical |
Dimensions (W x D x H) |
159mm x 155mm x 57mm |
|
|
Weight |
1.57kg |
||
|
Installation |
Desk, DIN rail, wall-mounting, VESA |
||
|
Environment |
Operating Temperature |
-20 ~ 60°C with 0.7m/s |
|
|
Operating Humidity |
95% @ 40 °C (non-condensing) |
||
|
Vibration |
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
||
|
Shock |
50G peak acceleration (11 msec) |
||
|
Warranty |
2 Years |
||
|
IP Rating |
IP40 |
||
Hardware Overview
Full System

Carrier Board
Desktop, Wall Mount, DIN Rail, VESA mount to fit in anywhere

Application
Application Fields:
AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI
● Capable of Bringing Generative AI to the Edge

Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
● Build Multi-streams AI Video Analytics

For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) .
● Fastest Way to Deploy Generative AI and Computer Vision Models

We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Documents

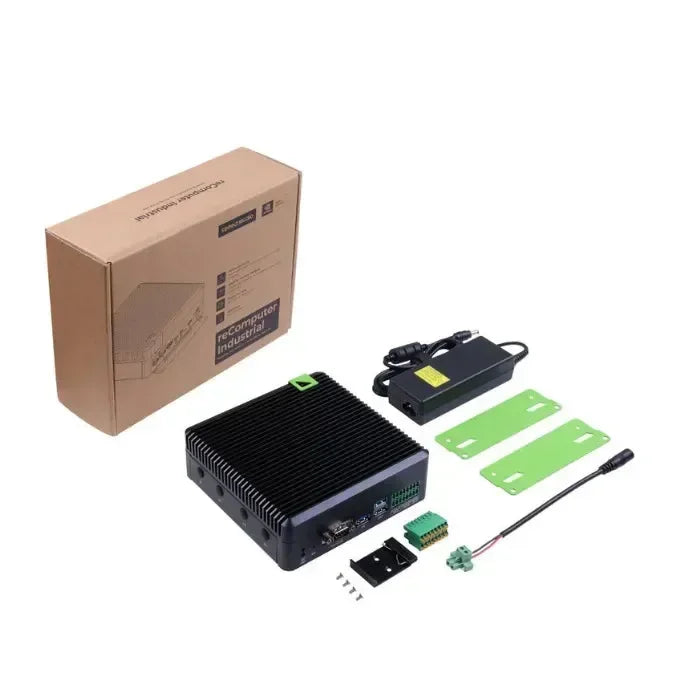

Part List
|
reComputer Industrial J2012 (System Installed) |
x1 |
|
Mounting bracket |
x2 |
|
DIN rail bracket |
x1 |
|
Bracket screw |
x1 |
|
16-Pin Terminal Block for DIO |
x1 |
|
19V Power adapter (power cord sold separately) |
x1 |
|
2-Pin Terminal block power connector |
x1 |
Note: Please note that the product comes with a power adapter, but does not include a AC cloverleaf power cord. Kindly purchase the appropriate AC cloverleaf power cord based on your local power socket specifications.
