Seeed Studio reComputer Mini J3011 with Extension
Shipping within 72 hours
*Excluding pre-order items
- • EU & US Delivery: 10 working days
- • Other Countries: 15 working days
Need it faster? Contact us via phone or email for expedited delivery.

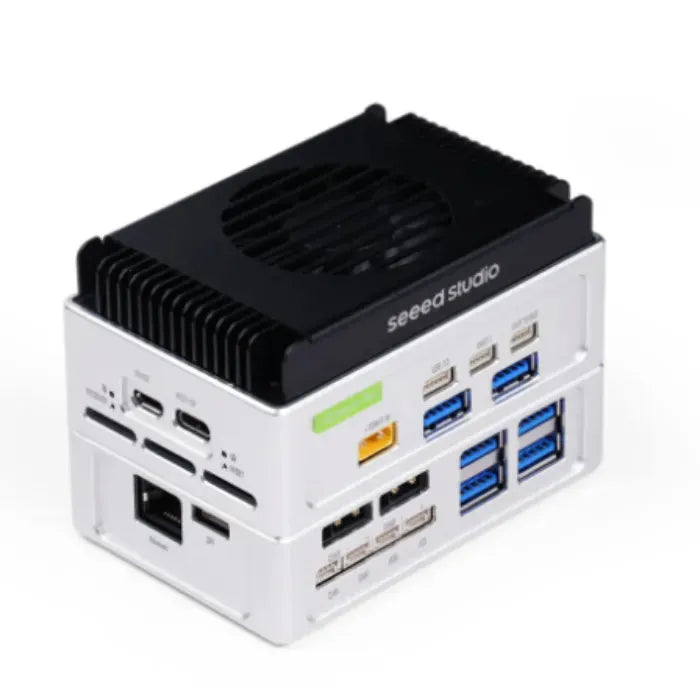

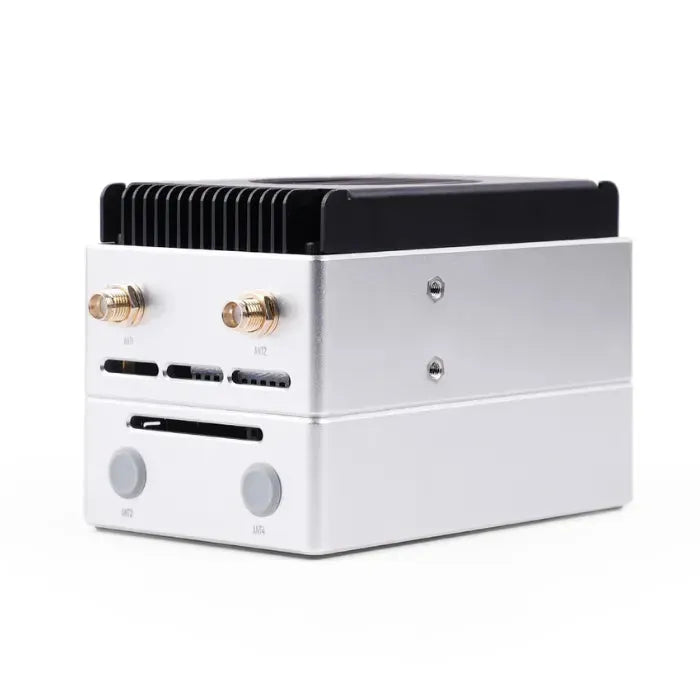

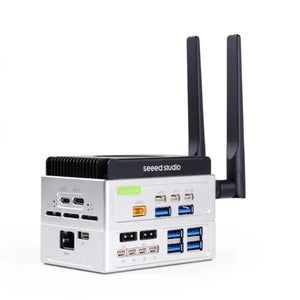

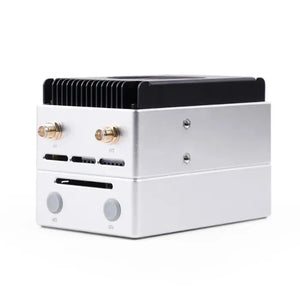

Seeed Studio reComputer Mini J3011 with Extension
Seeed Studio reComputer Mini J3011 is a compact AI edge computer powered by the NVIDIA® Jetson Orin™ Nano 8GB module, delivering up to 40 TOPS of accelerated performance. It comes with a PCIe interface on the bottom, enabling flexible expansion options such as up to 8 USB ports and dual CAN bus, customizable for diverse applications. This system is purpose-built for integration into autonomous machines including drones, patrol robots, and delivery robots. With direct support for 54V DC input, it is ideal for battery-powered deployments in industrial and mobile environments.
Features
-
NVIDIA Jetson Orin Nano 8GB SoM
Equipped with a 6-core Arm Cortex-A78AE CPU, 1024-core Ampere GPU featuring 32 Tensor Cores, and 8GB LPDDR5 memory. -
Up to 40 TOPS AI Performance
Engineered for edge AI, robotics, autonomous systems, and intelligent video analytics. -
Comprehensive I/O Expansion
-
Supports up to 8× USB ports (USB 3.2 and 2.0)
-
1× DisplayPort 1.4 (via Type-C)
-
1× Gigabit Ethernet (RJ-45)
-
M.2 Key E slot for WiFi/Bluetooth modules
-
M.2 Key M slot for NVMe SSD storage
-
CAN, GPIO, I2C, SPI interfaces included
-
-
Pre-Installed Software
-
JetPack 6.0 with Linux OS BSP
-
128GB NVMe SSD included for faster boot and storage
-
-
Expandable and Customizable
Optional extension board adds extra Ethernet, CAN, USB, I2C, and SPI ports. -
Industrial-Grade Design
-
Wide input voltage: 12V–54V DC
-
Operating temperature: -10°C to 50°C
-
Desk or wall mounting supported
-
-
Deployment Ready
Supports OTA updates and remote management services via Allxon and Balena, enabling scalable fleet solutions.
Specification
|
Jetson Orin System on Module |
|||
|
AI Performance |
reComputer Mini J4012 - Orin NX 16GB, 100 TOPS |
reComputer Mini J3011- Orin Nano 8GB – 40 TOPS |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
||
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) |
6-core Arm® Cortex®-A78AE (Orin Nano 8GB) |
|
|
Memory |
16GB 128-bit LPDDR5 (Orin NX 16GB) |
8GB 128-bit LPDDR5 (Orin NX 8GB) |
|
|
Video Encode |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
|
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
|
|
DL Accelerator |
2x NVDLA v2 |
/ |
|
|
Carrier Board |
|||
|
Storage |
1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included) |
||
|
Networking |
M.2 KEY E |
1x M.2 Key E for WiFi/Bluetooth module |
|
|
I/O |
USB |
2x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Micro-B (Device Mode); 1x USB 3.2 Type-C (Host Mode); 1x USB 2.0 JST-5pin (Host Mode); |
|
|
UART |
1x UART 1x Debug Uart |
||
|
Display |
1x DP 1.4 (included in Type-C conenctor) |
||
|
Fan |
1x 4 pin Fan Connector (5V PWM) |
||
|
Button |
1x Reset Button; 1x Recovery Button |
||
|
Extension Port |
2x 60 pin High Speed Connector (For extension board) 1x 10 pin Power Connector (For extension board) |
||
|
RTC |
1x RTC 2-pin |
||
|
Power |
1 x XT30 Connector (12-54V DC) |
||
|
Extension Board |
|||
|
Networking |
Ethernet |
1x RJ-45 Gigabit Ethernet (10/100/1000M) |
|
|
I/O |
USB |
4 x USB 3.0 Type-A (5 Gbps) |
|
|
CAN (Providing Power) |
CAN0:XT30(2+2)x2 |
||
|
FAN |
1x 4 pin Fan Connector (5V PWM) |
||
|
I2C |
2 x I2C JST 4pin (3.3V) |
||
|
SPI |
1 x SPI JST 6pin (3.3V) |
||
|
Mechanical |
Dimensions (W x D x H) |
63mm x 95mm x 42mm (Without Extension) 63mm x 95mm x 66.7mm (With Extension) |
|
|
Weight |
345g (Without Extension) 462g (With Extension) |
||
|
Installation |
Desk, Wall-mounting |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Warranty |
1 Year |
||
Applications
- Robotics and Automation
- Generative AI at the Edge

Develop AI agents capable of analyzing large volumes of live or archived video and image data using Vision-Language Models (VLM) like LLaVA. These agents empower industries to summarize, search, and extract insights from video with natural language queries.
- Multi-Stream AI Video Processing

For advanced video analytics, the Jetson Orin NX integrates the NVIDIA Multi-Standard Video Decoder. This decoder accelerates playback across formats from mobile resolution to UltraHD (8K/4K). The reComputer J4012 can handle 18×1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.
- Rapid Deployment of Generative AI & Vision Models

We provide ready-to-use jetson-example repositories. These enable one-line deployment of edge AI projects including generative AI (Ollama, Llama3), computer vision (YOLOv8), and more. The environment is pre-configured to allow single-command deployment for faster prototyping and scaling.
Documents

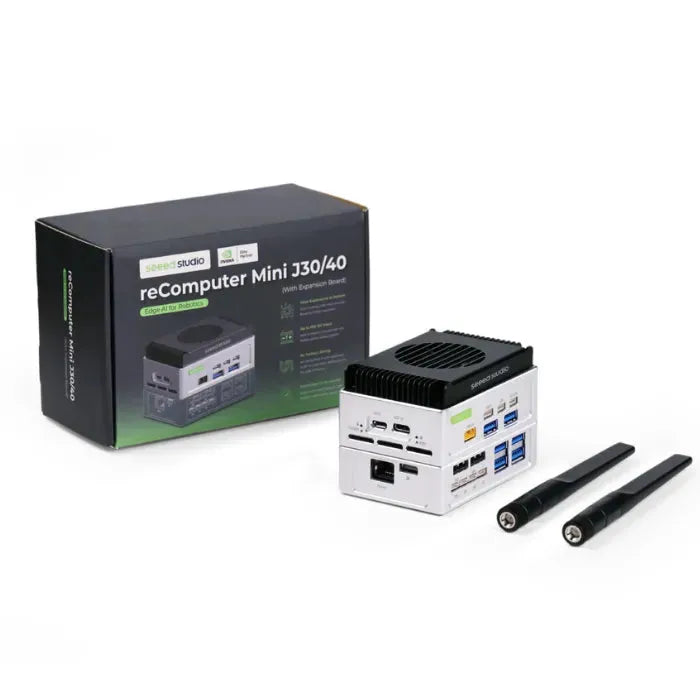

Part List
|
reComputer Mini J3011 (with Extension) |
x1 |
|
Antenna |
x2 |
|
xt30 to DC power connector |
x1 |
