Seeed Studio TRMNL 7.5" (OG) DIY Kit
📖 Introduction
The TRMNL 7.5" (OG) DIY Kit is an open-source hardware solution designed for makers, developers, and smart home enthusiasts who want to build their own custom e‑Ink dashboard from scratch. Featuring a 7.5-inch high-resolution e‑Ink display, XIAO ESP32-S3 Plus Dev Board, and full compatibility with Home Assistant and Arduino IDE, this kit empowers you to visualize data, integrate 375+ plugins, and design dashboards without coding. With its energy-efficient design, long battery life, and open-source enclosure options, the TRMNL DIY Kit combines flexibility, functionality, and creativity—making it the perfect platform for both personal and commercial applications.
Note:

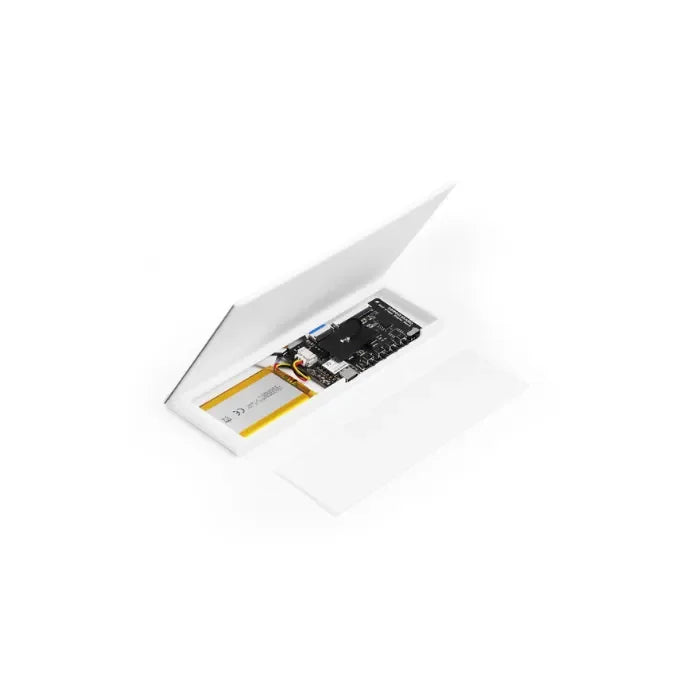

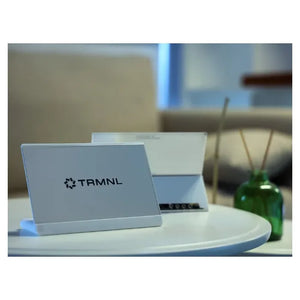

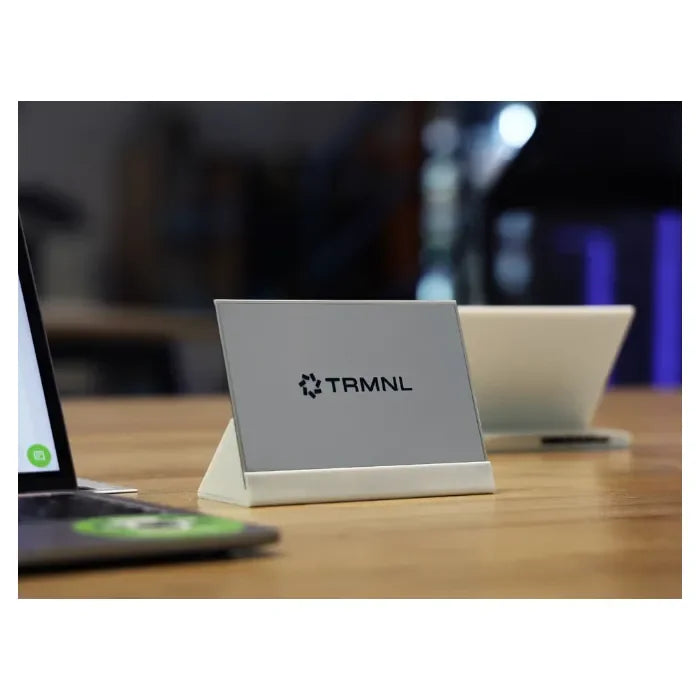

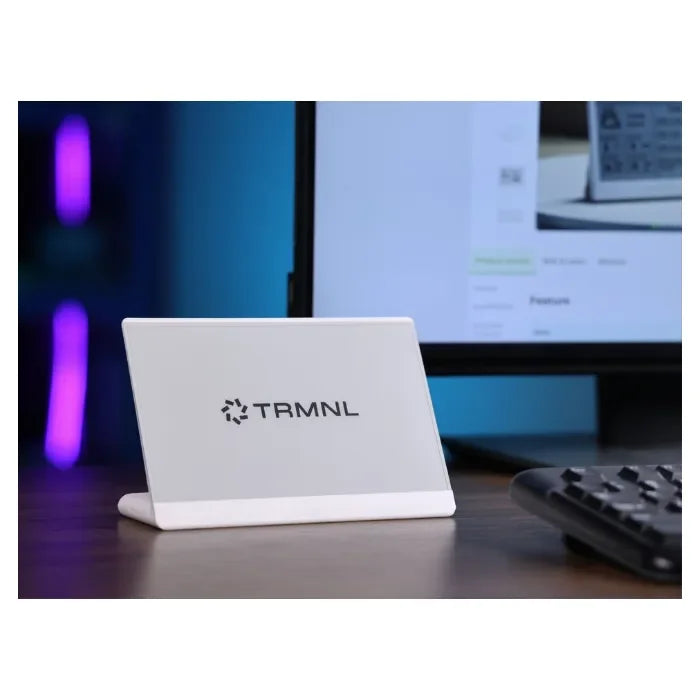

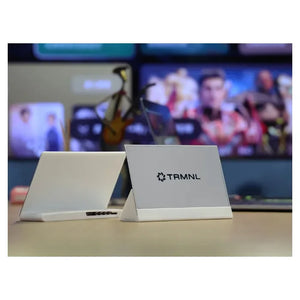

- This open-source kit is shipped without an enclosure. Images with enclosures are for demo only.
- The TRMNL 7.5" (OG) DIY Kit requires a TRMNL BYOD license ($50) to unlock 300+ ready-to-use plugins for building your dashboard. Get your BYOD license here.
✨ Features
🔗 Compatible with TRMNL (Access Required)
This kit is the official TRMNL BYOD solution, designed to let you build the TRMNL 7.5" OG device from scratch. With BYOD access, you can use over 375+ plugins and choose from 8 layouts to create dashboards for daily or commercial use—without coding. Examples include Calendar, Shopify, and GitHub integrations.

🖥️ 7.5" e-Ink Display for Your Custom Dashboard
This kit features a 7.5" monochrome e-Ink display (800×480 resolution), capable of showing sensor data, weather, and calendars at a glance. The glare-free design ensures readability in any light while reducing eye strain.

🔋 Energy-Efficient Design
Powered by a 3.7V 2000mAh rechargeable Li-ion battery, it can run up to 3 months in deep sleep mode (6-hour refresh).
🏠 Home Assistant & Arduino IDE Compatibility
Includes a XIAO ESP32-S3 Plus based ePaper Dev Board, fully compatible with ESPHome for Home Assistant integration. As an open-source kit, it also supports Arduino IDE, enabling developers to build custom dashboards with Arduino C.
📦 Open-Source Enclosures
The kit does not include enclosures, but we provide three open-source designs on Printables, Thingiverse, and Maker World. These designs combine aesthetics and functionality to enhance your project.

📊 Specifications
🧩 Driver Board Specification
| Parameter | Description |
|---|---|
| MCU | XIAO ePaper Display Dev Board with XIAO ESP32-S3 Plus onboard |
| Display | 7.5-inch Monochrome ePaper Display |
| Resolution | 800 × 480 |
| Operating Voltage | 3.3V to 5V |
| Battery | 2000mAh Rechargeable Li-ion Battery (up to 3 months battery life in deep sleep mode on a single charge) |
| Operating Temperature | -40°C to 85°C |
| Enclosure | Not included. Open-source designs available on Printables and Thingiverse for custom remix. |
🖼️ Hardware Overview

📒 Note Change Record
2025/11/21 — Upgrade the PMIC from ETA6003 to SY6974B.
📑 Documents
📜 Certification
| HSCODE | 8543709990 |
| USHSCODE | 8524119000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |

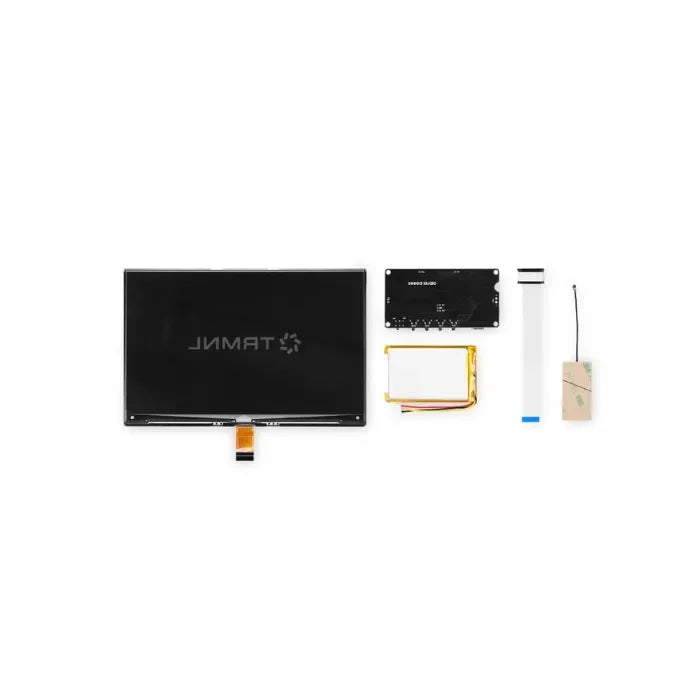

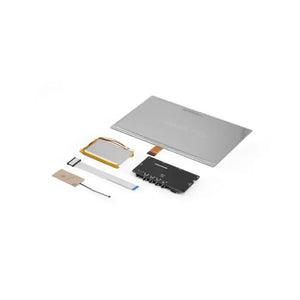

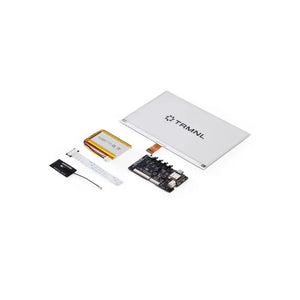

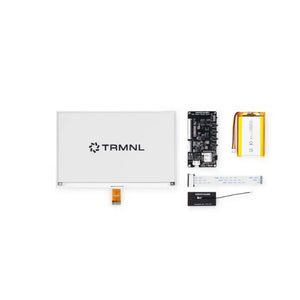

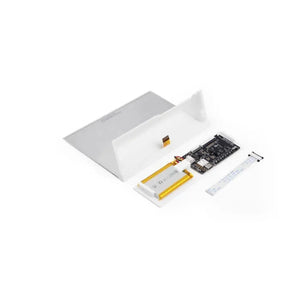

🧾 Part List
| XIAO ePaper Display Dev Board with XIAO ESP32-S3 Plus onboard | 1 |
| 7.5-inch Monochrome ePaper Display (800×480 Pixels) | 1 |
| FPC Extension Cable (10 cm) | 1 |
| FPC Connector | 1 |
| 2000mAh Rechargeable Li-ion Battery | 1 |
