Seeed Studio reComputer R1024-10 - Raspberry Pi IoT Gateway & Controller CM4-Powered AI Capable| 4GB RAM 16GB eMMC
Shipping within 72 hours
*Excluding pre-order items
Seeed Studio reComputer R1024-10 - Raspberry Pi IoT Gateway & Controller CM4-Powered AI Capable| 4GB RAM 16GB eMMC
Description
Seeed Studio reComputer R1024-10 is a Raspberry Pi CM4-powered industrial IoT gateway and controller in the reComputer R1000 series. This version is built with 4GB RAM and 16GB eMMC, and it focuses on reliable edge connectivity for building automation, industrial monitoring, Modbus RTU/TCP, BACnet, and smart control projects.
Compared with hobby-grade Raspberry Pi setups, reComputer R1024-10 gives you a much more deployment-ready platform: dual Ethernet, 3 isolated RS485, wide voltage input, DIN-rail friendly design, optional PoE, optional 4G / LoRa / Zigbee, and expansion for NVMe SSD, UPS, and TPM 2.0. It is a practical fit for always-on IoT gateway and edge controller scenarios.
This model is also described by Seeed as AI capable, which means you can extend the reComputer R1000 platform with an AI NPU accelerator such as the Raspberry Pi AI Kit when your project needs lightweight edge AI inference in addition to industrial communication.
Features
- reComputer R1000 industrial gateway and controller powered by Raspberry Pi CM4.
- 4GB RAM + 16GB eMMC configuration for stable edge deployment.
- 3 isolated RS485 ports for industrial serial communication.
- Dual Ethernet with 1 x Gigabit Ethernet and 1 x 10/100 Ethernet.
- Native support focus for BACnet, Modbus, and industrial IoT gateway workloads.
- 12 to 24V AC / 9 to 36V DC wide input range with industrial protection.
- Optional PoE, 4G LTE, LoRa, Zigbee, NVMe SSD, UPS, and TPM 2.0.
- Works well with Home Assistant, Node-RED, FUXA, FIN Framework, and cloud-connected IoT workflows.
Specifications
| Parameter | Description |
|---|---|
| Product Series | R1000 |
| CPU | Raspberry Pi CM4, Quad-core Cortex-A72 @ 1.5GHz |
| Operating System | Raspbian, Ubuntu, Debian |
| RAM | 4GB |
| eMMC | 16GB |
| Input | 2-pin terminal block |
| PoE | IEEE 802.3af standard, 12.95W PoE |
| Supply Voltage | 12 to 24V AC / 9 to 36V DC |
| Overvoltage Protection | 40V |
| Power Consumption | Idle 2.88W, full load 5.52W |
| Reboot Switch | Yes |
| Ethernet | 1 x 10/100/1000 Mbps with PoE support, 1 x 10/100 Mbps |
| USB | 2 x USB-A 2.0 host, 1 x USB-C 2.0 for OS flashing |
| RS485 | 3 x 3-pin terminal block, isolated |
| M.2 Slot | Supports M.2 NVMe SSD |
| Wireless | LoRa, 4G LTE, Zigbee via internal modules |
| Ingress Protection | IP40 |
| Operating Temperature | -30 to 70 °C |
| UPS | Supercapacitor UPS module supported |
| Security | TPM 2.0 encryption chip / ATECC608A |
Applications
- Building automation and BMS / BAS / iBMS projects using BACnet and Modbus.
- Industrial IoT gateway deployments with serial devices, PLCs, meters, and remote monitoring.
- Home Assistant and Node-RED installations that need a more industrial Raspberry Pi controller.
- Smart building, energy management, environmental monitoring, and edge data collection.
- Cloud-connected IoT projects with Ethernet, optional 4G, and expandable storage.
- AI capable edge gateway scenarios when paired with a Raspberry Pi AI Kit or compatible accelerator.

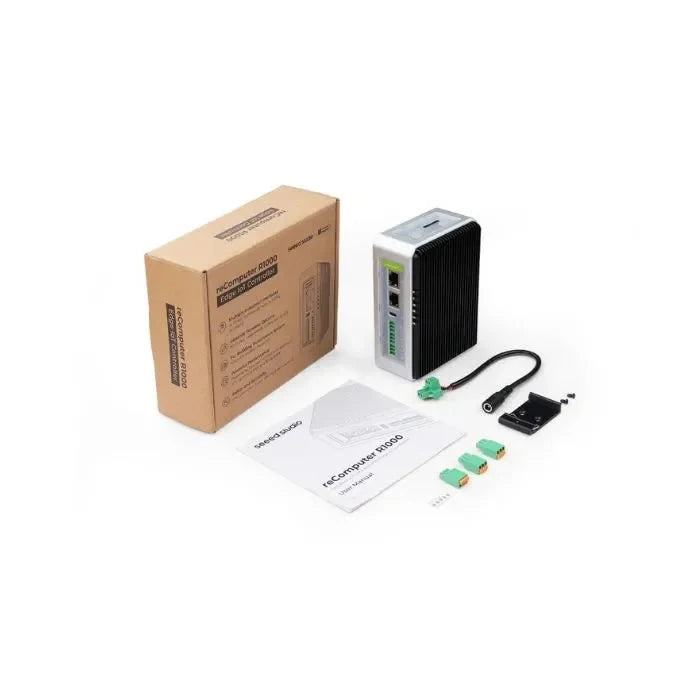

Product List
- 1 x reComputer R1024-10
Other Content
R1000 Series Positioning: reComputer R1024-10 belongs to the reComputer R1000 family. This exact model uses a CM4 module with 4GB RAM and 16GB eMMC, and it includes built-in Wi-Fi and BLE.
Communication and Expansion: The platform is designed for modular industrial expansion. You can add LoRa, 4G LTE, and Zigbee modules internally, and you can expand local storage with an NVMe SSD. That makes it easier to tailor the IoT gateway for different field installations.
Software Ecosystem: This Raspberry Pi IoT gateway is a strong fit for Node-RED, FUXA, FIN Framework, and Home Assistant. If your project is centered on automation protocols, dashboards, remote device management, or industrial telemetry, the R1024-10 sits in a very practical middle ground between maker hardware and full industrial IPCs.
Resources
- reComputer R1000 introduction
- reComputer R1000 with Node-RED
- reComputer R1000 with FUXA and Modbus RTU/TCP
- reComputer R1000 home automation guide
- R1000 user manual
- reComputer R1000 STEP file
- reComputer R1000 schematic and PCB files
- reComputer R1000 flyer
- OpenELAB reComputer collection
- OpenELAB article: Home Assistant smart home guide
FAQ
What is the difference between reComputer R1024-10 and reComputer R1013-10?
reComputer R1013-10 is a lighter R1000 entry model with 2GB RAM and 8GB eMMC. reComputer R1024-10 moves up to 4GB RAM and 16GB eMMC, which is a better fit for heavier Node-RED, Home Assistant, dashboard, or industrial gateway workloads.
What is the difference between reComputer R1024-10 and reComputer R1025-10?
reComputer R1025-10 is positioned higher in the same family and is better when you want more headroom for expanded gateway workloads. R1024-10 is the more balanced 4GB + 16GB option for cost-sensitive industrial deployments.
What is the difference between reComputer R1024-10 and reComputer R1035-10?
reComputer R1035-10 is the stronger R1000 variant when you want more memory for more complex services. If your application is mainly BACnet, Modbus, Home Assistant, and general gateway logic, R1024-10 is often the more efficient choice.
What is the difference between reComputer R1024-10 and reComputer R1124-10 or R1125-10?
reComputer R1124-10 and reComputer R1125-10 belong to the R1100 branch, which is better when your project prioritizes a different interface mix and controller layout. R1024-10 stays in the R1000 branch with 3 isolated RS485 and a strong focus on gateway-style deployments.
Can reComputer R1024-10 run Home Assistant or Node-RED?
Yes. This model is well suited to Home Assistant, Node-RED, and related automation stacks, especially when you want a more industrial alternative to a consumer Raspberry Pi setup.
