Seeed Studio reTerminal DM 10.1-inch Industrial HMI CM4108032

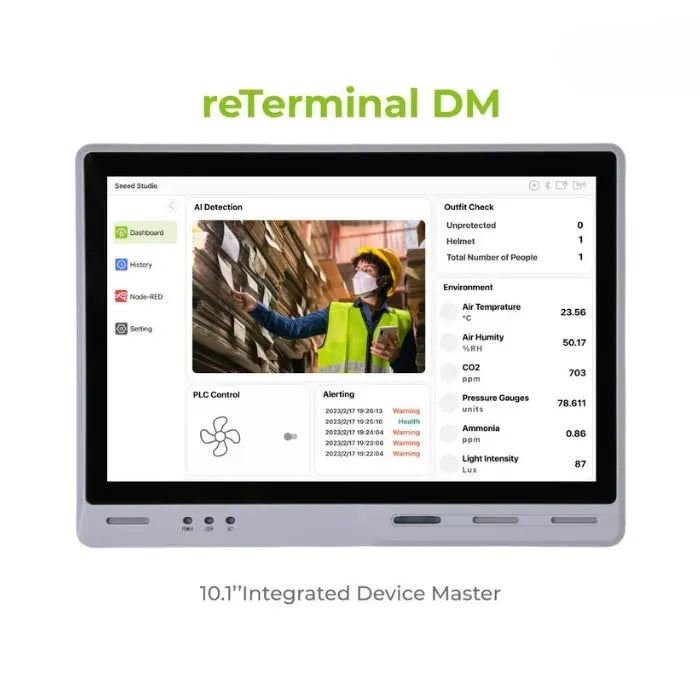

The reTerminal DM 10.1-inch is a robust and feature-rich industrial-grade Human Machine Interface (HMI) powered by the Raspberry Pi Compute Module 4 (CM4108032). Designed for edge computing, industrial automation, and smart IoT control systems, this device combines a high-resolution capacitive touchscreen, extensive I/O connectivity, and long-term reliability in a fanless, IP65-certified aluminum enclosure.
Key Features
-
Rugged Design: IP65 front panel, aluminum casing, -10°C to 50°C operating temperature
-
Powered by Raspberry Pi CM4: Quad-core Cortex-A72 @ 1.5GHz, 8GB RAM, 32GB eMMC storage
-
High-Resolution Display: 10.1” IPS screen, 1280x800 resolution, 10-point capacitive multi-touch, 400 nits brightness
-
Expansion-Ready: Optional M.2 NVMe SSD slot, dual USB, CAN bus, RS485/RS232, HDMI2.0, 40-pin GPIO
-
Wireless Connectivity: Built-in Wi-Fi & BLE, optional 4G LTE & LoRaWAN via Mini-PCIe
-
Advanced Interfaces: Ethernet (1x or optional 3x GbE), DI/DO terminals, audio, CSI camera (optional)
-
Open Software Ecosystem: Compatible with Raspbian, SenseCraft Edge OS, and Node-RED for low-code deployment
-
Extended Product Lifecycle: Supported until at least 2030 (based on Raspberry Pi longevity)
-
Certifications: CE, FCC, RoHS, TELEC, REACH; ESD/EFT/Surge protection compliant
Ideal Applications
-
Industrial Control Systems: HMI panels, SCADA interfaces, PLC gateways
-
Building & Energy Management: BAS control panels, solar monitoring, utility dashboards
-
Transportation & Logistics: Vehicle control terminals, warehouse automation, ticketing systems
-
Healthcare & MedTech: Patient monitoring stations, medical device UIs
-
Retail & Smart Display: Digital signage, interactive kiosks, self-checkout systems
-
Agriculture & Water Management: Irrigation monitoring, greenhouse control, treatment plant SCADA
Technical Specifications
CPU & Memory
-
CM4 Quad-core Cortex-A72 @ 1.5GHz
-
8GB RAM, 32GB eMMC, M.2 NVMe (optional)
Display
-

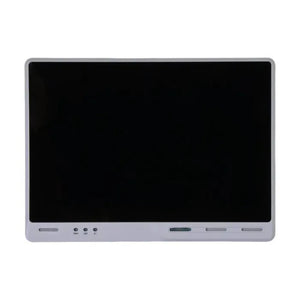

10.1", 1280x800, 400 nits brightness, 10-point capacitive touch
-
Viewing angle: 170°/170°, 7H hardness

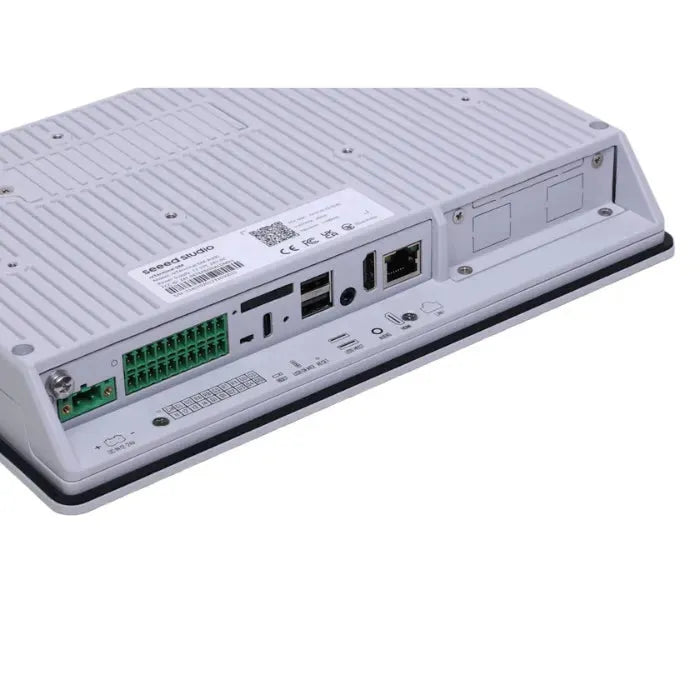

Connectivity
-
Ethernet: 1x GbE (default), 3x optional
-
USB: 2x USB-A 2.0 Host
-
HDMI 2.0 output
-
RS232/RS485, CAN-BUS, DI/DO, 40-pin GPIO
-
Audio: Dual microphones, buzzer, 3.5mm jack
-

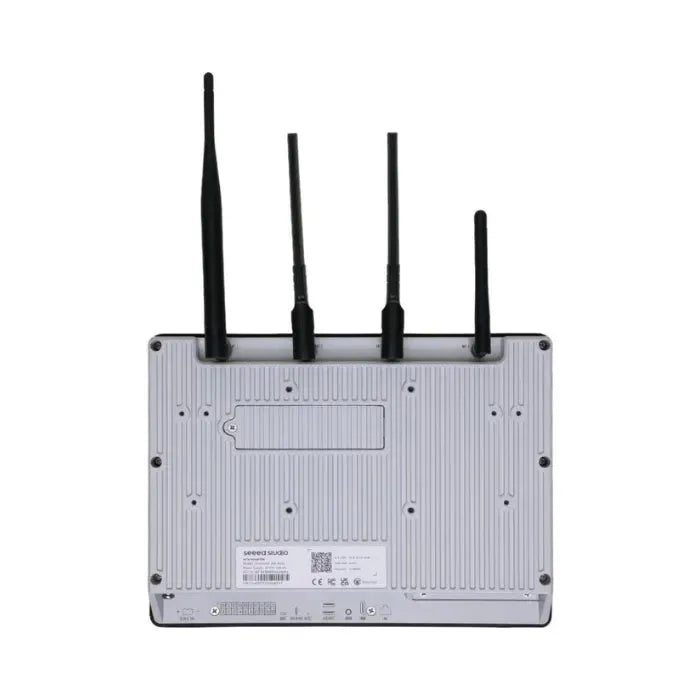

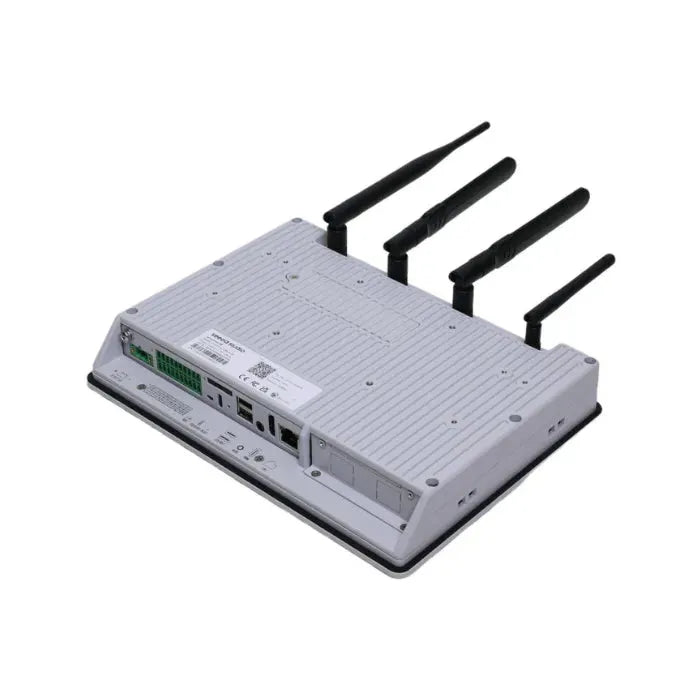

Wi-Fi, BLE (on-chip), optional 4G & LoRaWAN
Power & Environment
-
12~24V DC input, PoE optional
-
Power consumption: 6W typical, 9W max
-
Fanless cooling, -10°C ~ 50°C operating temp
-
Humidity: 10~95% RH
Mechanical & Certifications
-

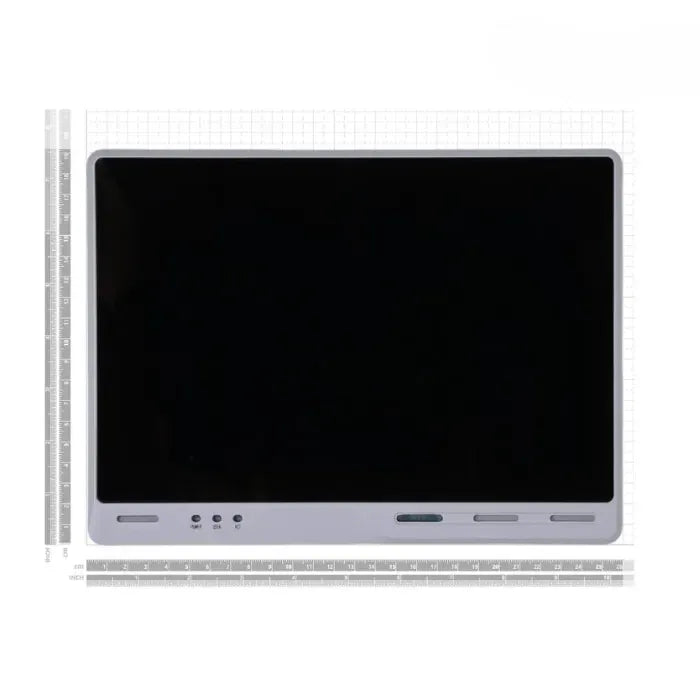

Dimensions: 259.4 x 191 x 42.2 mm
-
Mounting: Panel, VESA, DIN-rail
-
Certifications: CE, FCC, RoHS, TELEC
-
ESD/EFT/Surge protection
What’s in the Box
-
1 × reTerminal DM Panel PC
-
1 × 20-pin Terminal Block Connector
-
1 × 2-pin Power Adapter
-
1 × Screw Pack
-
1 × Fuse
-
1 × User Guide
-
1 × Wi-Fi/BLE Feeder Cable (Installed)
-
1 × Wi-Fi/BLE Antenna
Reference
Seeed's Raspberry Pi-based Success Cases
reterminal DM Vibration and Shock Test Report
