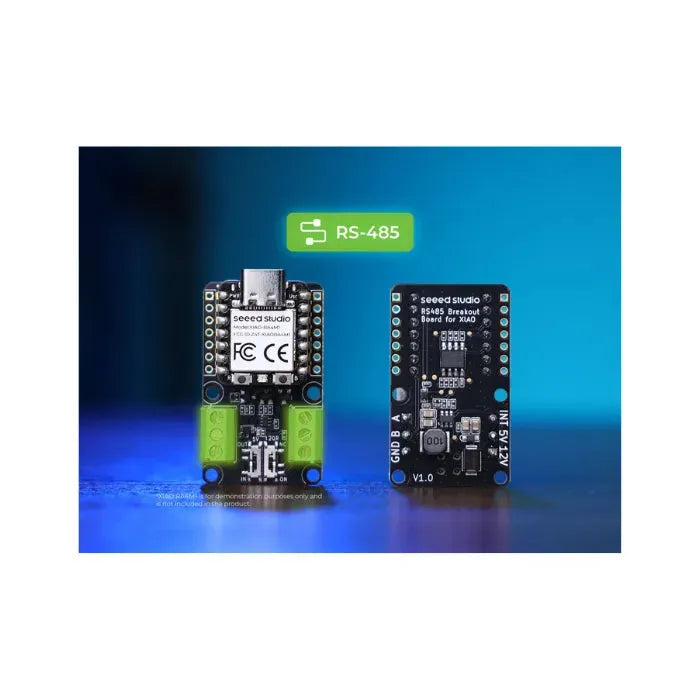

🔌 Seeed Studio RS-485 Breakout Board for XIAO

The RS-485 Breakout Board from Seeed Studio is a powerful and flexible expansion module designed specifically for all XIAO development boards. 🧩⚙️

⚙️ Features

  • 🧠 TP8485E Transceiver IC Converts UART serial data into RS-485 signals with high efficiency.

  • 🔁 Half-Duplex Communication Supports unidirectional data transmission over distances up to 1200 meters — perfect for long-range applications.

  • ⚡ Wide Voltage Support Operates on a single 5V or 12VDC power source for easy integration.

  • 🔧 3-Pin Terminal Output Simplifies wiring for both signal and power connections.


📡 Built for Demanding Environments

This breakout board is engineered for robust data transmission in:

  • 🌐 Large-scale deployments

  • 🔊 High-noise environments

  • 🏭 Industrial and embedded systems

Its compact design and reliable performance make it an ideal choice for developers needing stable RS-485 communication across extended distances.



Feature

  • 🤝 Seamless XIAO Compatibility Fully designed to work effortlessly with Seeed Studio XIAO development boards — plug, connect, and go!

  • 📡 Long-Distance Communication Supports RS-485 data transmission up to 1200 meters (≈ 3973 feet) — perfect for remote or industrial applications.

  • ⚡ Wide Voltage Support Operates reliably with both 5V and 12V power supplies for flexible integration.

  • 🔌 Dual 3-Pin Terminals Equipped with two 3-pin terminals for easy connection of signal lines and power input.

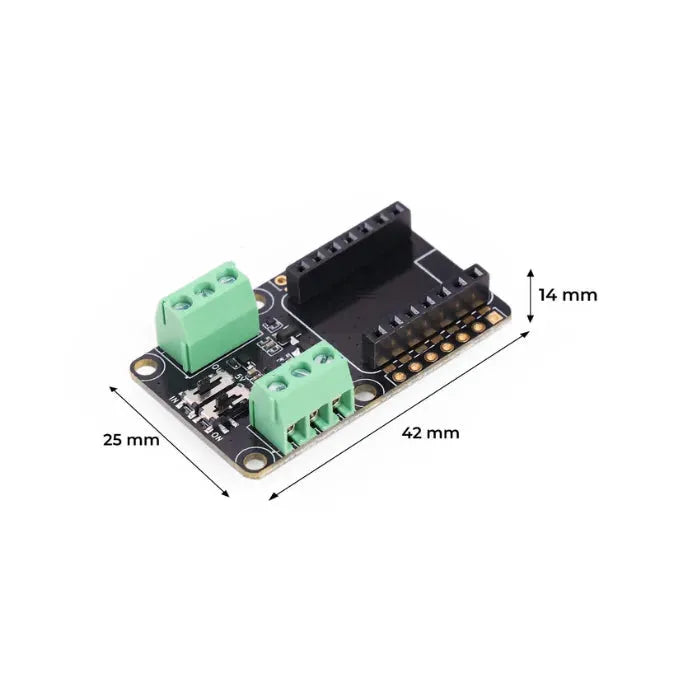

  • 📏 Compact & Efficient Design Sized at just 2 XIAO boards, this breakout board is ideal for space-constrained projects and embedded systems.



❓ What is RS-485?

RS-485 is a robust and efficient serial communication standard designed for applications that require:

  • 📡 Long-distance transmission

  • 🔗 Multipoint connectivity

  • 🔊 Strong noise immunity

Thanks to its reliability and flexibility, RS-485 is widely adopted in industrial automation, communication systems, and remote monitoring. 🏭📶


⚙️ How Does RS-485 Work?

RS-485 transmits data using two signal lines (A & B), enabling:

  • 🔁 Half-duplex communication

  • 🛡️ Excellent resistance to electrical noise

  • 🧩 Up to 32 devices on the same bus

  • 🆔 Each device has a unique address for accurate data exchange

When paired with the Modbus protocol, RS-485 becomes a powerful tool for efficient device communication and management across complex systems. 🔄📊

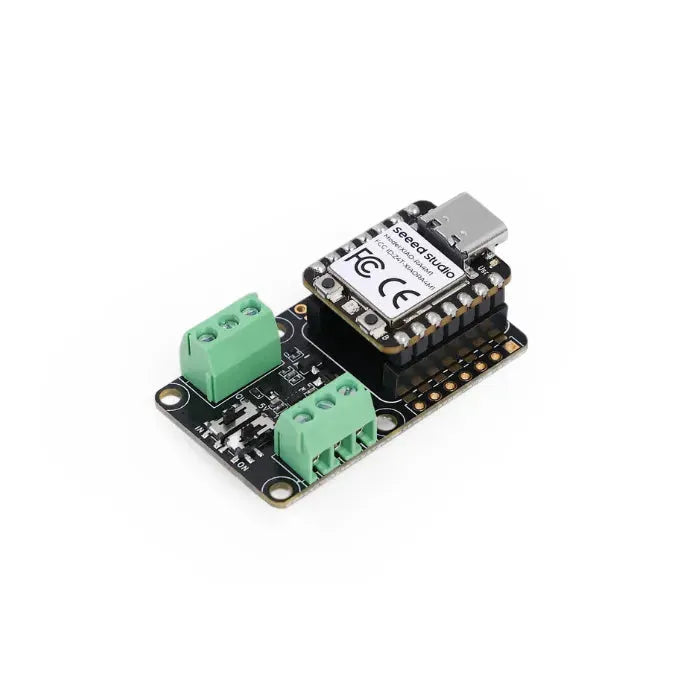

🚀 RS-485 with Seeed Studio XIAO

By integrating the Seeed Studio RS-485 Breakout Board with your XIAO development board, you unlock:

  • ⚡ High-speed, long-distance communication

  • 🧠 Access to the full XIAO ecosystem

  • 📦 A compact, plug-and-play solution for industrial and IoT projects

Whether you're building smart factories, sensor networks, or remote control systems, this breakout board delivers the reliability, range, and simplicity



Specification

Product

Seeed Studio RS-485 Breakout Board

Compatibility

Seeed Studio XIAO dev boards, Adafruit QT Py

Communication Interface

RS-485

RS485 Chip

TP8485E, half-duplex tranceiver

Terminal Connection

3-pin terminal for signal wire and 3-pin terminal for power

Communication Distance

1200 meters

Transmission Speed

250k bps

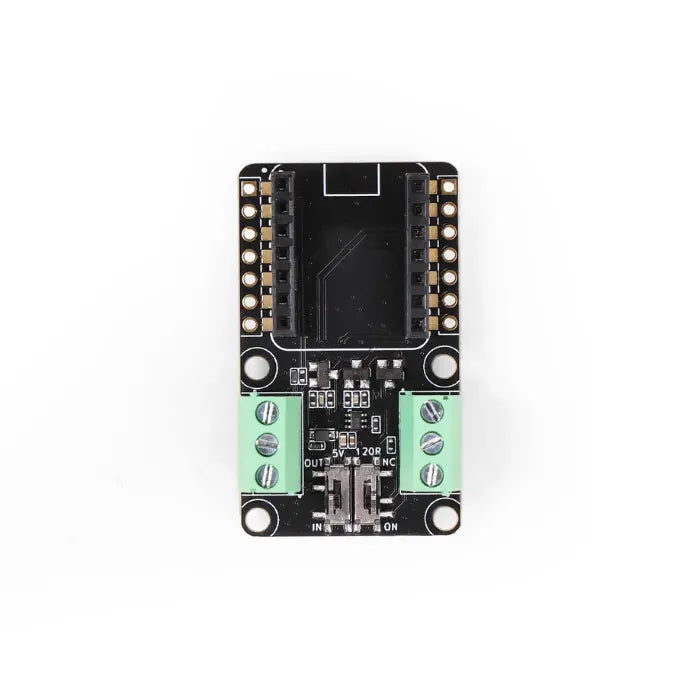

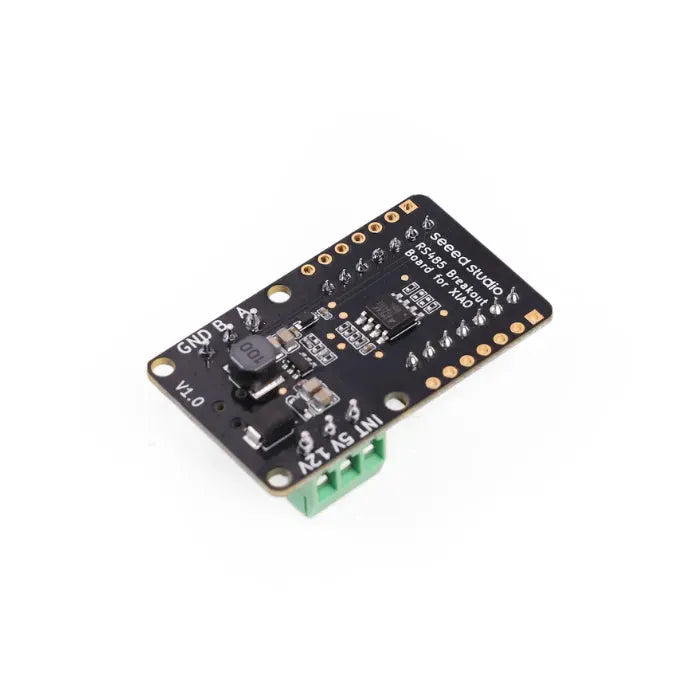

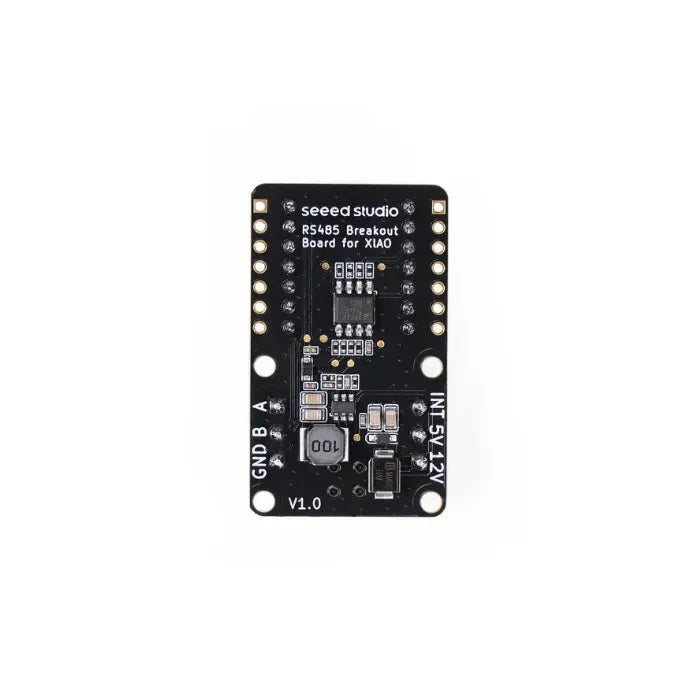

Hardware Overview

  • Onboard


Application

  • 🤖 Industrial Automation – Real-time control and monitoring of machinery and production lines

  • 🌐 Remote Monitoring Systems – Reliable data transmission across long distances for environmental or equipment tracking

  • 📊 Data Acquisition Systems – Collecting and processing sensor data for analysis and reporting

  • 🔌 Embedded Systems with Serial Communication – Seamless integration into microcontroller-based projects requiring UART/RS-485 connectivity



Part List

Seeed Studio RS-485 Breakout Board

x1
