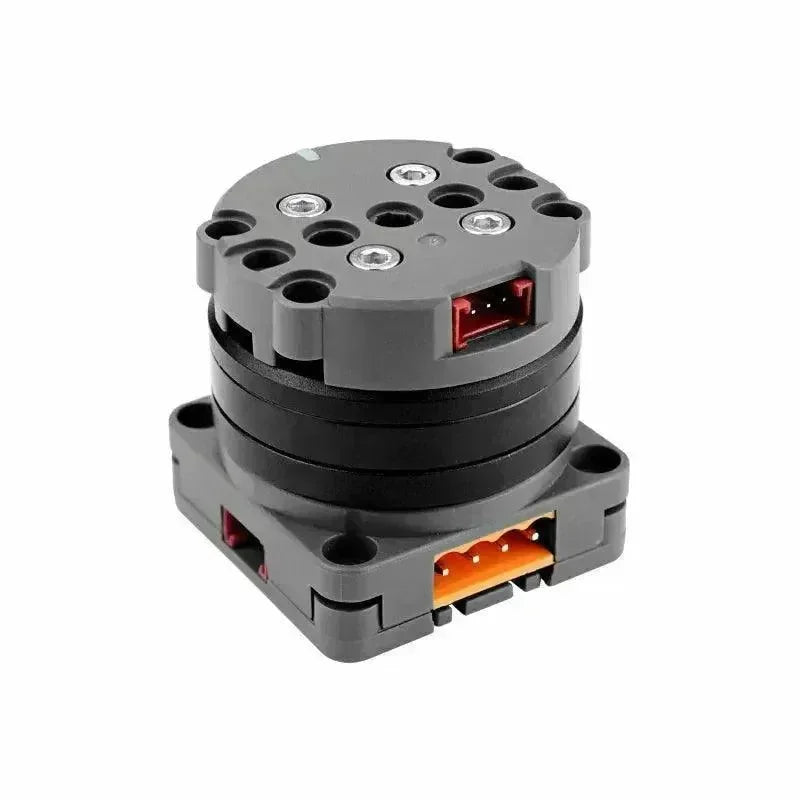

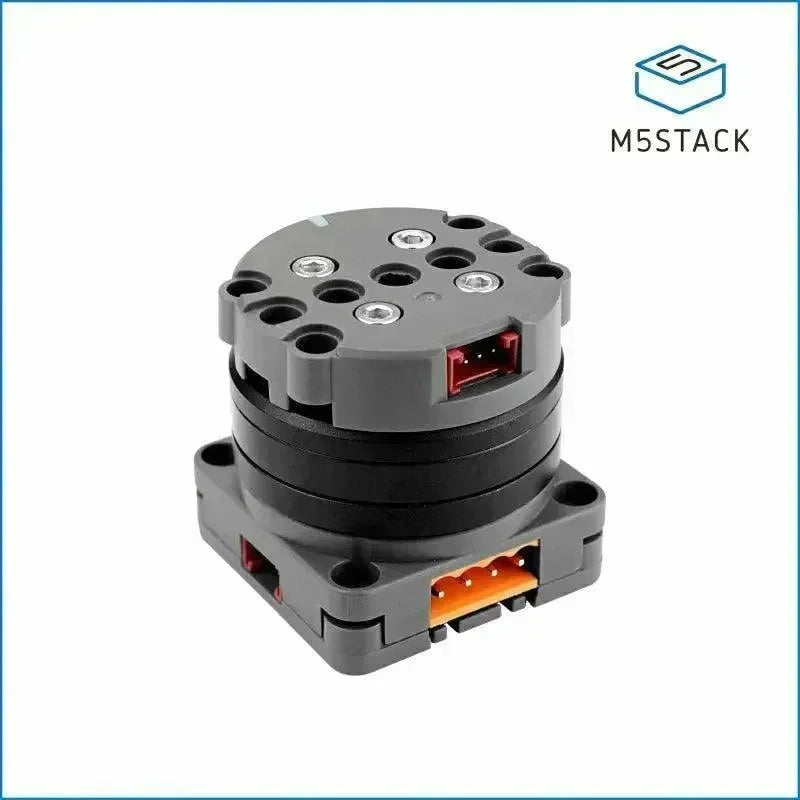

M5Stack Roller485 Unit with BLDC Motor (STM32)

€42,00 EUR
€42,00 EUR
€42,00 EUR
Save €0,00
Subtotal: €42,00

Free Shipping from 50€ in EU / 80€ Worldwide

- All products are tax-inclusive.

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

M5Stack Roller485 Unit with BLDC Motor (STM32)

M5Stack Roller485 Unit with BLDC Motor (STM32)

€42,00

M5Stack Roller485 Unit with BLDC Motor (STM32)

€42,00

Note: All products are tax-inclusive.

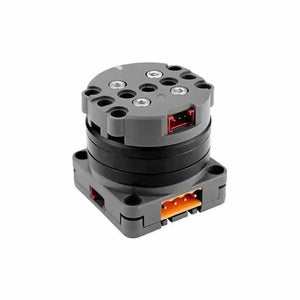

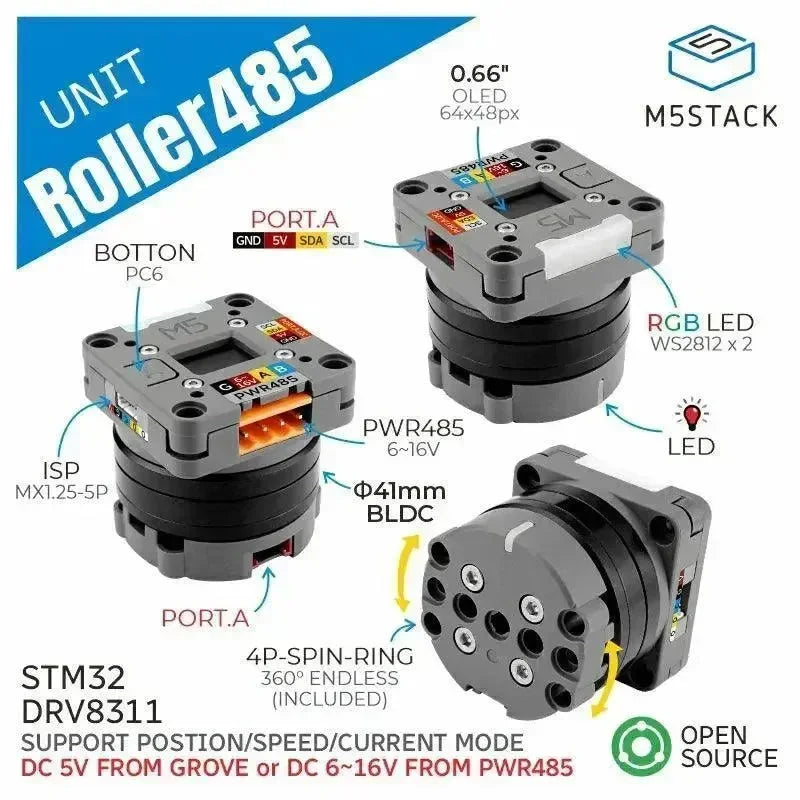

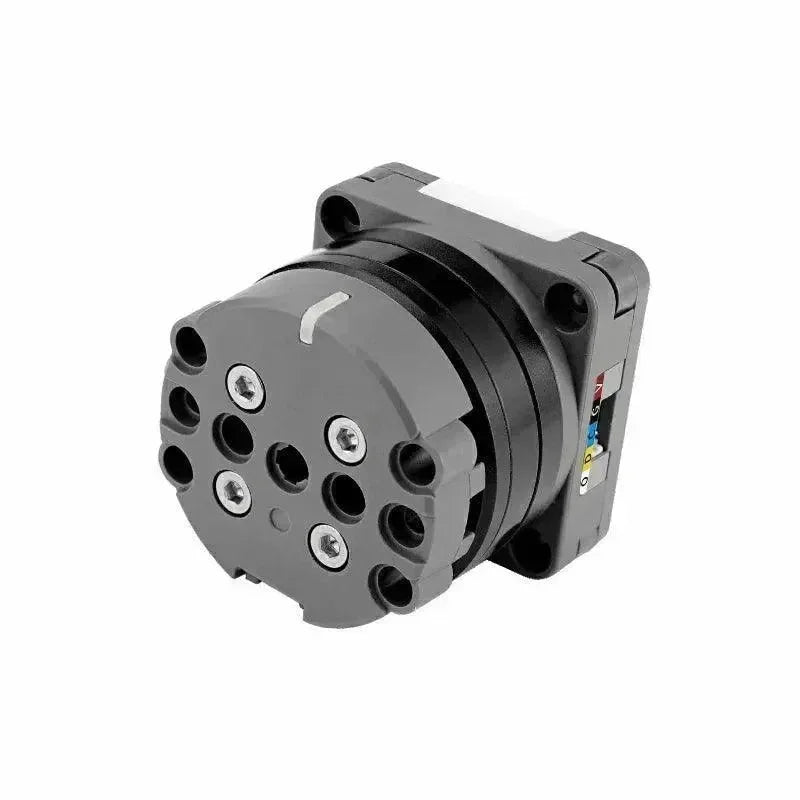

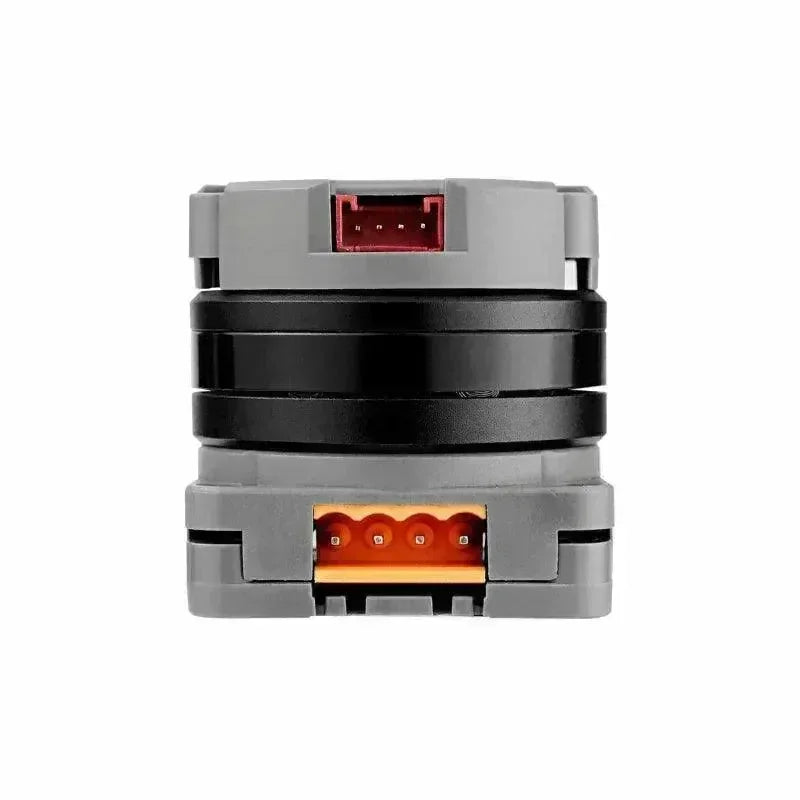

The Roller485 Unit is a brushless DC motor (BLDC) motion actuator kit that's integrated with multiple control functions and designed with your needs in mind. It's perfect for efficient motion control! This product is ready to work with you! It supports 6-16V DC power input (via PWR485 interface) or 5V input (via Grove interface). It can even automatically adjust the power coefficient to ensure optimal performance! This amazing product features an internal FOC closed-loop drive system and uses a 3504 200KV brushless motor, with a maximum continuous phase current of 0.5A without forced cooling, and a short-term peak current of 1A. The driver uses a magnetic encoder for feedback, which is great for keeping an eye on things like current, speed, and position. This helps to make sure everything is running smoothly and precisely. The device's axle can be equipped with an optional slip ring, which is really handy! This allows the top Grove interface to remain connected to the bottom, enabling the expansion of additional modules while supporting 360° rotation. This also ensures power supply and data transmission to the rotating part, which is great!

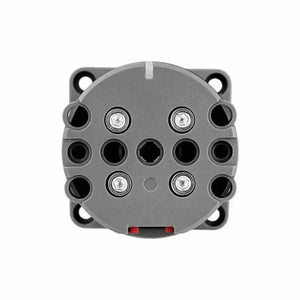

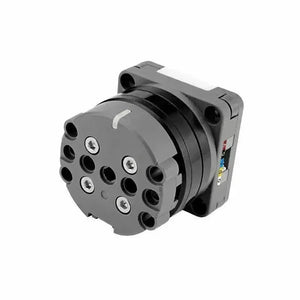

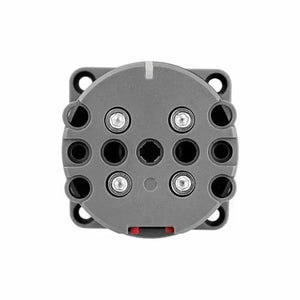

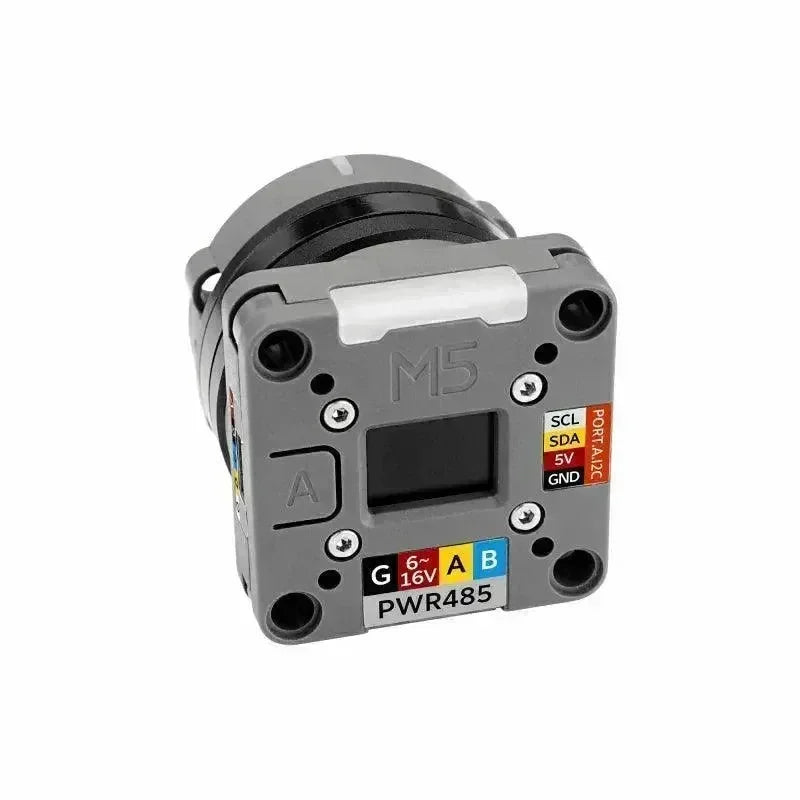

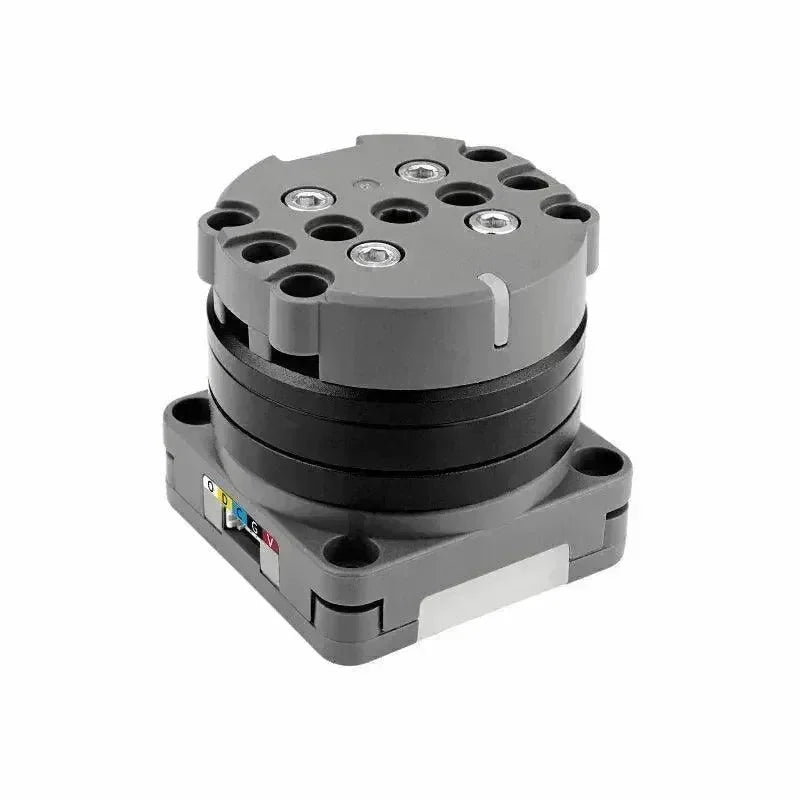

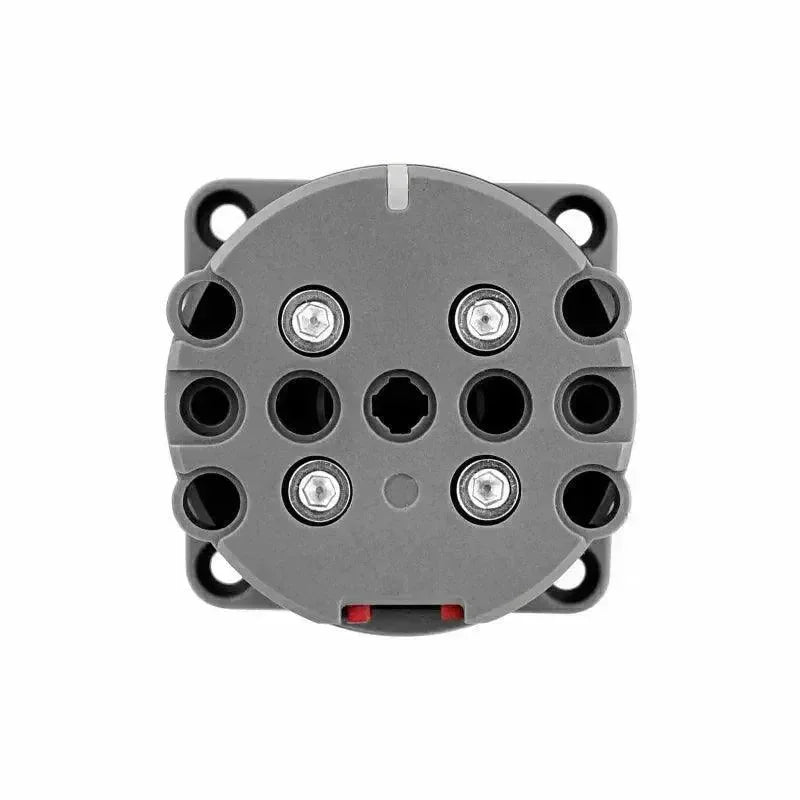

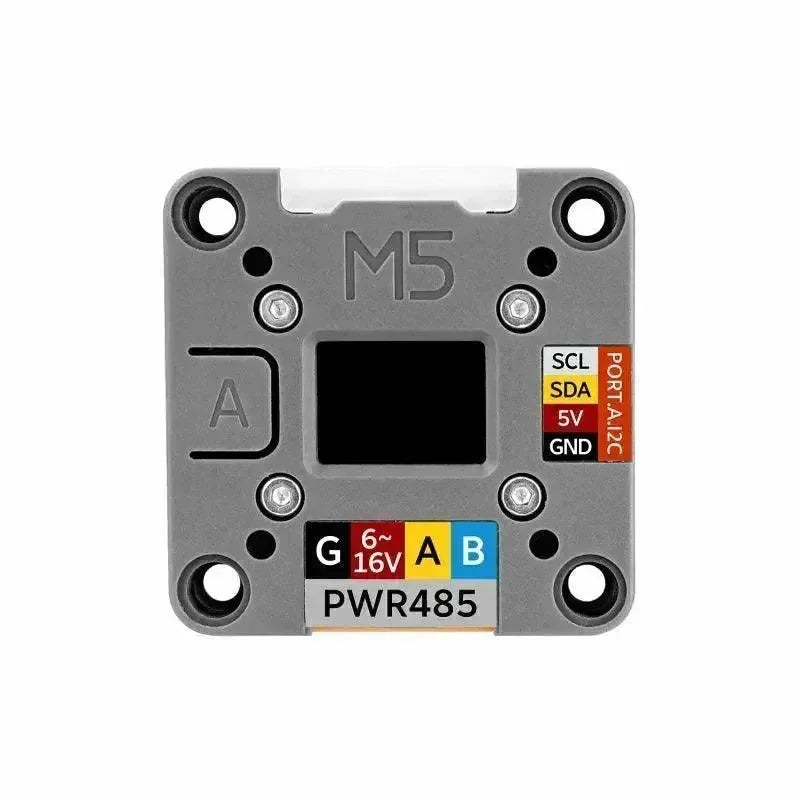

And there's more! The back of the device features a 0.66-inch OLED display that can show real-time status, along with RGB indicator lights and function buttons for easy human-machine interaction. We've made it super easy for you to set up and integrate this product! The top and base are designed with LEGO-compatible mounting holes and M3 screw holes, so you can get started right away. We're happy to say that the Roller485 Unit's hardware and software are fully open-source! This means you can use motion control and parameter adjustment via RS485 or I2C buses. We've also made sure you have plenty of ways to debug your software, with both SWD and SWO interfaces. This product is a real workhorse! It's used in robotic joints, motion control, industrial automation, and visual demonstration projects.



Product Features

  • Brushless DC motor control (BLDC)
  • RS-485 communication / I2C communication control
  • Integrated OLED display
  • RGB indicator lights
  • FOC closed-loop drive system

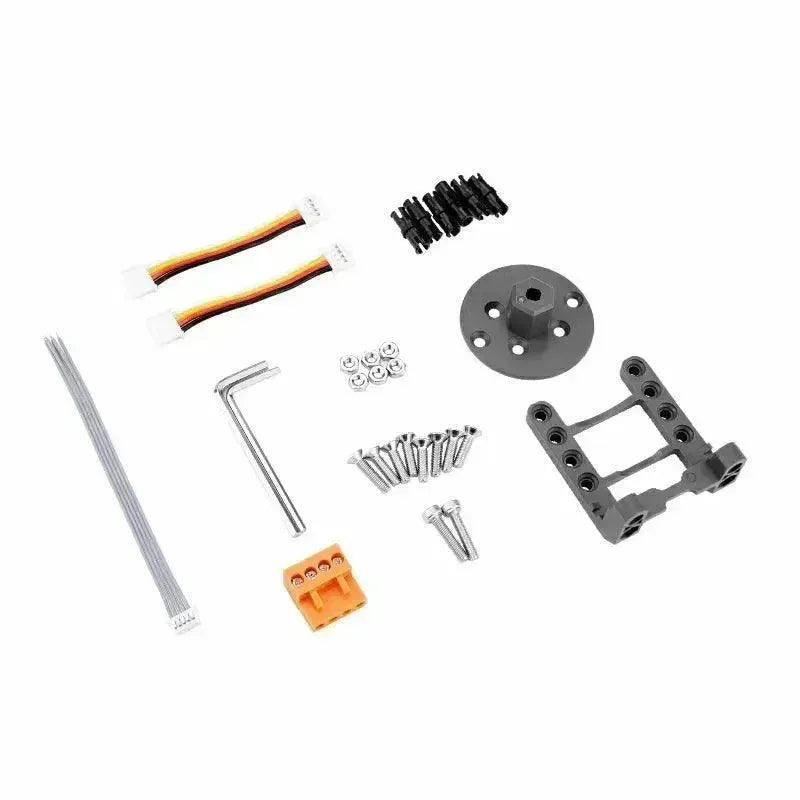

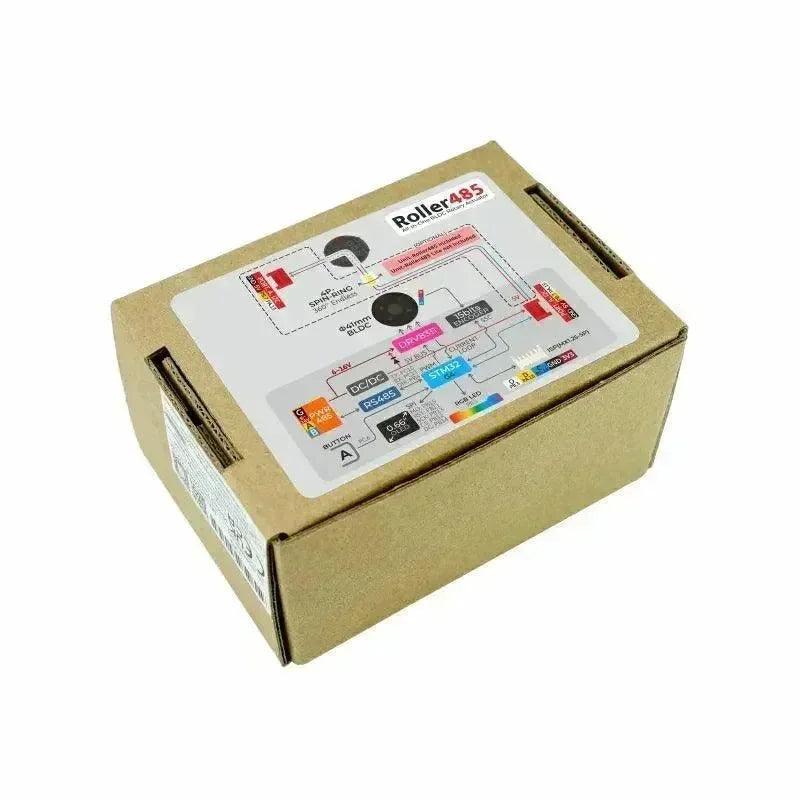

Included

  • 1x Roller485 Unit
  • 1x HT3.96R-4P plug
  • 2x HY2.0-4P Grove cables (5cm)
  • 6x Friction pins
  • 1x Flange
  • 1x Bracket
  • 1x Hex key(2.5mm)
  • 1x Hex key(2mm)
  • 6x M3 nuts
  • 2x M3x14mm socket head screws
  • 4x M3x14mm countersunk head screws
  • 4x M3x12mm countersunk head screws
  • 1x Single-end terminal wire 5P debugging cable



Applications

  • Robotic joint control
  • Smart manufacturing equipment
  • Visual demonstrations



Specifications

Specification Parameter
MCU STM32G431CBU6 @ Cortex-M4, 128KB Flash, 32KB SRAM, 170MHz
Motor Type D3504 200KV brushless motor @ diameter: 41mm
Driver Chip DRV8311HRRWR
Angle Sensor TLI5012BE1000

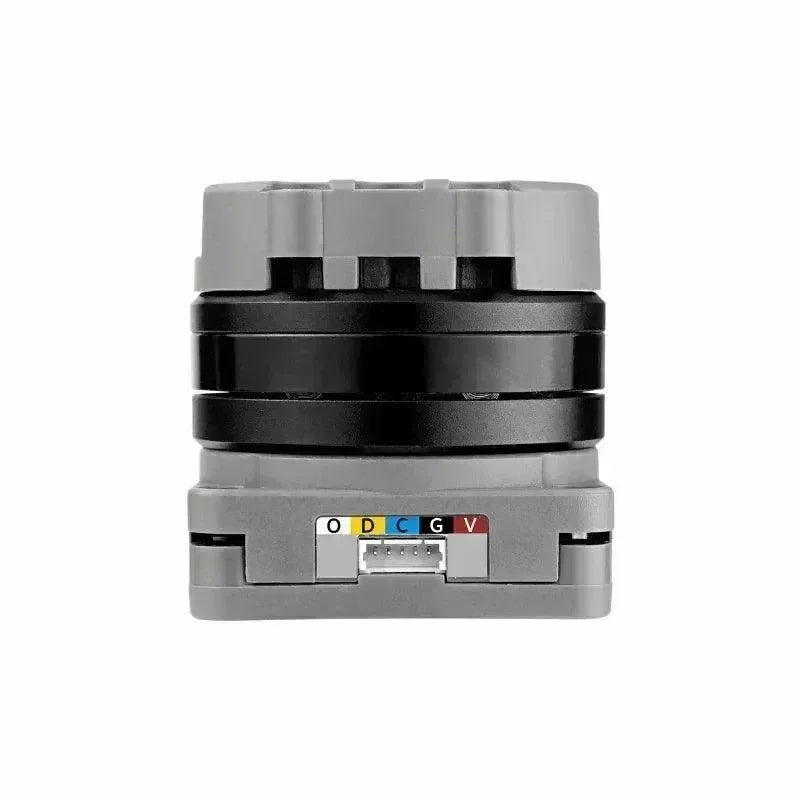

Communication Interface PWR-485 (HT3.96-4P interface)
I2C (0x64)
Display 0.66-inch OLED display, resolution: 64*48, SPI communication
RGB LEDs 2x WS2812-2020
Motor Power Supply PWR-485 (HT3.96-4P interface) @ 6-16V
Grove Port DC5V power supply
Slip ring_Grove port DC5V power supply
Load Load: 50g Motor Speed: 2100rpm Current: DC16V/225mA
Load: 200g Motor Speed: 1400rpm Current: DC16V/601mA
Load: 500g Motor Speed: 560rpm Current: DC16V/918mA
No load: DC16V/78mA
Standby Current Grove port DC5V power supply @ 70mA
RS-485 (HT3.96-4P interface) power supply DC16V @ 32mA
Output Torque Grove port DC5V power supply: 0.021N.m/0.2kgf.cm @ current 350mA
RS485 (VH3.96-4P interface) DC16V power supply: 0.065N.m/0.66kgf.cm @ current 927mA
Slip Ring (Grove Port) Output Capacity DC5V/300mA
Noise 48dB
Operating Temperature 0-40°C
Product Size 40*40*40mm
Packaging Size 170*75*52mm
Product Weight 82.9g
Packaging Weight 158.1g





RS485 Protocol

Roller485 Unit RS485 Protocol Table

Roller485 Unit RS485 user manual



Arduino

Roller485 Unit Library

STM32 Firmware
