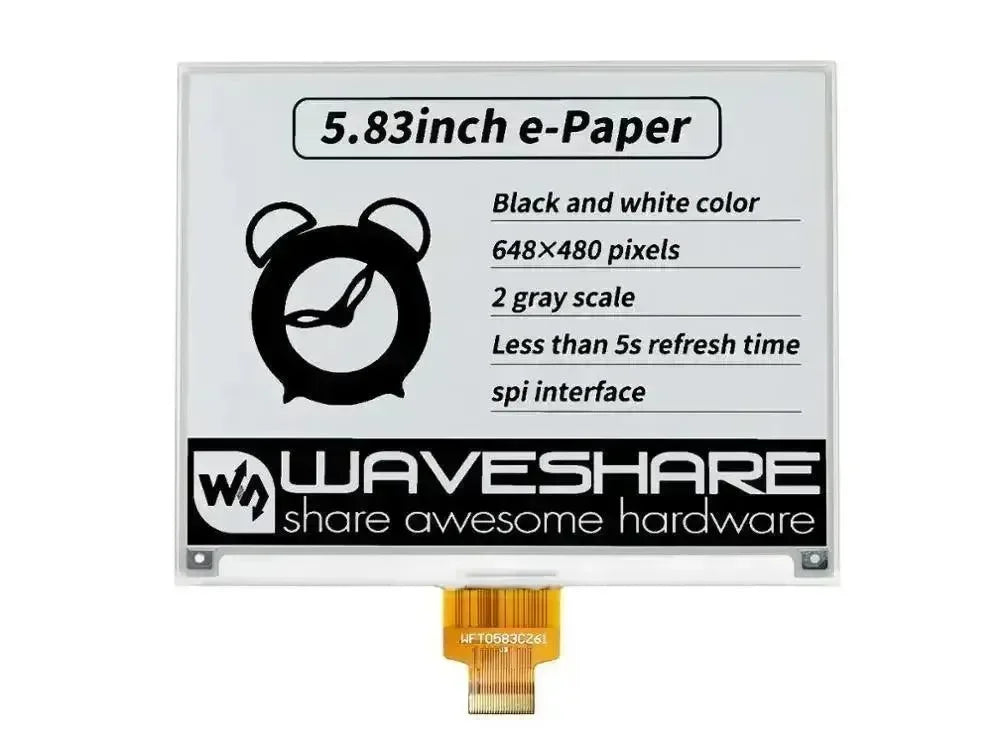

5.83inch E-Paper E-Ink Raw Display, 648×480 Pixels, Black / White Dual-Color, SPI Interface, Without PCB
5.83" E-PAPER
Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
-
Size
5.83"
-
Resolution
648×480
-
Viewing Angle
>170°
-
Display Color
Black / White
-
Grey Scale
2
-
Communication
SPI
-
Display Panel
E-paper
-
Experience
Paper-like
-
Environment
Ambient Light Required
-
Display Type
Passively Reflective
Features At A Glance
-
No backlight, keeps displaying the latest content for a long time even when powered down
-
Ultra-low power consumption, basically power is only required for refreshing
-
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE |
3.3V |
DISPLAY COLOR |
black, white |
INTERFACE |
3-wire SPI, 4-wire SPI |
GREYSCALE |
2 |
OUTLINE DIMENSIONS |
125.40 × 99.50 × 1.18mm |
FULL REFRESH TIME |
5s |
DISPLAY SIZE |
119.232 × 88.320mm |
REFRESH POWER |
26.4mW(typ.) |
DOT PITCH |
0.184 × 0.184mm |
STANDBY CURRENT |
<0.01uA (almost none) |
RESOLUTION |
648 × 480 pixels |
VIEWING ANGLE |
>170° |
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
PACKAGE CONTENT
Weight: 0.029 kg
- 5.83inch e-Paper x1
