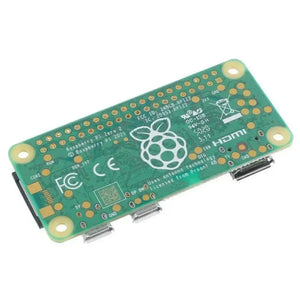

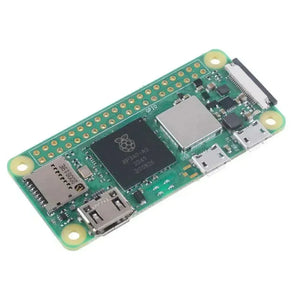

Based on the succession of the current Raspberry Pi Zero series, the Raspberry Pi Zero 2 W is built around a System-in-Package(SiP) designed for the Raspberry Pi, which integrates the BCM2710A1 chip used by the Raspberry Pi 3 and 512MB of RAM.
The Raspberry Pi Zero 2 W (Wireless) offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification. The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM.
The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.
802.11 b/g/n wireless LAN (2.4 GHz only)
Bluetooth 4.2 / Bluetooth Low Energy (BLE)
Small form factor, suitable for various DIY projects
Expansion – Unpopulated 40-pin HAT-compatible I/O header
Footprint-compatible with earlier members of the Raspberry Pi Zero family
Available in RP3A0 System-in-Package
Composite video and reset pins via solder test points
Quad-core 64-bit ARM Cortex-A53 processor clocked at 1Ghz
Includes 512MB LPDDR2 SDRAM
Built-in Wi-Fi capability, ideal for IoT and robotics projects
Parameters |
Details |
Form factor |
65mm × 30mm |
Processor |
Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz) |
Memory |
512MB LPDDR2 SDRAM |
Video |
• HDMI interface • Composite video |
Multimedia |
• H.264, MPEG-4 decode (1080p30) • H.264 encode (1080p30) • OpenGL ES 1.1, 2.0 graphics |
Input power |
5V DC 2.5A |
Operating temperature |
-20°C to +70°C |
Production lifetime |
Remain in production until at least January 2028 |
microSD card slot
mini HDMI port
USB On-The-Go (OTG) port
micro-USB power port
HAT-compatible 40-pin GPIO header
Composite video via solder test points
CSI-2 camera connector
