Specifications
- Quantity: 1 piece
- Size: 4.84.21.5 cm
- Plastic Type: ABS
- Model Number: SE100
- For Vehicle Type: Airplanes
- Tool Supplies: Assembly Category
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Remote Controller
- Upgrade Parts/Accessories: Frame, Speed Controllers
- Material: Plastic
- Brand Name: RadioLink
- Origin: Mainland China
- Recommended Age: 14 years and older
- Use: Vehicles & Remote Control Toys
Features:
-
【Mini Size】: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it's perfect for you racing drone and quadcopter.
-
【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter. Double Filter: SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.
-
【Top Configuration】: Design with U-box UBX-M10050(M10), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.
-
【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1, triple-mode operation is available.
-
【High-performance】:Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.
-
【You Will Get】: excellent mini GPS and 12 months warranty and 24 hours friendly customer service.
Top Configuration
-
GPS decoder chip: Radiolink GPS, with u-blox UBX-M10050(M10), 72-channel, MMIC BGA715L7 from Infineon,is much better than single GNSS 7N,
-
Geomagnetic: HMC5983 from Honeywell,
-
Antenna : 2.5dbI high gain and selectivity ceramic antenna,
-
Power amplify IC: MMIC BGA715L7 from Infineon,
-
Double Filter: SAWF(Surface acoustic wave filter) form Murata

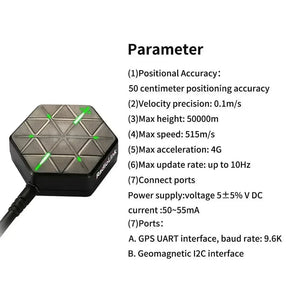

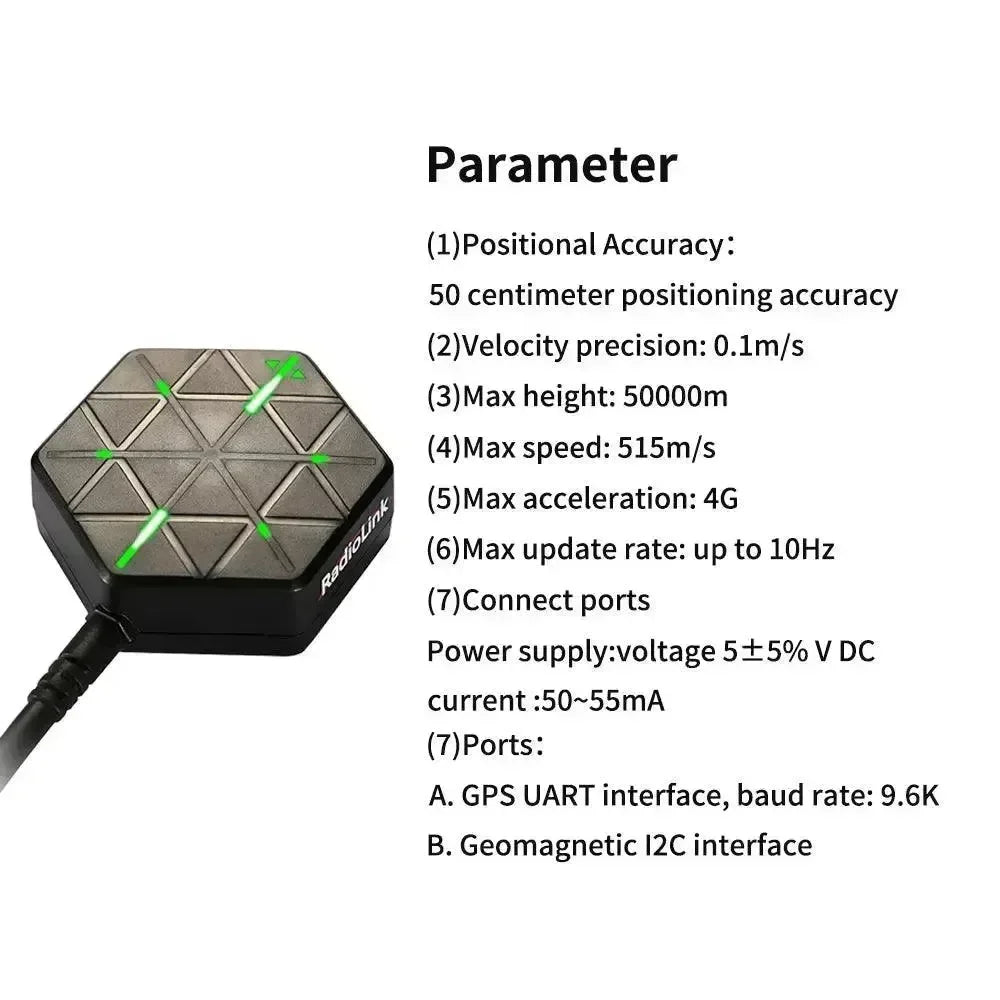

Excellent Performance
-
50 centimeter position accuracy.
-
Positioning 20 satellites in 6 seconds as open ground.
-
Valley station-keeping ability.
-
Concurrent reception of GPS, QZSS L1 C/A, GLONASS L10F, Beidou B1,
-
SBASL1 C/A: WAAS,EGNOS,MSAS.

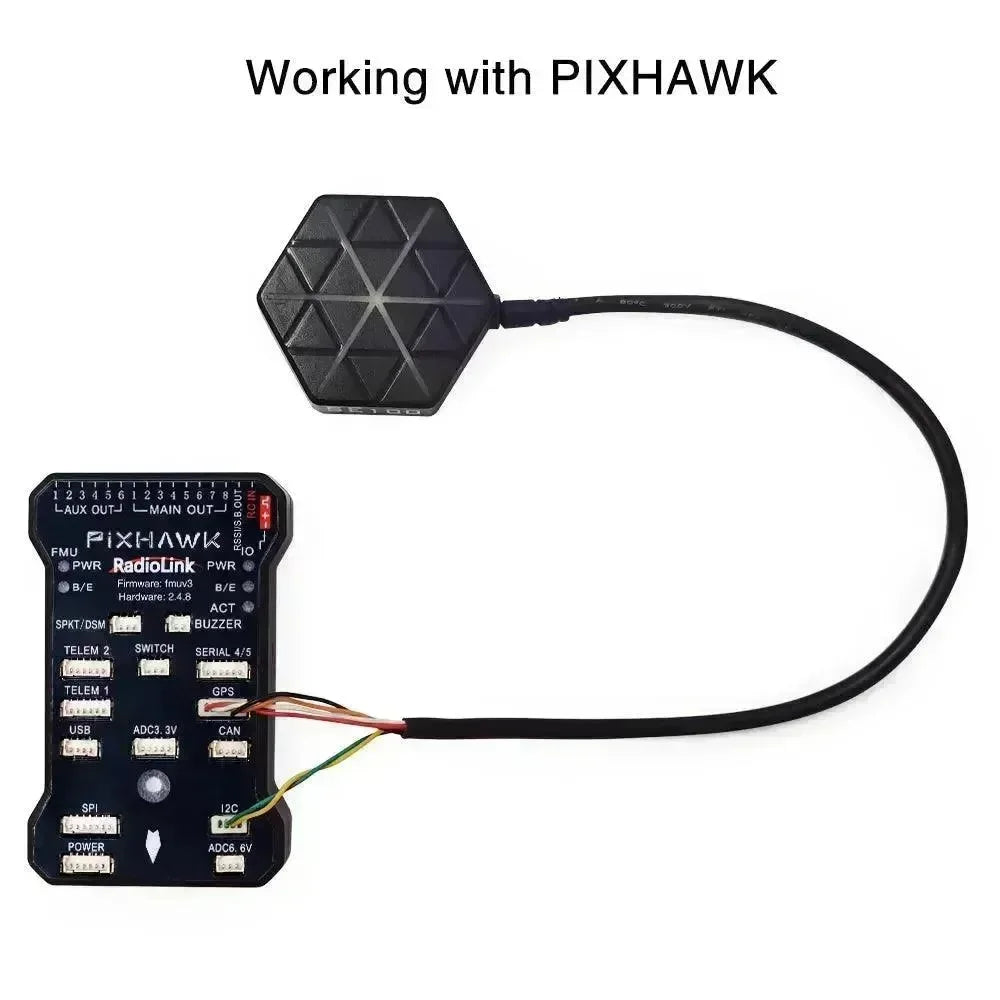

Assembly Selection of PIXHAWK

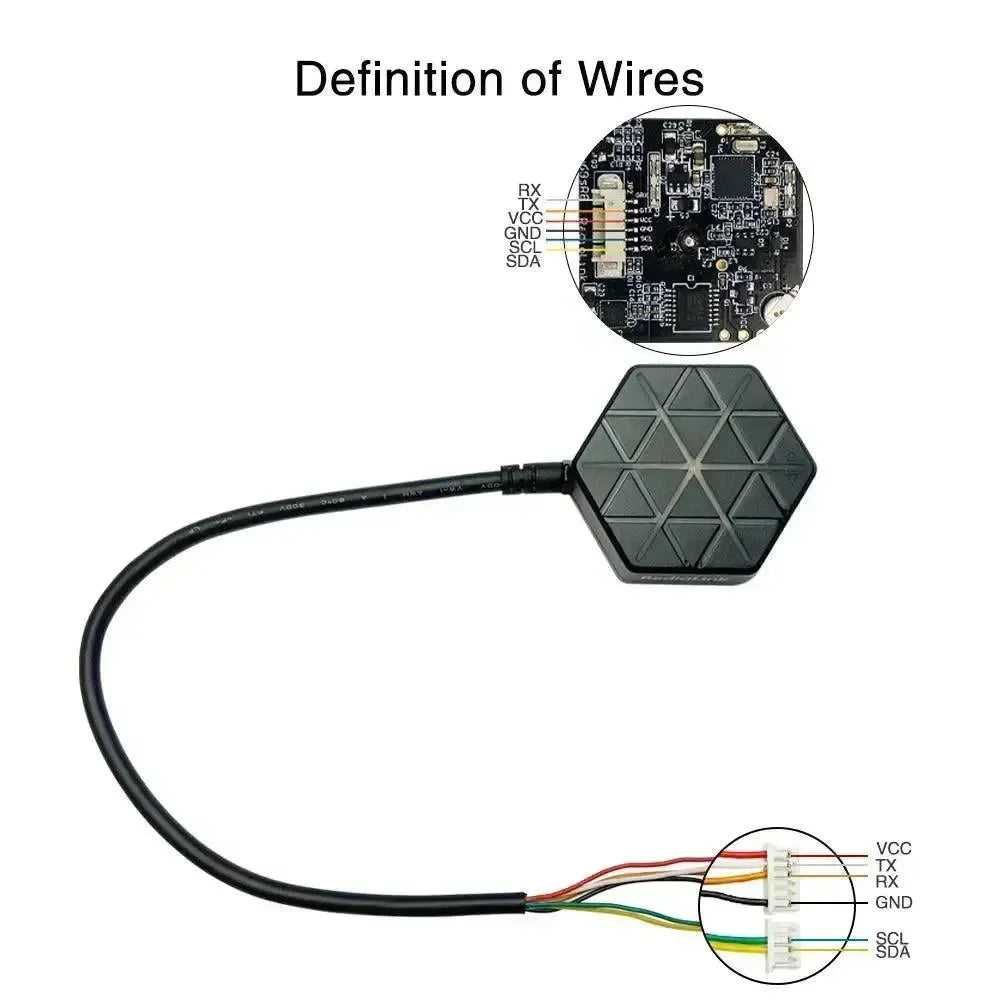

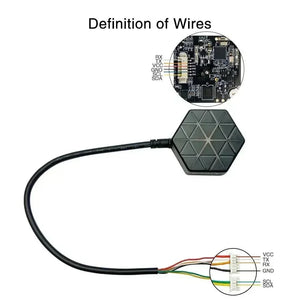

The connection cable interface of the Radiolink M10N SE100 is the same as the external socket of the PIXHAWK. It is a 6P MX interface. Users who want to use it on the Radiolink Mini PIX need to purchase a new socket extension for connection, The weight is only 1.89*1.6*0.59in.

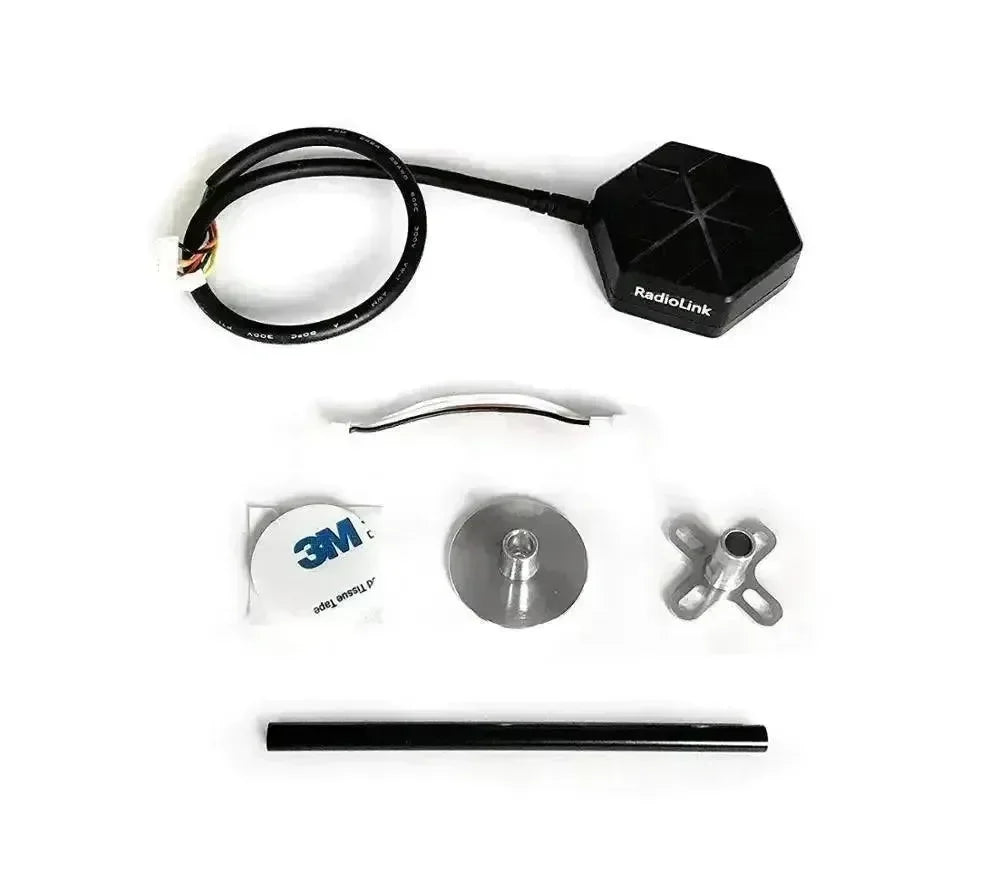

Package Included
-
M10N SE100 GPS x 1
-
Metal rod bracket x 1
-
Connecting cable x 1
-
Metal fixing gasket x 2
-
Foam fixed sticker x 1
