Waveshare NVIDIA Jetson Xavier 16G eMMC

Waveshare NVIDIA Jetson Xavier 16G eMMC

849,00 €

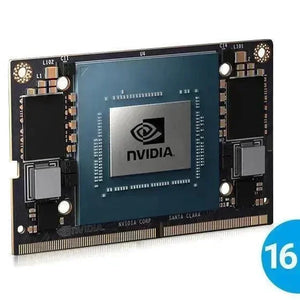

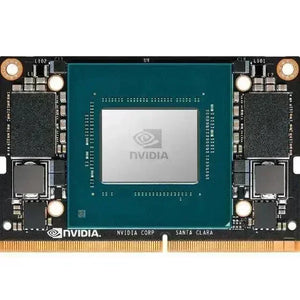

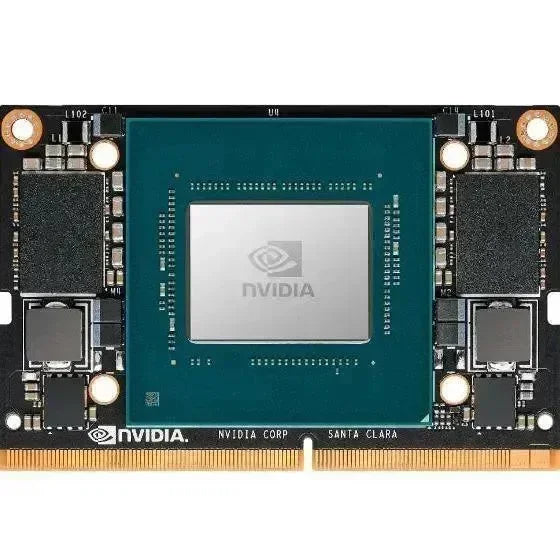

The NVIDIA Jetson Xavier NX is a small form factor System on Module (SOM) that delivers powerful computer performance to edge systems. With up to 21 TOPS of accelerated compute power, it can run modern neural networks in parallel and process data from multiple high-resolution sensors, enough for a complete AI system.Jetson Xavier NX supports all common AI frameworks.

Size

Xavier-like performance in a Nano-sized package.
At only 70mm x 45mm, the Jetson Xavier NX packages the power of the NVIDIA Xavier SoC into a module the size of a Jetson Nano. This small form factor module combines outstanding performance and power benefits with a rich set of IOs ranging from high speed CSI and PCIe to low speed I2C and GPIOs. Take advantage of the small form factor, sensor-rich interfaces, and outstanding performance to bring new capabilities to all your embedded AI systems and edge systems.



Performance

Powerful 21 TOPS AI Performance
Jetson Xavier NX delivers up to 21 TOPS, perfect for high-performance computing and AI in embedded and edge systems.You get the performance of 384 NVIDIA CUDA Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and 2 NVIDIA Deep Learning Accelerator (NVDLA) engines. performance. These features, combined with more than 59.7GB/s of memory bandwidth, video encoding and decoding, make Jetson Xavier NX a powerful platform for running multiple modern neural networks in parallel and processing high-resolution data from multiple sensors simultaneously.



Power

Outstanding Energy Savings
With Jetson Xavier NX, you can use the full NVIDIA software stack to run modern AI networks and frameworks with accelerated libraries for deep learning as well as computer vision, computer graphics, multimedia, and more. And it leaves more power budget for the sensors and peripherals needed for today's embedded applications.



Technical Parameters

Versions
8 GB version
16 GB version

AI Performance
21 TOPS

GPU

384-core NVIDIA Volta GPU with 48 Tensor Cores
384-core NVIDIA Volta GPU with 48 Tensor Cores

CPU
6-core NVIDIA Carmel ARM v8.2 64-bit CPU
6MB L2 + 4MB L3

Memory
8 GB 128-bit LPDDR4x 59.7GB/s
16 GB 128-bit LPDDR4x 59.7GB/s

Storage
16 GB eMMC 5.1

Power
10W | 15W | 20W

PCIe
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera
Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4)
MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)

Video Encoding
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decoding
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Display
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator
2x NVDLA Engines

Vision Accelerators
2x PVA

Networking
10/100/1000 BASE-T Ethernet

Dimensions
45 mm x 69.6 mm
260-pin SO-DIMM connector
