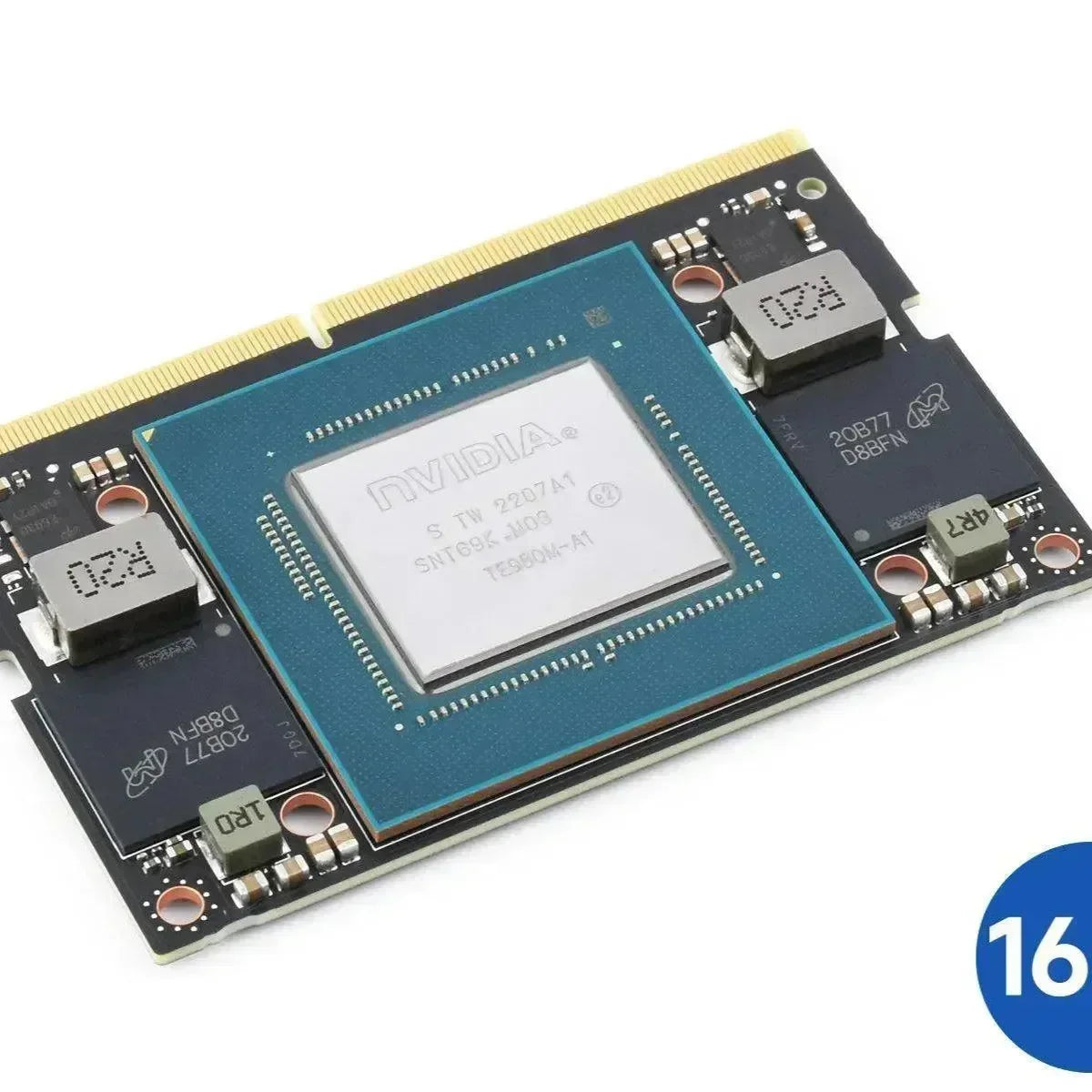

The Jetson Orin NX module is extremely small, but the 16GB version delivers up to 100 TOPS of AI performance, with power configurable from 10 to 25 watts. This module delivers up to 3x the performance of the Jetson AGX Xavier and 5x the performance of the Jetson Xavier NX.
Versions
8GB version
16GB version
AI Performance
70 TOPS
100 TOPS
GPUs
1024-core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
GPU Frequency
765MHz (Max) 918MHz (Max)
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
CPU Frequency
2GHz (Max)
DL Accelerator
1x NVDLA v2 2x NVDLA v2
DLA Frequency
614MHz (Max)
Vision Accelerators
1x PVA v2
Video Memory
8GB 128-bit LPDDR5, 102.4GB/s
16GB 128-bit LPDDR5, 102.4GB/s
Storage
External NVMe support
Power
10W ~ 20W 10W ~ 25W
PCIe
1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)
USB* (USB 3.2 2.0, USB 3.2 2.0)
3x USB 3.2 2.0 (10 Gbps)
3x USB 2.0
CSI Cameras
Supports 4 cameras (8 via virtual channel**)
8-channel MIPI CSI-2
D-PHY 2.1 (up to 20 Gbps)
Video encoding
1x 4K60 (H.265) | 3x 4K30 (H.265)
6x 1080p60 (H.265) | 12x 1080p30 (H.265)
Video Decoding
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265)
9x 1080p60 (H.265) | 18x 1080p30 (H.265)
Display Interface
1x 8K30 Multimode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other Interfaces
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC and DSPK, PWM, GPIO
Networking
1x GbE
Dimensions
69.6 × 45mm
260-pin SO-DIMM connector
