MYZR I.MX6 CB336 Cortex A9 IoT NXP Commercial Expan

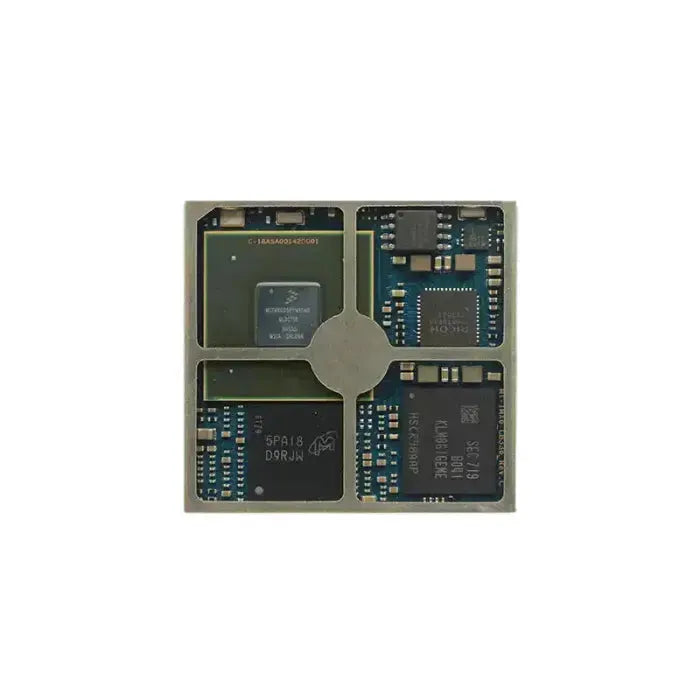

The MYZR-I.MX6-CB336 is a high-performance and power-efficient embedded core board powered by the NXP i.MX 6 series processor, based on the Arm Cortex-A9 architecture. This board is designed to deliver exceptional processing power and expandability, making it suitable for a wide range of industrial and commercial applications, including IoT, smart cities, industrial automation, and digital signage.

Key Features

High-Performance Processing

• Supports single-core, dual-core, and quad-core configurations of the Arm Cortex-A9 processor
• Clock speed up to 1.2GHz

Robust Memory & Storage

• Dual-channel 16-bit LPDDR2 RAM (available in 1GB/2GB options)
• eMMC storage: Available in 4GB/8GB (expandable up to 64GB)
• Additional 2MB SPI-NOR Flash

 Versatile Connectivity

• Ethernet: 1x 10/100/1000 Mbps Gigabit Ethernet
• USB: 1x USB2.0 HOST, 1x OTG port (max speed 480 Mbps)
• UART: 5x UART (max speed 4.0 Mbps)
• PCIe: 1x PCIe Gen2.0
• I2C: 3x I2C interfaces (max 400 kbps)
• SPI: 5x eCSPI (max speed 52 Mbps)
• CAN Bus: 2x CAN2.0 (max speed 1 Mbps)

Expandable I/O Interfaces

• SATA II: 1x SATA II (only for i.MX6Q version)
• SD Card Support: SD3.0/SDIO 3.0 (3 slots)
• PWM: 4x 16-bit PWM controllers
• EIM: 1x 16-bit expansion bus




Rich Multimedia Support

• DSI-MIPI: 1x 2-lane MIPI display interface (max speed 1.5 Gbps)
• LVDS: 2-channel 8-bit mode, max resolution 1366x768 @ 165 Mpixels/s
• RGB: Supports 8/16/18/24-bit color depth, max resolution 1366x768
• HDMI: 1x HDMI1.4 (max resolution 1920x1080 @ 60Hz)
• Camera Interfaces: 1x DVP, 1x 2-lane CSI-MIPI (max speed 1Gbps)
• Audio Interfaces: 4x I2S/AC97 (max 1.4 Mbps), 1x S/PDIF


Hardware Specifications

• Processor: NXP i.MX 6 series (6QP/Q/U/S) Core Board

• Memory: 1GB/2GB LPDDR2 (Dual-Channel 16-bit)

• Storage: 4GB/8GB eMMC (expandable up to 64GB), 2MB SPI-NOR

• Operating Temperature: 0°C to 70°C (Commercial Grade)

• Connection Type: BGA 336-pin

• Board Dimensions: 42mm x 40.5mm

Software & OS Support

• Embedded OS: Supports Linux 3.14.52 / Linux 4.1.15

• Development Frameworks: Supports QT4.8, QT5.5

• Driver Support: Extensive hardware driver support for various industrial applications

Applications

The MYZR-I.MX6-CB336 is ideal for various industrial and commercial applications, including:

• Industrial Control Systems

• Smart City Infrastructure

• Automotive Infotainment & Telematics

• IoT Gateways and Edge Computing

• Advertising Displays & Digital Signage

• Intelligent Transportation & Smart Traffic Systems

• Embedded AI & Machine Learning Applications

Why Choose MYZR-I.MX6-CB336?

• High Performance & Low Power Consumption

• Comprehensive Interface Expansion for Industrial Use

• Strong Multimedia Capabilities for Rich User Experience

• Robust Storage and Memory Configurations

• Broad OS & Development Support
