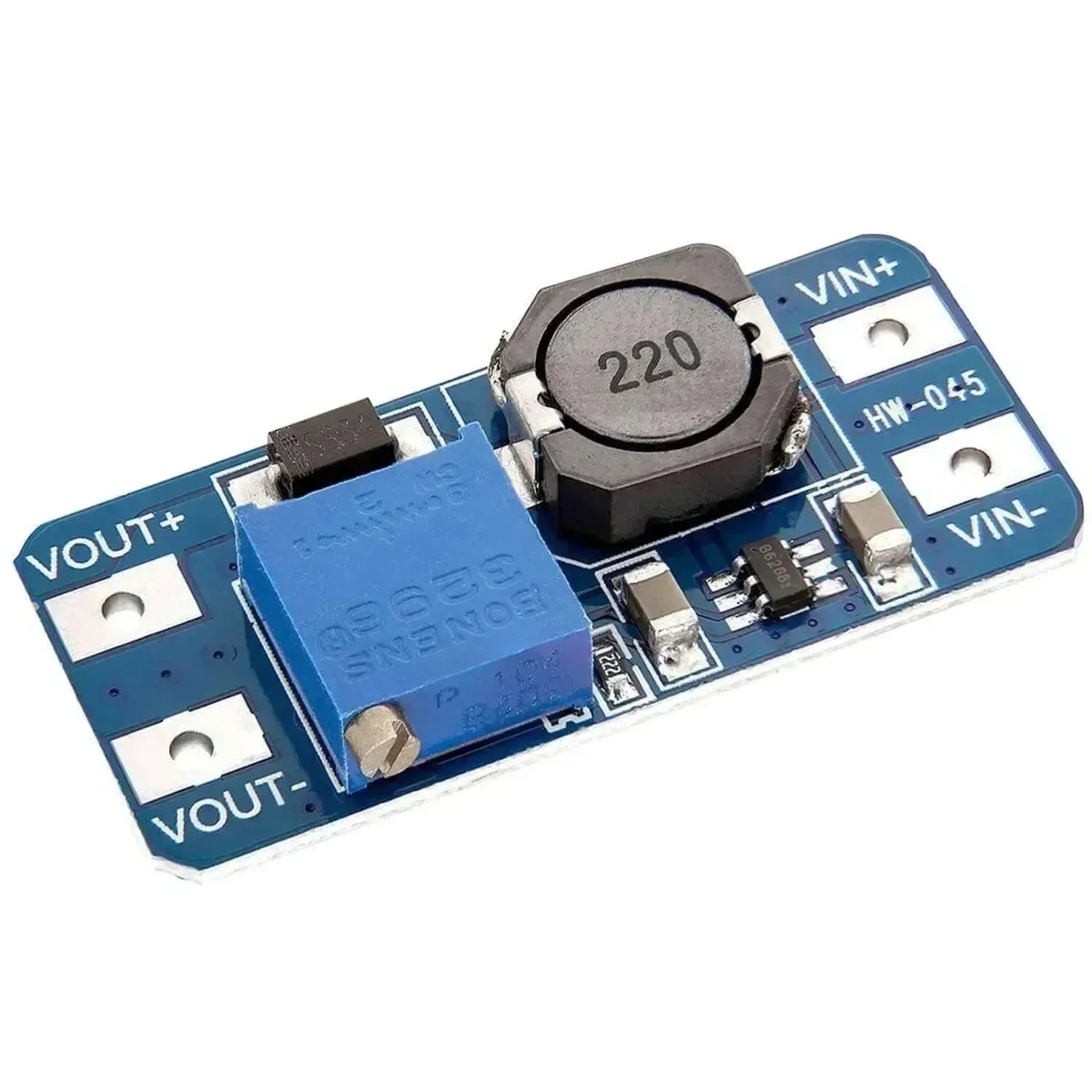

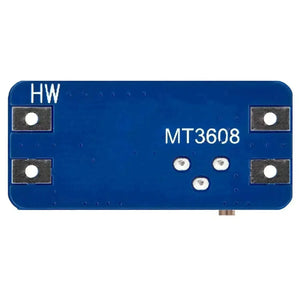

MT3608 DC-DC Power Supply Adapter Step Up Module

🏭 Product Inventory Location: China

€4,31 EUR
€4,31 EUR
€4,31 EUR
Please hurry! Only 1999 left in stock

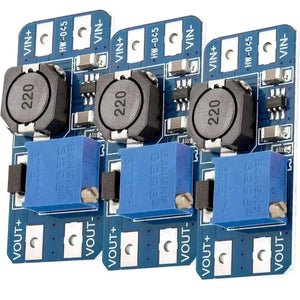

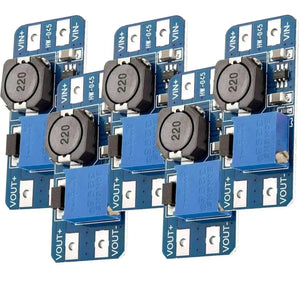

Select quantity discount:: 1x Set
Subtotal: €4,31

Free Shipping from 30€ in Germany, 50€ in the EU & US!

- All products are tax-inclusive.

- EU Countries & US Delivery Time: 2 weeks.

- Other Countries Delivery Time: 2.5 ~ 3 weeks.

MT3608_DC-DC_power_supply_adapter-06

MT3608 DC-DC Power Supply Adapter Step Up Module

€4,31

MT3608 DC-DC Power Supply Adapter Step Up Module

€4,31
Select quantity discount:: 1x Set

The MT3608 Step-Up Voltage Converter is a highly efficient, compact power solution designed to step up a lower input voltage to a higher output voltage, making it ideal for powering devices such as 5V controllers from a 3.7V lithium battery or similar low-voltage power sources.

With an efficiency of up to 93%, this converter provides a stable output voltage while minimizing power loss. It's versatile, reliable, and suitable for a wide range of applications, from DIY electronics to mobile power systems.

Features:

  • High Efficiency (Up to 93%): Achieves less than 7% loss, ensuring minimal power wastage and maximizing energy use, ideal for battery-powered devices.
  • Adjustable Output Voltage: The output voltage is adjustable using a variable resistor, allowing you to tailor the output to your specific needs. The output must always be higher than the input voltage.
  • Compact and Lightweight: Measuring just 36mm x 17mm x 6.5mm and weighing only ~ 2g, it’s perfect for integration into small, space-constrained designs.
  • Durable: With an operating temperature range from -45°C to +85°C, it’s designed to withstand challenging environments.
  • Internal Current Limiting: Protects against overcurrent and short circuit situations with an internal 4A current limit, enhancing safety and reliability.



Applications:

  • Mobile Power Supply for Controllers: Ideal for powering 5V controllers from 3.7V lithium batteries.
  • DIY Projects and Prototyping: A great solution for hobbyists and engineers working on custom electronics, robotics, and other low-voltage power applications.
  • Energy-Efficient Conversion: Perfect for minimizing power loss in battery-operated systems or solar-powered projects.



Parameters:

Parameter Value
Input Voltage Range 2V - 24V
Output Voltage Range 3V - 28V
Maximum Output Current 2A
Size 36mm x 17mm x 6.5mm
Weight Approx. 2 grams
Operating Temperature Range -45°C to +85°C
Switching Frequency 1.2 MHz
Internal Current Limit 4A

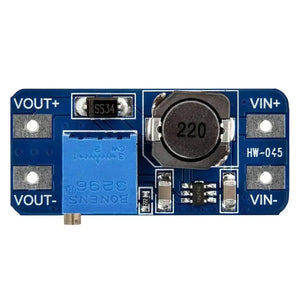

Pin Definition (Input) IN-, IN+
Pin Definition (Output) OUT-, OUT+



Installation Notes:

  • Output Voltage Adjustment: To adjust the output voltage, use the variable resistor. Ensure that the output voltage is higher than the input voltage.
  • For Higher Current Demands: If your application requires more than 1A of output current, consider adding a heat sink to prevent the unit from overheating and ensure optimal performance.



Why Choose the MT3608 Step-Up Converter?

The MT3608 is the ideal choice for your power conversion needs, offering high efficiency, a wide range of input and output voltages, and a compact design. Whether you're powering small electronic devices or creating custom power solutions, it provides reliable, energy-efficient conversion with minimal heat generation.
