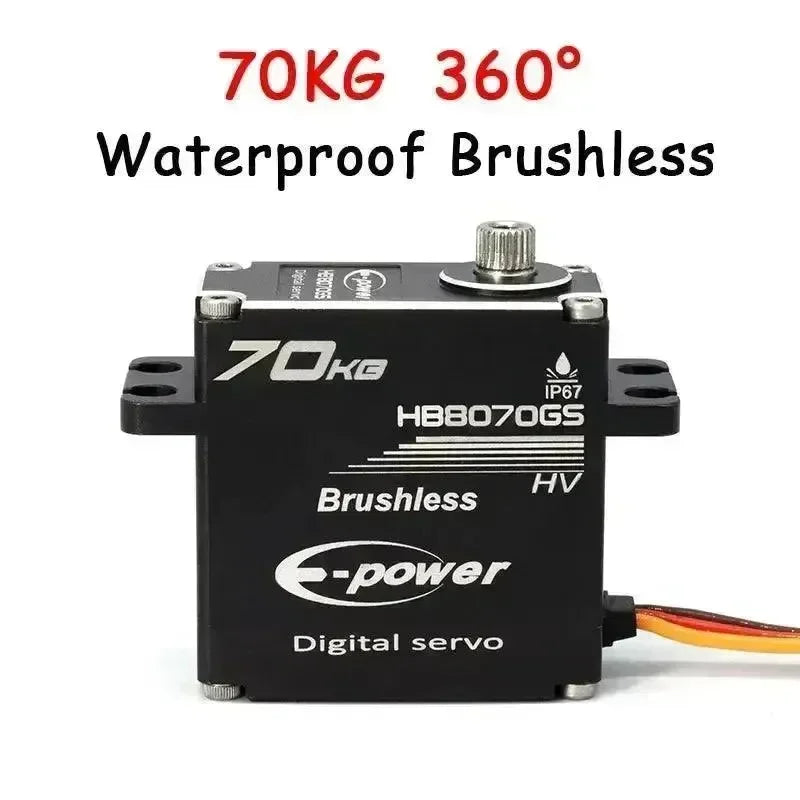

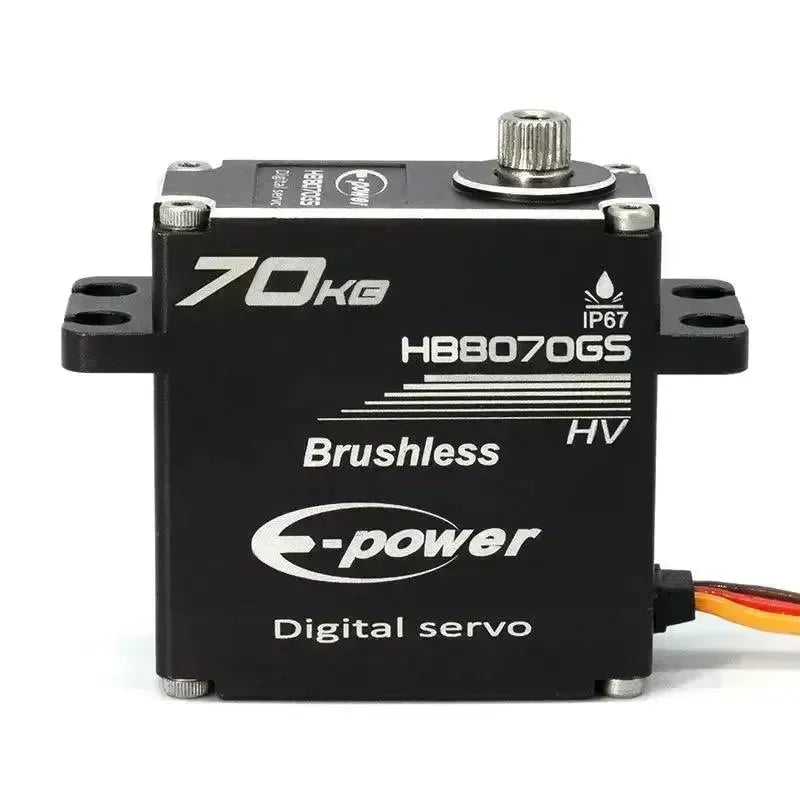

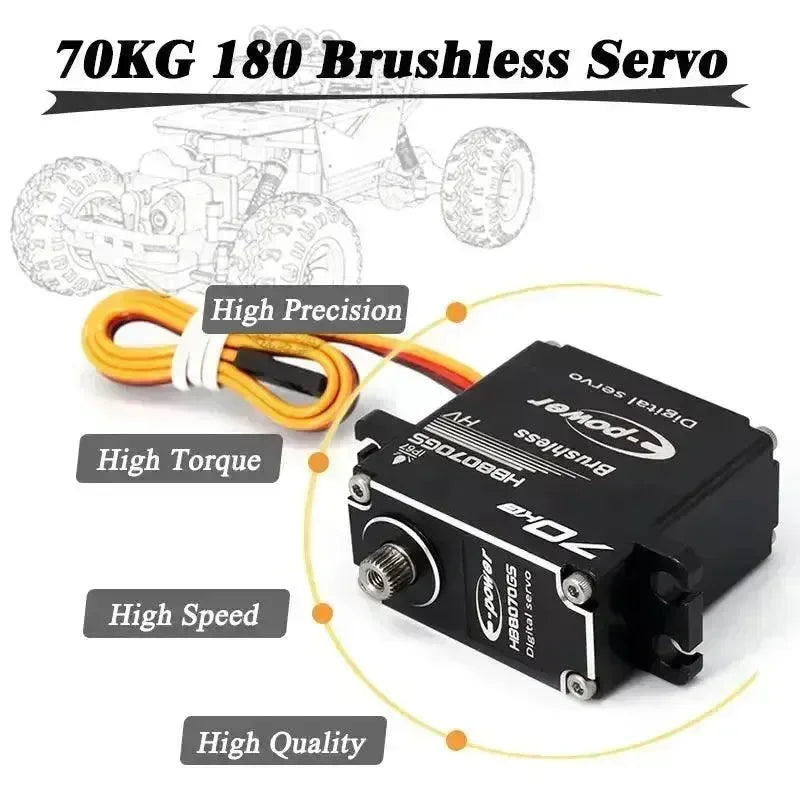

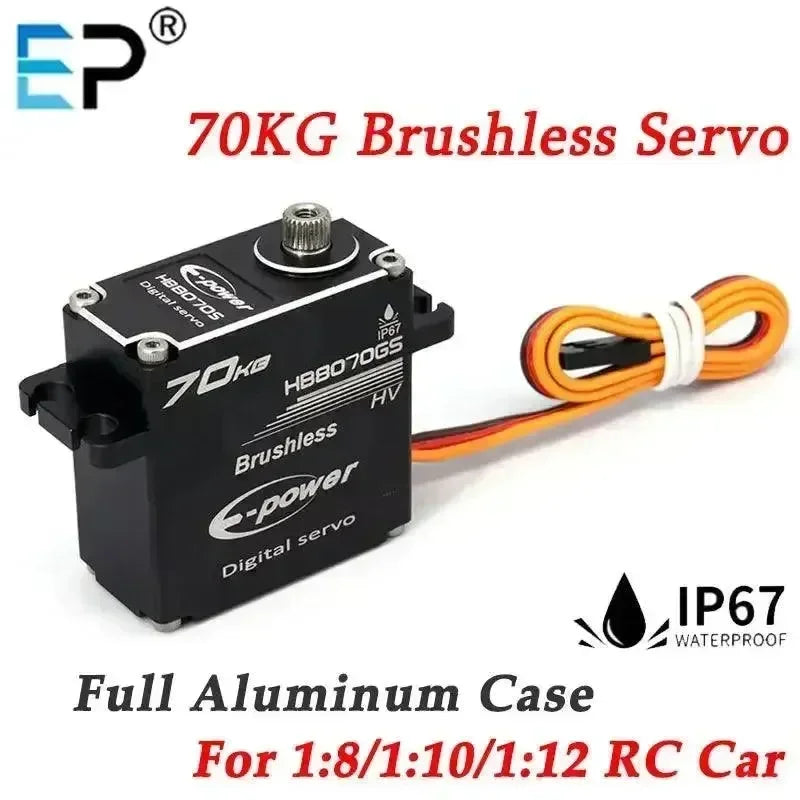

E-Power Metal Gear HV Servo 70kg 180/270/360 Degree Waterproof Brushless Full Aluminum Case Parts For 1/10 Crawler Car Boat Model
Features：
1. Waterproof performance: IP67, controllable angle range from 0 to 180 degrees, excellent linearity and precise control.
2.Widely used digital servo: steering servo (control angle 180°/270°/360° optional) compatible with 1/8, 1/10 scale Clawer Truck, Traxxas, scx10, RC car/robot/boat and other RC models.
3.Metal Gear Brushless Servo: Equipped with stainless steel gears, full CNC aluminum housing, low noise, light weight, double ball bearings.
Product Description：
E-Power digital waterproof servo with brushless/coreless motor is faster, more responsive and better weighted than ordinary servos! The price is more favorable! Better after-sales service! All for customer's good shopping experience~

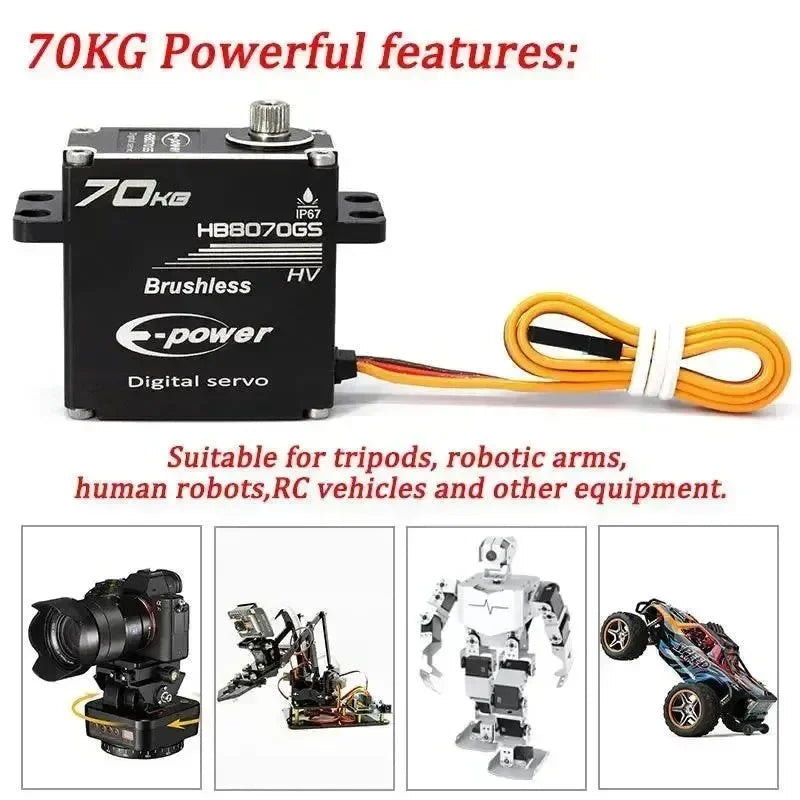

It is a great accessory for your RC cars, RC trucks, track boats, robots and DIY model toys!
Specifications:
Brand: E-power
Model: HB8070GS
Ball Bearing: 2BB
Diver type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dead band width: 1 usec
Gear Material: Metal Gear
Case Material: Aluminum Case
Operation Voltage Range: 10V ~15V
Operation Temperature Range: -20C°~ +60C°
Control Angle: 180°/270°/360° Optional
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Control System: PWM Control (1500usec in the central point)
Circle: ＞100 milion times without load
Operation Travel: 60°±1
Limit angle: 180° 270° 360°± 1
Dimensions: 40x20x40.50mm
Weight: 89g (without servo horn)
Standing Torque: 0.13sec/60°,56kg-cm-@10V ;0.1sec/60°,65kg-cm-@12V；0.09sec/60°,70kg-cm-@14V
Idle Current: 400mA-@10V ; 450mA-@12V； 550mA-@14V
Running Current: 5500mA-@10V ; 6800mA-@12V；8000mA-@14V

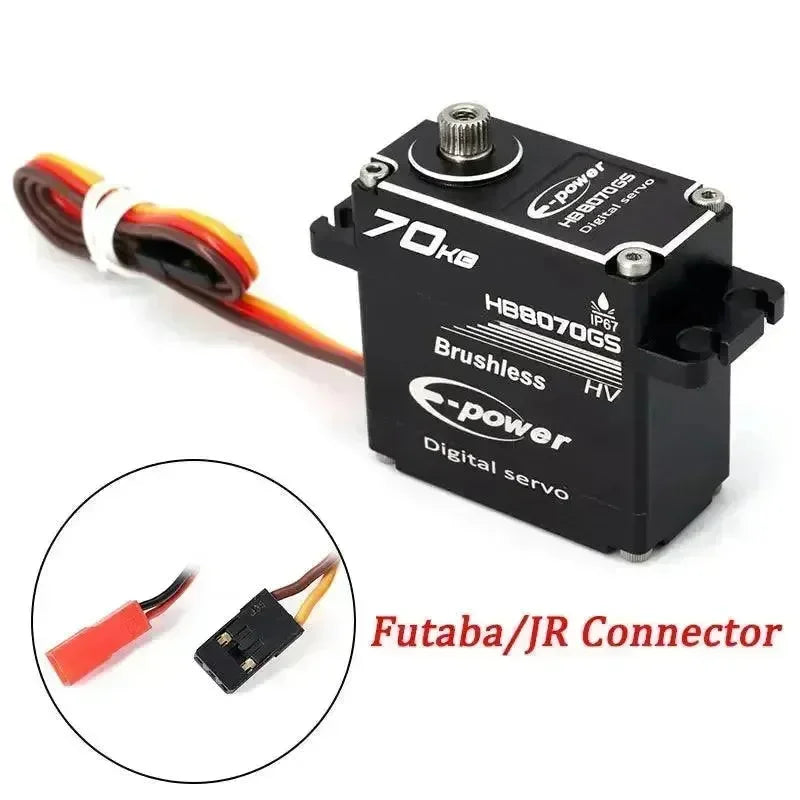

Connector Wire Length: 300MM JR JST
Connector Wire Gauge: 22AWG
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Black): Negative
Wire Info (Yellow): S Sinqle

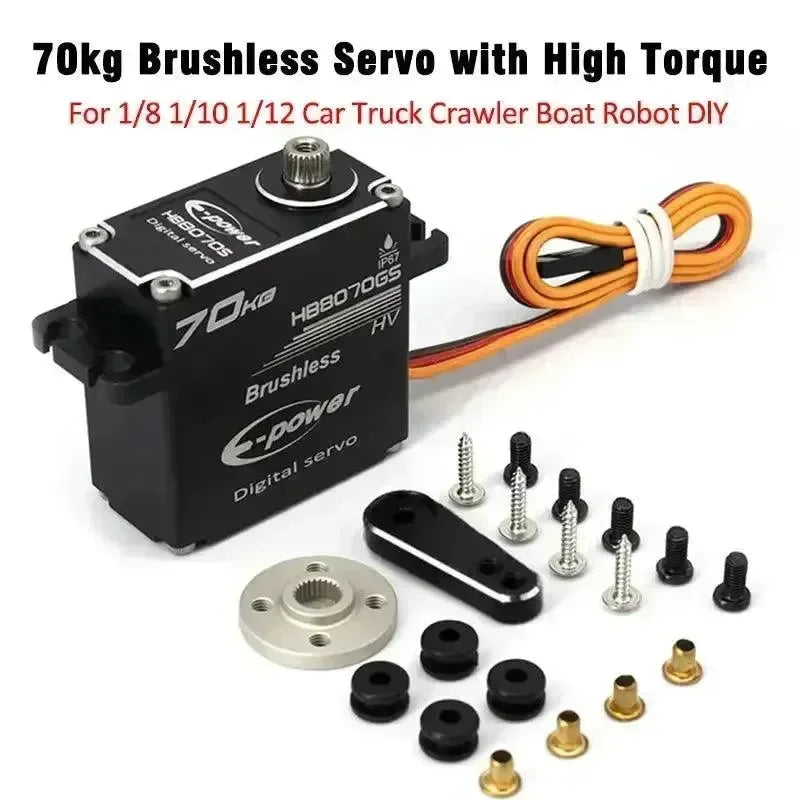

Package included:
1 x Servo
1 x Servo Accessories
Note:
Due to the different monitor and light effect, the actual color maybe a slight different from the picture color.Please allow 1-3mm differs due to manual measurement.
