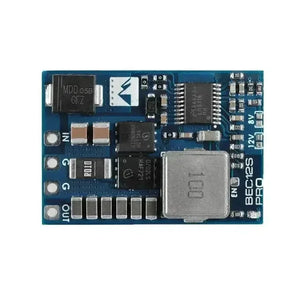

Mateksys BEC12S-PRO, 9-55V TO 5V/8V/12V-5A

Features

• Wide 9V to 55V Operating Input Range with TVS protection

• 3x Output voltage options,  5.2V, 8V or 12V.  Default 5.2V.

• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%

• Supports continuous output current of up to 5A,  peak current of 9A.

• Output ripple  30mV (VIN=50V,  Output 5.2V @ 5A),  60mV (VIN=50V,  Output 12V @ 5A)

• Standby current: 5~10mA

• No reverse-input voltage protection

• Thermal Shutdown

• Output Short-circuit tolerant (2 seconds)

• Overcurrent protection & self-recovery

• Dropout voltage: 2V  (Input>=14V is required for stable 12V output)

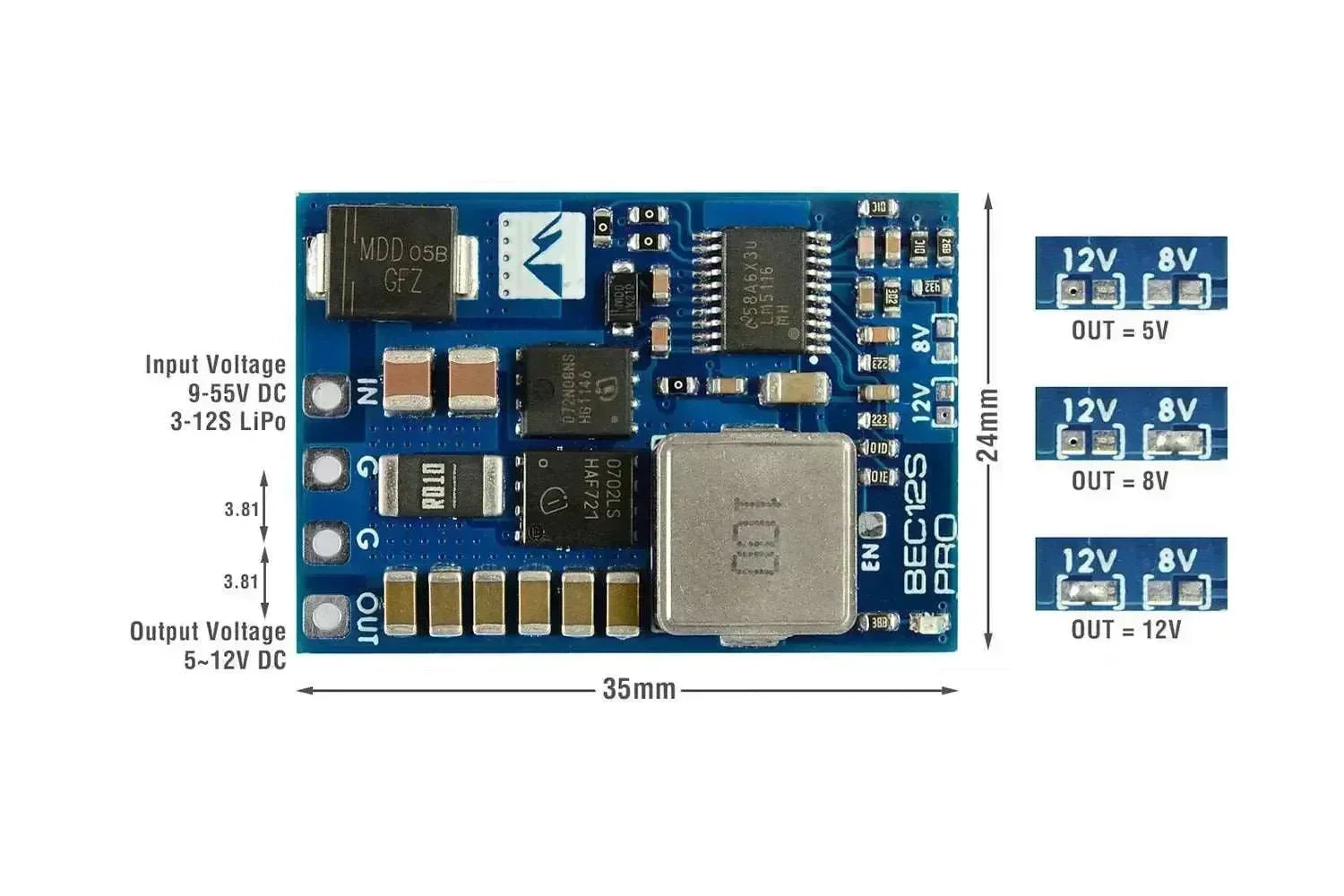

• Pins distance: 3.81mm

• Size & Weight: 35 x 24 x 5.5mm,  5g

• Packing: 1pc/package
