M5StickC PLUS ESP32-PICO Mini IoT Development Kit with Watch Accessories
M5StickC PLUS is powered by ESP32-PICO-D4 with Wi-Fi and is an upgrade of the original M5StickC with a bigger screen .It is a portable, easy-to-use, open source, IoT development board. This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototyping. Developing with M5StickC PLUS takes away a lot of the pains from the development process. M5StickC Plus is one of the core devices in M5Stacks product series. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU,etc. Improvements from the regular StickC are a buzzer, bigger screen (1.14-inch, 135 * 240 resolution LCD Screen) and more stable hardware design. This revision increases the display area by 18.7%, and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products. Power switch operation:
- Power on :Press power button for 2 seconds
- Power off :Press power button for 6 seconds
Product Features
- ESP32-based support Wi-Fi
- Built-in 6-Axis IMU
- Red LED
- IR transmitter
- Microphone
- RTC
- Buttons, LCD(1.14 inch)
- Built-in Lithium Polymer Battery
- Extendable Socket
- Built-in Passive Buzzer
- Wearable & Wall mounted
- Compatible with multi-platform development:
Include

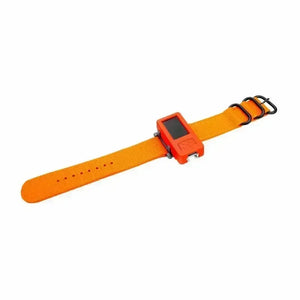

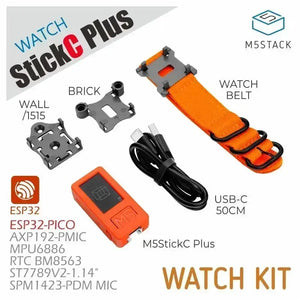

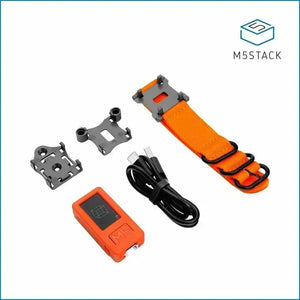

- 1x M5StickC Plus with watch accessories
Applications
- Internet of things terminal controller
- Wearable devices
- Stem education product
- DIY creation
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD screen | 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 |
| Button | Custom button x 2 |
| LED | RED LED |
| MEMS | MPU6886 |
| Buzzer | built-in buzzer |
| IR | Infrared transmission |
| MIC | SPM1423 |
| RTC | BM8563 |
| PMU | AXP192 |
| Battery | 120 mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| PIN port | G0, G25/G36, G26, G32, G33 |
| Operating Temperature | 0°C to 60°C |
| Net weight | 15g |
| Gross weight | 21g |
| Product Size | 48.2*25.5*13.7mm |
| Package Size | 50*25*15mm |
| Case Material | Plastic ( PC ) |
