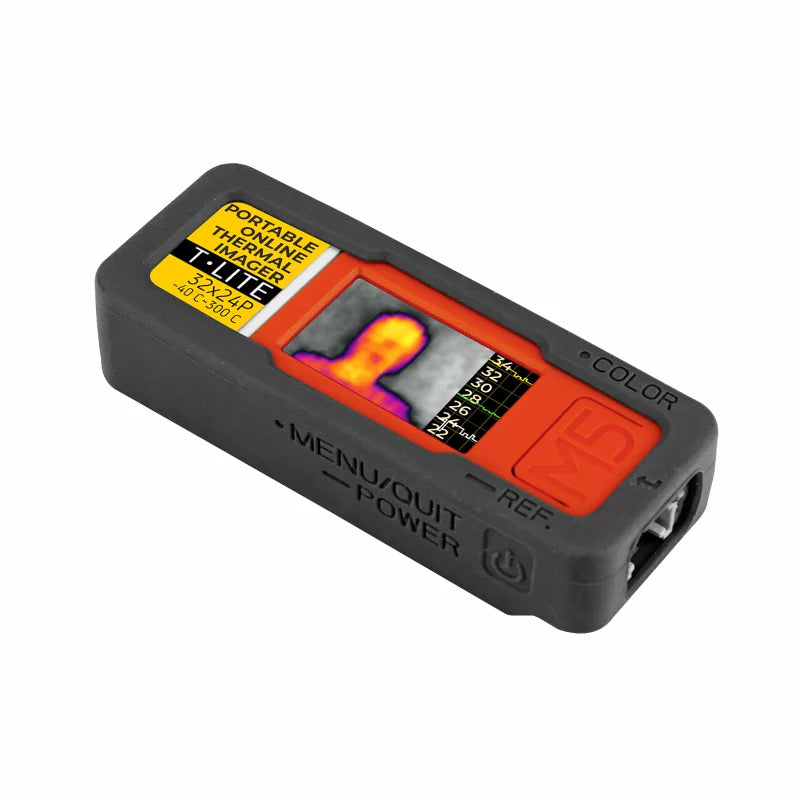

T-Lite is a thermal camera with online detection function, the product is mainly composed of M5StickC-PLUS and UNIT THERMAL, using MLX90640-BAA infrared imaging sensor. As an esp32 cam, it uses ESP32-PICO-D4 chip, with WIFI function, 135*240 resolution TFT screen, built-in 160mAh battery, its "T-Lite" The T in the name stands for Temperture temperature, and Lite stands for small, highly integrated. Users can set the high temperature warning function, and view temperature images and data in real time through the cloud and LAN. M5 also provides an online data API interface, which can obtain remote images and corresponding data through EZData, which is convenient for engineering project applications.
Features
ESP32-PICO based,WIFI
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery
Built-in Passive Buzzer
Field of View: 110°×75°
Measurement Range: -40°C ~ 300°C

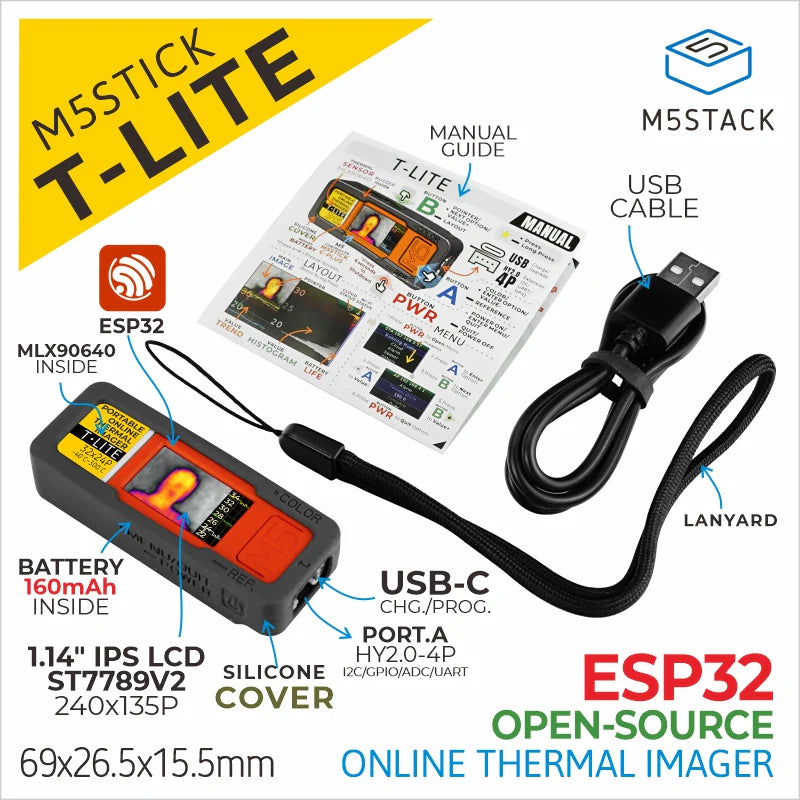

Includes
1 × T-Lite
1 × Hanging wire
1x Type-C USB(20cm)
1 × User manual
Applications
Temperature detection warning
Circuit temperature anomaly monitoring
High precision non-contact temperature measurements
Intrusion / Movement detection
Visual IR thermometers
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-PICO,240MHz dual core, 600 DMIPS, 520KB SRAM |
| Sensor | MLX90640 |
| Field of View | 110°×75° |
| Resolution | 32×24 |
| Flash Memory | 4MB Flash |
| Power Input | 5V @ 500mA |
| Port | TypeC |
| LCD screen | 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 |
| MIC | SPM1423 |
| Buzzer | Passive buzzer |
| PMU | AXP192 |
| Battery | 160 mAh @ 3.7V |
| Product Size | 69mm × 26.6mm × 6.35mm |
| Package Size | 110mm × 87mm × 25mm |
| Product Weight | 30.1g |
| Package Weight | 62.9g |
